Mr. Gasket | SKU:
7606G

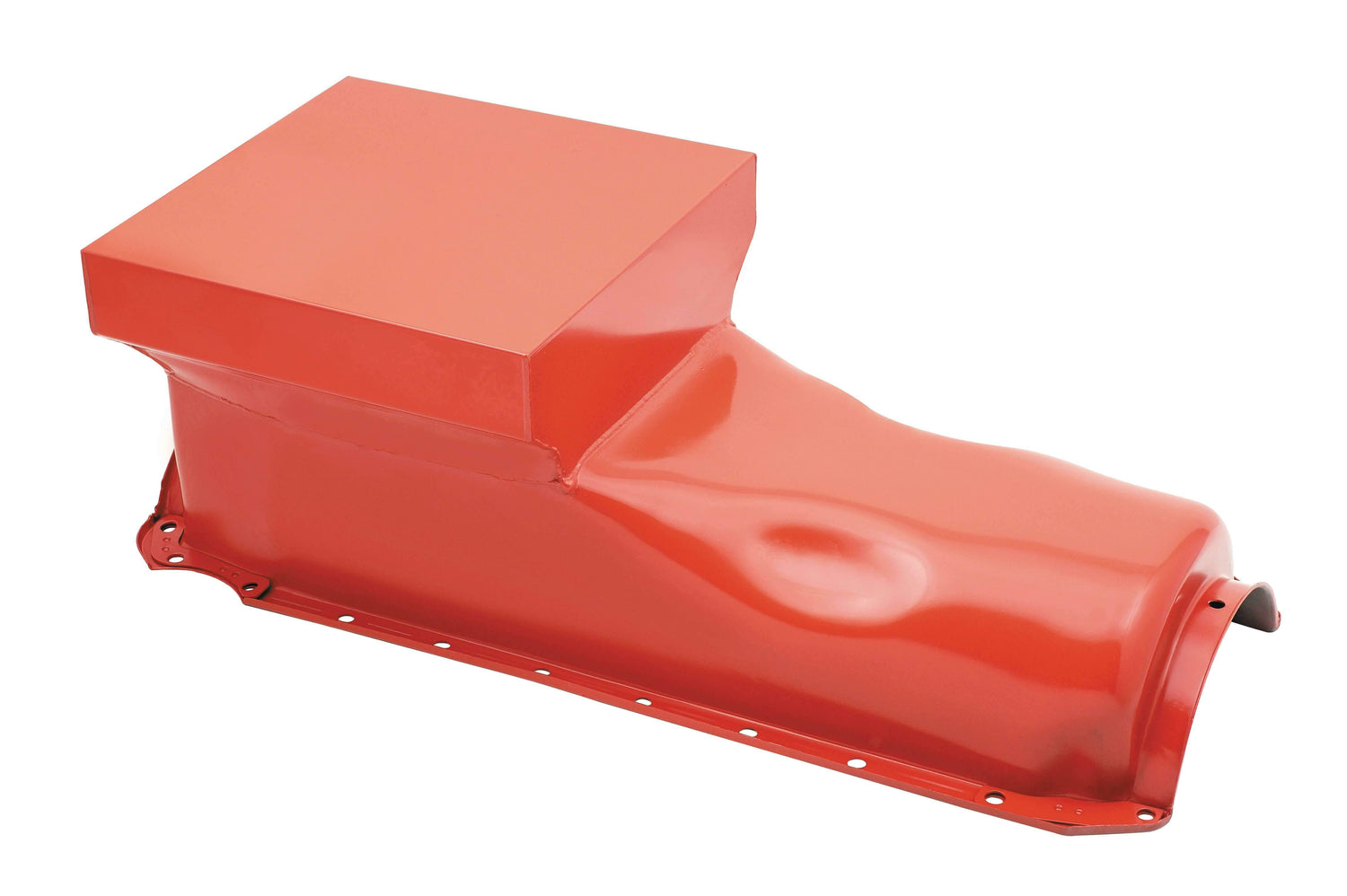

Mr. Gasket Low Profile Oil Pan - Orange - 7606G
Regular price
$231.95 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Mr. Gasket Low Profile Oil Pan - Orange - 7606G is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Designed for most big block Chevrolet applications, the low profile sump design allows increased oil capacity without restricting ground clearance. Specially designed internal trap door baffling, combined with custom oil pump pick-ups, keep oil pressure fluctuation to a minimum. These oil pan measure 8-1/4 inch deep from the top side rail to bottom sump, and feature bright orange paint finish. For both street and racing applications. Oil pan capacity is 6 quarts.
Features:
- Additional oil capacity - 6 Quarts
- Superior oil control due to internal trap door baffle
- Good ground clearance
- Prepainted bright orange
- Depth of Oil Pan: 8-1/4"
- Width of Oil Pan: 8-3/8"
- Length of Oil Pan: 22-3/4"
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1969 - 1970 | Chevrolet | Nova | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C30 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C30 Pickup | 454/7.4 V8 | |
| 1967 - 1969 | Chevrolet | Camaro | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | Camaro | 402/6.6 V8 | |
| 1966 - 1969 | Chevrolet | Caprice | 396/6.5 V8 | |
| 1966 - 1969 | Chevrolet | Caprice | 427/7 V8 | |
| 1970 - 1976 | Chevrolet | Caprice | 454/7.4 V8 | |
| 1971 - 1972 | Chevrolet | Caprice | 402/6.6 V8 | |
| 1970 - 1972 | GMC | C35/C3500 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C35/C3500 Pickup | 454/7.4 V8 | |
| 1973 - 1976 | GMC | Jimmy | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K15/K1500 Pickup | 396/6.5 V8 | |
| 1968 | GMC | K15/K1500 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | GMC | K15/K1500 Suburban | 402/6.6 V8 | |
| 1974 | GMC | K15/K1500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K25/K2500 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | GMC | K25/K2500 Pickup | 454/7.4 V8 | |
| 1968 | GMC | K25/K2500 Suburban | 396/6.5 V8 | |
| 1974 | GMC | K25/K2500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K35/K3500 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | GMC | K35/K3500 Pickup | 454/7.4 V8 | |
| 1970 - 1971 | GMC | K35/K3500 Pickup | 402/6.6 V8 | |
| 1971 - 1975 | GMC | Sprint | 402/6.6 V8 | |
| 1971 - 1975 | GMC | Sprint | 454/7.4 V8 | |
| 1966 - 1970 | Chevrolet | Chevelle | 396/6.5 V8 | |
| 1970 - 1973 | Chevrolet | Chevelle | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Chevelle | 402/6.6 V8 | |
| 1968 | Chevrolet | Chevy II | 396/6.5 V8 | |
| 1966 - 1969 | Chevrolet | Corvette | 427/7 V8 | |
| 1970 - 1974 | Chevrolet | Corvette | 454/7.4 V8 | |
| 1966 - 1970 | Chevrolet | El Camino | 396/6.5 V8 | |
| 1970 - 1975 | Chevrolet | El Camino | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | El Camino | 402/6.6 V8 | |
| 1970 - 1975 | Chevrolet | Bel Air | 454/7.4 V8 | |
| 1976 - 1978 | Chevrolet | K5 Blazer | 454/7.4 V8 | |
| 1973 - 1974 | Chevrolet | G10 Van | 454/7.4 V8 | |
| 1973 - 1974 | Chevrolet | G20 Van | 454/7.4 V8 | |
| 1973 - 1974 | Chevrolet | G30 Van | 454/7.4 V8 | |
| 1966 - 1969 | Chevrolet | Impala | 427/7 V8 | |
| 1965 - 1969 | Chevrolet | Impala | 396/6.5 V8 | |
| 1970 - 1976 | Chevrolet | Impala | 454/7.4 V8 | |
| 1971 - 1972 | Chevrolet | Impala | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | K10 Pickup | 396/6.5 V8 | |
| 1974 | Chevrolet | K10 Pickup | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | K10 Suburban | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | K10 Suburban | 396/6.5 V8 | |
| 1968 - 1969 | Chevrolet | K20 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | K20 Pickup | 454/7.4 V8 | |
| 1973 - 1980 | Chevrolet | C10 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C20 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C20 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C20 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C20 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C20 Suburban | 402/6.6 V8 | |
| 1973 - 1986 | Chevrolet | C20 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C30 Pickup | 396/6.5 V8 | |
| 1975 - 1978 | GMC | C35 | 454/7.4 V8 | |
| 1979 - 1990 | GMC | C3500 | 454/7.4 V8 | |
| 1975 - 1976 | GMC | G25 | 454/7.4 V8 | |
| 1976 | GMC | G35 | 454/7.4 V8 | |
| 1988 - 1990 | GMC | G3500 | 454/7.4 V8 | |
| 1976 | GMC | K15 | 454/7.4 V8 | |
| 1980 | GMC | K1500 | 454/7.4 V8 | |
| 1976 - 1978 | GMC | K25 | 454/7.4 V8 | |
| 1976 - 1977 | GMC | K25 Suburban | 454/7.4 V8 | |
| 1979 - 1990 | GMC | K3500 | 454/7.4 V8 | |
| 1987 - 1989 | GMC | R2500 | 454/7.4 V8 | |
| 1987 - 1990 | GMC | R2500 Suburban | 454/7.4 V8 | |
| 1987 - 1990 | GMC | R3500 | 454/7.4 V8 | |
| 1987 - 1990 | GMC | V3500 | 454/7.4 V8 | |
| 1965 - 1969 | Chevrolet | Bel Air | 396/6.5 V8 | |
| 1966 - 1969 | Chevrolet | Bel Air | 427/7 V8 | |
| 1971 - 1972 | Chevrolet | Bel Air | 402/6.6 V8 | |
| 1965 - 1969 | Chevrolet | Biscayne | 396/6.5 V8 | |
| 1966 - 1969 | Chevrolet | Biscayne | 427/7 V8 | |
| 1970 - 1972 | Chevrolet | Biscayne | 454/7.4 V8 | |
| 1971 - 1972 | Chevrolet | Biscayne | 402/6.6 V8 | |
| 1973 | Chevrolet | Blazer | 454/7.4 V8 | |
| 1972 | Chevrolet | Brookwood | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | C10 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C10 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C10 Pickup | 454/7.4 V8 | |
| 1973 - 1974 | GMC | C15/C1500 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C15/C1500 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C15/C1500 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C15/C1500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C25/C2500 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C15/C1500 Suburban | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C25/C2500 Pickup | 454/7.4 V8 | |
| 1970 - 1972 | GMC | C25/C2500 Pickup | 402/6.6 V8 | |
| 1968 - 1969 | GMC | C25/C2500 Suburban | 396/6.5 V8 | |
| 1974 | GMC | C25/C2500 Suburban | 454/7.4 V8 | |
| 1970 - 1972 | GMC | C25/C2500 Suburban | 402/6.6 V8 | |
| 1975 - 1980 | Chevrolet | C10 | 454/7.4 V8 | |
| 1990 | Chevrolet | C1500 | 454/7.4 V8 | |
| 1975 - 1986 | Chevrolet | C20 | 454/7.4 V8 | |
| 1975 - 1986 | Chevrolet | C30 | 454/7.4 V8 | |
| 1988 - 1990 | Chevrolet | C3500 | 454/7.4 V8 | |
| 1976 | Chevrolet | G20 | 454/7.4 V8 | |
| 1975 - 1990 | Chevrolet | G30 | 454/7.4 V8 | |
| 1976 - 1980 | Chevrolet | K10 | 454/7.4 V8 | |
| 1976 - 1978 | Chevrolet | K20 | 454/7.4 V8 | |
| 1973 - 1985 | Chevrolet | K20 Suburban | 454/7.4 V8 | |
| 1977 - 1986 | Chevrolet | K30 | 454/7.4 V8 | |
| 1988 - 1990 | Chevrolet | K3500 | 454/7.4 V8 | |
| 1973 - 1975 | Chevrolet | Laguna | 454/7.4 V8 | |
| 1973 - 1975 | Chevrolet | Malibu | 454/7.4 V8 | |
| 1970 - 1975 | Chevrolet | Monte Carlo | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | R20 | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | R20 Suburban | 454/7.4 V8 | |
| 1989 | Chevrolet | R2500 | 454/7.4 V8 | |
| 1989 - 1990 | Chevrolet | R2500 Suburban | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | R30 | 454/7.4 V8 | |
| 1989 - 1990 | Chevrolet | R3500 | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | V20 Suburban | 454/7.4 V8 | |
| 1990 | Chevrolet | V2500 Suburban | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | V30 | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C35/C3500 Pickup | 396/6.5 V8 | |
| 1968 - 1969 | Chevrolet | C10 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C10 Suburban | 402/6.6 V8 | |
| 1970 - 1971 | Chevrolet | K30 Pickup | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | K30 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | K30 Pickup | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Kingswood | 454/7.4 V8 | |
| 1971 - 1972 | Chevrolet | Kingswood | 402/6.6 V8 | |
| 1966 - 1967 | Chevrolet | Malibu | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | Monte Carlo | 402/6.6 V8 | |
| 1970 | Chevrolet | Nova | 402/6.6 V8 | |
| 1970 - 1972 | Chevrolet | Townsman | 454/7.4 V8 | |
| 1972 | Chevrolet | Townsman | 402/6.6 V8 | |
| 1968 - 1969 | GMC | C15/C1500 Pickup | 396/6.5 V8 | |
| 1989 - 1990 | Chevrolet | V3500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C15 | 454/7.4 V8 | |
| 1979 - 1980 | GMC | C1500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C15 Suburban | 454/7.4 V8 | |
| 1979 - 1980 | GMC | C1500 Suburban | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C25 | 454/7.4 V8 | |
| 1979 - 1986 | GMC | C2500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C25 Suburban | 454/7.4 V8 | |
| 1979 - 1986 | GMC | C2500 Suburban | 454/7.4 V8 |
Specs:
| Application | 1965-1990 Big Block Chevy |
|---|---|
| Brand | Mr. Gasket |
| Color | Orange |
| Emission Code | 5 |
| Material | Steel |
| Product Type | Oil Pan Kit |
| Warranty | Limited 90 Day |
| Weight | 14 |
