Mr. Gasket | SKU:
4816G

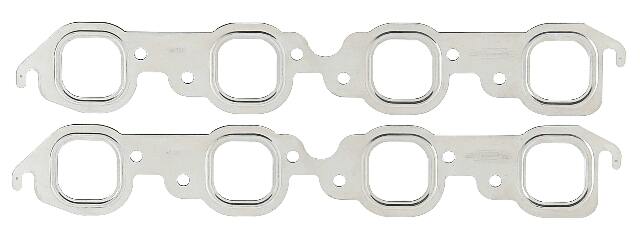

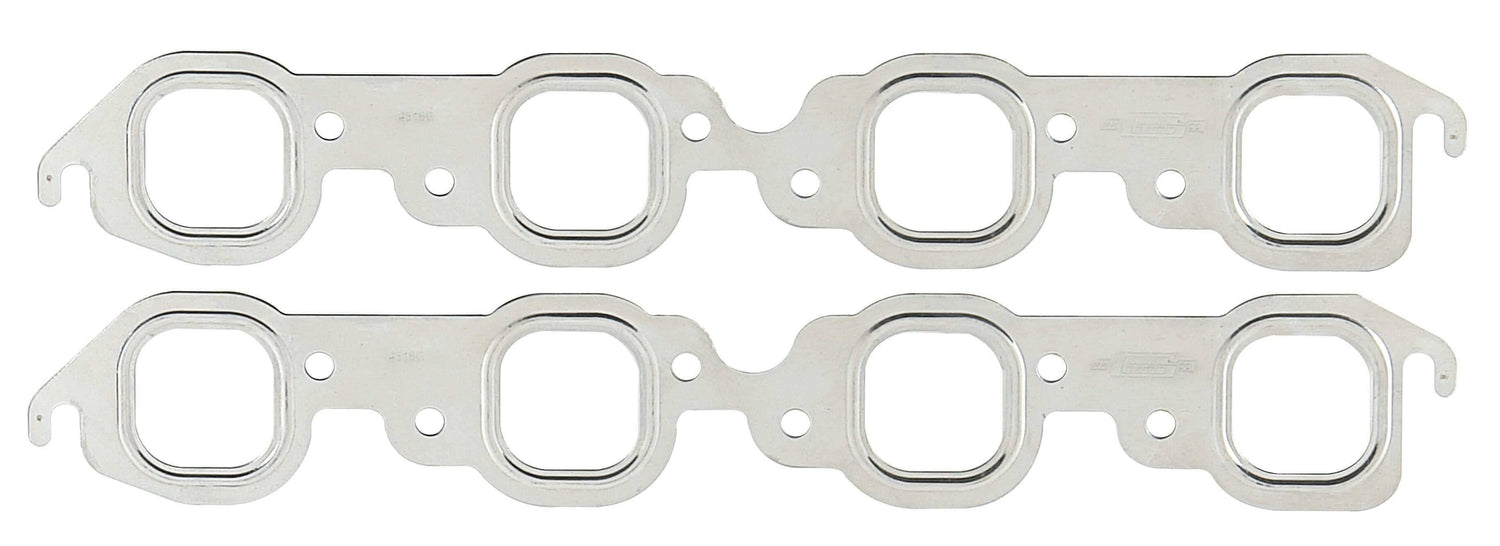

Mr. Gasket MLS Header Gaskets - 4816G
Regular price
$42.70 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Mr. Gasket MLS Header Gaskets - 4816G is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Multi-Layered Steel (MLS) exhaust gaskets are designed for extreme cylinder pressures produced by high horsepower high compression turbo-charged, supercharged and nitrous oxide injected engines. Manufactured from three stainless steel layers, they resist corrosion, will not burn through or push out and maintain maximum fastener torque retention. Stress formed inner and outer layer embossments act like springs that rebound under exhaust flange clamp load, creating force to seal extreme exhaust pressures. Total gasket thickness .075 inch. Will not deteriorate from scrubbing action caused by different expansion rates in aluminum and steel materials.
Features:
- Designed for extreme cylinder pressures by high horsepower-high compression turbocharged, supercharged and nitrous oxide injected engines
- Manufactured from three stainless steel layers, they resist corrosion, will not burn through or push out and maintain maximum fastener torque retention
- Stress formed inner and outer layer embossments act like springs that rebound under flange clamp load, creating force to seal extreme pressures
- Will not deteriorate from scrubbing action caused by different expansion rates in aluminum and steel materials
- Total gasket thickness .075 inch
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1979 - 1986 | GMC | C3500 | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Townsman | 454/7.4 V8 | |
| 1972 | Chevrolet | Townsman | 402/6.6 V8 | |
| 1968 - 1969 | GMC | C15/C1500 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C15/C1500 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C15/C1500 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C15/C1500 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C15/C1500 Suburban | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C15/C1500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C25/C2500 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C25/C2500 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C25/C2500 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C25/C2500 Suburban | 396/6.5 V8 | |
| 1974 | GMC | C25/C2500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C35/C3500 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C25/C2500 Suburban | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C35/C3500 Pickup | 454/7.4 V8 | |
| 1970 - 1972 | GMC | C35/C3500 Pickup | 402/6.6 V8 | |
| 1973 - 1976 | GMC | Jimmy | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K15/K1500 Pickup | 396/6.5 V8 | |
| 1968 | GMC | K15/K1500 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | GMC | K15/K1500 Suburban | 402/6.6 V8 | |
| 1974 | GMC | K15/K1500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K25/K2500 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | GMC | K25/K2500 Pickup | 454/7.4 V8 | |
| 1968 | GMC | K25/K2500 Suburban | 396/6.5 V8 | |
| 1974 | GMC | K25/K2500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K35/K3500 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | GMC | K35/K3500 Pickup | 454/7.4 V8 | |
| 1970 - 1971 | GMC | K35/K3500 Pickup | 402/6.6 V8 | |
| 1969 - 1970 | Chevrolet | Nova | 396/6.5 V8 | |
| 1971 - 1972 | Chevrolet | Impala | 402/6.6 V8 | |
| 1970 - 1976 | Chevrolet | Impala | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | K10 Pickup | 396/6.5 V8 | |
| 1974 | Chevrolet | K10 Pickup | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | K10 Suburban | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | K10 Suburban | 396/6.5 V8 | |
| 1968 - 1969 | Chevrolet | K20 Pickup | 396/6.5 V8 | |
| 1970 - 1974 | Chevrolet | Corvette | 454/7.4 V8 | |
| 1973 - 1974 | Chevrolet | G10 Van | 454/7.4 V8 | |
| 1973 - 1974 | Chevrolet | G20 Van | 454/7.4 V8 | |
| 1973 - 1974 | Chevrolet | G30 Van | 454/7.4 V8 | |
| 1963 - 1969 | Chevrolet | Impala | 427/7 V8 | |
| 1965 - 1969 | Chevrolet | Impala | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | K20 Pickup | 454/7.4 V8 | |
| 1973 - 1985 | Chevrolet | K20 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | K30 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | K30 Pickup | 454/7.4 V8 | |
| 1970 - 1971 | Chevrolet | K30 Pickup | 402/6.6 V8 | |
| 1970 - 1972 | Chevrolet | Kingswood | 454/7.4 V8 | |
| 1971 - 1972 | Chevrolet | Kingswood | 402/6.6 V8 | |
| 1970 - 1975 | Chevrolet | Bel Air | 454/7.4 V8 | |
| 1976 - 1978 | Chevrolet | K5 Blazer | 454/7.4 V8 | |
| 1975 - 1980 | Chevrolet | C10 | 454/7.4 V8 | |
| 1973 - 1980 | Chevrolet | C10 Suburban | 454/7.4 V8 | |
| 1975 - 1986 | Chevrolet | C20 | 454/7.4 V8 | |
| 1973 - 1986 | Chevrolet | C20 Suburban | 454/7.4 V8 | |
| 1975 - 1986 | Chevrolet | C30 | 454/7.4 V8 | |
| 1970 - 1976 | Chevrolet | Caprice | 454/7.4 V8 | |
| 1976 | Chevrolet | G20 | 454/7.4 V8 | |
| 1975 - 1976 | Chevrolet | G30 | 454/7.4 V8 | |
| 1976 - 1980 | Chevrolet | K10 | 454/7.4 V8 | |
| 1976 - 1978 | Chevrolet | K20 | 454/7.4 V8 | |
| 1977 - 1986 | Chevrolet | K30 | 454/7.4 V8 | |
| 1973 - 1975 | Chevrolet | Laguna | 454/7.4 V8 | |
| 1973 - 1975 | Chevrolet | Malibu | 454/7.4 V8 | |
| 1970 - 1975 | Chevrolet | Monte Carlo | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | R30 | 454/7.4 V8 | |
| 1989 | Chevrolet | R3500 | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | V30 | 454/7.4 V8 | |
| 1989 | Chevrolet | V3500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C15 | 454/7.4 V8 | |
| 1979 - 1980 | GMC | C1500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C15 Suburban | 454/7.4 V8 | |
| 1979 - 1980 | GMC | C1500 Suburban | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C25 | 454/7.4 V8 | |
| 1979 - 1986 | GMC | C2500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C25 Suburban | 454/7.4 V8 | |
| 1979 - 1986 | GMC | C2500 Suburban | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C35 | 454/7.4 V8 | |
| 1966 - 1967 | Chevrolet | Malibu | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | Monte Carlo | 402/6.6 V8 | |
| 1970 | Chevrolet | Nova | 402/6.6 V8 | |
| 1975 - 1976 | GMC | G25 | 454/7.4 V8 | |
| 1976 | GMC | G35 | 454/7.4 V8 | |
| 1976 | GMC | K15 | 454/7.4 V8 | |
| 1980 | GMC | K1500 | 454/7.4 V8 | |
| 1976 - 1978 | GMC | K25 | 454/7.4 V8 | |
| 1976 - 1977 | GMC | K25 Suburban | 454/7.4 V8 | |
| 1979 - 1986 | GMC | K3500 | 454/7.4 V8 | |
| 1987 - 1989 | GMC | R3500 | 454/7.4 V8 | |
| 1987 - 1989 | GMC | V3500 | 454/7.4 V8 | |
| 1963 - 1969 | Chevrolet | Bel Air | 427/7 V8 | |
| 1965 - 1969 | Chevrolet | Bel Air | 396/6.5 V8 | |
| 1971 - 1972 | Chevrolet | Bel Air | 402/6.6 V8 | |
| 1963 - 1969 | Chevrolet | Biscayne | 427/7 V8 | |
| 1965 - 1969 | Chevrolet | Biscayne | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | Biscayne | 454/7.4 V8 | |
| 1971 - 1972 | Chevrolet | Biscayne | 402/6.6 V8 | |
| 1973 | Chevrolet | Blazer | 454/7.4 V8 | |
| 1972 | Chevrolet | Brookwood | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | C10 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C10 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C10 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C10 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C10 Suburban | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | C20 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C20 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C20 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C20 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C20 Suburban | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | C30 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C30 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C30 Pickup | 454/7.4 V8 | |
| 1967 - 1969 | Chevrolet | Camaro | 396/6.5 V8 | |
| 1969 | Chevrolet | Camaro | 427/7 V8 | |
| 1970 - 1972 | Chevrolet | Camaro | 402/6.6 V8 | |
| 1966 - 1969 | Chevrolet | Caprice | 396/6.5 V8 | |
| 1966 - 1969 | Chevrolet | Caprice | 427/7 V8 | |
| 1971 - 1972 | Chevrolet | Caprice | 402/6.6 V8 | |
| 1965 - 1970 | Chevrolet | Chevelle | 396/6.5 V8 | |
| 1970 - 1973 | Chevrolet | Chevelle | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Chevelle | 402/6.6 V8 | |
| 1968 | Chevrolet | Chevy II | 396/6.5 V8 | |
| 1966 - 1969 | Chevrolet | Corvette | 427/7 V8 |
Specs:
| Brand | Mr. Gasket |
|---|---|
| Collector Gaskets Included | No |
| Emission Code | 5 |
| Engine | Chevrolet Big Block Mark IV |
| Gasket Line | MLS |
| Material | MLS |
| Port Shape | Square |
| Port Size | 1.85" x 1.90" |
| Product Type | Header Gaskets |
| Thickness | .072" |
| Type of Component | Exhaust Gaskets |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day Warranty |
| Weight | 1 |
