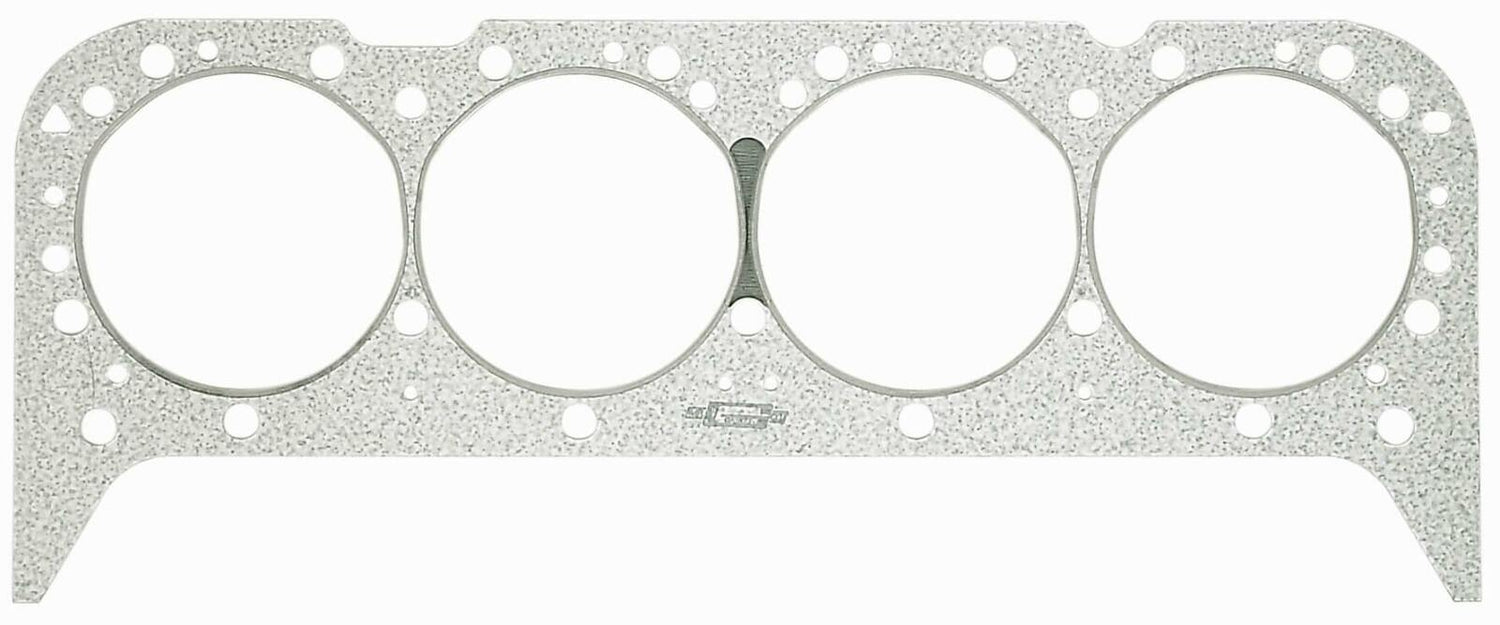

Mr. Gasket Ultra-Seal Head Gasket 283-400 Chevrolet Small Block GenI 57-91 5801G
Mr. Gasket Ultra-Seal Head Gasket 283-400 Chevrolet Small Block GenI 57-91 5801G is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Mr. Gasket Ultra-Seal Head Gaskets are a five layer (graphite core/perforated steel outer layers) composite construction. The graphite core has excellent thermoconductivity (transfers heat) away from hot spots in head preventing gasket burn-out. They provide excellent stability, compressibility and high temperature endurance. A high temperature silicone coating ensures sealing of engine fluids. Compatible with cast iron or aluminum heads, they will not brinell (indent) aluminum cylinder heads. Suitable for high performance street, drag race and oval track use. Sold individually.
Gasket Bore 4.190 inch, Compressed thickness 0.038 inch
Features:
- Five layer (graphite core/perforated steel outer layers) composite construction
- Graphite core has excellent thermo-conductivity-transfers heat away from hot spots in head preventing gasket burn-out
- Provides excellent stability, compressibility and high temperature endurance
- Coated with high temperature silicone to ensure sealing of engine fluids
- Will not brinell (indent) aluminum cylinder heads
- For high performance street, drag race and oval track use
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1970 - 1976 | Chevrolet | El Camino | 400/6.6 V8 | |
| 1976 | Chevrolet | G10 | 400/6.6 V8 | |
| 1970 - 1976 | Chevrolet | Monte Carlo | 400/6.6 V8 | |
| 1970 - 1972 | Chevrolet | Townsman | 400/6.6 V8 | |
| 1974 - 1976 | GMC | Sprint | 400/6.6 V8 | |
| 1972 - 1975 | Pontiac | Bonneville | 400/6.6 V8 | |
| 1967 - 1975 | Pontiac | Catalina | 400/6.6 V8 | |
| 1972 - 1974 | Pontiac | Firebird | 400/6.6 V8 | |
| 1974 - 1975 | Pontiac | Grand Am | 400/6.6 V8 | |
| 1973 - 1975 | Pontiac | LeMans | 400/6.6 V8 | |
| 1979 - 1980 | GMC | K2500 | 400/6.6 V8 | |
| 1975 - 1978 | GMC | K25 Suburban | 400/6.6 V8 | |
| 1979 - 1980 | GMC | K2500 Suburban | 400/6.6 V8 | |
| 1970 - 1972 | Chevrolet | Biscayne | 400/6.6 V8 | |
| 1970 - 1972 | Chevrolet | Brookwood | 400/6.6 V8 | |
| 1970 - 1976 | Chevrolet | Caprice | 400/6.6 V8 | |
| 1976 - 1978 | GMC | C15 | 400/6.6 V8 | |
| 1979 - 1980 | GMC | C1500 | 400/6.6 V8 | |
| 1976 - 1978 | GMC | C25 | 400/6.6 V8 | |
| 1979 | GMC | C2500 | 400/6.6 V8 | |
| 1978 | GMC | C25 Suburban | 400/6.6 V8 | |
| 1976 | GMC | G15 | 400/6.6 V8 | |
| 1979 | GMC | G1500 | 400/6.6 V8 | |
| 1975 - 1978 | GMC | G25 | 400/6.6 V8 | |
| 1979 - 1980 | GMC | G2500 | 400/6.6 V8 | |
| 1975 - 1978 | GMC | G35 | 400/6.6 V8 | |
| 1979 - 1980 | GMC | G3500 | 400/6.6 V8 | |
| 1975 - 1979 | GMC | Jimmy | 400/6.6 V8 | |
| 1975 - 1978 | GMC | K15 | 400/6.6 V8 | |
| 1979 - 1980 | GMC | K1500 | 400/6.6 V8 | |
| 1975 - 1978 | GMC | K15 Suburban | 400/6.6 V8 | |
| 1979 - 1980 | GMC | K1500 Suburban | 400/6.6 V8 | |
| 1975 - 1978 | GMC | K25 | 400/6.6 V8 | |
| 1980 | GMC | C2500 Suburban | 400/6.6 V8 | |
| 1976 - 1978 | GMC | C35 | 400/6.6 V8 | |
| 1979 | GMC | C3500 | 400/6.6 V8 | |
| 1977 - 1978 | GMC | K35 | 400/6.6 V8 | |
| 1979 - 1980 | GMC | K3500 | 400/6.6 V8 | |
| 1975 | Oldsmobile | Custom Cruiser | 400/6.6 V8 | |
| 1975 | Oldsmobile | Delta 88 | 400/6.6 V8 | |
| 1975 | Pontiac | Grand LeMans | 400/6.6 V8 | |
| 1975 | Pontiac | Grandville | 400/6.6 V8 | |
| 1975 | Pontiac | Grand Prix | 400/6.6 V8 | |
| 1970 - 1975 | Chevrolet | Bel Air | 400/6.6 V8 | |
| 1975 - 1980 | Chevrolet | G20 | 400/6.6 V8 | |
| 1975 - 1980 | Chevrolet | G30 | 400/6.6 V8 | |
| 1970 - 1976 | Chevrolet | Impala | 400/6.6 V8 | |
| 1975 - 1980 | Chevrolet | K10 | 400/6.6 V8 | |
| 1975 - 1979 | Chevrolet | K10 Suburban | 400/6.6 V8 | |
| 1975 - 1980 | Chevrolet | K20 | 400/6.6 V8 | |
| 1975 - 1980 | Chevrolet | K20 Suburban | 400/6.6 V8 | |
| 1977 - 1980 | Chevrolet | K30 | 400/6.6 V8 | |
| 1974 - 1976 | Chevrolet | Laguna | 400/6.6 V8 | |
| 1974 - 1976 | Chevrolet | Malibu | 400/6.6 V8 | |
| 1975 - 1979 | Chevrolet | K5 Blazer | 400/6.6 V8 | |
| 1970 - 1972 | Chevrolet | Kingswood | 400/6.6 V8 | |
| 1972 | Chevrolet | Caprice | 402/6.6 V8 | |
| 1970 - 1971 | Chevrolet | Chevelle | 400/6.6 V8 | |
| 1976 - 1980 | Chevrolet | C10 | 400/6.6 V8 | |
| 1976 - 1980 | Chevrolet | C20 | 400/6.6 V8 | |
| 1976 - 1980 | Chevrolet | C20 Suburban | 400/6.6 V8 | |
| 1976 - 1978 | Chevrolet | C30 | 400/6.6 V8 |
Specs:
| Application | Small Block Chevy |
|---|---|
| Brand | Mr. Gasket |
| Compressed Thickness | .038 inch |
| Compression Ratio | Up to 14:1 |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I |
| Gasket Bore | 4.190 inch |
| Gasket Line | Ultra-Seal |
| Material | Graphite Steel |
| Packaging | Retail |
| Product Type | Head Gasket |
| Quantity Per Pkg. | 1 |
| Warranty | Limited 90 Day |
| Weight | 0.5 |
