Mr. Gasket | SKU:
5913

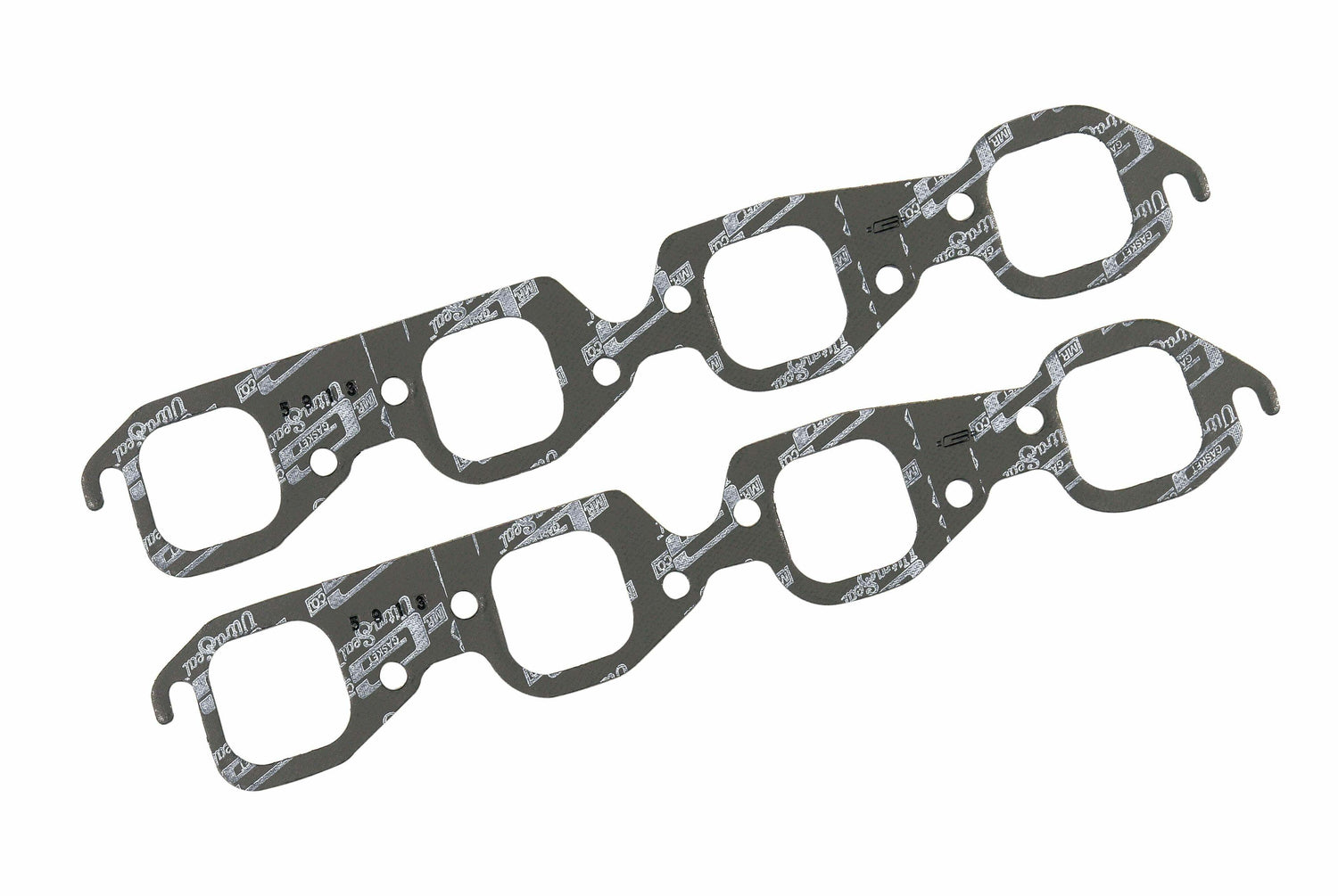

Mr. Gasket Ultra-Seal Header Gaskets - 5913
Regular price
$44.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Mr. Gasket Ultra-Seal Header Gaskets - 5913 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Manufactured from high-temperature steel core/graphite faced exhaust material. Expanded steel core provides stability and maximum torque retention to eliminate gasket failure. Graphite facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head. Conforms to and seals minor surface irregularities. High recovery material allows header or manifold flange to stay sealed if flange loses clamp-load. Can be trimmed if necessary for modified port applications. For original equipment replacement, high performance street, drag race and oval track use.
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1975 - 1978 | GMC | C25 | 454/7.4 V8 | |
| 1979 - 1986 | GMC | C2500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C25 Suburban | 454/7.4 V8 | |
| 1979 - 1986 | GMC | C2500 Suburban | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C35 | 454/7.4 V8 | |
| 1979 - 1990 | GMC | C3500 | 454/7.4 V8 | |
| 1975 - 1976 | GMC | G25 | 454/7.4 V8 | |
| 1976 | GMC | G35 | 454/7.4 V8 | |
| 1988 - 1990 | GMC | G3500 | 454/7.4 V8 | |
| 1973 - 1976 | GMC | Jimmy | 454/7.4 V8 | |
| 1976 | GMC | K15 | 454/7.4 V8 | |
| 1980 | GMC | K1500 | 454/7.4 V8 | |
| 1976 - 1978 | GMC | K25 | 454/7.4 V8 | |
| 1976 - 1977 | GMC | K25 Suburban | 454/7.4 V8 | |
| 1979 - 1990 | GMC | K3500 | 454/7.4 V8 | |
| 1966 - 1969 | Chevrolet | Corvette | 427/7 V8 | |
| 1970 - 1974 | Chevrolet | Corvette | 454/7.4 V8 | |
| 1969 | Chevrolet | El Camino | 396/6.5 V8 | |
| 1970 - 1975 | Chevrolet | El Camino | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | El Camino | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | G20 Van | 454/7.4 V8 | |
| 1973 - 1974 | Chevrolet | G30 Van | 454/7.4 V8 | |
| 1963 - 1969 | Chevrolet | Impala | 427/7 V8 | |
| 1973 - 1986 | Chevrolet | C20 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C30 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | C30 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | Camaro | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | Camaro | 402/6.6 V8 | |
| 1966 - 1969 | Chevrolet | Caprice | 427/7 V8 | |
| 1968 - 1969 | Chevrolet | Caprice | 396/6.5 V8 | |
| 1970 - 1976 | Chevrolet | Caprice | 454/7.4 V8 | |
| 1971 - 1972 | Chevrolet | Caprice | 402/6.6 V8 | |
| 1968 - 1970 | Chevrolet | Chevelle | 396/6.5 V8 | |
| 1974 | Chevrolet | K10 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | K20 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | K20 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | K30 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | K30 Pickup | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Kingswood | 454/7.4 V8 | |
| 1973 - 1975 | Chevrolet | Laguna | 454/7.4 V8 | |
| 1971 - 1972 | Chevrolet | Kingswood | 402/6.6 V8 | |
| 1973 - 1975 | Chevrolet | Malibu | 454/7.4 V8 | |
| 1970 - 1975 | Chevrolet | Monte Carlo | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Monte Carlo | 402/6.6 V8 | |
| 1969 - 1970 | Chevrolet | Nova | 396/6.5 V8 | |
| 1970 | Chevrolet | Nova | 402/6.6 V8 | |
| 1970 - 1972 | Chevrolet | Townsman | 454/7.4 V8 | |
| 1972 | Chevrolet | Townsman | 402/6.6 V8 | |
| 1970 - 1972 | GMC | C15/C1500 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C15/C1500 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C15/C1500 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C15/C1500 Suburban | 402/6.6 V8 | |
| 1968 | GMC | K15/K1500 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | GMC | K15/K1500 Suburban | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C15/C1500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C15/C1500 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C25/C2500 Pickup | 402/6.6 V8 | |
| 1968 - 1969 | GMC | C25/C2500 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | GMC | C25/C2500 Pickup | 454/7.4 V8 | |
| 1970 - 1972 | GMC | C25/C2500 Suburban | 402/6.6 V8 | |
| 1968 - 1969 | GMC | C25/C2500 Suburban | 396/6.5 V8 | |
| 1974 | GMC | C25/C2500 Suburban | 454/7.4 V8 | |
| 1970 - 1972 | GMC | C35/C3500 Pickup | 402/6.6 V8 | |
| 1968 - 1969 | GMC | C35/C3500 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | GMC | C35/C3500 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K15/K1500 Pickup | 396/6.5 V8 | |
| 1970 - 1975 | Chevrolet | Bel Air | 454/7.4 V8 | |
| 1976 - 1978 | Chevrolet | K5 Blazer | 454/7.4 V8 | |
| 1975 - 1980 | Chevrolet | C10 | 454/7.4 V8 | |
| 1973 - 1980 | Chevrolet | C10 Suburban | 454/7.4 V8 | |
| 1990 | Chevrolet | C1500 | 454/7.4 V8 | |
| 1975 - 1986 | Chevrolet | C20 | 454/7.4 V8 | |
| 1975 - 1986 | Chevrolet | C30 | 454/7.4 V8 | |
| 1988 - 1990 | Chevrolet | C3500 | 454/7.4 V8 | |
| 1987 - 1989 | GMC | R2500 | 454/7.4 V8 | |
| 1987 - 1990 | GMC | R2500 Suburban | 454/7.4 V8 | |
| 1987 - 1990 | GMC | R3500 | 454/7.4 V8 | |
| 1974 | GMC | K15/K1500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K25/K2500 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | GMC | K25/K2500 Pickup | 454/7.4 V8 | |
| 1968 | GMC | K25/K2500 Suburban | 396/6.5 V8 | |
| 1974 | GMC | K25/K2500 Suburban | 454/7.4 V8 | |
| 1970 - 1971 | GMC | K35/K3500 Pickup | 402/6.6 V8 | |
| 1968 - 1969 | GMC | K35/K3500 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | GMC | K35/K3500 Pickup | 454/7.4 V8 | |
| 1971 - 1975 | GMC | Sprint | 454/7.4 V8 | |
| 1971 - 1975 | GMC | Sprint | 402/6.6 V8 | |
| 1970 - 1973 | Chevrolet | Chevelle | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Chevelle | 402/6.6 V8 | |
| 1976 | Chevrolet | G20 | 454/7.4 V8 | |
| 1975 - 1990 | Chevrolet | G30 | 454/7.4 V8 | |
| 1970 - 1976 | Chevrolet | Impala | 454/7.4 V8 | |
| 1976 - 1980 | Chevrolet | K10 | 454/7.4 V8 | |
| 1976 - 1978 | Chevrolet | K20 | 454/7.4 V8 | |
| 1977 - 1986 | Chevrolet | K30 | 454/7.4 V8 | |
| 1988 - 1990 | Chevrolet | K3500 | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | R20 | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | R20 Suburban | 454/7.4 V8 | |
| 1989 | Chevrolet | R2500 | 454/7.4 V8 | |
| 1989 - 1990 | Chevrolet | R2500 Suburban | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | R30 | 454/7.4 V8 | |
| 1989 - 1990 | Chevrolet | R3500 | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | V30 | 454/7.4 V8 | |
| 1989 - 1990 | Chevrolet | V3500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C15 | 454/7.4 V8 | |
| 1979 - 1980 | GMC | C1500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C15 Suburban | 454/7.4 V8 | |
| 1979 - 1980 | GMC | C1500 Suburban | 454/7.4 V8 | |
| 1987 - 1990 | GMC | V3500 | 454/7.4 V8 | |
| 1963 - 1969 | Chevrolet | Bel Air | 427/7 V8 | |
| 1968 - 1969 | Chevrolet | Bel Air | 396/6.5 V8 | |
| 1971 - 1972 | Chevrolet | Bel Air | 402/6.6 V8 | |
| 1963 - 1969 | Chevrolet | Biscayne | 427/7 V8 | |
| 1968 - 1969 | Chevrolet | Biscayne | 396/6.5 V8 | |
| 1971 - 1972 | Chevrolet | Biscayne | 402/6.6 V8 | |
| 1971 - 1972 | Chevrolet | Biscayne | 454/7.4 V8 | |
| 1973 | Chevrolet | Blazer | 454/7.4 V8 | |
| 1972 | Chevrolet | Brookwood | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | C10 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | C10 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C10 Suburban | 396/6.5 V8 | |
| 1968 - 1969 | Chevrolet | C20 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | C20 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C20 Suburban | 396/6.5 V8 | |
| 1968 | Chevrolet | Chevy II | 396/6.5 V8 | |
| 1968 - 1969 | Chevrolet | Impala | 396/6.5 V8 | |
| 1971 - 1972 | Chevrolet | Impala | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | K10 Pickup | 396/6.5 V8 | |
| 1968 - 1969 | Chevrolet | K10 Suburban | 396/6.5 V8 |
Specs:
| Brand | Mr. Gasket |
|---|---|
| Collector Gaskets Included | No |
| Emission Code | 5 |
| Engine | Chevrolet Big Block Mark IV |
| Gasket Line | Ultra-Seal |
| Material | Ultra-seal |
| Port Shape | Square |
| Port Size | 2.09" x 2.09" |
| Product Type | Header Gaskets |
| Thickness | .062" |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day Warranty |
| Weight | 0.44 |
