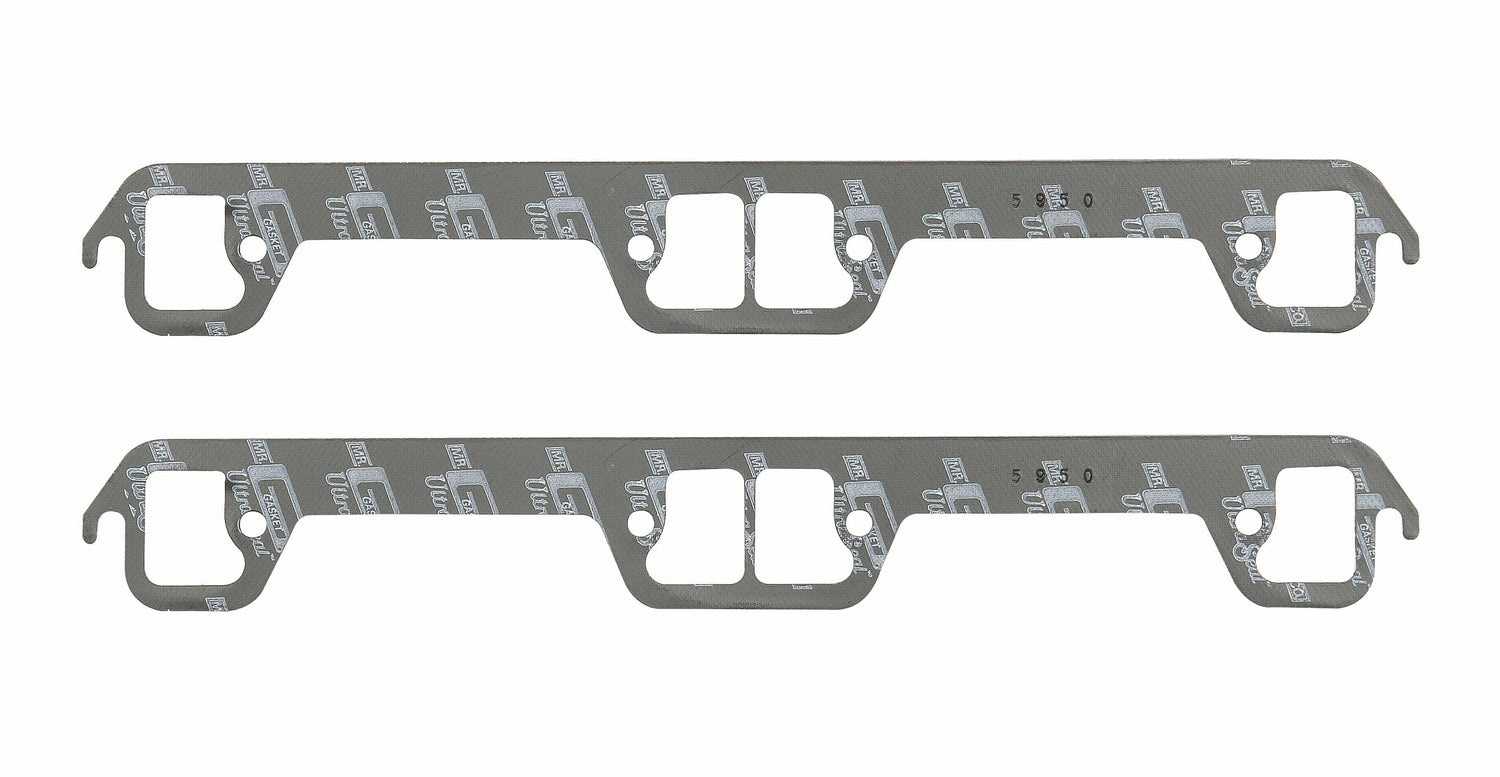

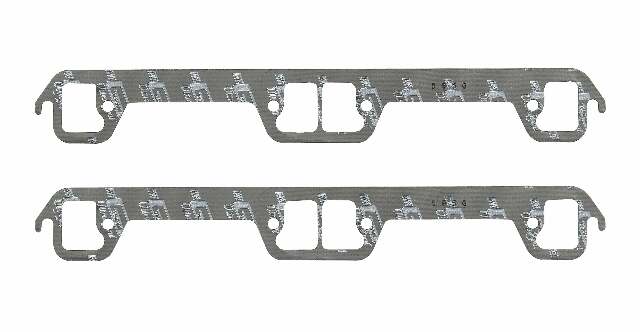

Mr. Gasket Ultra-Seal Header Gaskets - 5950
Mr. Gasket Ultra-Seal Header Gaskets - 5950 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Manufactured from high-temperature steel core/graphite faced exhaust material. Expanded steel core provides stability and maximum torque retention to eliminate gasket failure. Graphite facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head. Conforms to and seals minor surface irregularities. High recovery material allows header or manifold flange to stay sealed if flange loses clamp-load. Can be trimmed if necessary for modified port applications. For original equipment replacement, high performance street, drag race and oval track use.
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1971 - 1977 | American Motors | Matador | 304/5 V8 | |
| 1971 - 1974 | American Motors | Matador | 401/6.6 V8 | |
| 1970 - 1974 | American Motors | Javelin | 360/5.9 V8 | |
| 1970 - 1974 | American Motors | Javelin | 304/5 V8 | |
| 1970 | American Motors | Javelin | 390/6.4 V8 | |
| 1970 | American Motors | Rebel | 360/5.9 V8 | |
| 1970 | American Motors | Rebel | 390/6.4 V8 | |
| 1970 | American Motors | Rebel | 304/5 V8 | |
| 1971 - 1974 | American Motors | Javelin | 401/6.6 V8 | |
| 1972 - 1976 | American Motors | Gremlin | 304/5 V8 | |
| 1971 - 1978 | American Motors | Matador | 360/5.9 V8 | |
| 1970 - 1977 | American Motors | Hornet | 304/5 V8 | |
| 1971 - 1974 | American Motors | Hornet | 360/5.9 V8 | |
| 1978 - 1979 | American Motors | Concord | 304/5 V8 | |
| 1978 - 1979 | American Motors | AMX | 304/5 V8 | |
| 1978 - 1979 | American Motors | Pacer | 304/5 V8 | |
| 1979 | American Motors | Spirit | 304/5 V8 | |
| 1970 - 1971 | American Motors | Ambassador | 304/5 V8 | |
| 1970 - 1971 | American Motors | Ambassador | 360/5.9 V8 | |
| 1971 | American Motors | Ambassador | 401/6.6 V8 | |
| 1972 - 1974 | American Motors | Ambassador | ||
| 1970 | American Motors | Ambassador | 390/6.4 V8 | |
| 1970 | American Motors | AMX |
Specs:
| Brand | Mr. Gasket |
|---|---|
| Collector Gaskets Included | No |
| Emission Code | 5 |
| Engine | American Motors V8 |
| Gasket Line | Ultra-Seal |
| Material | Ultra-seal |
| Port Shape | Dog Leg |
| Port Size | 1.25" x 1.75" |
| Product Type | Header Gaskets |
| Thickness | .062" |
| Warranty | Limited 90 Day Warranty |
| Weight | 0.44 |
