Mr. Gasket Waterproof Relay 30 Amp - 40100G
Mr. Gasket Waterproof Relay 30 Amp - 40100G is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Mr. Gasket waterproof relays are ideal for use on electric fuel pumps, water pumps, cooling fans, off-road lights, and any other application that is exposed to muddy or wet conditions. This relay handles 40 amps momentary and 30 amps for continuous use. The pigtail harness has 7 inch long leads with heavy-duty 12 & 18 gauge wire. The connector has the wires molded-in rubber and a gasket for a leak-proof seal. Ideal for use on marine applications and vehicles that are power-washed out (Jeeps, 4x4 Trucks, UTV's, and dirt track race cars).
Features:

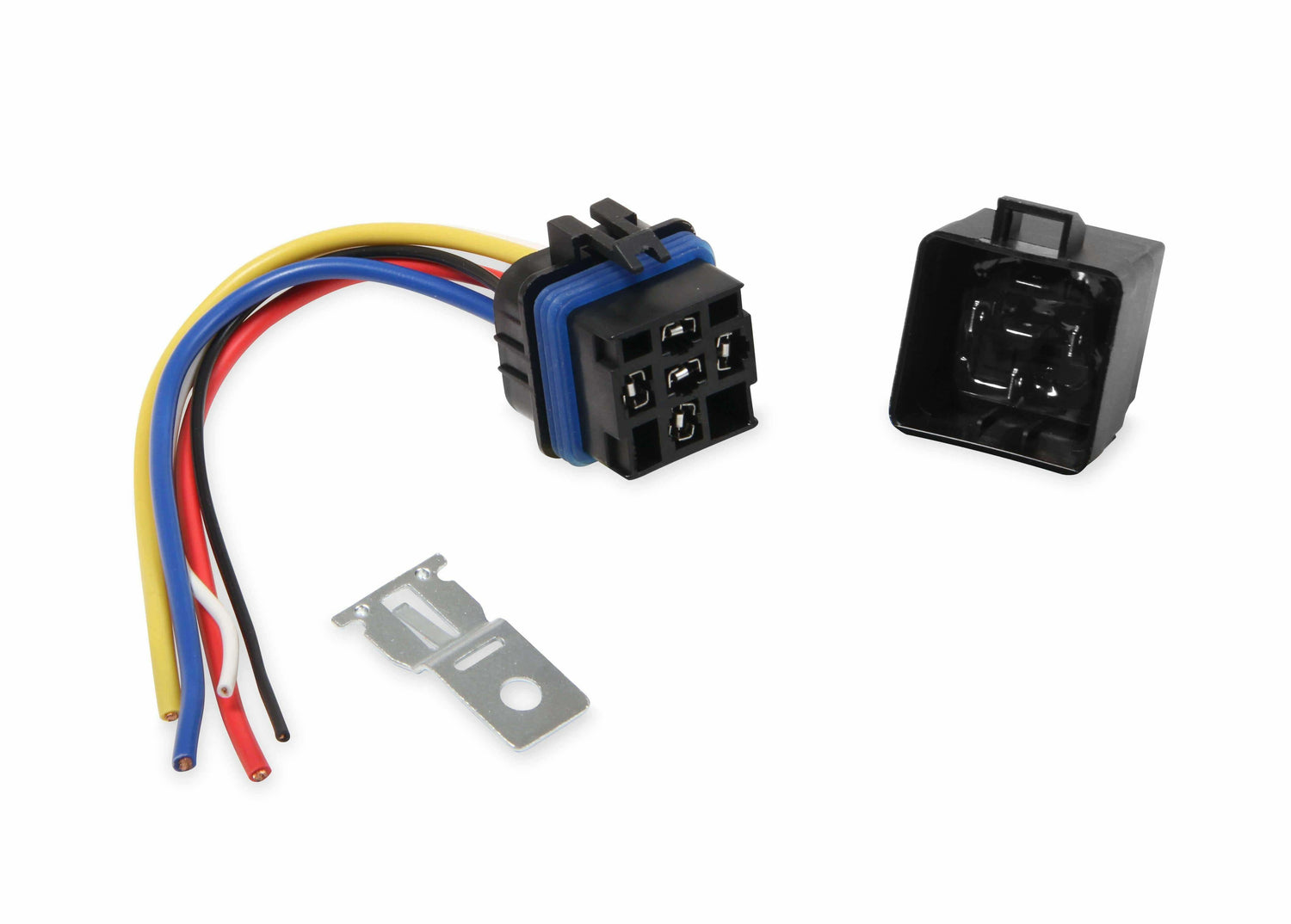

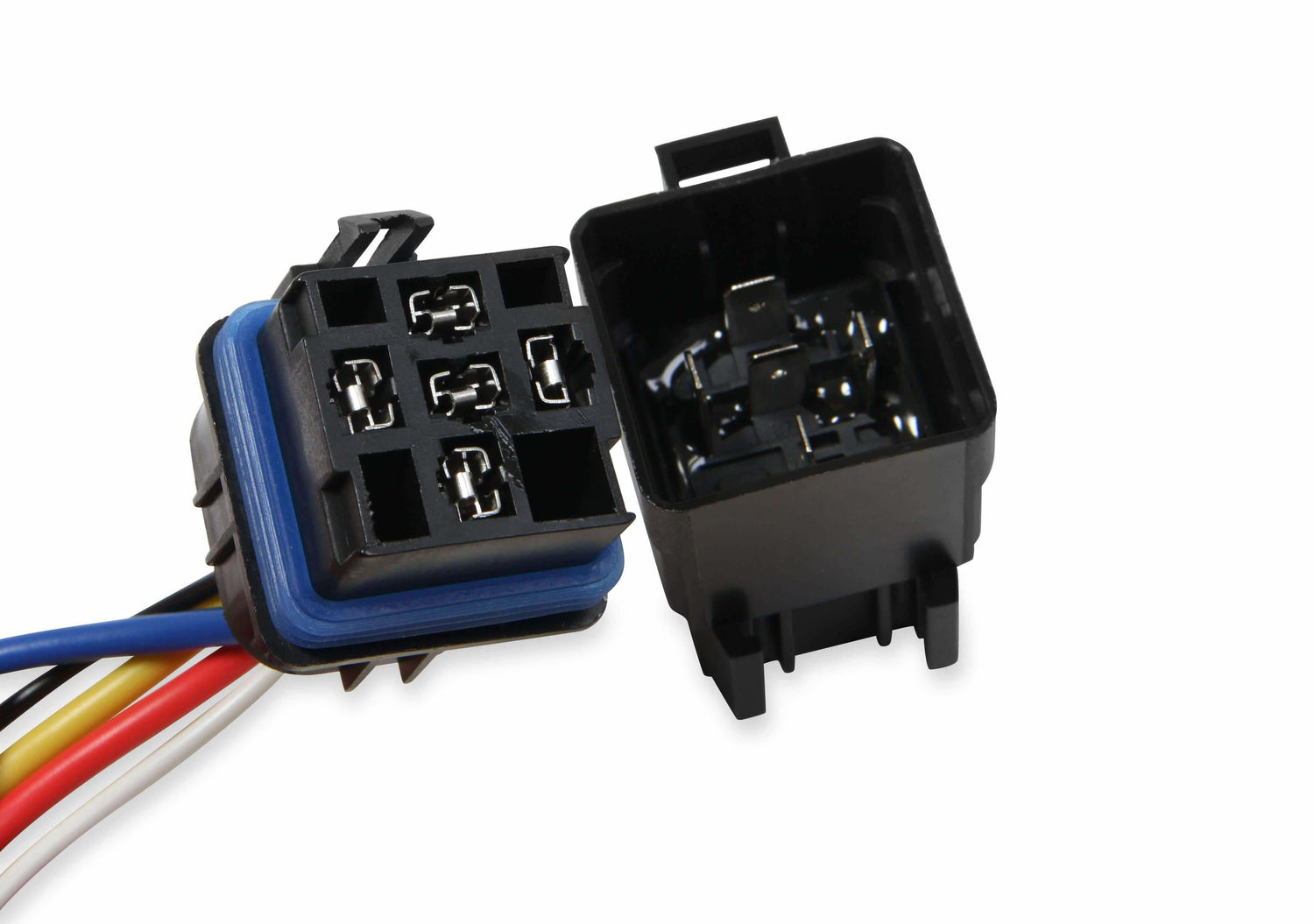

- Waterproof relay w/ pigtail harness & sealed connector
- 40/30Amp - 30 AMP continuous load & 40 AMP momentary
- 12V DC
- Works in normally open or normally closed circuits

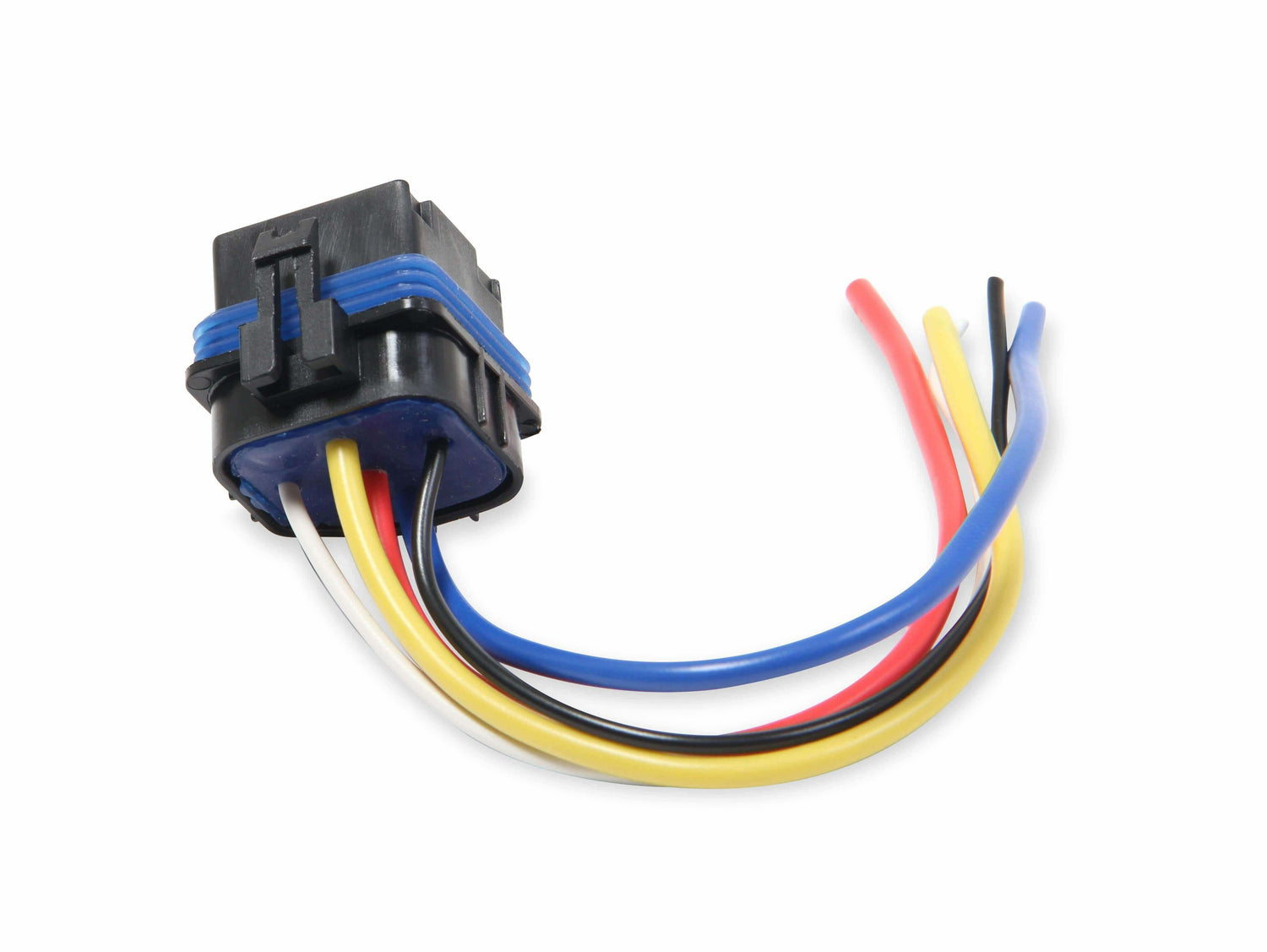

- Pigtail wires are 7" long
- Wire Gauge: (3) 12 gauge wires on blue (30 common), yellow (87 normally open), red (87a normally closed) - (2) 18 gauge wires on black (85 ground) & white (86 +12V)
- Metal mounting bracket - can be mounted under-hood or just about any other location on vehicle
- Ideal for use in: marine, dirt track cars, and off-road trucks & Jeeps
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Mr. Gasket |
|---|---|
| Emission Code | 5 |
| Product Type | Relay Kit |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
