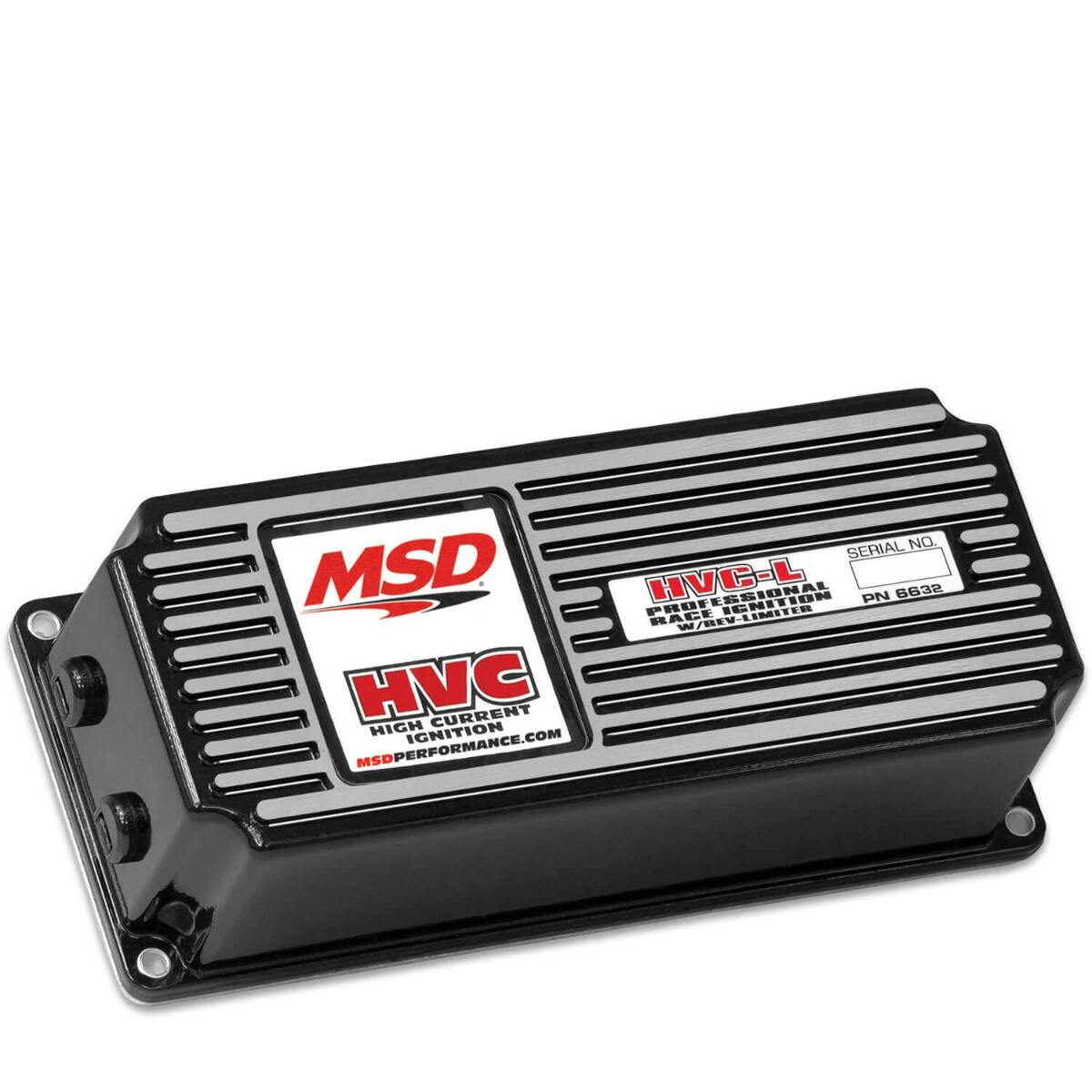

MSD 6 HVC-L with Soft Touch Rev Limiter - 6632
MSD 6 HVC-L with Soft Touch Rev Limiter - 6632 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
The 6 HVC-L Ignition has a built-in rev limiter that will save the engine from overrev damaged caused by spins, missed shifts or driver misfortune. This means there is no need to mount an external rev control (i.e., less wiring and reduced weight)!
The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | MSD |
|---|---|
| Emission Code | 4 |
| Primary Voltage | 550 Volts |
| Product Type | Ignition Box |
| RPM Range | 15,000 RPM with 14.4 Volts |
| Secondary Voltage | 40,000 Volts |
| Spark Energy | 150 mJ/spark |
| Spark Series Duration | 20 Degree Crankshaft Rotation |
| Voltage Required | 12-18 Volts, Negative Ground |
| Warning | California Proposition 65 |
| Warranty | Limited 1 Year Warranty |
| Weight and Size | 5.1 lbs.,8"L x 4"W x 2.25"H |
