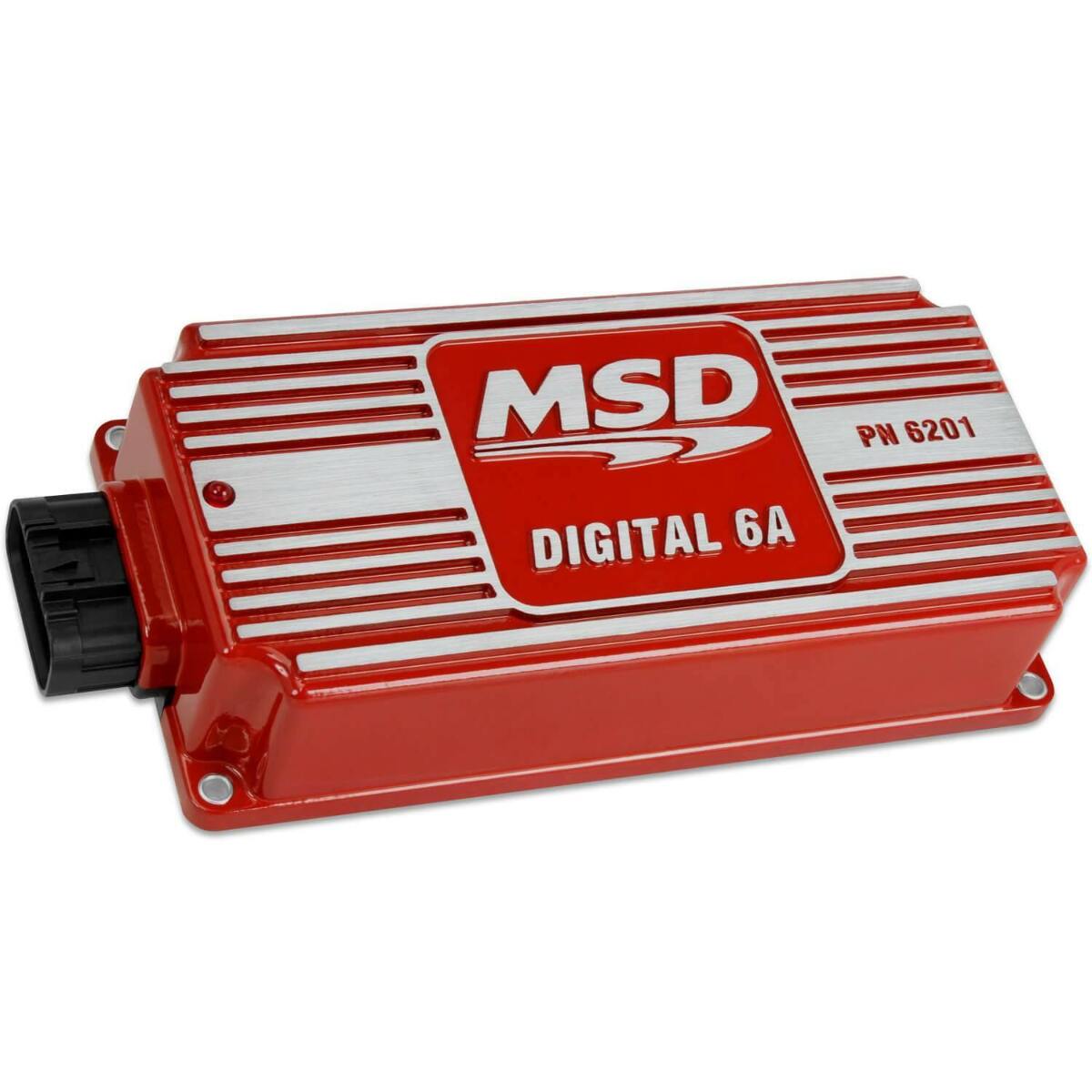

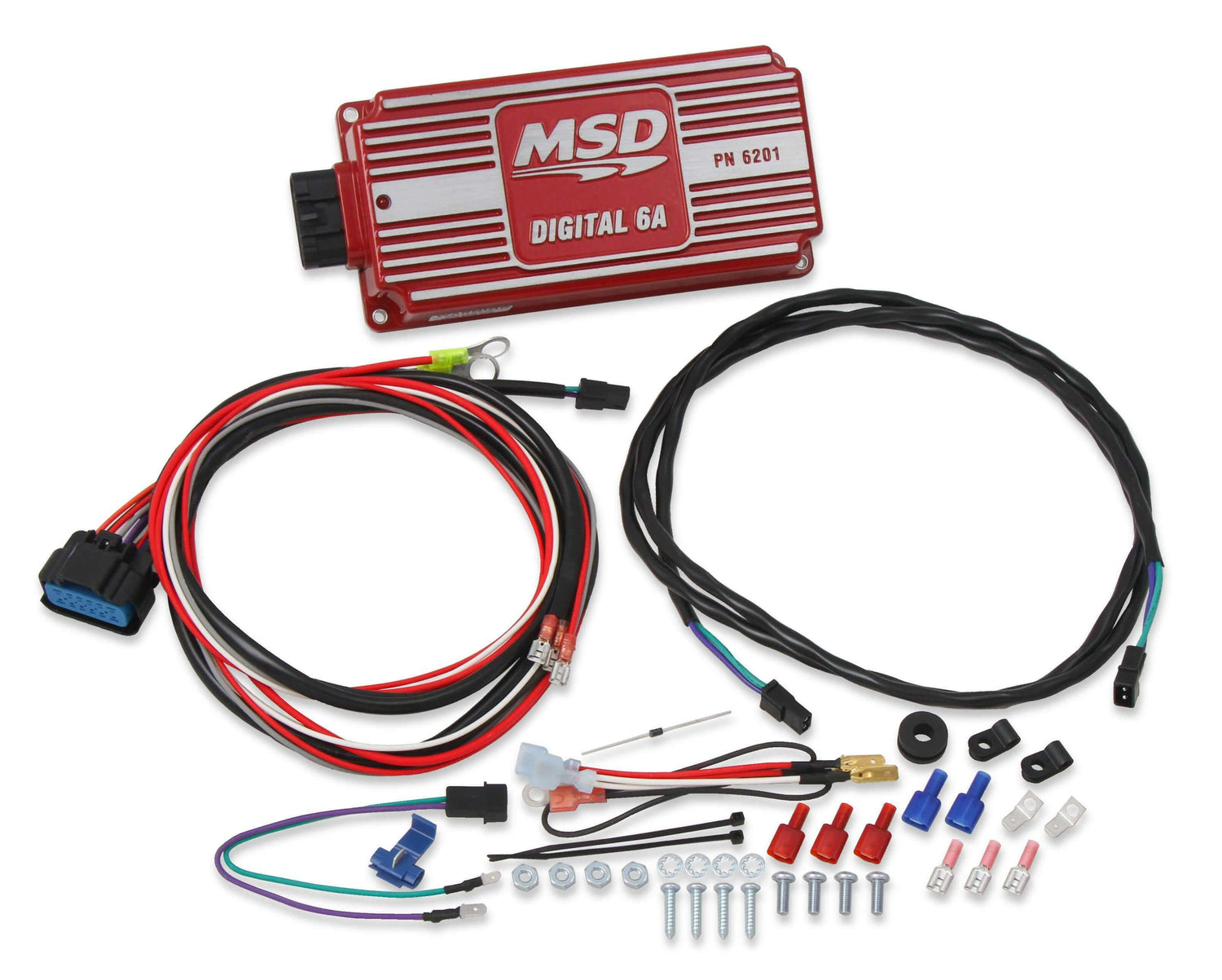

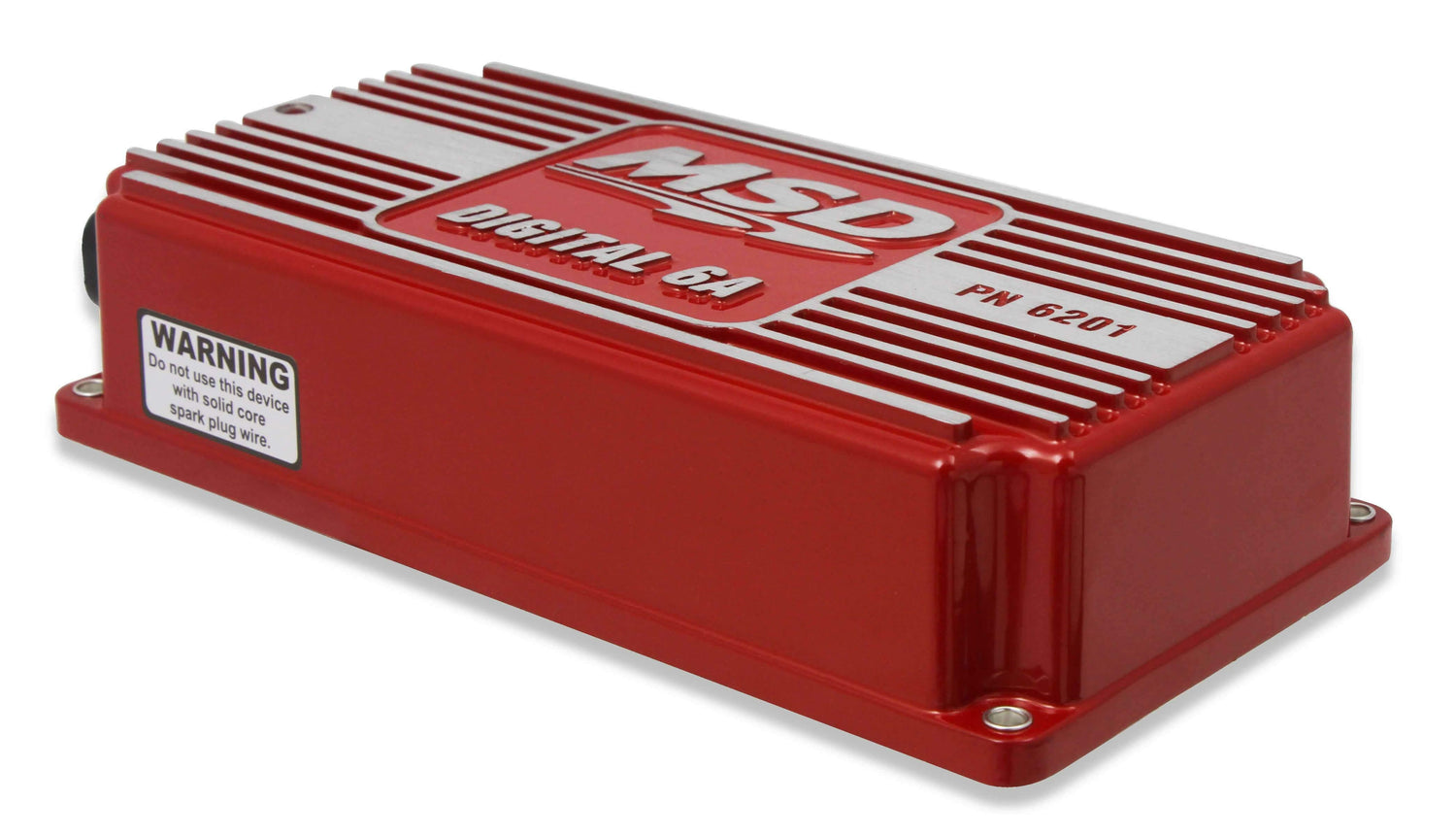

MSD 6201 6A Ignition Control Box Digital Multiple Spark SBC BBC SBF Chevy Ford
MSD 6201 6A Ignition Control Box Digital Multiple Spark SBC BBC SBF Chevy Ford is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood.
The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20â° of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder.

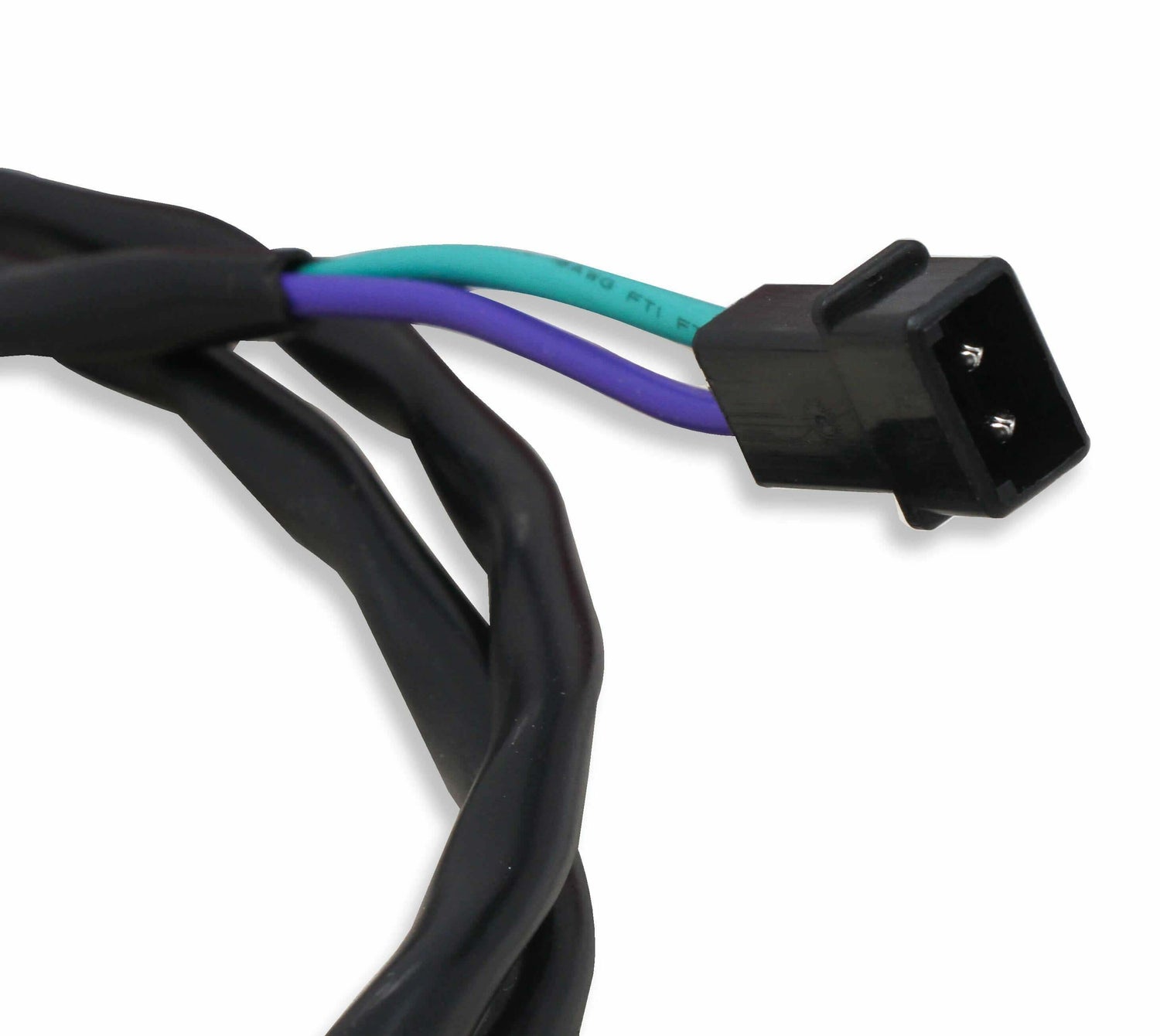

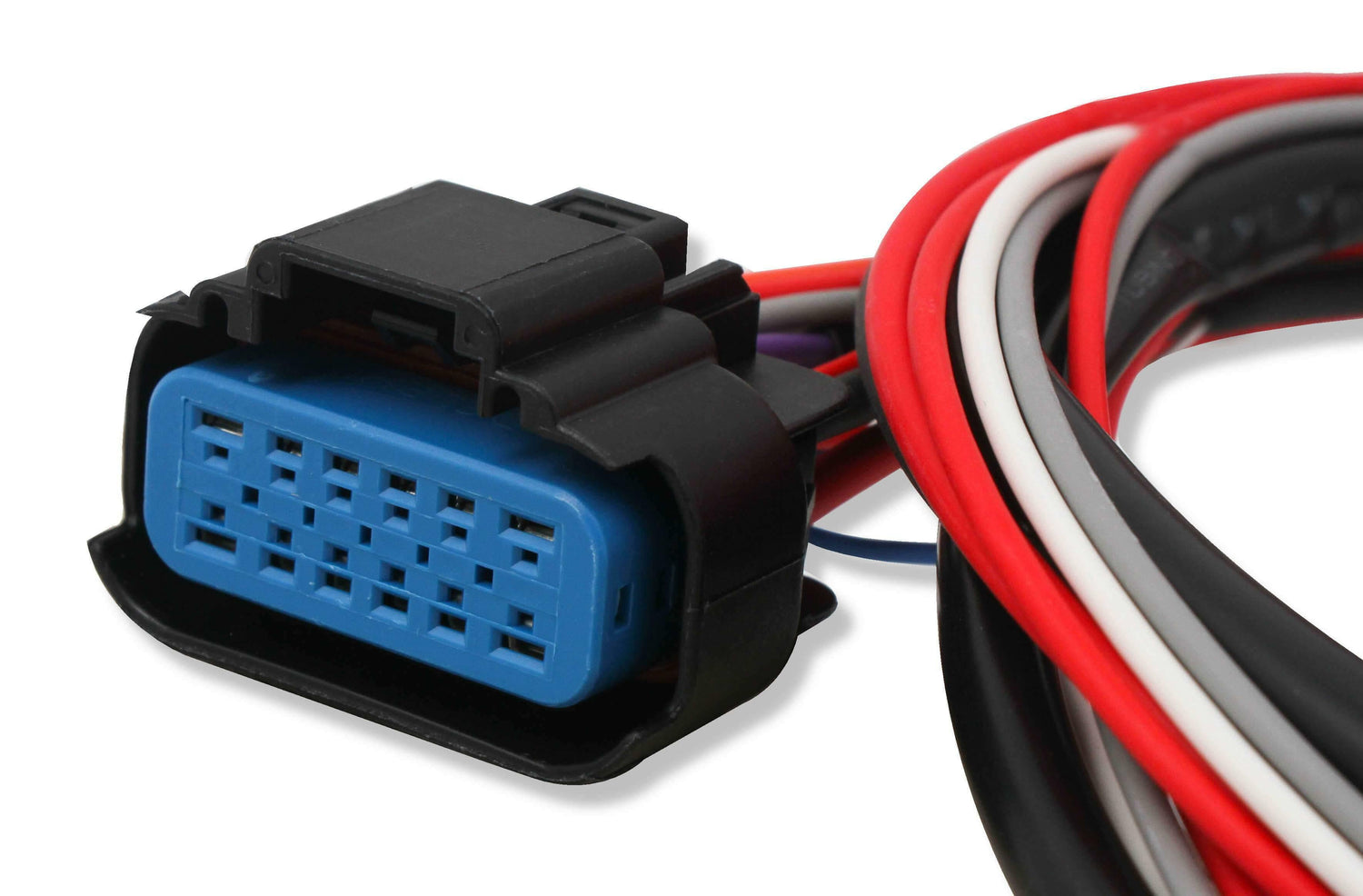

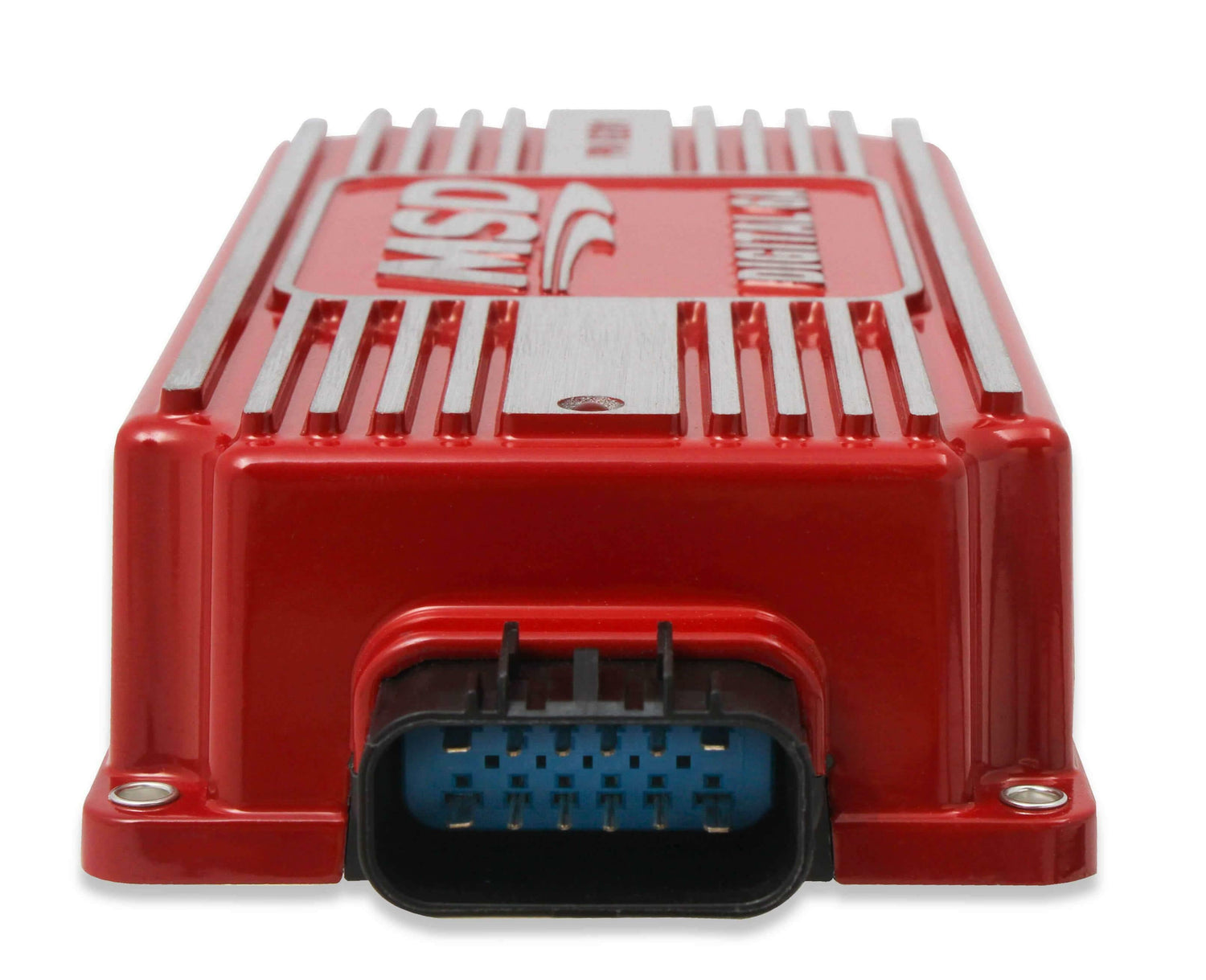

A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | MSD |
|---|---|
| Color | Red |
| Current Draw | .7 Amp per 1,000 RPM |
| Emission Code | 1 |
| Features | No Rev Limiter |
| Primary Voltage | 520-540 Volts |
| Product Type | Digital 6A Ignition Control Box |
| RPM Range | 15,000 RPM with 14.4 Volts |
| Secondary Voltage | 45,000 Volts |
| Spark Energy | 135-145 mJ per spark |
| Voltage Required | 12-15 Volts, 7 Volt Start |
| Warning | California Proposition 65 |
| Warranty | Limited 1 Year Warranty |
| Weight and Size | 1.7 lbs., 8"L x 4"W x 1.825"H |
