MSD 6CT PRO Circle Track Ignition - 6428
MSD 6CT PRO Circle Track Ignition - 6428 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

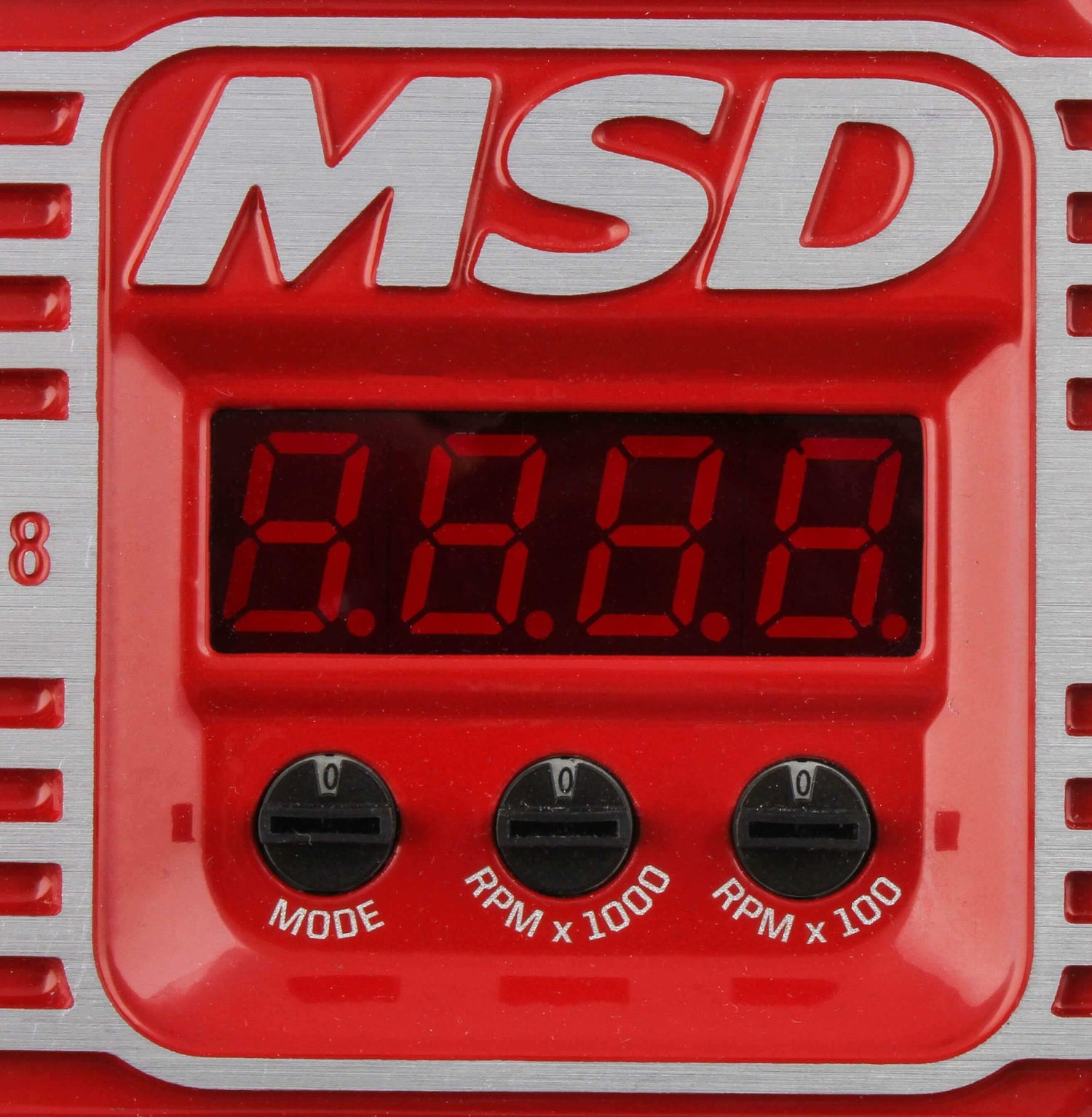

Based on the superior design of the MSD 6CT, the 6CT PRO adds another offering to MSD's line of technologically advanced ignitions for circle track racing. Packed with legendary MSD Ignition power, the 6CT PRO offers a slew of features. A large digital LED display makes it easier than ever to see the rev limiter setting when dialing it in using the laser etched rotary dials on the face of the unit.
Rev limiting is controlled via microprocessor making it so smooth the chassis is virtually undisturbed when charging into turns. The rotary dials are also used to set cylinder select for 4, 6, and 8 cylinder engines, and to adjust the built-in start retard providing options of 0â°, 10â° or 20â° of timing retard for quick starts. As an added bonus, the LED display can be used as a live tach or will display your racecars battery voltage. The unit records the highest RPM your engine turned during the race, which can be recalled easily on the LED display and is quickly reset using a remote, momentary switch. The 6CT PRO offers all this and more in a fully potted housing that utilizes a single connector to keep wiring tidy.
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | MSD |
|---|---|
| Current Draw | 0.8 Amps per 1,000 RPM |
| Dimensions | 7.89"L x 4.00"W x 1.87"H |
| Emission Code | 4 |
| Features | Start Retard |
| Primary Voltage | 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250 |
| Product Type | Ignition |
| RPM Range | 12,000 RPM |
| Secondary Voltage | 45,000 Volts |
| Spark Energy | 135mJ w/ Blaster Coil / 150mJ w/ HVC Coil PN 8250 |
| Spark Series Duration | 20° Crankshaft Rotation |
| Voltage Required | 6 to 18 Volts |
| Warranty | Limited 1 Year Warranty |
| Weight | 2.5 lbs. |
