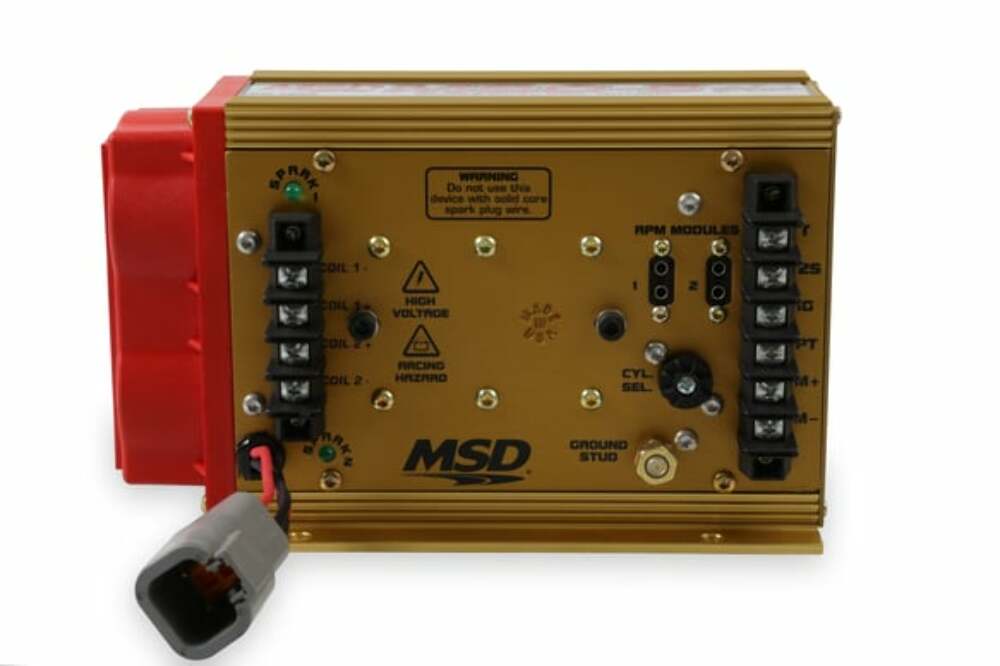

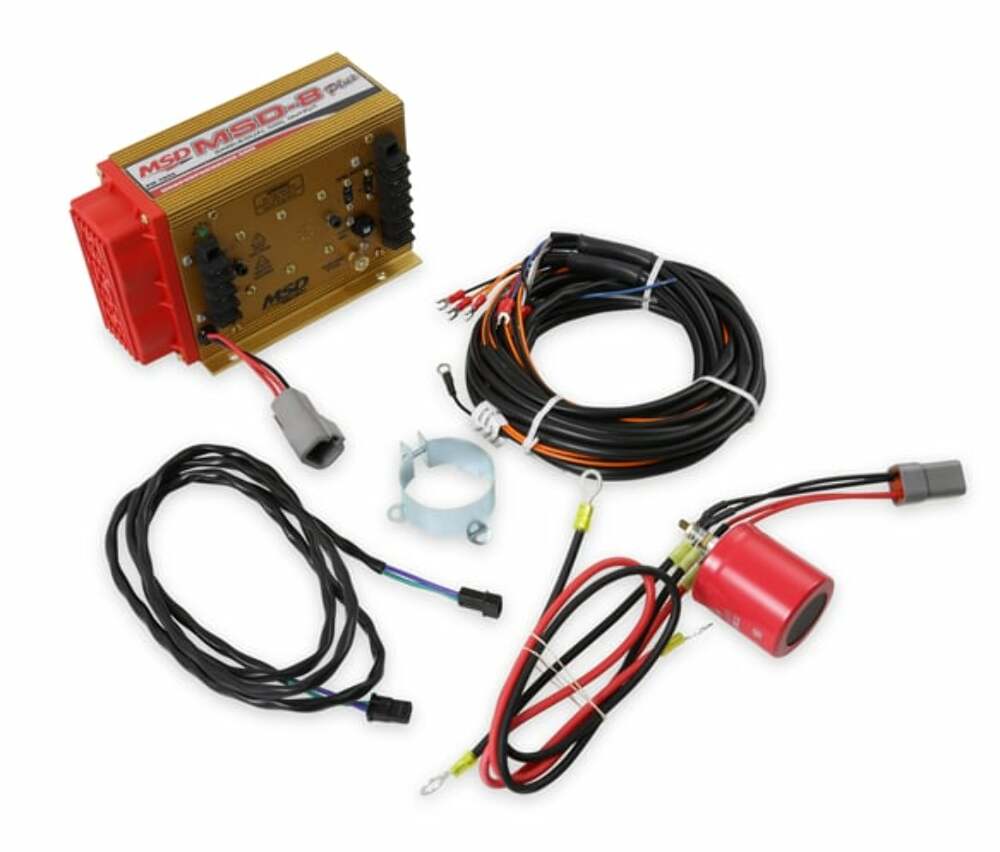

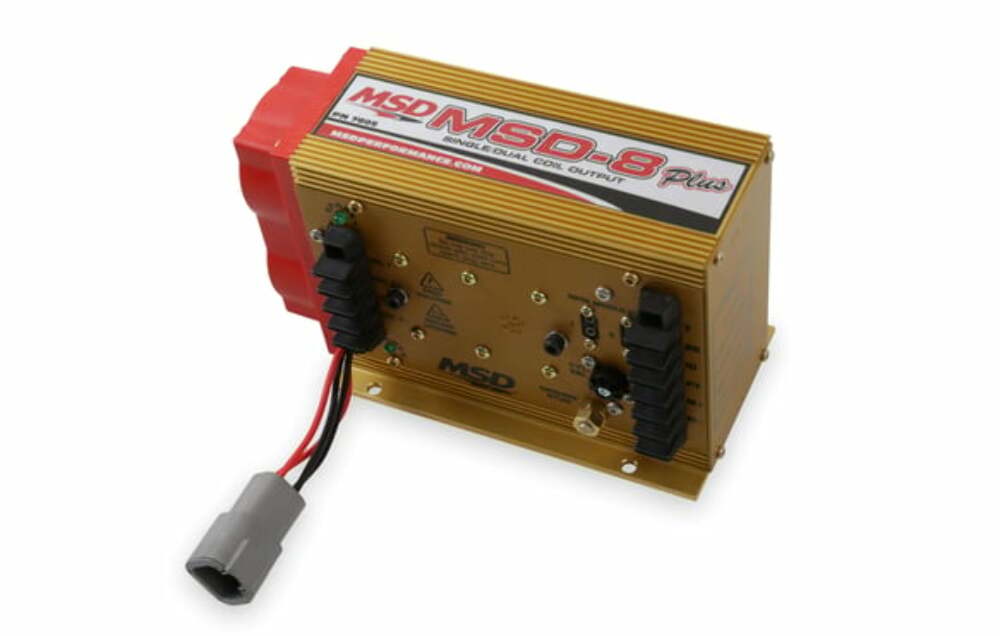

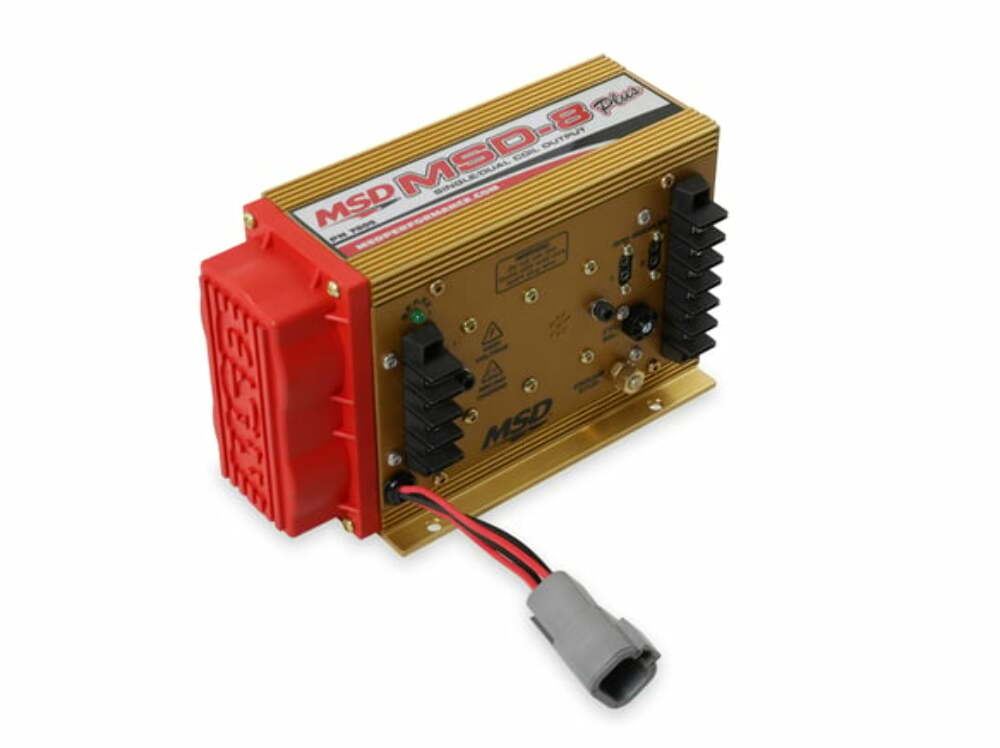

MSD 8-Plus Ignition Control - 7805
MSD 8-Plus Ignition Control - 7805 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
There has always been a niche group of hardcore racers and pullers that run nothing but the MSD 8 Ignition Series. If you liked it then, you're going to like it even better now! The MSD 8-Plus Ignition produces the same extreme output of the original 8-Series, yet is now in a smaller housing with improved efficiency and internal components. One distinct change is now a built-in 2-Step Rev Control. Now you can switch between two rev limits without extra wiring or housings. For those that are looking for a dual fire MSD 8, the new 8-Plus is all you need. Our engineers were able to deliver an ignition that is capable of firing two coils at once for those extreme racers using dual plug race setups.
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | MSD |
|---|---|
| Current Draw | 36 Amps at 12,000 RPM |
| Emission Code | 4 |
| Features | Extreme Cylinder Pressure |
| Primary Voltage | 480 Volts |
| Product Type | Ignition |
| RPM Range | 15,000 RPM with 14.4 Volts |
| Secondary Voltage | 50,000 Volts Plus |
| Spark Energy | 315-345 mJ per spark |
| Spark Series Duration | 20 Degree Crankshaft Rotation |
| Voltage Required | 12-18 Volts, Negative Ground |
| Warning | California Proposition 65 |
| Warranty | Limited 1 Year Warranty |
| Weight and Size | 4.85 lbs.,8.25"L x 3.75"W x 5.75"H |
