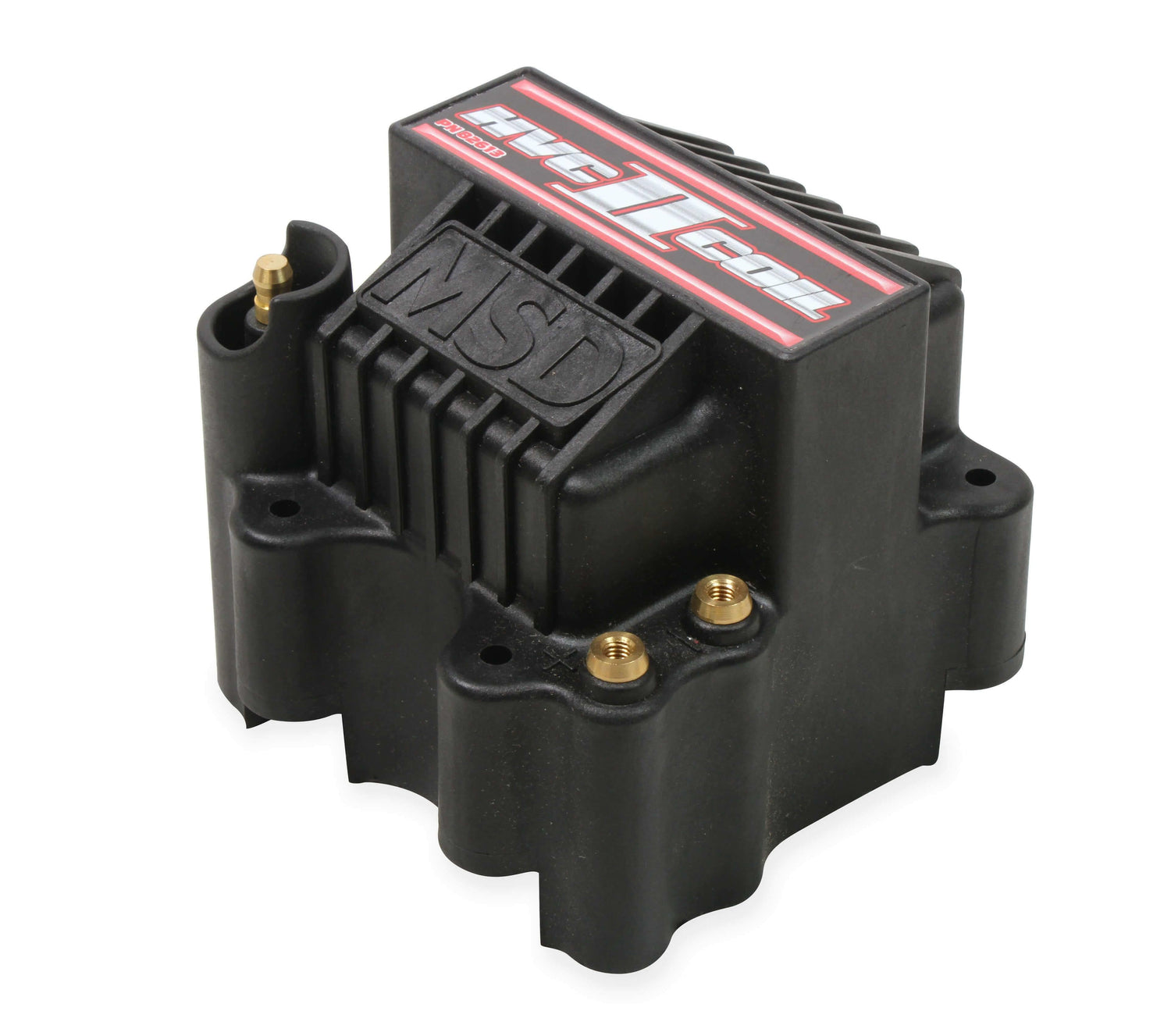

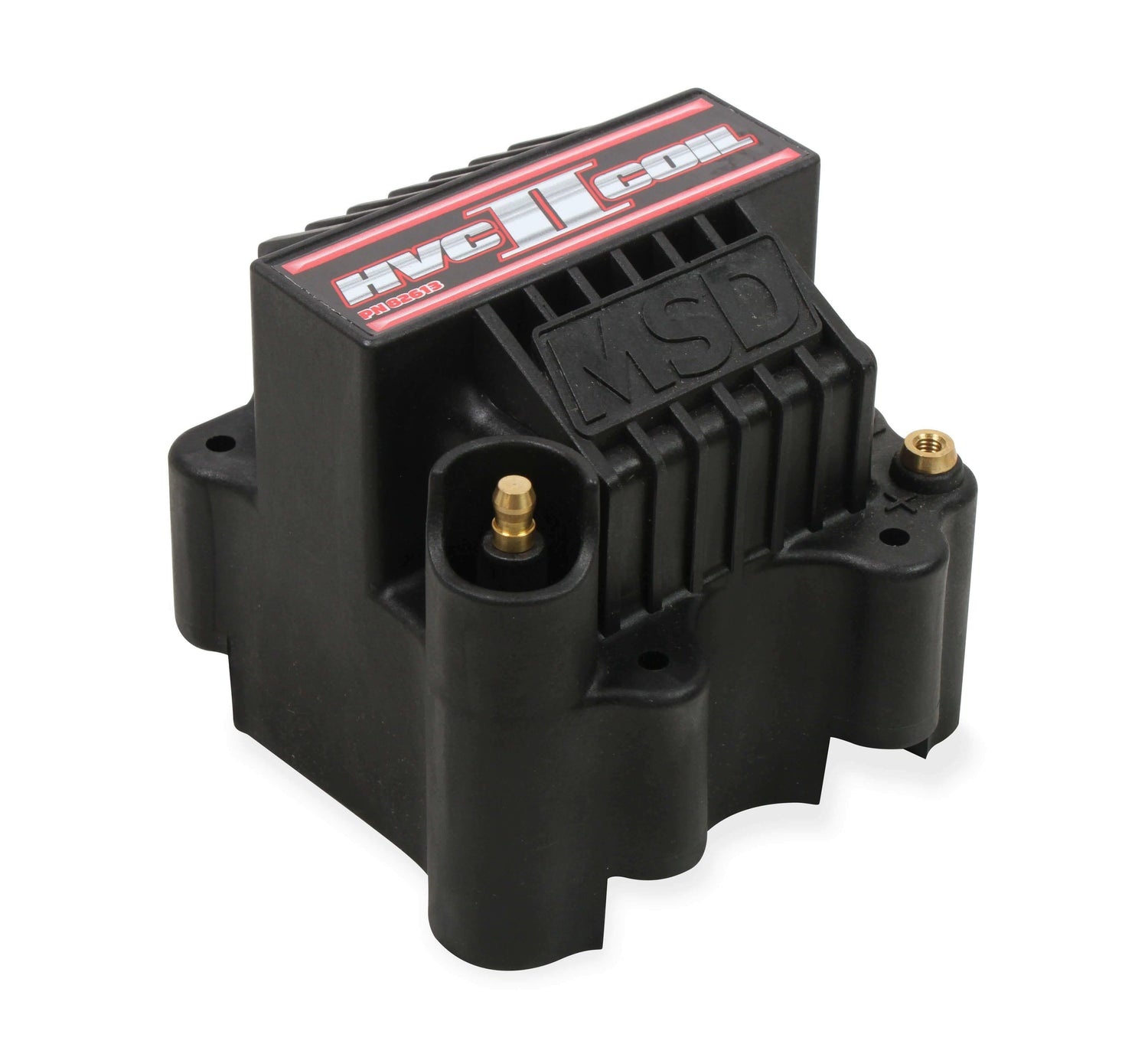

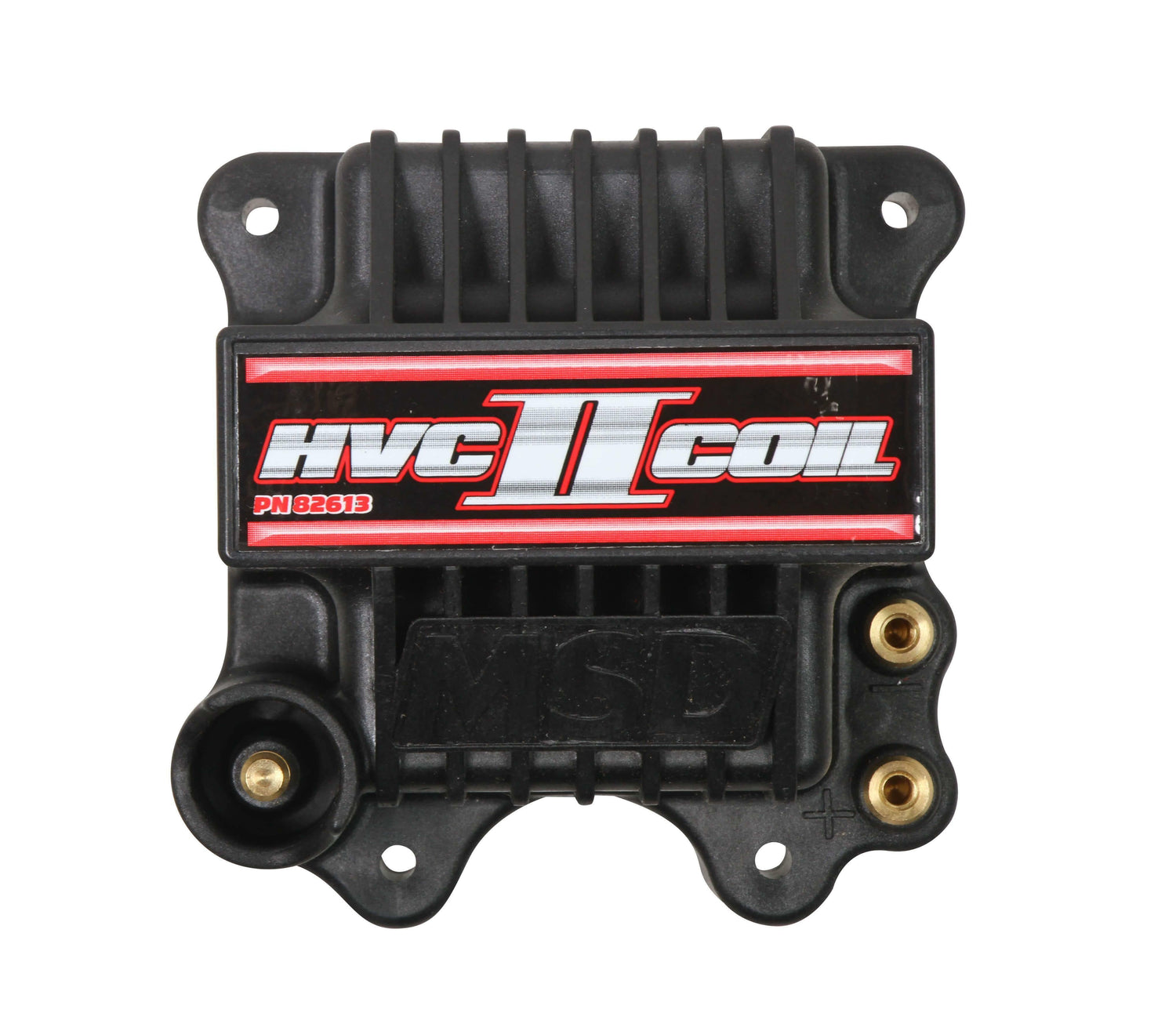

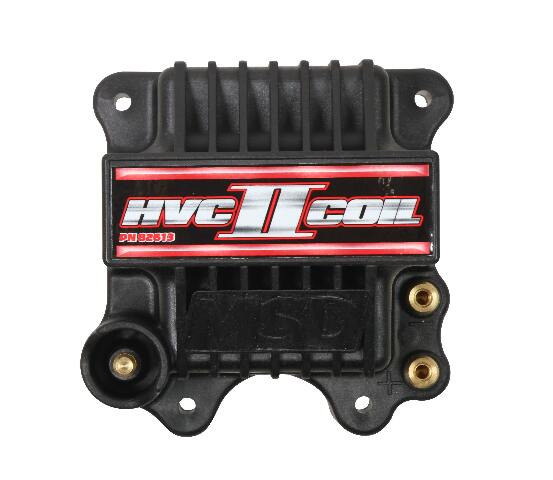

MSD 82613 Black Ignition Coil, HVC-2,7 Series Ign
MSD 82613 Black Ignition Coil, HVC-2,7 Series Ign is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | MSD |
|---|---|
| Color | Black |
| Emission Code | 4 |
| Inductance | .250 mH |
| Maximum Voltage | 45,000 Volts |
| Peak Current | 2 Amps |
| Primary Resistance | .016 OHMs |
| Product Type | Coil |
| Secondary Resistance | 30 OHMs |
| Spark duration | 150 uS |
| Turns Ratio | 2.91736111111111 |
| Type | Drag Race / Long Duration Use |
| Warning | California Proposition 65 |
| Warranty | Limited 1 Year Warranty |
| Weight | 3.75 Lbs |
