MSD Digital 6 Offroad Ignition - 6471
MSD Digital 6 Offroad Ignition - 6471 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
If you're crawling rocks, high speed desert racing, or playing in any kind of harsh terrain in your offroad rig, the MSD 6 Offorad ignition is a must. Its fully potted design provides the ruggedness and reliability needed to get your 4WD to any destination.
The 6 Offroad multi-sparks below 3,000 RPM on V8's ensuring clean, crisp throttle response and complete fuel burn when crawling at low speeds. Above 3,000 RPM a powerful capacitive discharge spark keeps the fire lit until you let off the skinny pedal. A smooth, accurate rev-limiter will protect your engine from over-rev damage due to drivetrain failure or a slick spot on the trail.

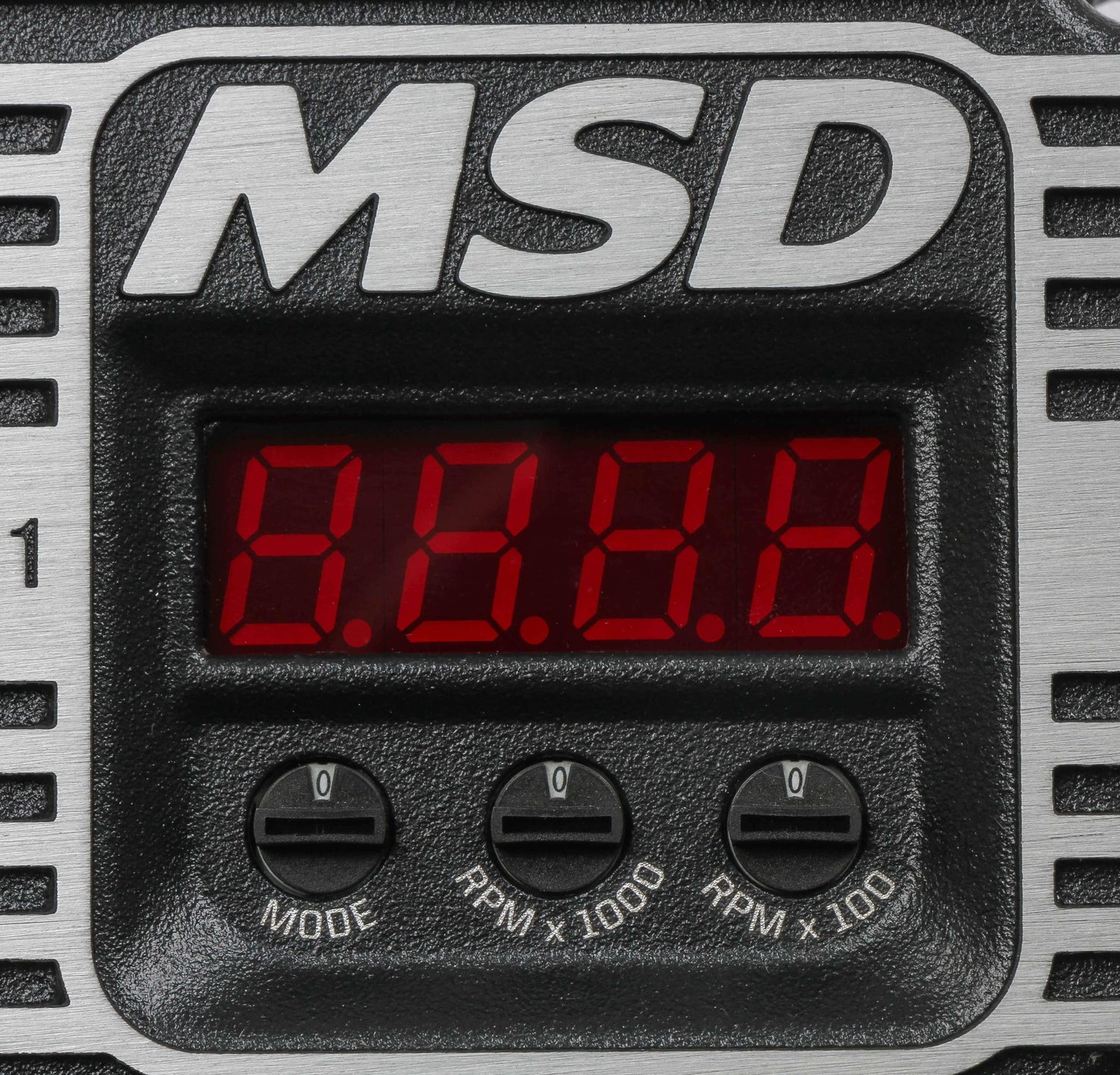

An easy to read LED display on the face of the unit clearly displays the rev-limit RPM. The display, in conjunction with rotary dials, is used to set the rev-limit, cylinder select, and even a timing start retard for race engines. The handy display can also show a live tach reading and even battery voltage with the quick turn of a knob.
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | MSD |
|---|---|
| Color | Black |
| Current Draw | 0.8 Amps per 1,000 RPM |
| Emission Code | 3 |
| Features | Start Retard |
| Primary Voltage | 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250 |
| Product Type | Digital 6 Offroad Ignition Box |
| RPM Range | 12,000 RPM |
| Secondary Voltage | 45,000 Volts |
| Spark Energy | 135mJ w/ Blaster Coil / 150mJ w/ HVC Coil PN 8250 |
| Spark Series Duration | 20° Crankshaft Rotation |
| Voltage Required | 6 to 18 Volts |
| Warning | California Proposition 65 |
| Warranty | Limited 1 Year Warranty |
| Weight and Size | 2.5 lbs., 7.89"L x 4.00"W x 1.87"H |
