Overview:

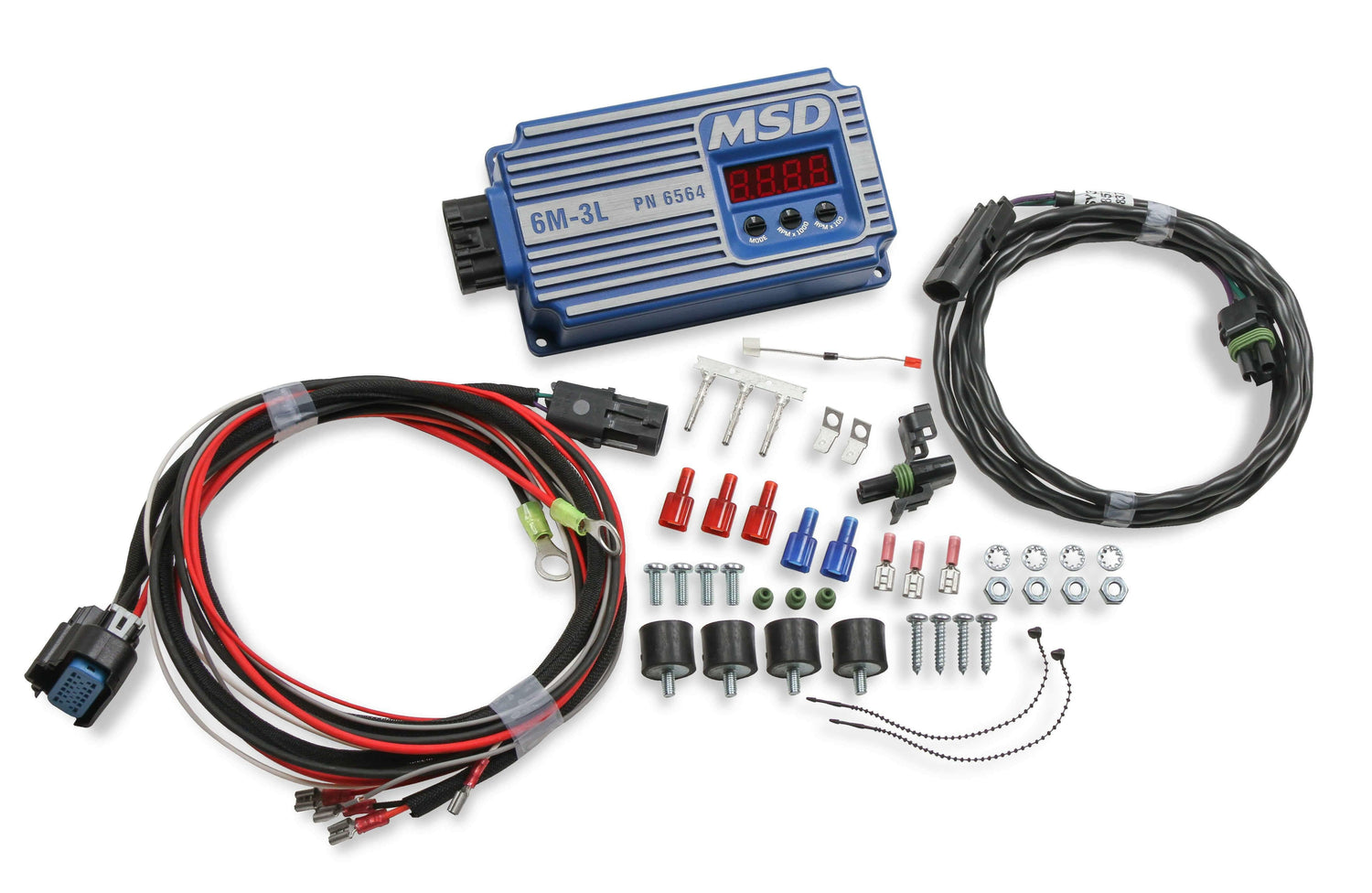

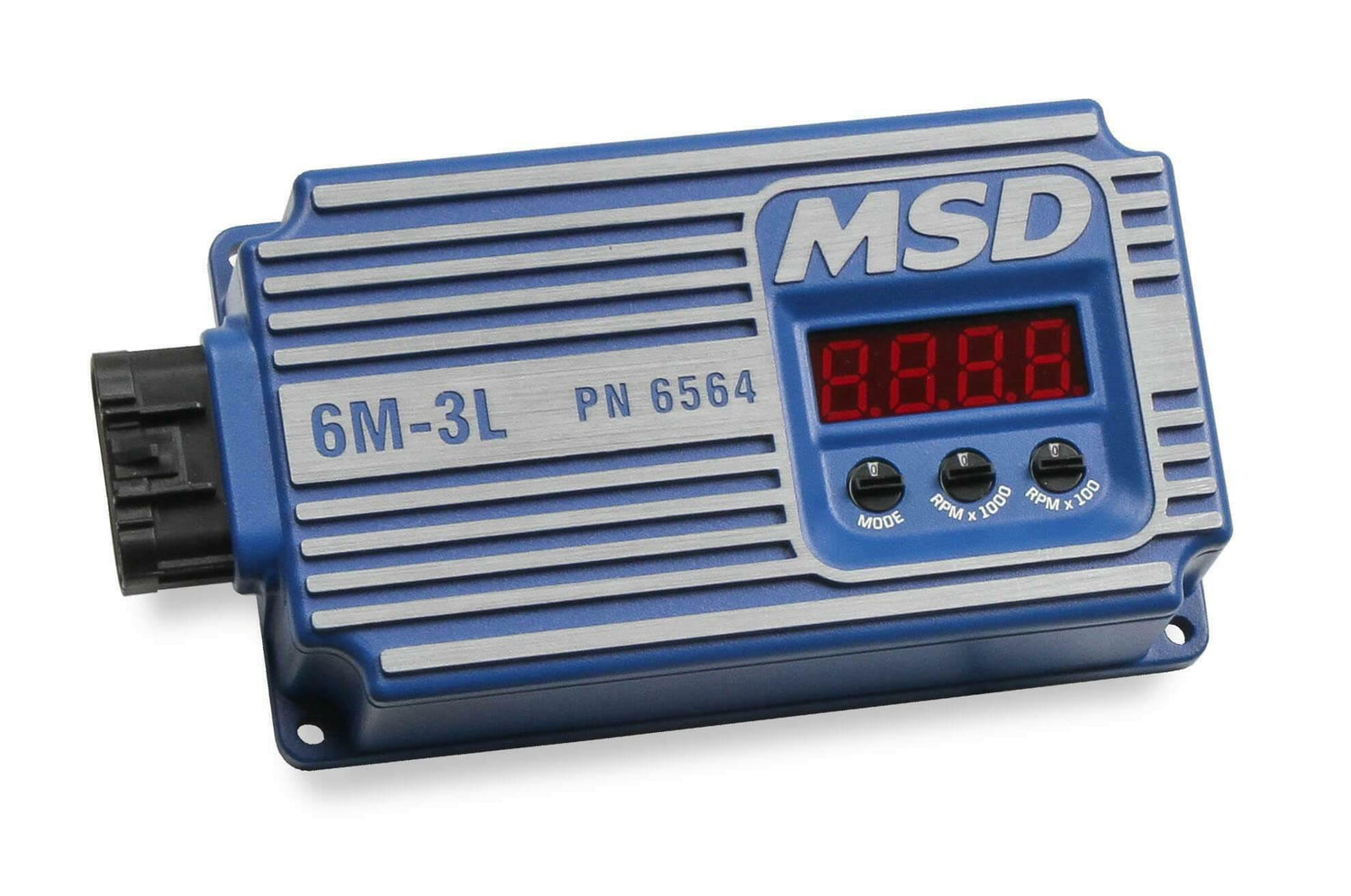

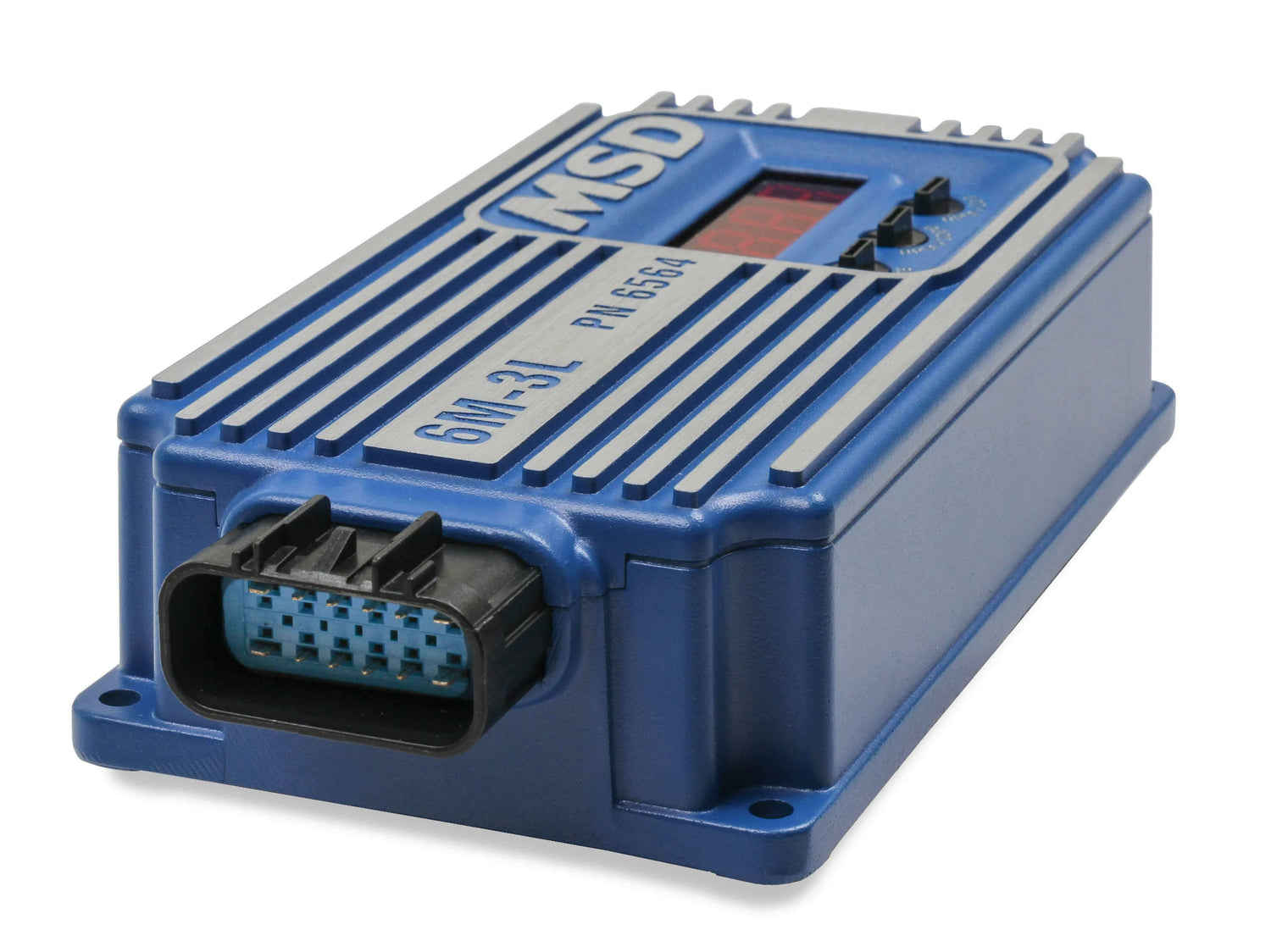

We've raised the bar and added an all-new UL listed marine ignition box to our lineup. The 6M-3L is a fully sealed unit with a single wiring connector makeing installation neat and easy.

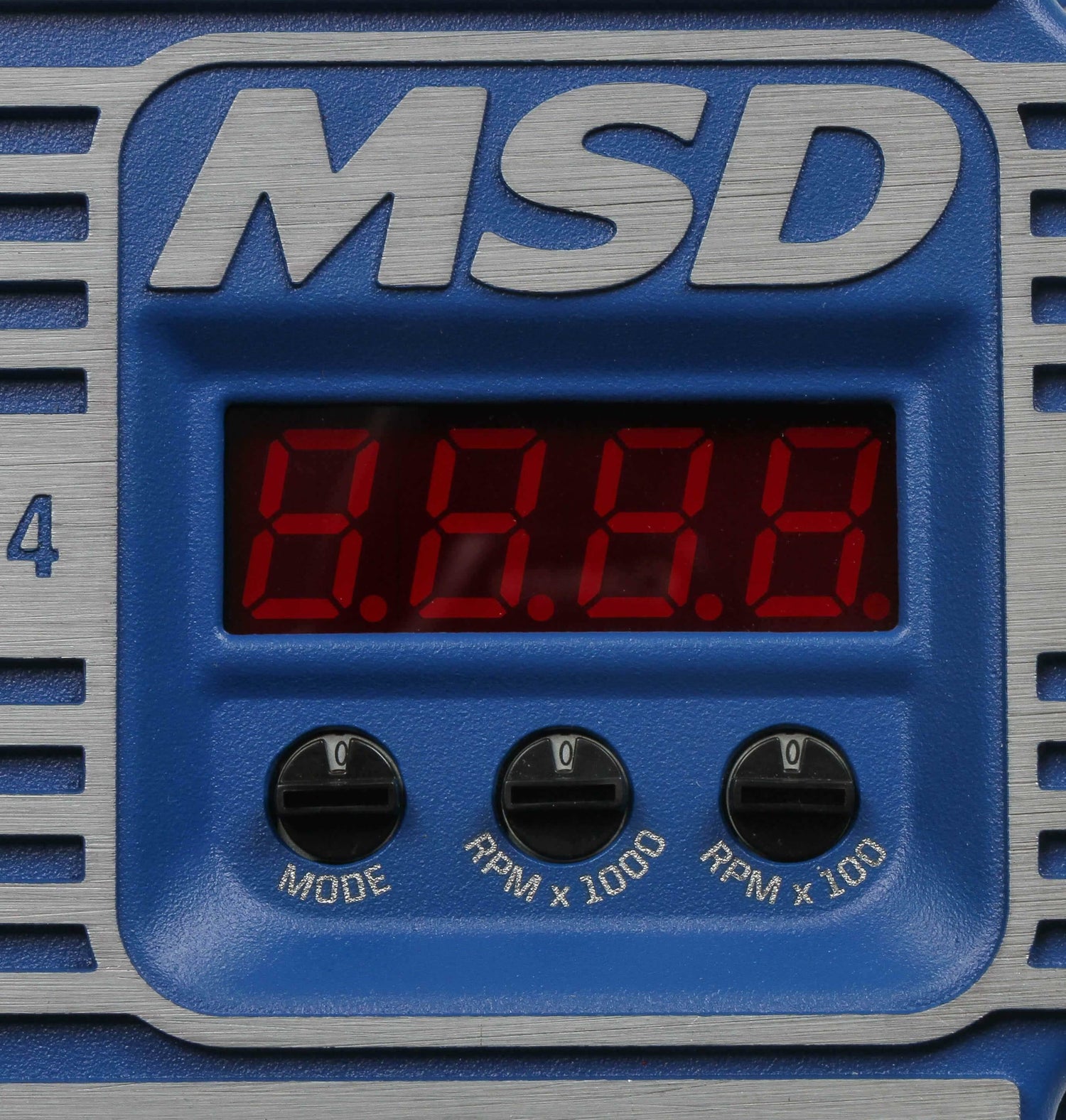

Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob.
The 6M-3L is a capacitive discharge ignition that multi-sparks from idle to 3,000 RPM providing a clean idle and quick throttle response. Above 3,000, capacitive discharge sparks will run clean through 12,000 RPM . Boasting more features and higher spark energy than its predecessor, the 6M-3L is the performance upgrade your boat needs!
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | MSD |
|---|---|
| Current Draw | 0.8 Amps per 1,000 RPM |
| Emission Code | 3 |
| Features | Start Retard |
| Primary Voltage | 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250 |
| Product Type | Ignition |
| RPM Range | 12,000 RPM |
| Secondary Voltage | 45,000 Volts |
| Spark Energy | 135mJ w/ Blaster Coil / 150mJ w/ HVC Coil PN 8250 |
| Spark Series Duration | 20° Crankshaft Rotation |
| Voltage Required | 6 to 18 Volts |
| Warranty | Limited 1 Year Warranty |
| Weight and Size | 2.5 lbs., 7.89"L x 4.00"W x 1.87"H |
