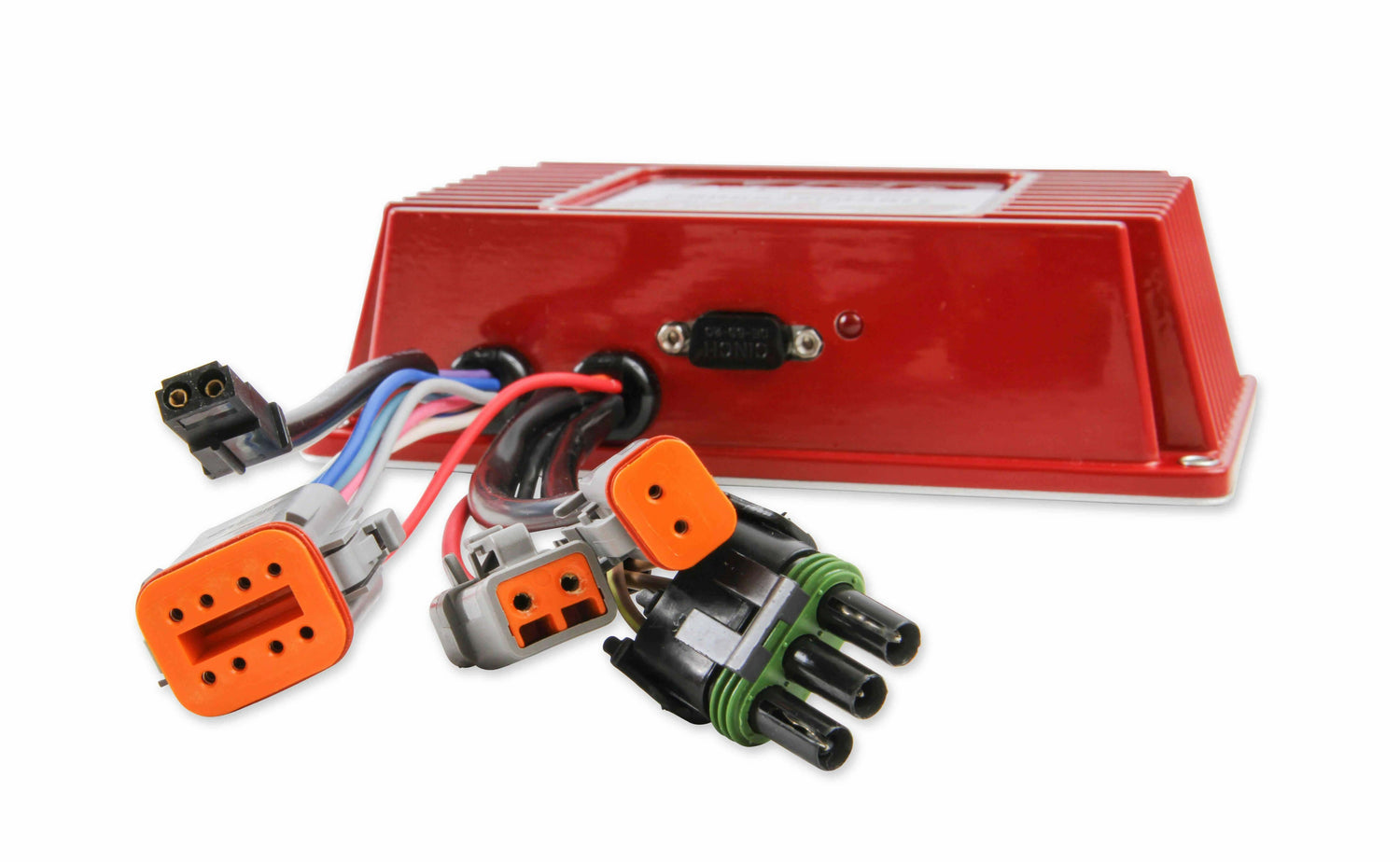

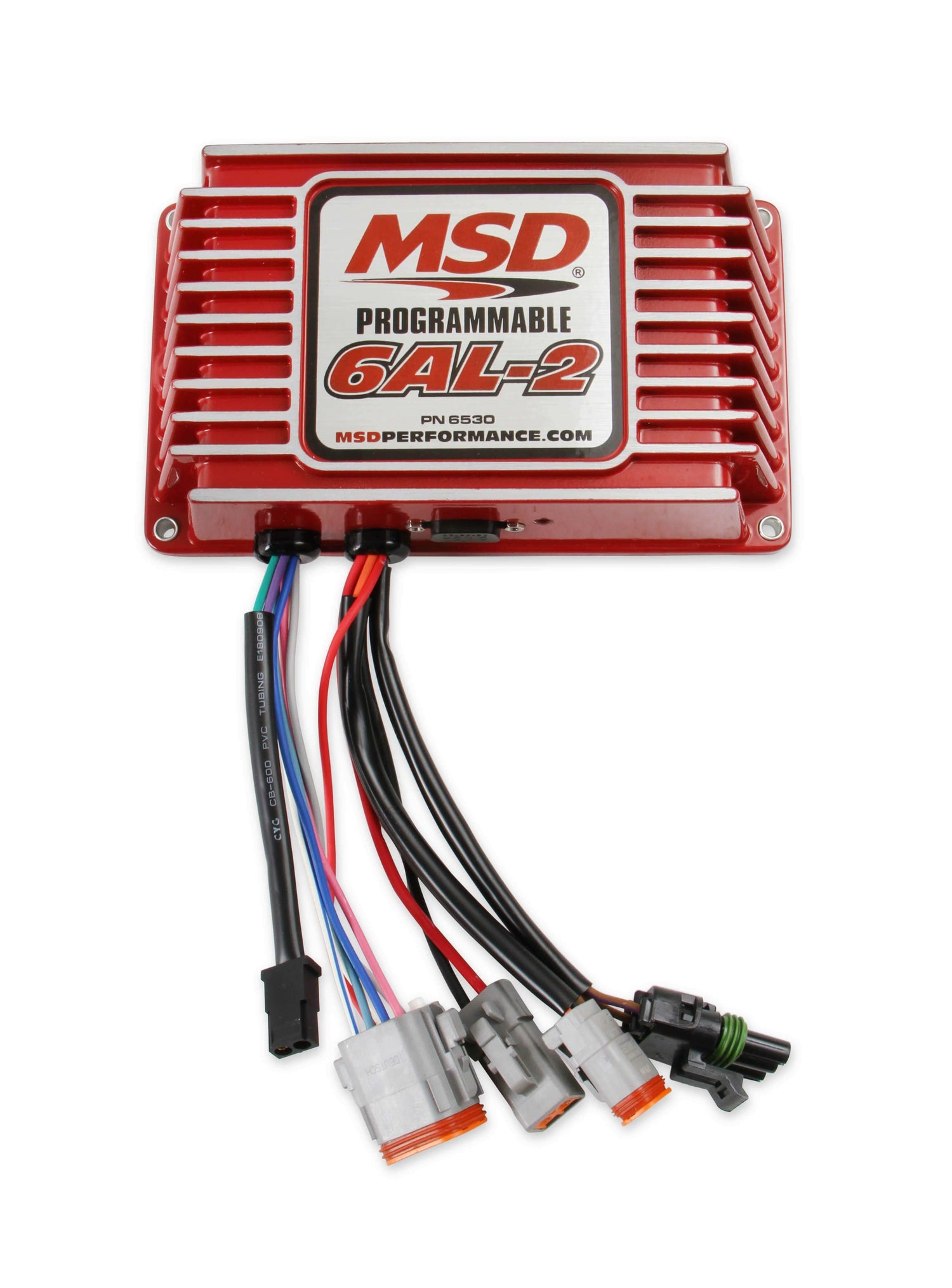

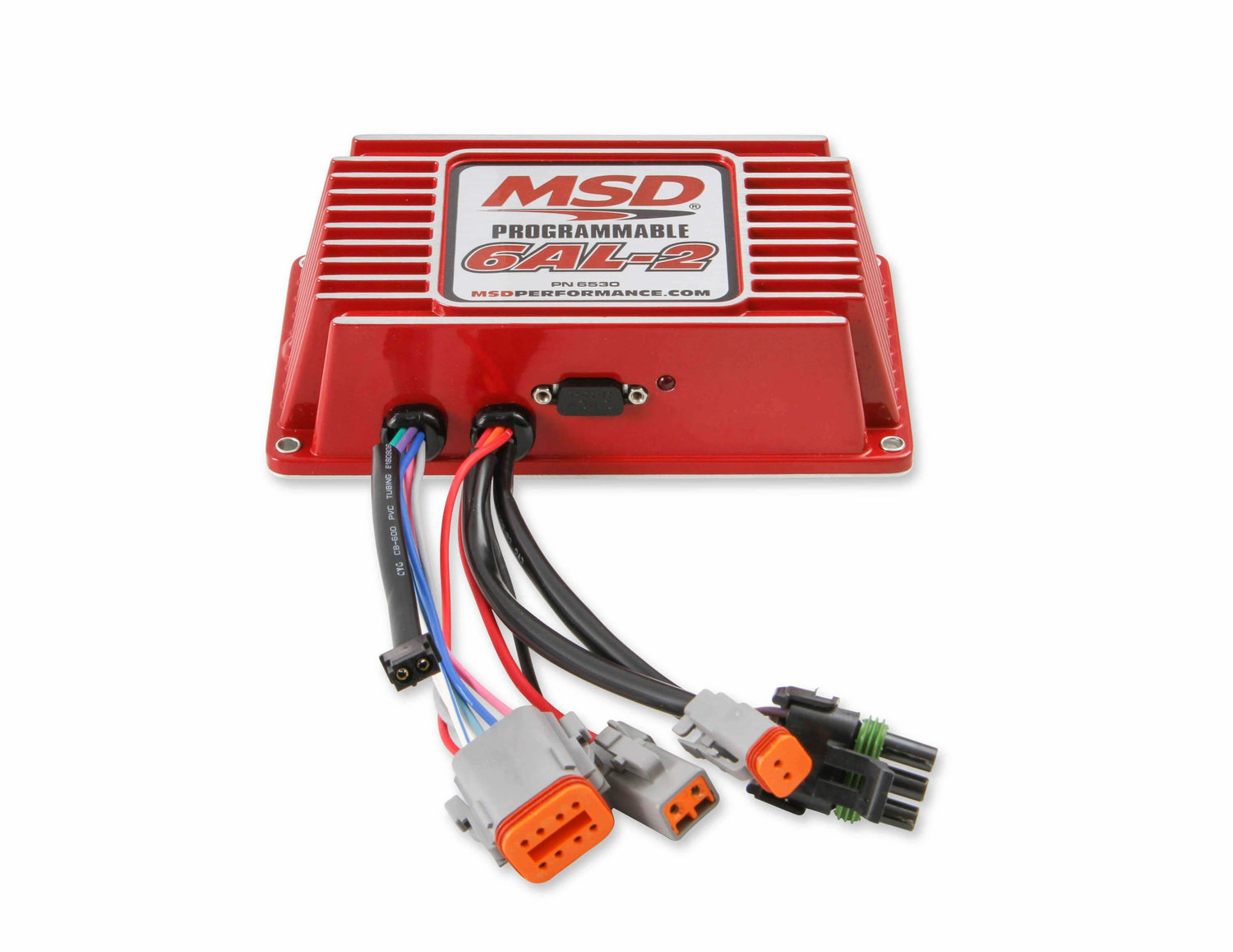

MSD Ignition 6530 6AL Programmable Ignition Controller
MSD Ignition 6530 6AL Programmable Ignition Controller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

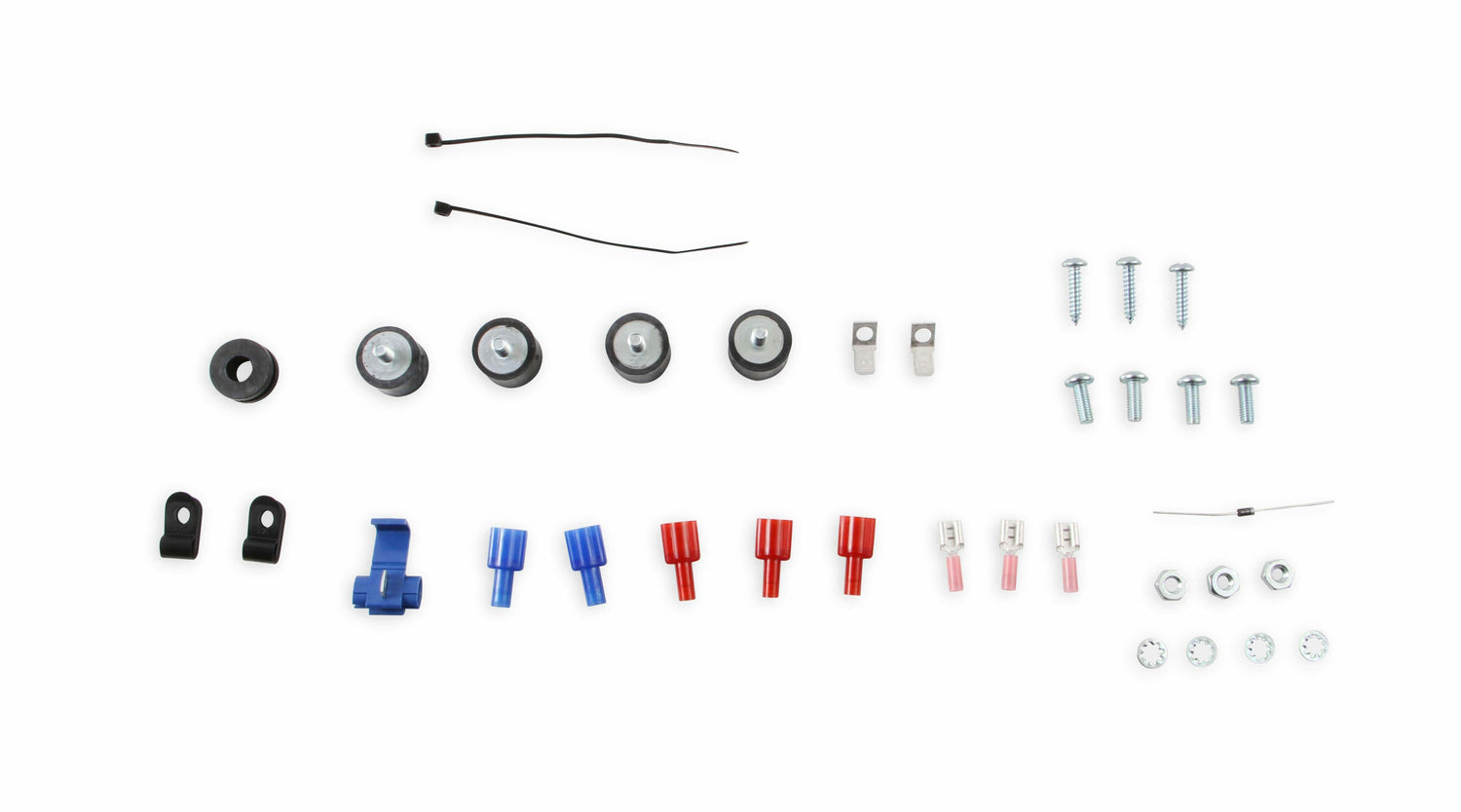

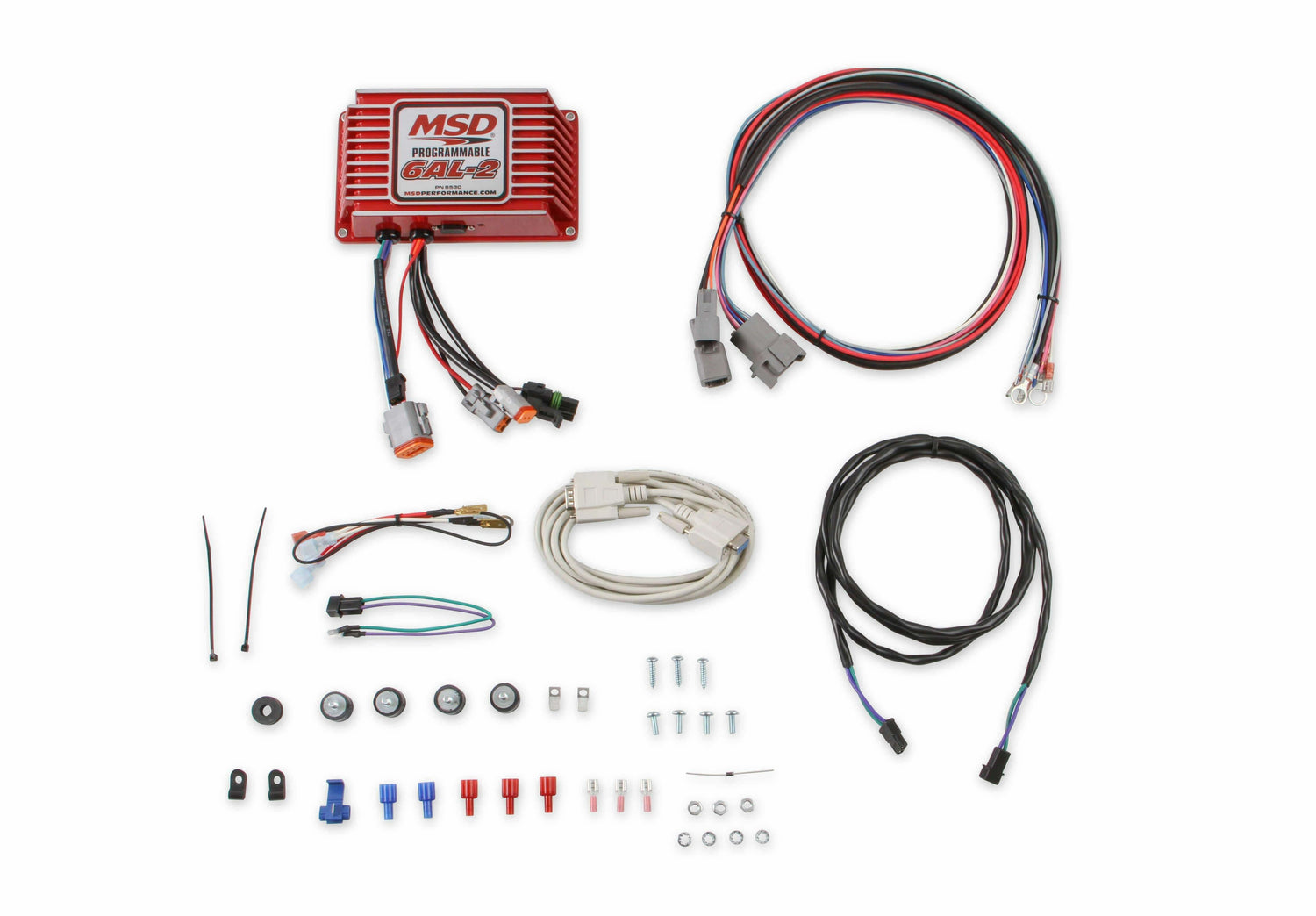

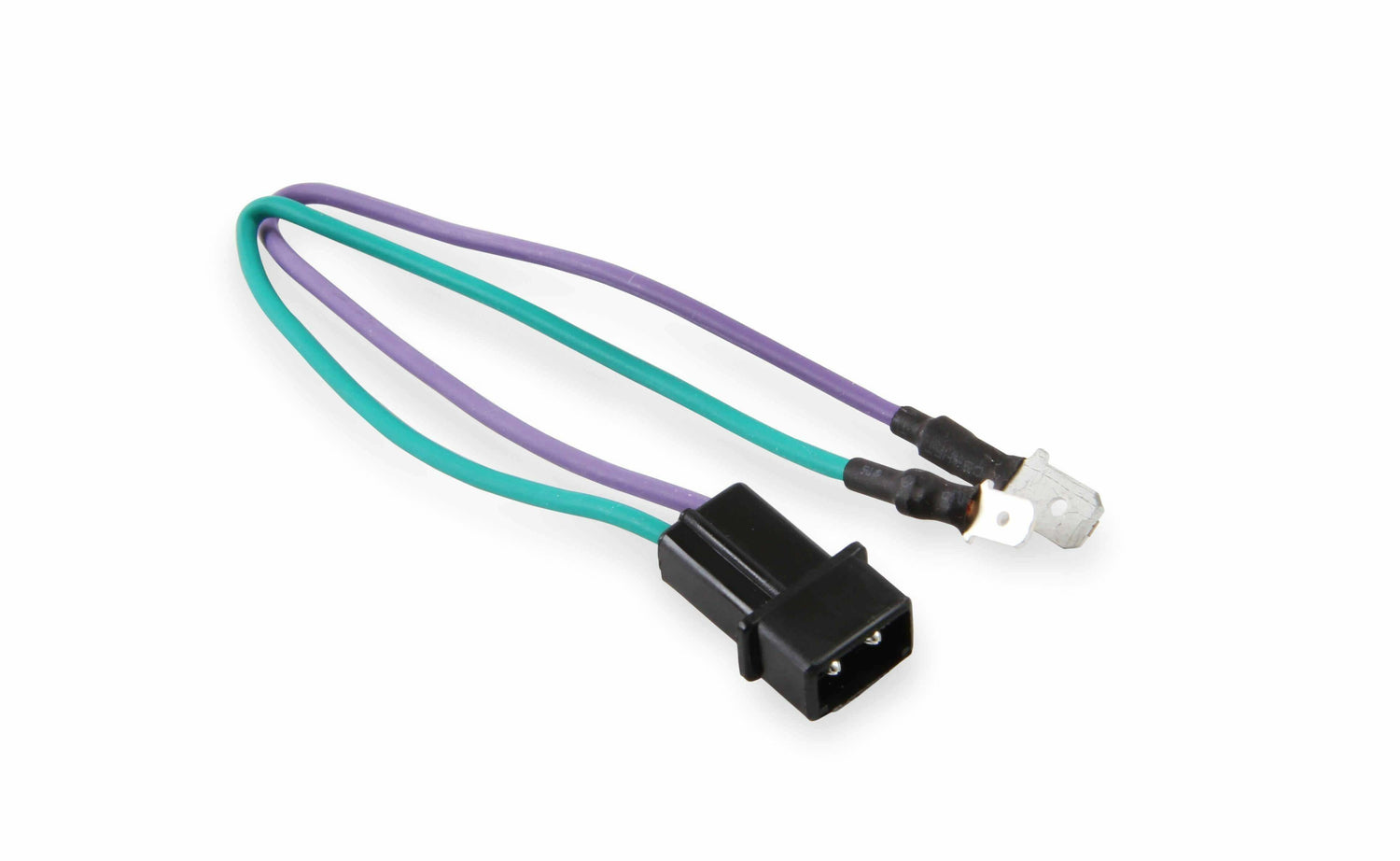

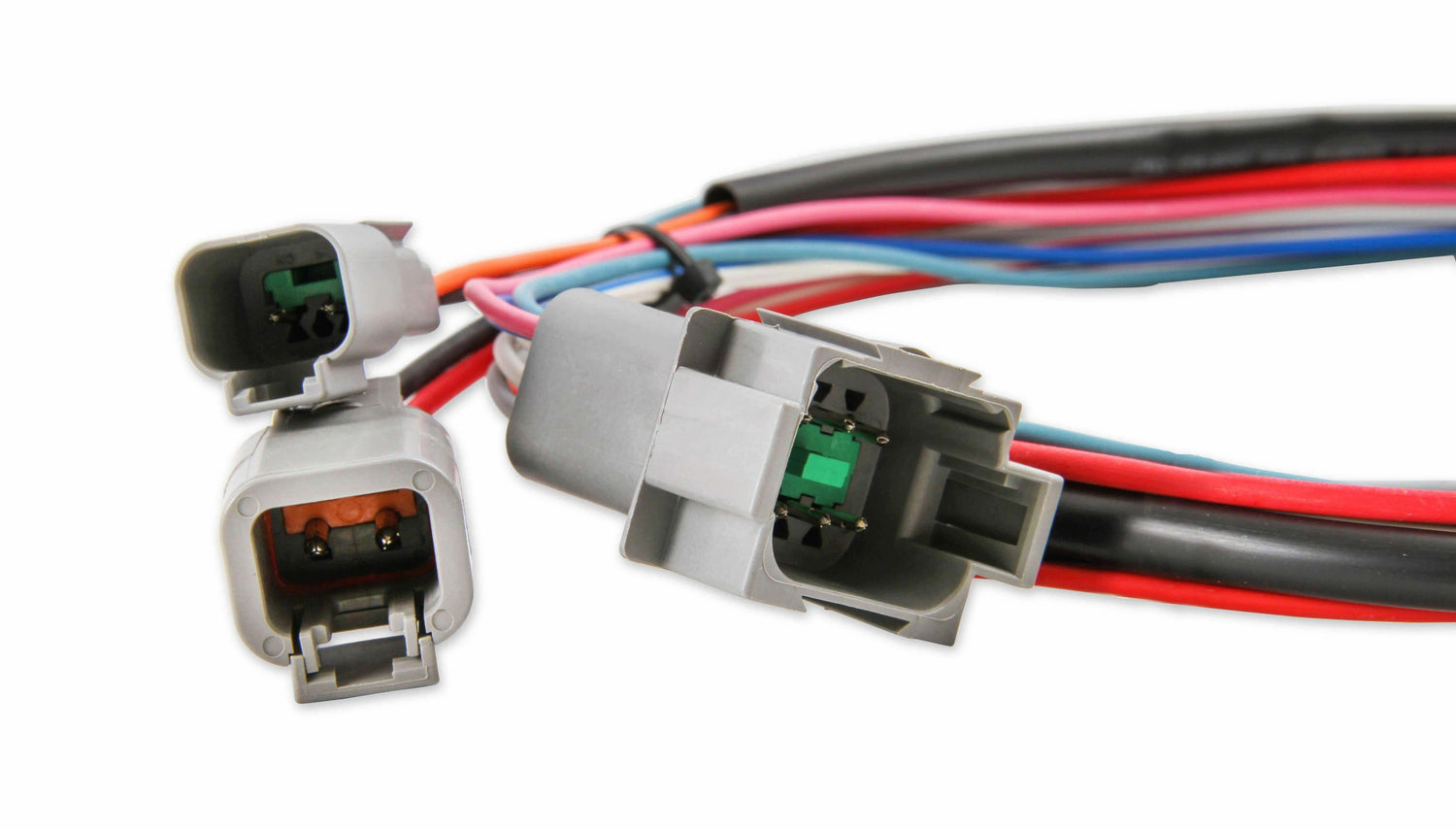

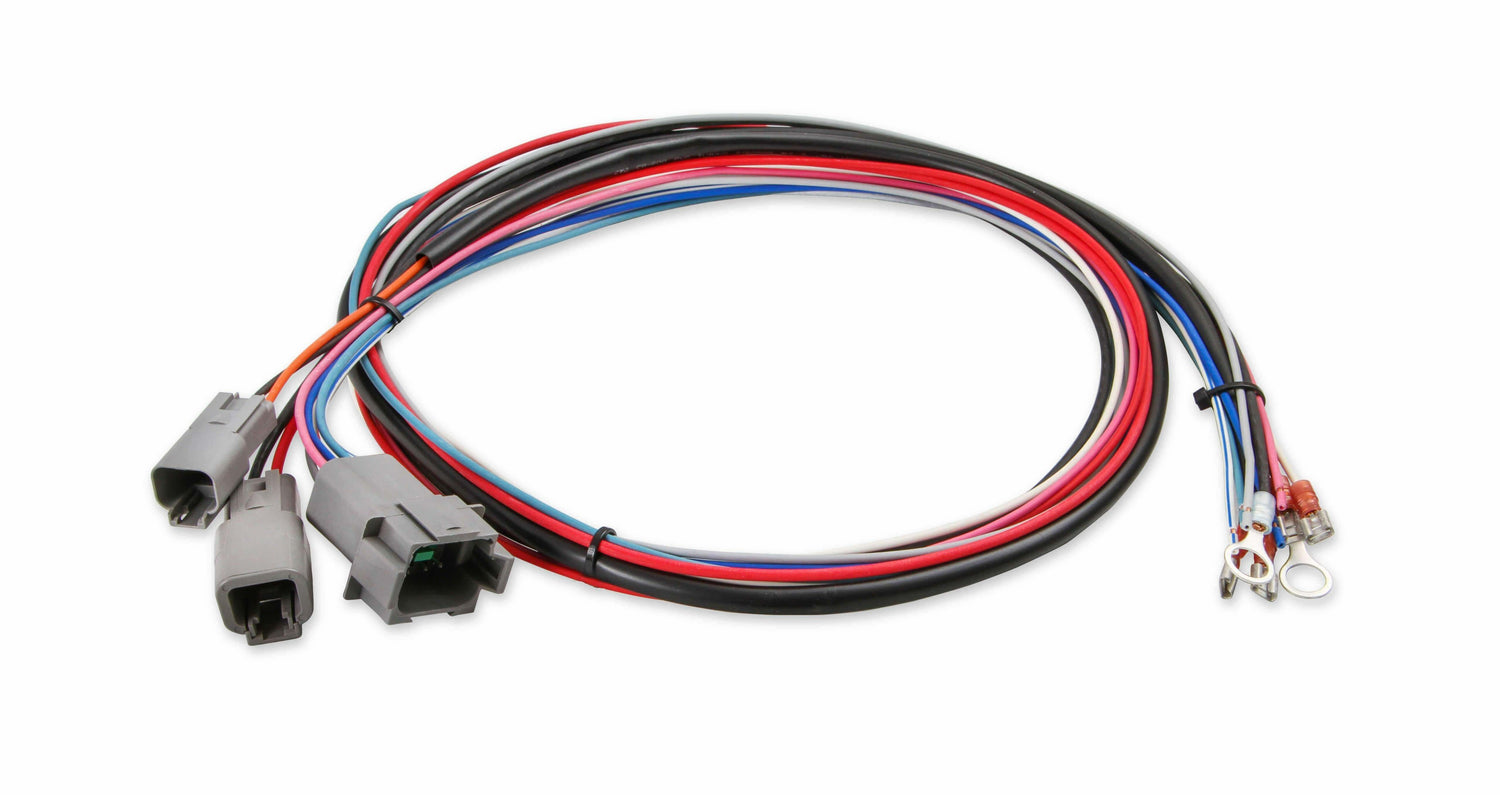

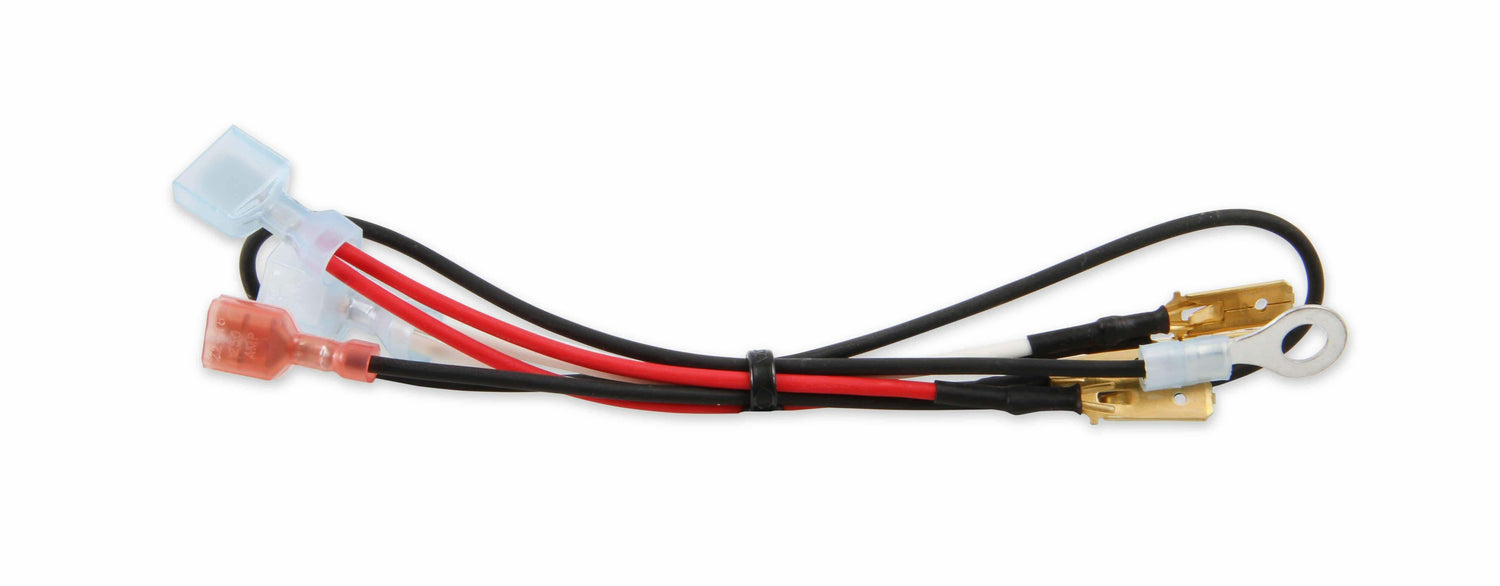

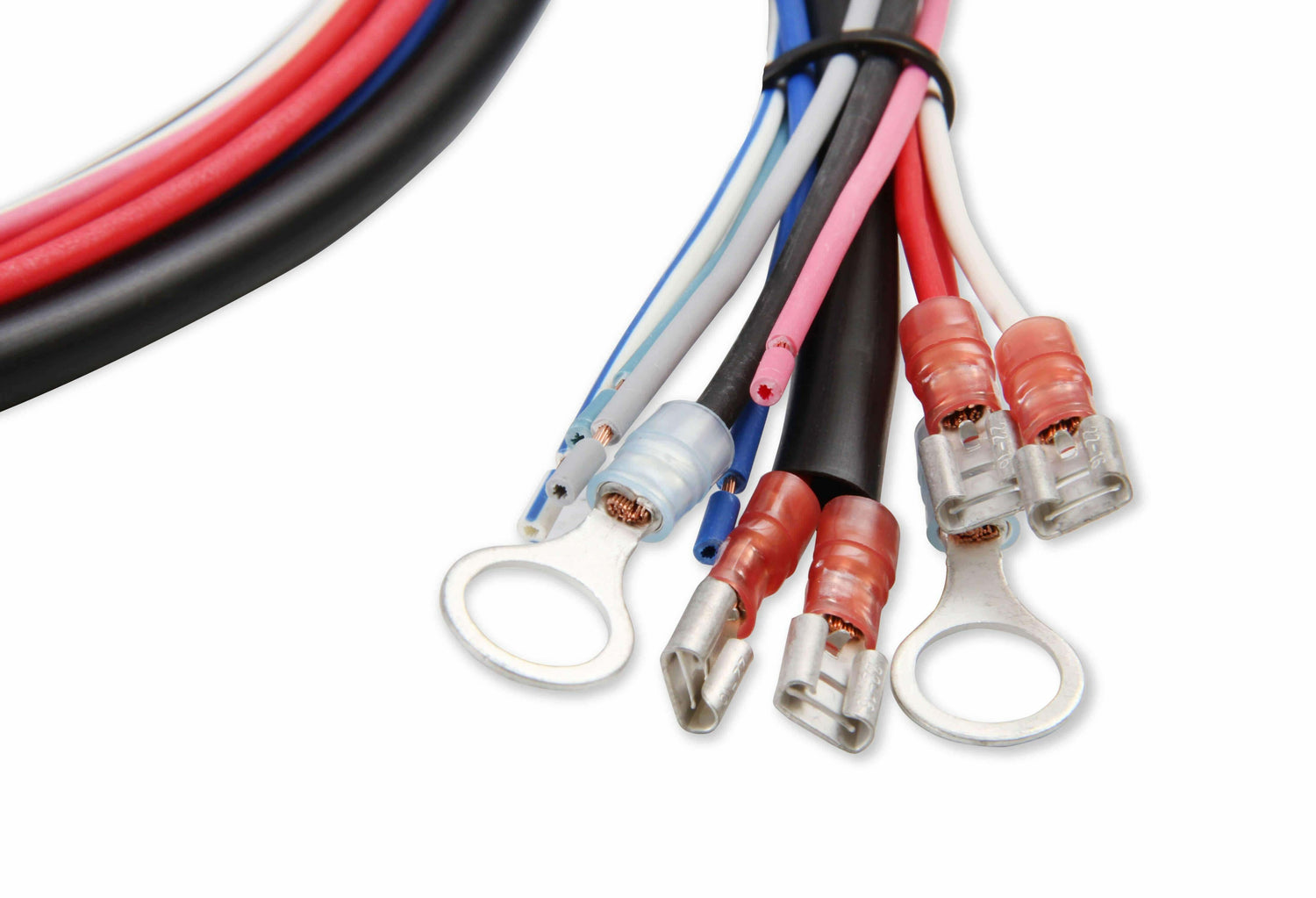

The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC. You'll also be able to set a 2-Step Rev Limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines! The Programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied. Must use MSD Pro-Data+ Software to program.
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | MSD |
|---|---|
| Color | Red |
| Current Draw | .7 Amp per 1,000 RPM |
| Emission Code | 1 |
| EO Number | D-115-21 |
| Primary Voltage | 535 Volts |
| Product Type | Digital Programmable 6AL-2 |
| RPM Range | 12,500 RPM with 14.4 Volts |
| Secondary Voltage | 45,000 Volts |
| Spark Energy | 135 mJ per spark |
| Voltage Required | 12-18 Volts, Negative Ground |
| Warning | California Proposition 65 |
| Warranty | Limited 1 Year Warranty |
| Weight and Size | 3 lbs.,7"L x 4"W x 2"H |
