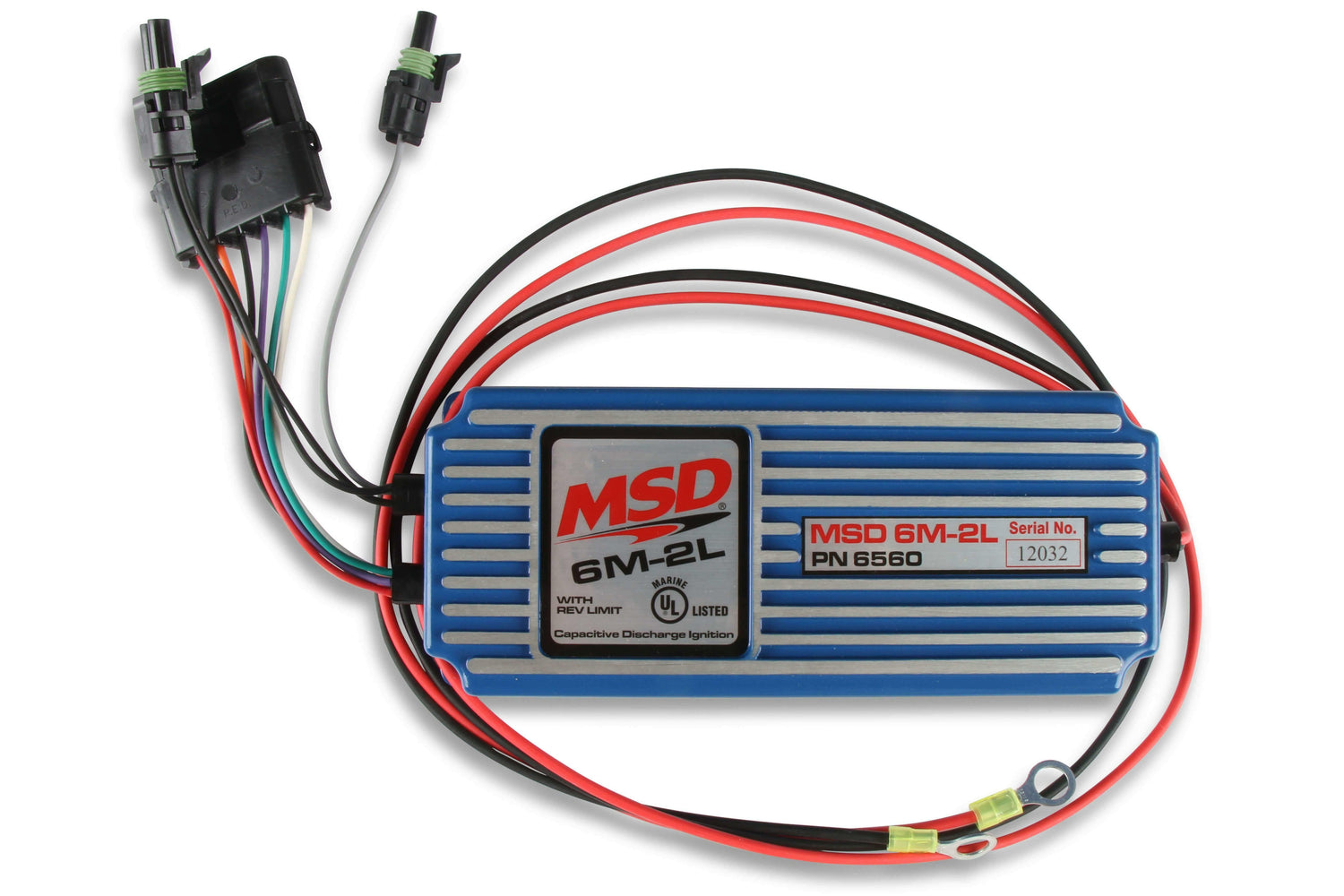

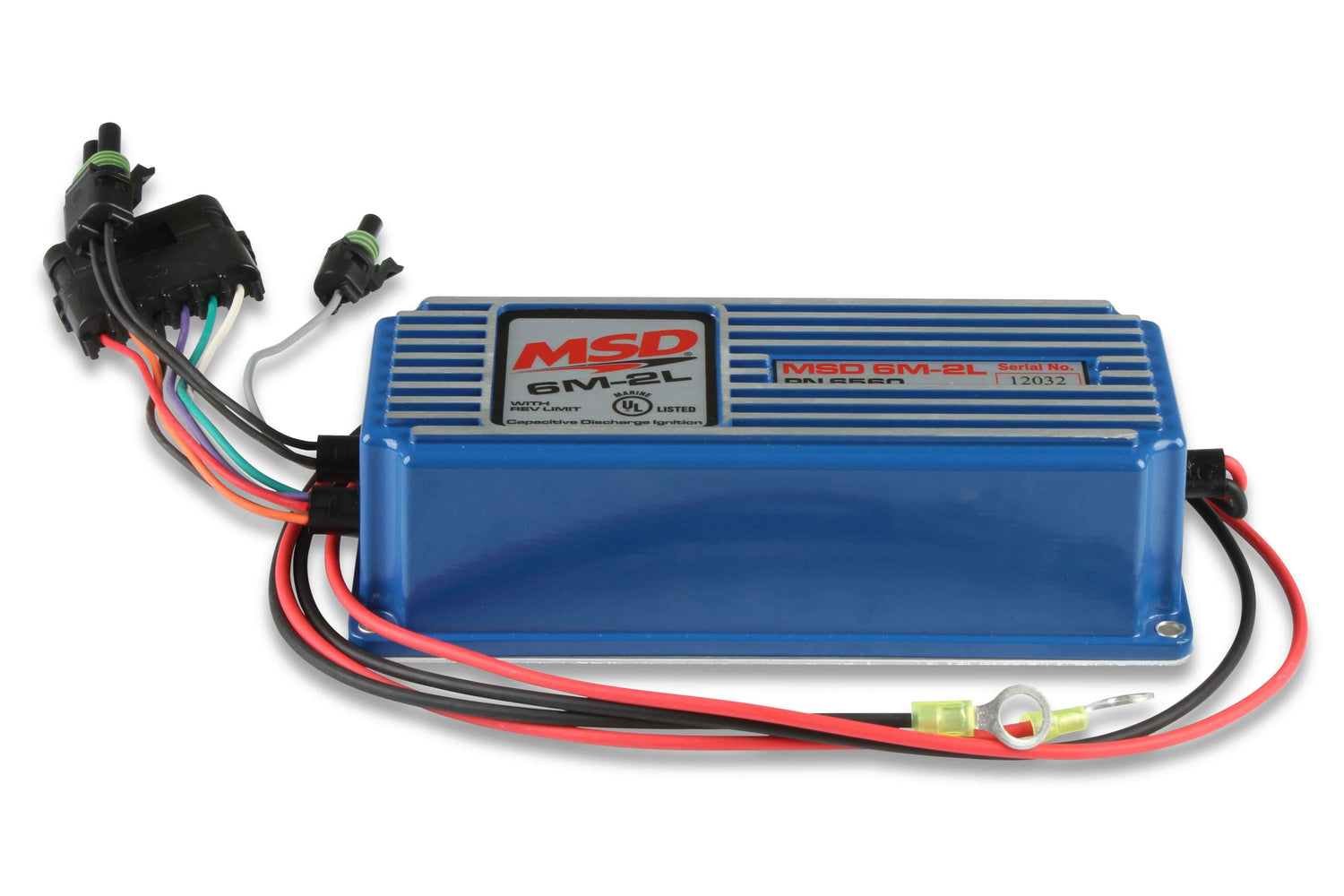

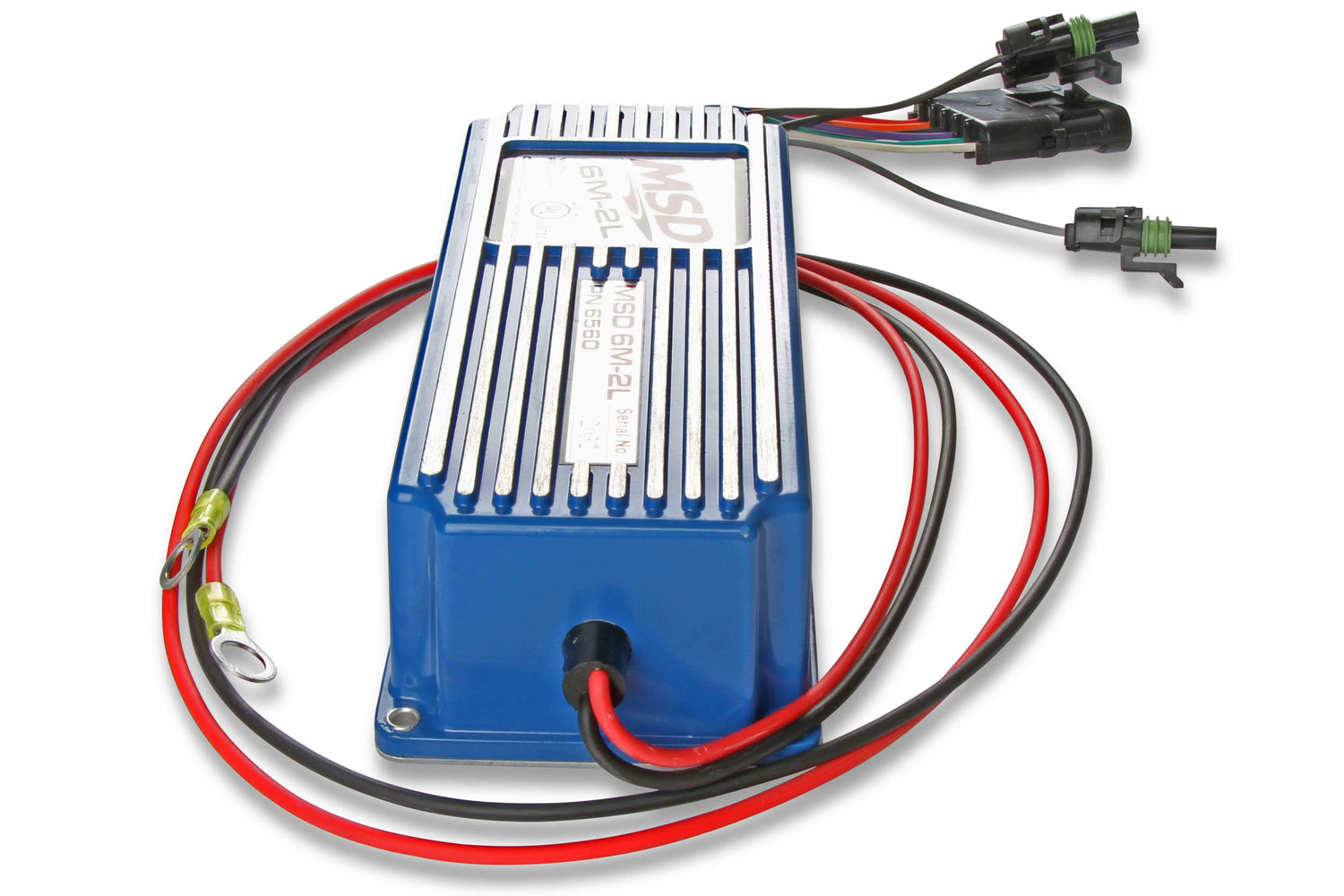

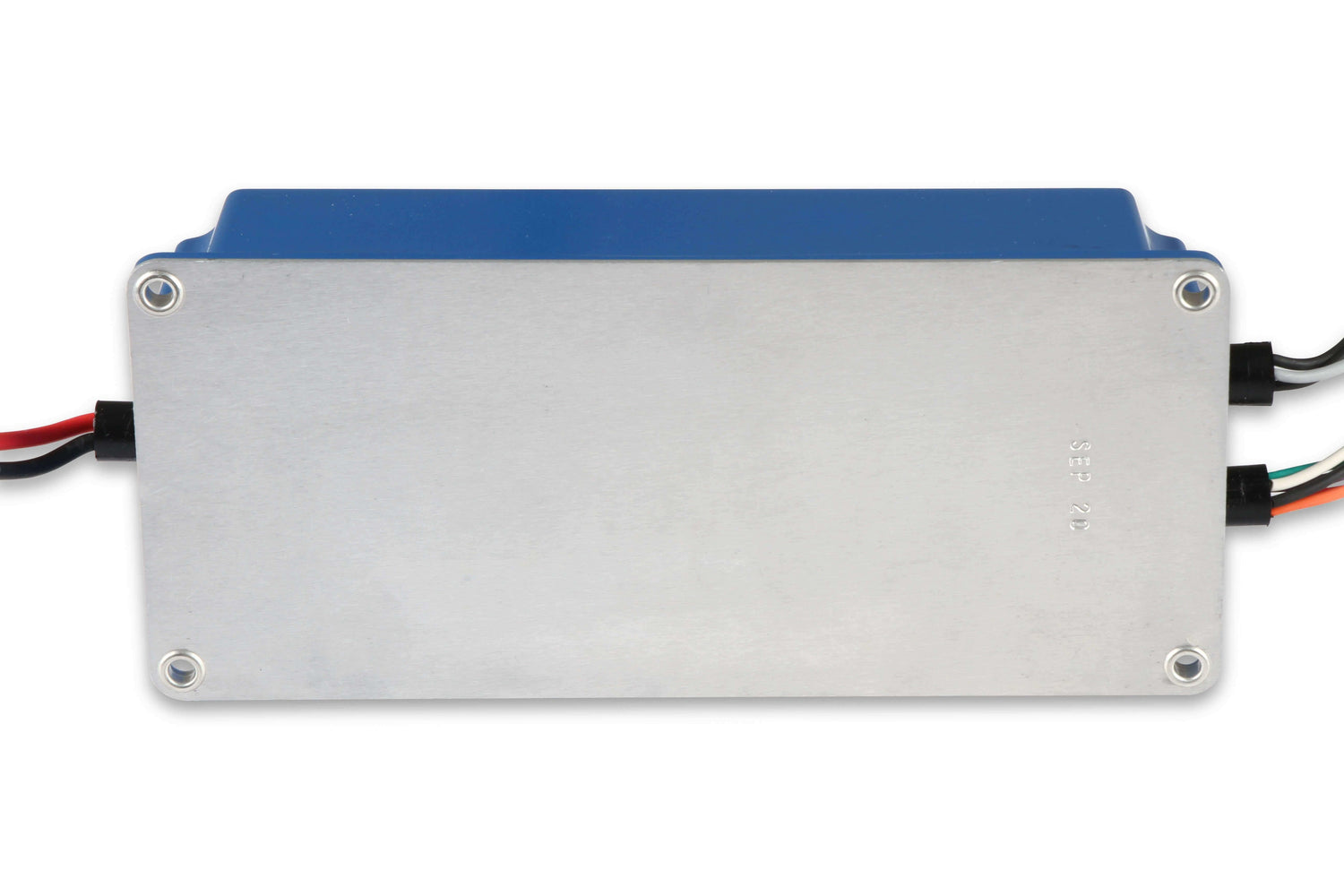

MSD Ignition 6560 MSD 6M-2L Marine Ignition
MSD Ignition 6560 MSD 6M-2L Marine Ignition is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

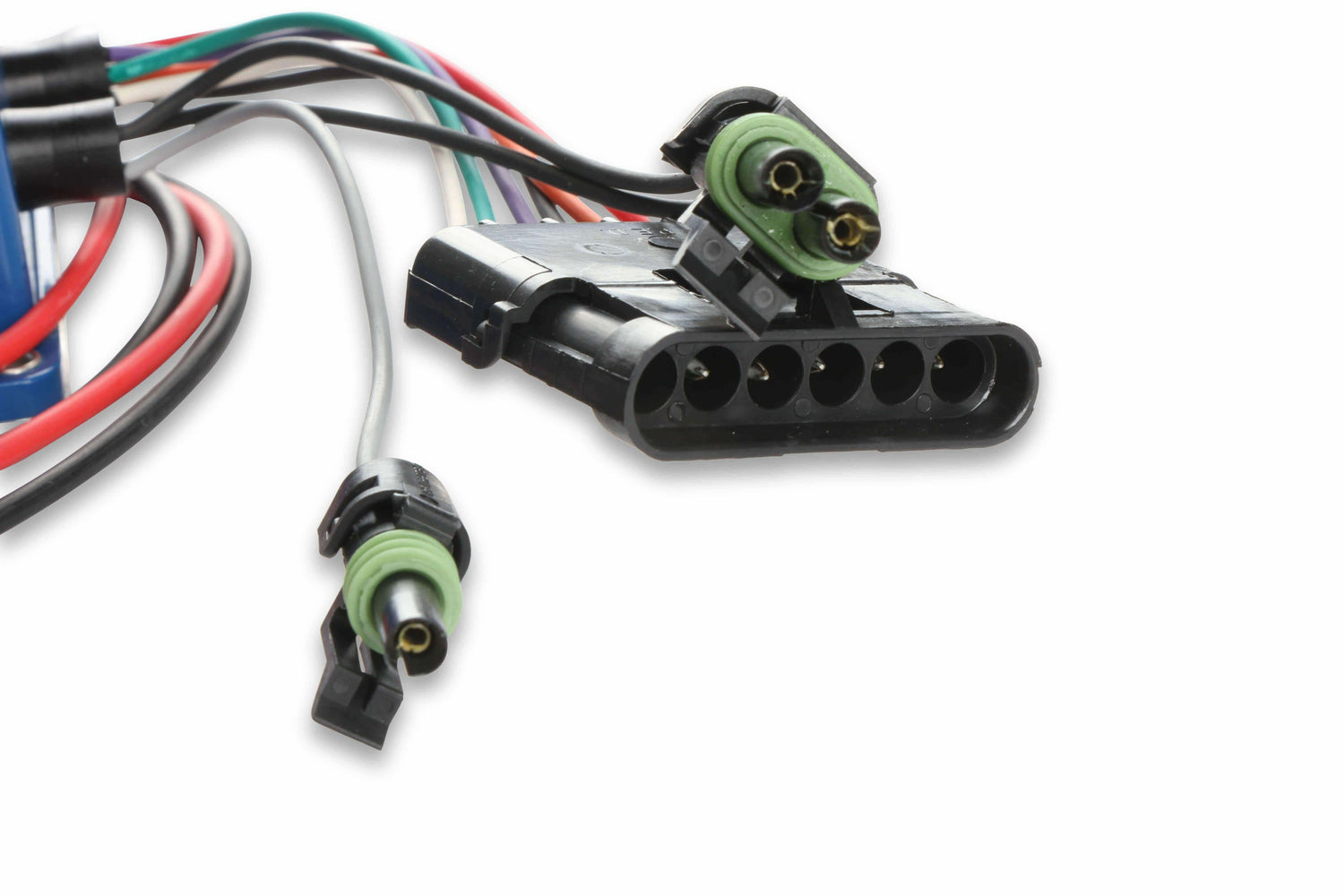

The MSD 6M-2L Ignition Control is designed for performance marine applications where a high energy and reliable ignition is a necessity. The capacitive discharge (CD) design of the MSD produces full power sparks throughout your boat's entire rpm range. Below 3,000 rpm, a series of multiple sparks burn in the cylinder for 20° of crankshaft rotation ensuring complete combustion. Together, these sparks produce easier starting, great throttle response, more power and reduced plug fouling during idling. Weathertight connectors securely lock together to provide reliable connections that are unaffected by water, oil, gasoline and most other chemicals associated with boats. The 6M-2L's electrical circuitry from marine conditions, the entire unit is potted with a polyurethane compound. This material prevents the electrical components from coming into contact with water or other chemicals. The 6M-2L also features a built-in Soft Touch Rev Control that will save your engine from overrev damage. The rpm limit is set with sealed rpm modules (see below). The 6M-2L can be triggered by either a magnetic pickup (distributor or crank trigger), amplifier or by a breaker point distributor. The cable harness has the proper connector so you can plug the 6M-2L into one of the Pro-Billet MSD Marine distributors.
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | MSD |
|---|---|
| Current Draw | 1 Amp Per 1,000 RPM |
| Emission Code | 3 |
| Primary Voltage | 460-480 Volts |
| Product Type | Ignition Box |
| RPM Range | 15,000 RPM with 14.4 Volts |
| Secondary Voltage | 45,000 Volts |
| Spark Energy | 105-115 mJ/spark |
| Spark Series Duration | 20 Degree Crankshaft Rotation |
| Voltage Required | 12-18 Volts, Negative Ground |
| Warning | California Proposition 65 |
| Warranty | Limited 1 Year Warranty |
| Weight and Size | 3.5 lbs.,8"L x 3.5"W x 2.25"H |
