NOS 15/20 lb BottleSuper Hi-Flow Valve Assy w/SiphonTube & BlackGauge 16340ABNOS
NOS 15/20 lb BottleSuper Hi-Flow Valve Assy w/SiphonTube & BlackGauge 16340ABNOS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

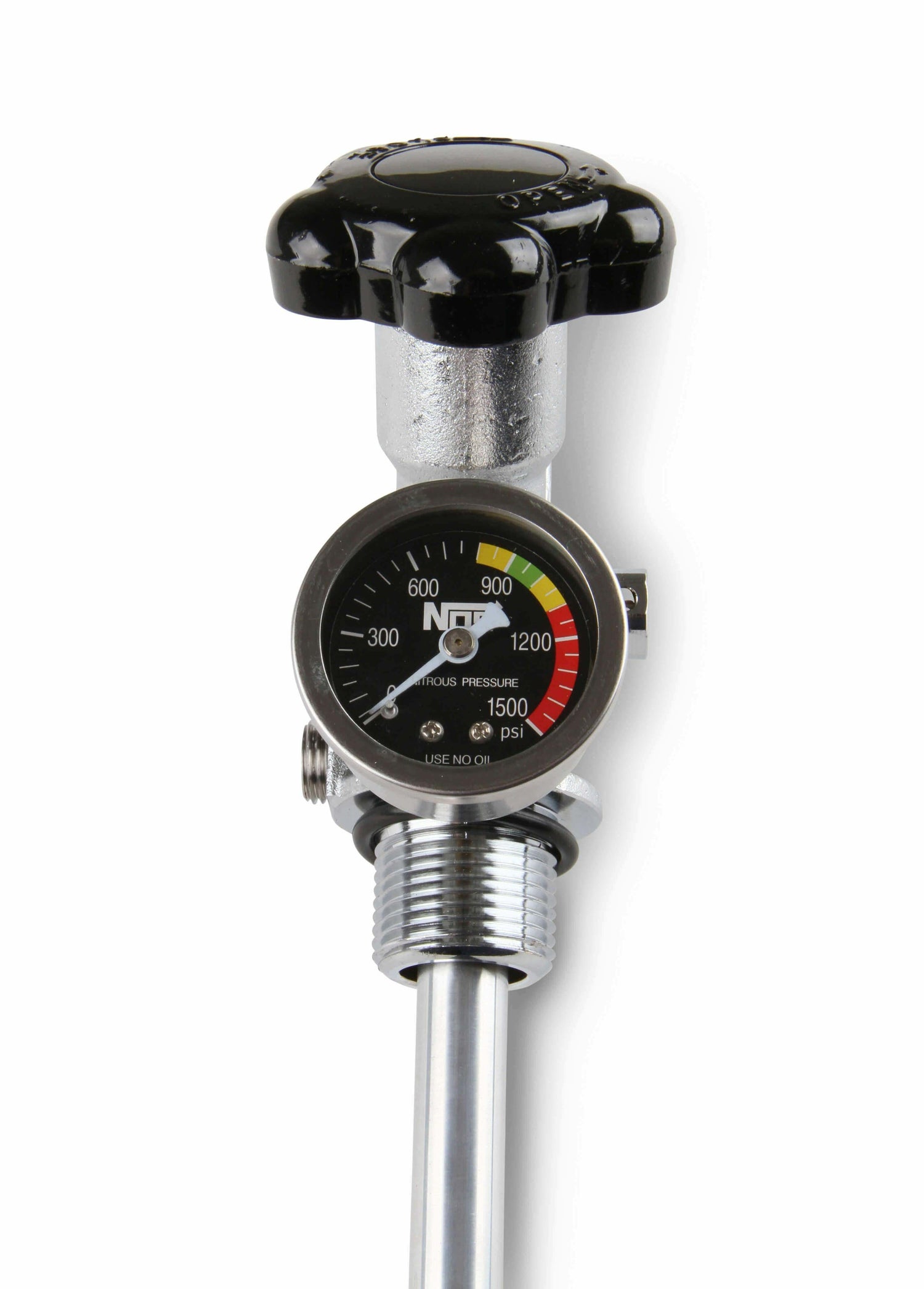

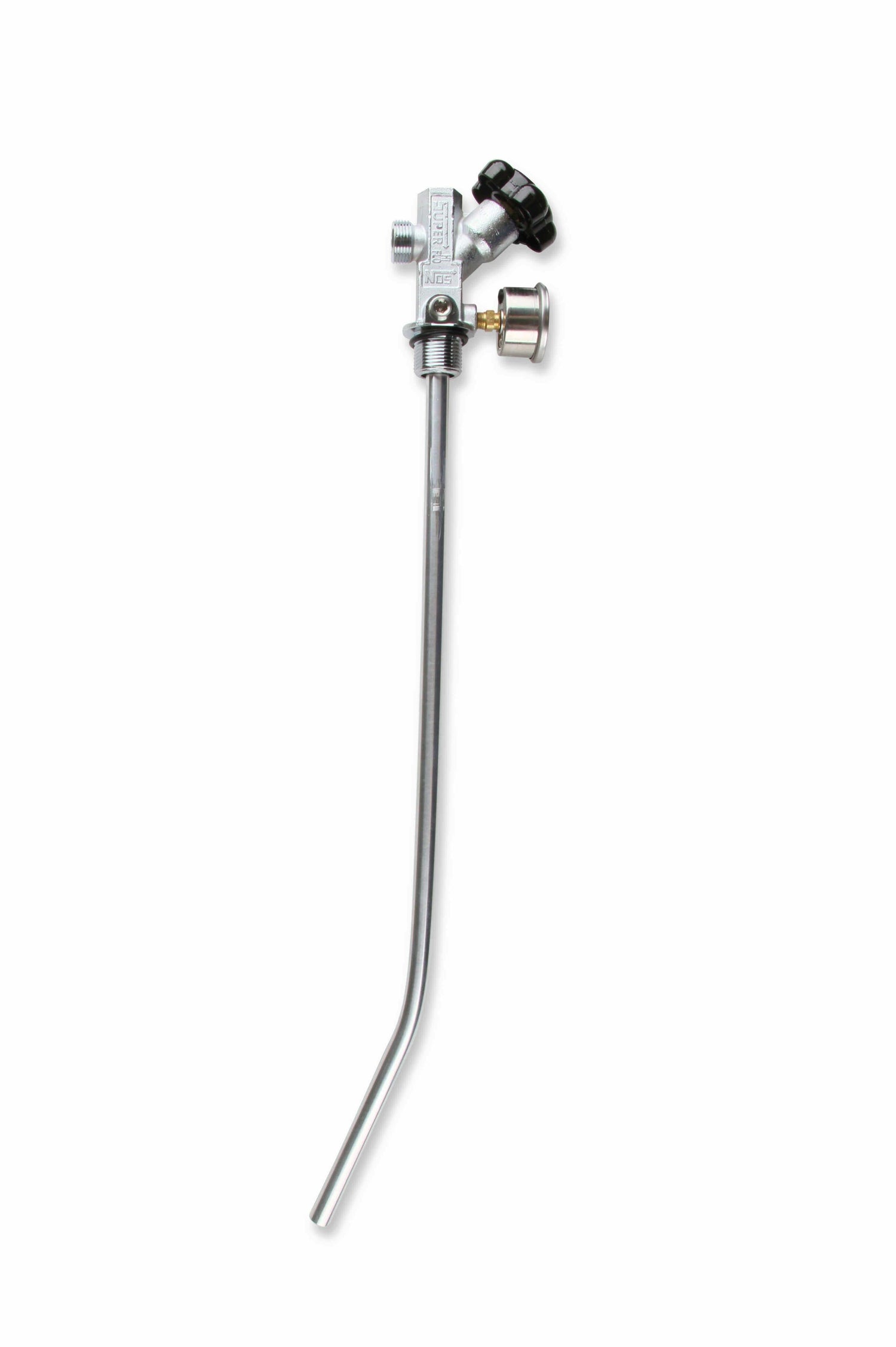

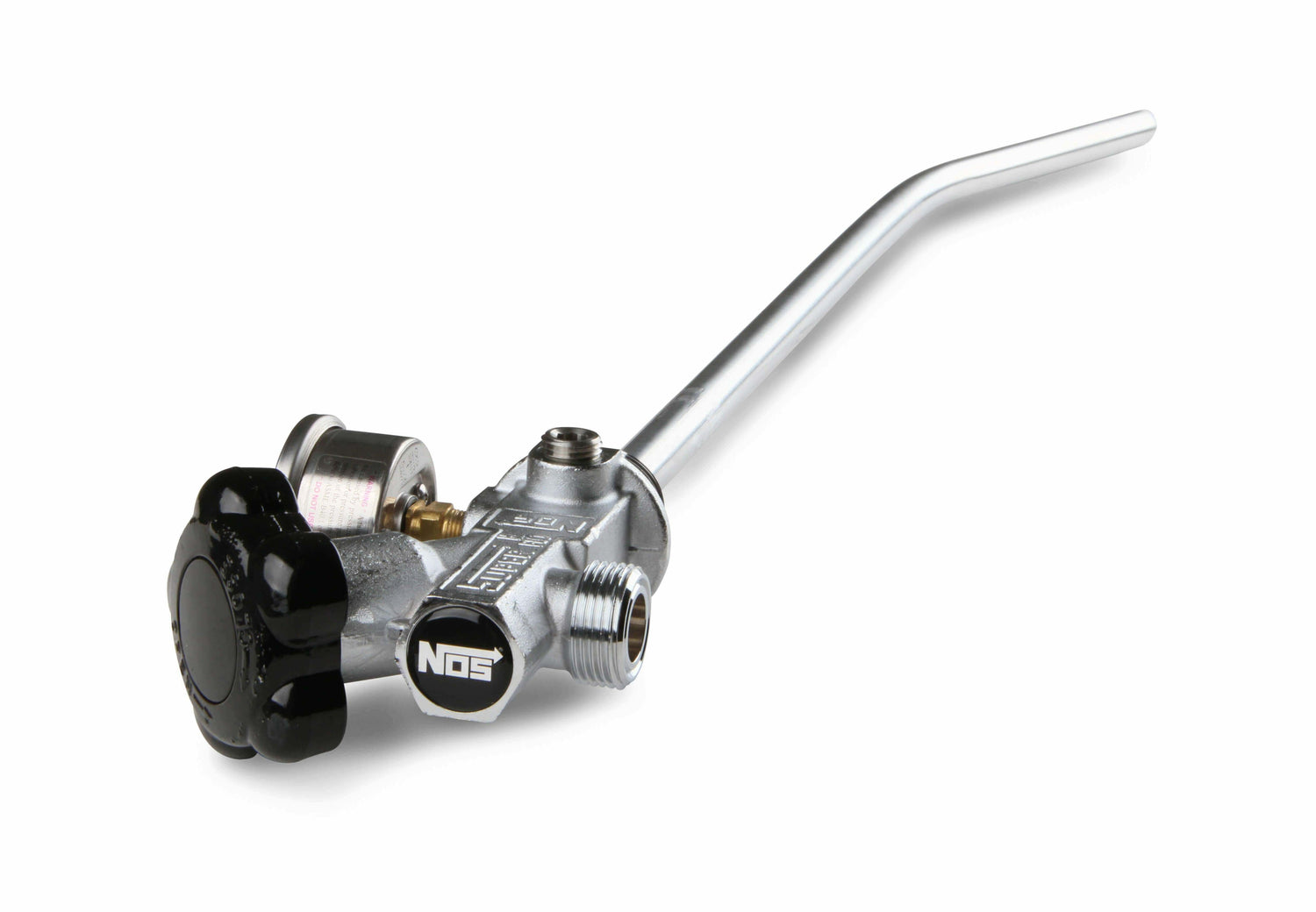

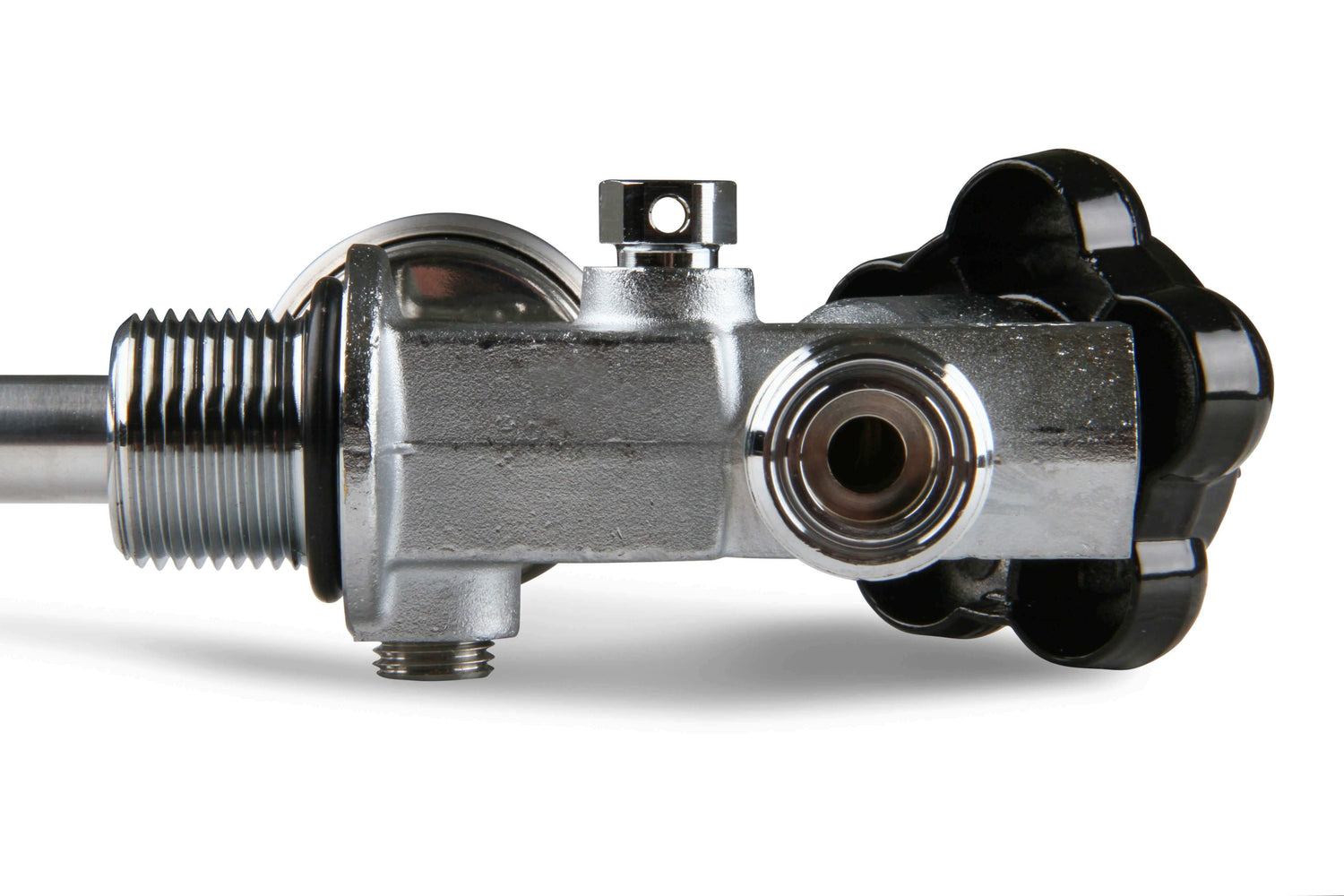

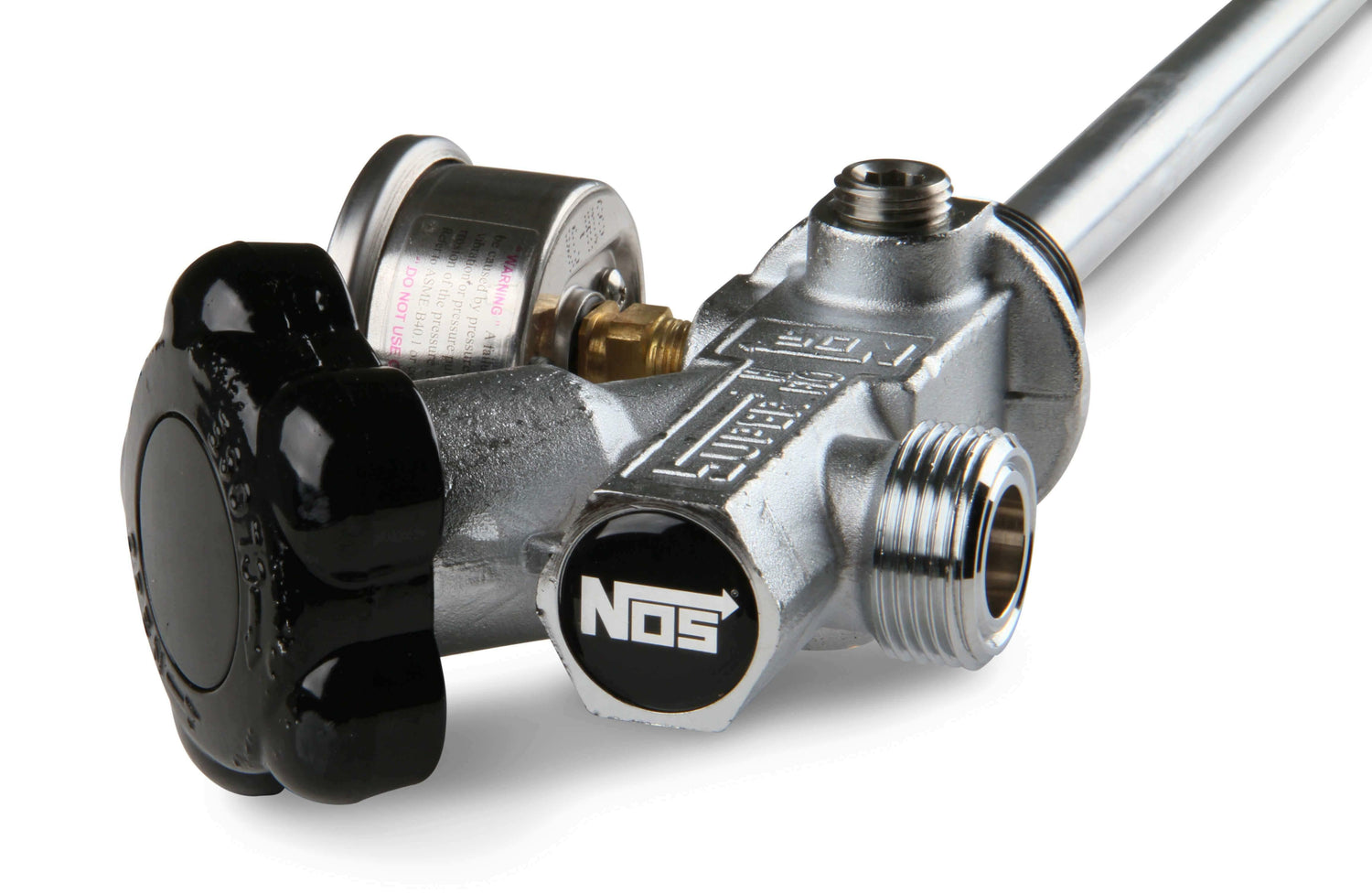

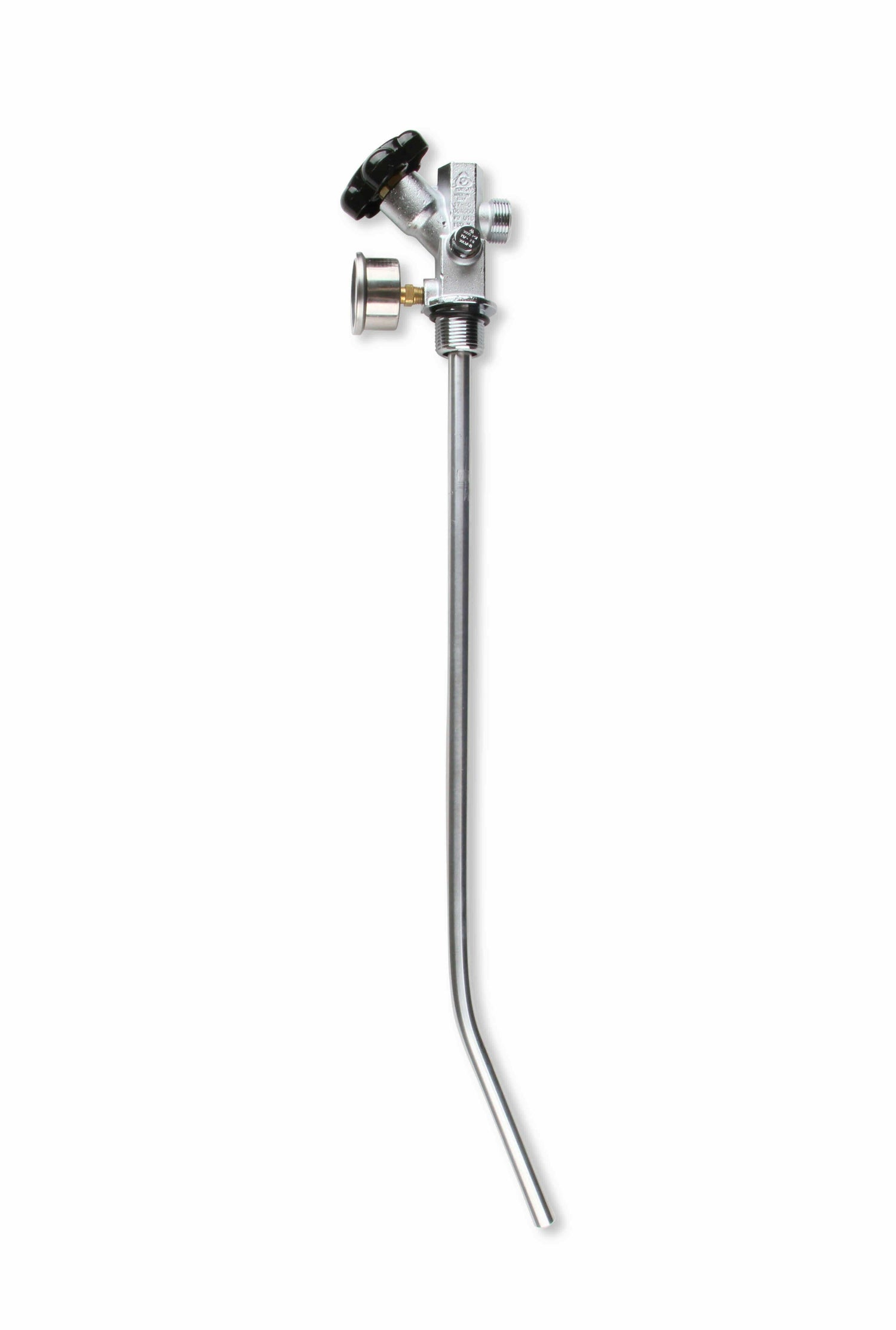

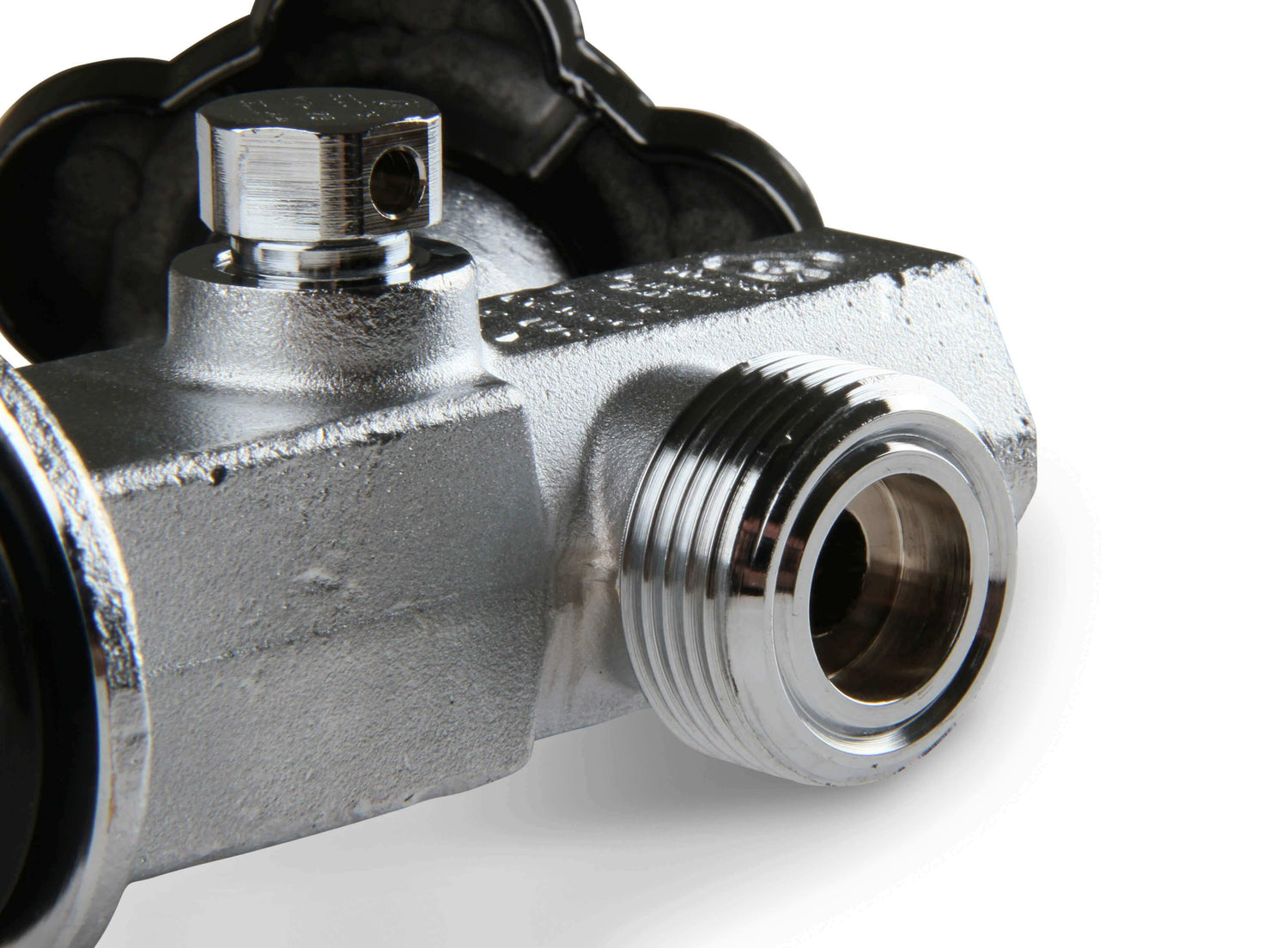

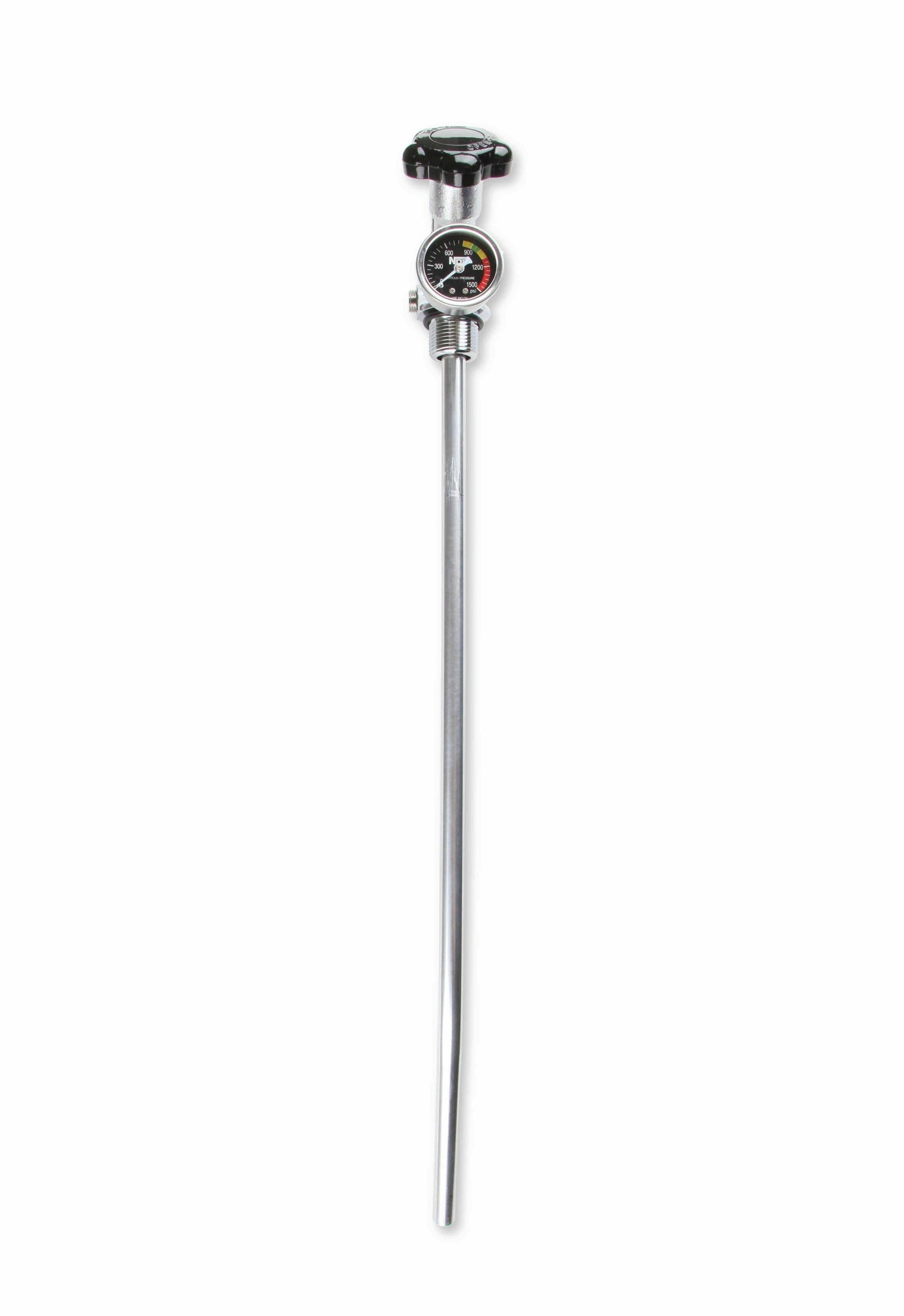

NOS now offers Super Hi-Flo bottle valve assemblies with siphon tube and nitrous pressure gauge already installed. This gives you a great way to upgrade to the highest flowing valve and tube NOS has to offer. Key bottle valve features include a 1/8"NPT gauge port, 1/4"NPT accessory port, large internal and outlet ports, along with an O-ring seal. Our 3/8" id screw-on siphon tube is made from 6061 aluminum can be used as an upgrade for an older style compression fitting tube. Lastly, included with our assemblies is either blue or black face 1-1/2" nitrous gauge with easy-to-see color graduations and a white pointer. These gauges have a stainless steel case with brass internals.
Features:
- Super Hi-Flow assembly features siphon tube and nitrous pressure gauge already installed
- Great way to update a bottle to the best flowing valve NOS offers
- Valve has large internal ports for superior flow and an O-ring bottle seal
- Siphon tube is made from 6061 aluminum and 3/8” I.D. for maximum flow
- 1-1/2” diameter nitrous pressure gauge features stainless steel and brass construction providing accurate pressure measurement
- Assembly is designed to Support 500+ Horsepower
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Bottle Size | 15 lb & 20 lb |
|---|---|
| Bottle Valve | Super Hi-Flo |
| Brand | NOS |
| Diameter | 3/8 inch |
| Emission Code | 4 |
| Face Color | Black |
| Gauge Included | Yes |
| Gauge Type | Nitrous Pressure |
| Outlet Thread | CGA #660 |
| Product Type | Bottle Valve Assembly |
| Siphon Tube Included | Yes |
| Supported Horsepower | 500+ |
| Torque Value | 100 ft-lb |
| Tube Length | 22-7/8 inch |
| Tube Material | Aluminum |
| Warning | California Proposition 65 |
