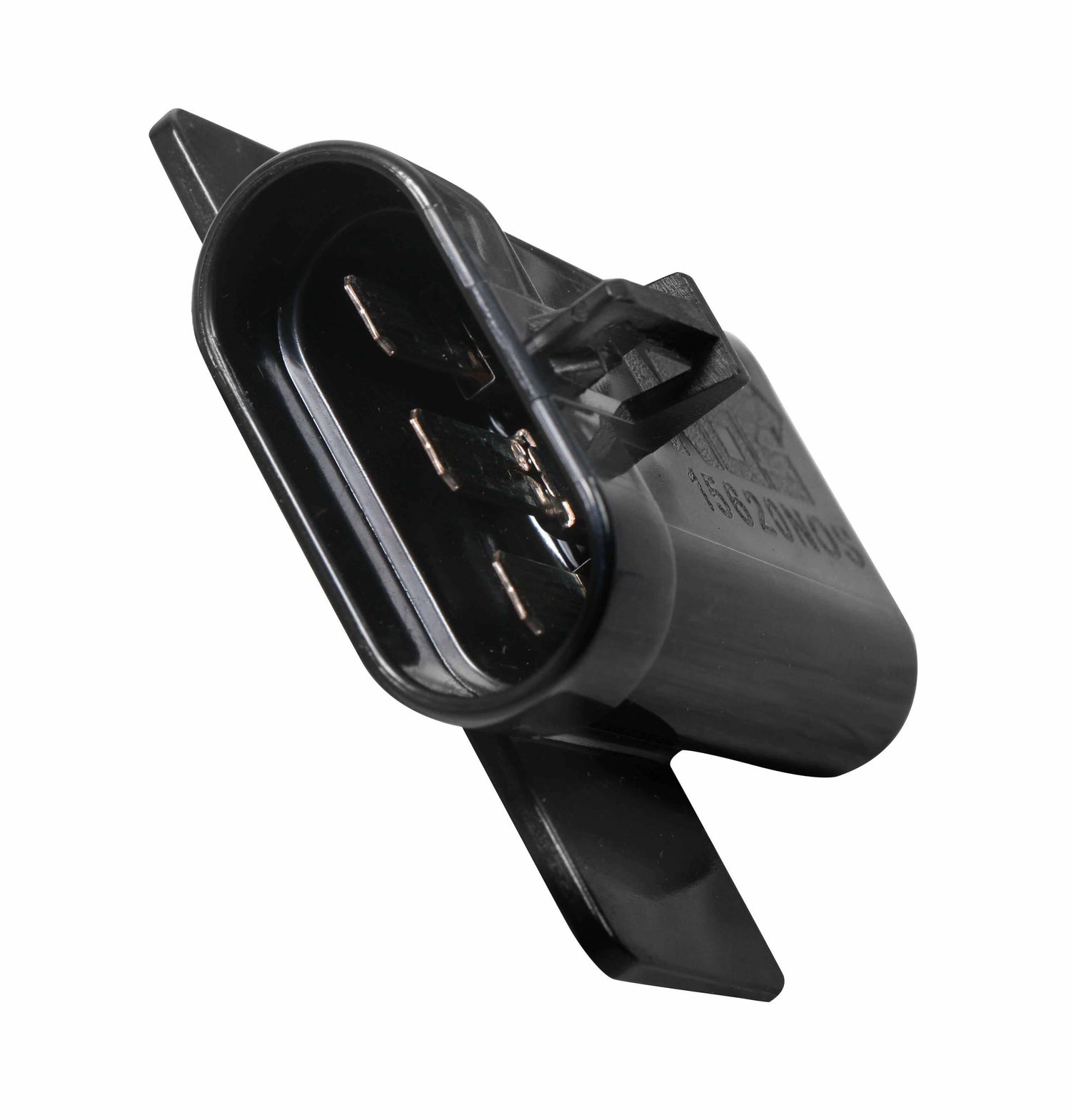

NOS 15620NOS Solid State Relay Nitrous Solenoid Driver
NOS 15620NOS Solid State Relay Nitrous Solenoid Driver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
NOS have addressed the need for a reliable, rugged and affordable relay for controlling various electrical equipment on a race car. Originally designed to control the high current switching loads of nitrous solenoids, this solid state relay can also be used to control other high current devices such as electric water pumps, trans brakes & line locks. It has an ultra-low activation/release time of less than 16 microseconds to ensure no delays in reaction times.
This relay can also be Pulse Width Modulated (PWM) with no minimum duty cycle at frequencies up to 1000hz.
Features:
- 5-20 volt DC Operation
- Rugged Solid State Circuitry
- Easy 3-Wire Connection

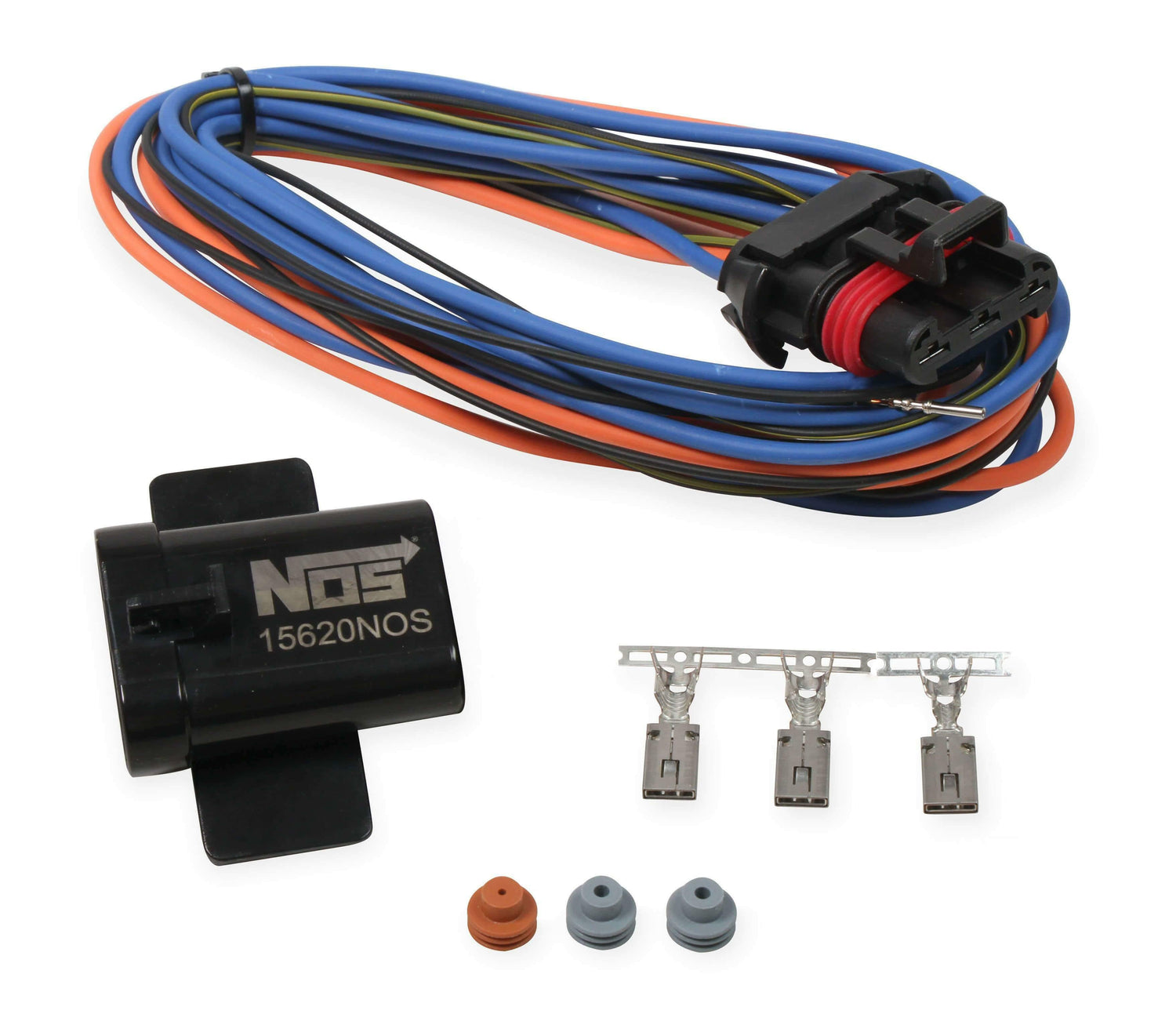

- Included Terminated Pigtail
- Included Extra Contacts for "Build-Your-Own“ Wiring
- Ultra-fast activation <16 microseconds
- Pulse Width Modulation (PWM) Compatible
- PWM 0-100%
- Up to 1000hz frequency
- Vibration Resistant
- Maximum Continuous Current = 40amps
- Maximum Switching Current = 20amps
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | NOS |
|---|---|
| Emission Code | 4 |
| Max Amp Load | 40 |
| Pack Qty | 1 |
| Pig Tail Length | 24" |
| Product Type | Relay |
