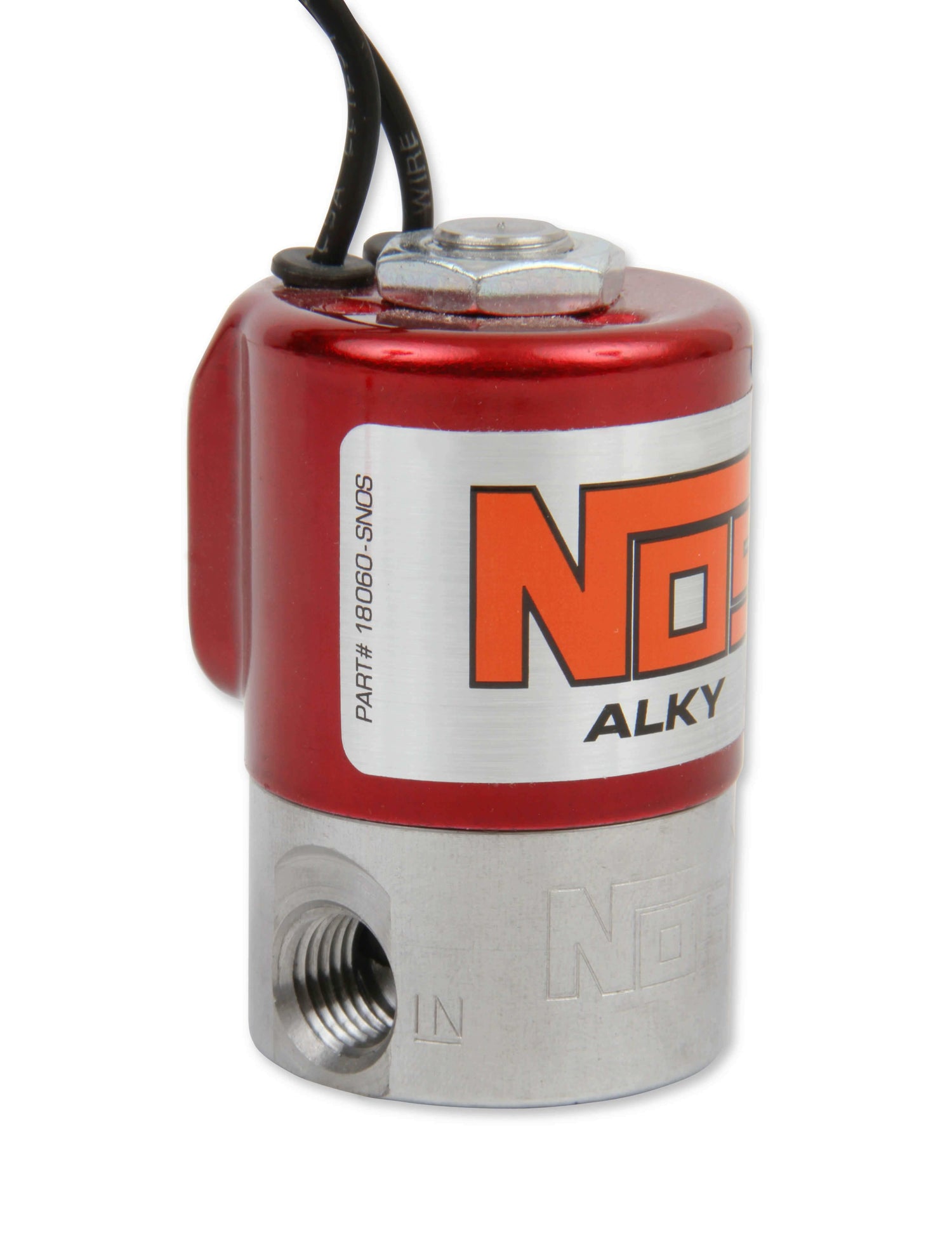

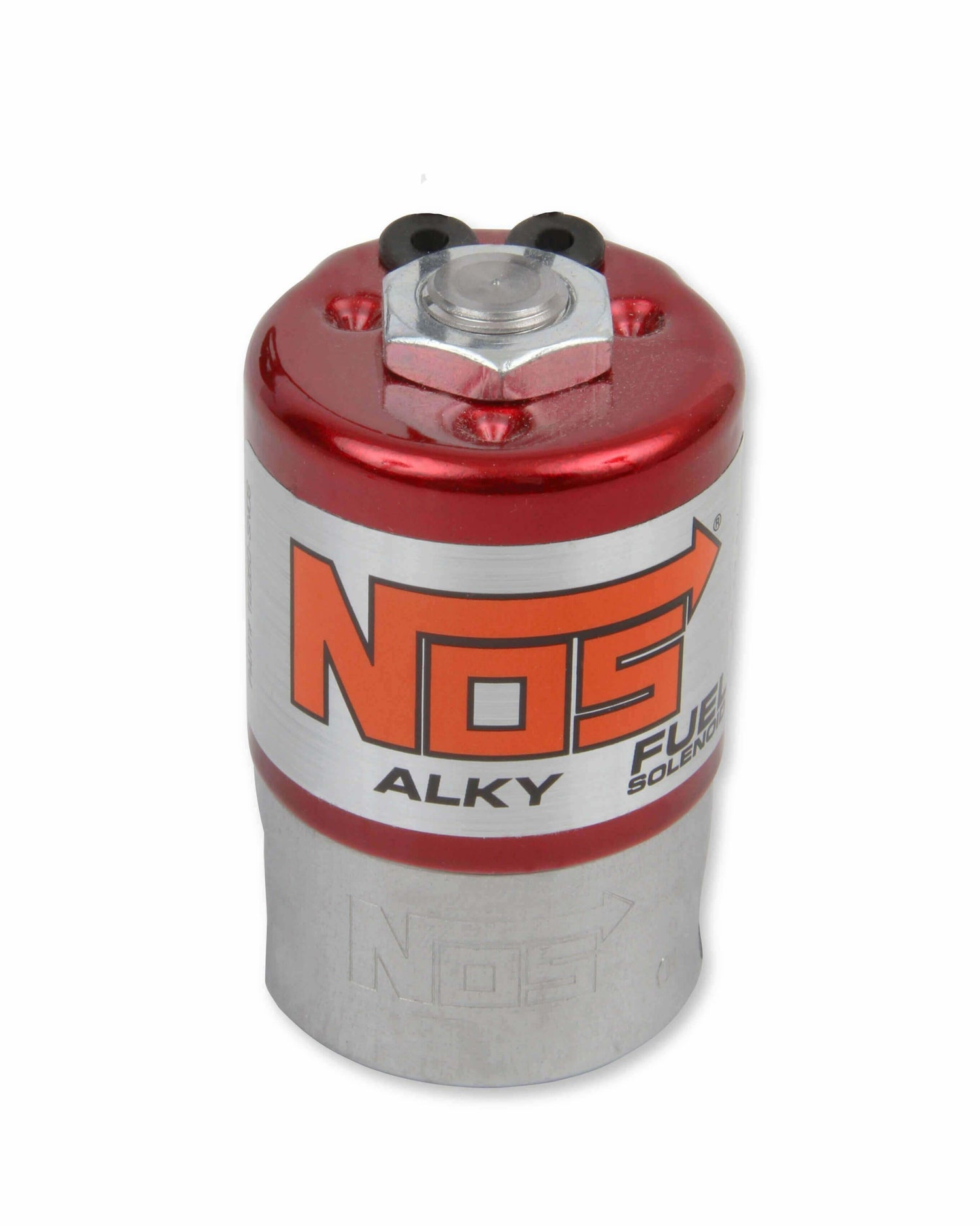

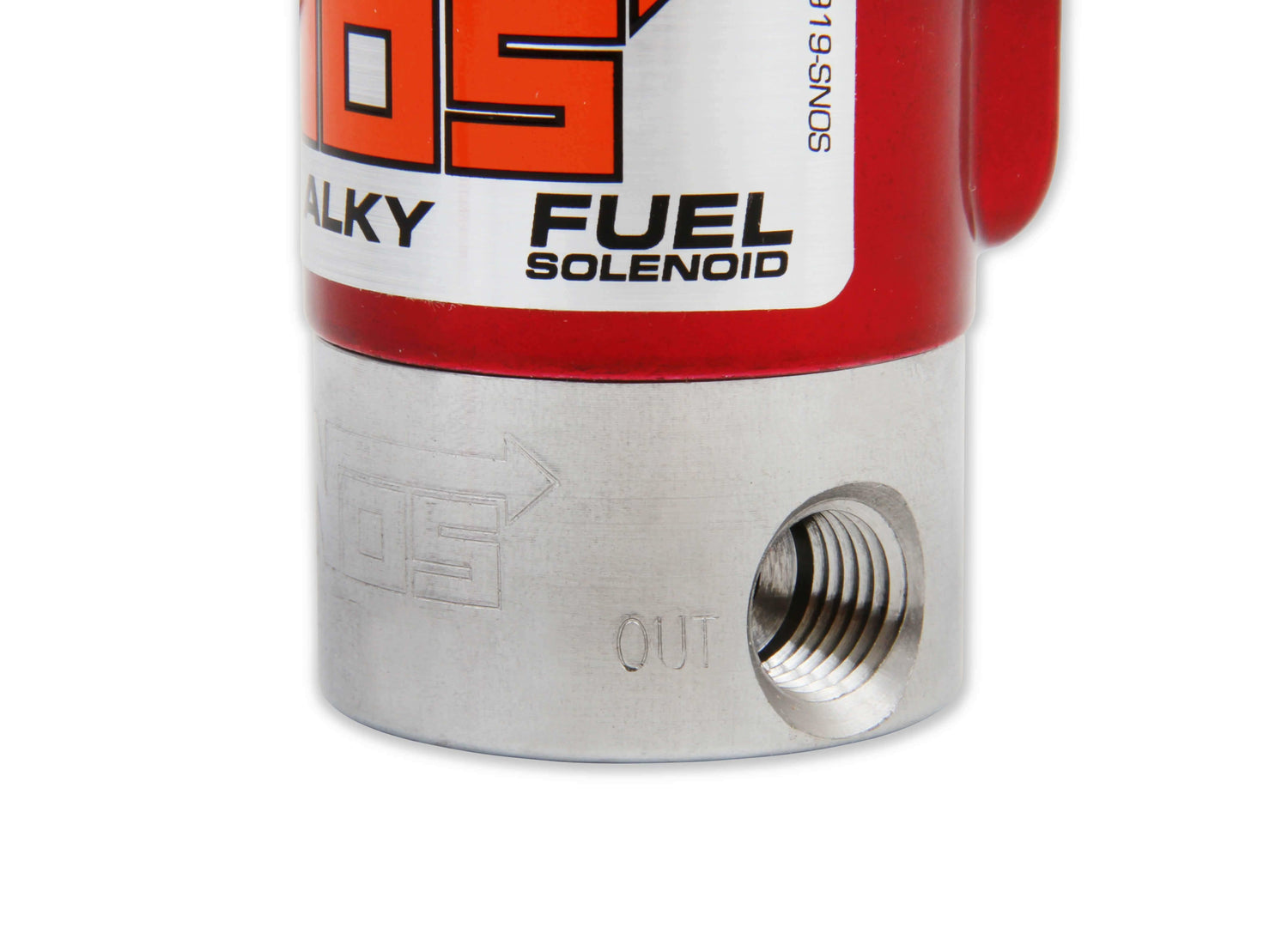

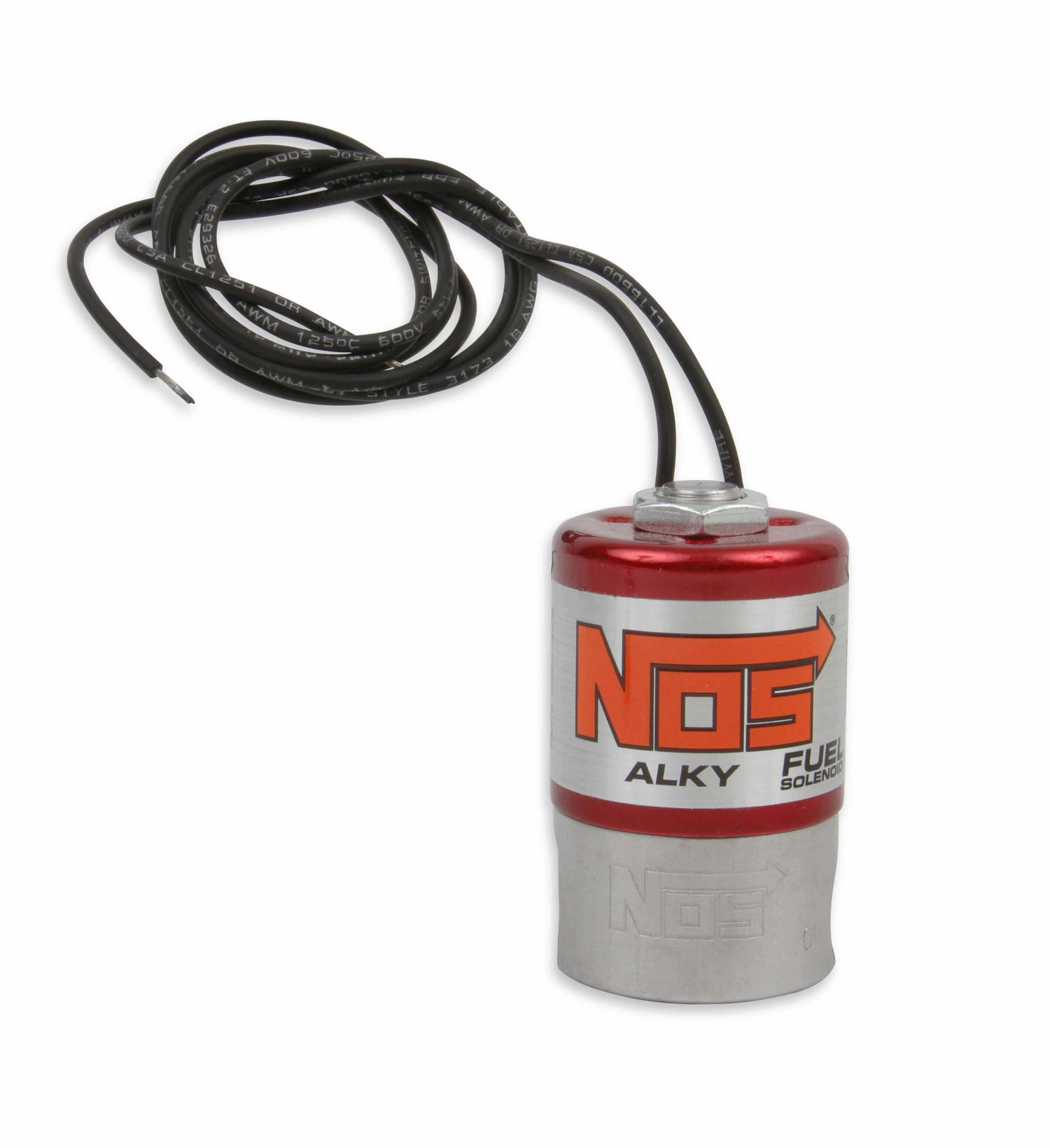

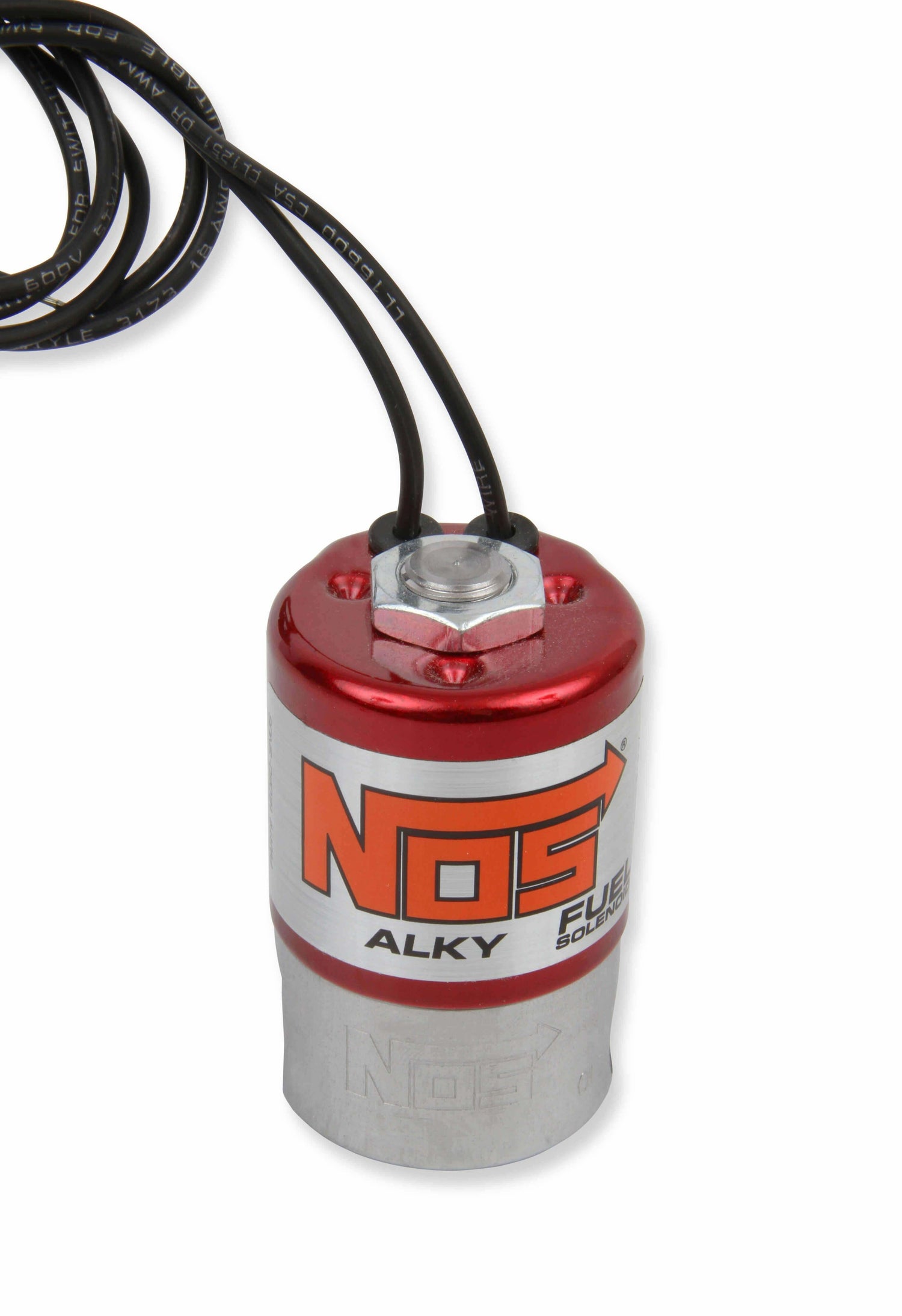

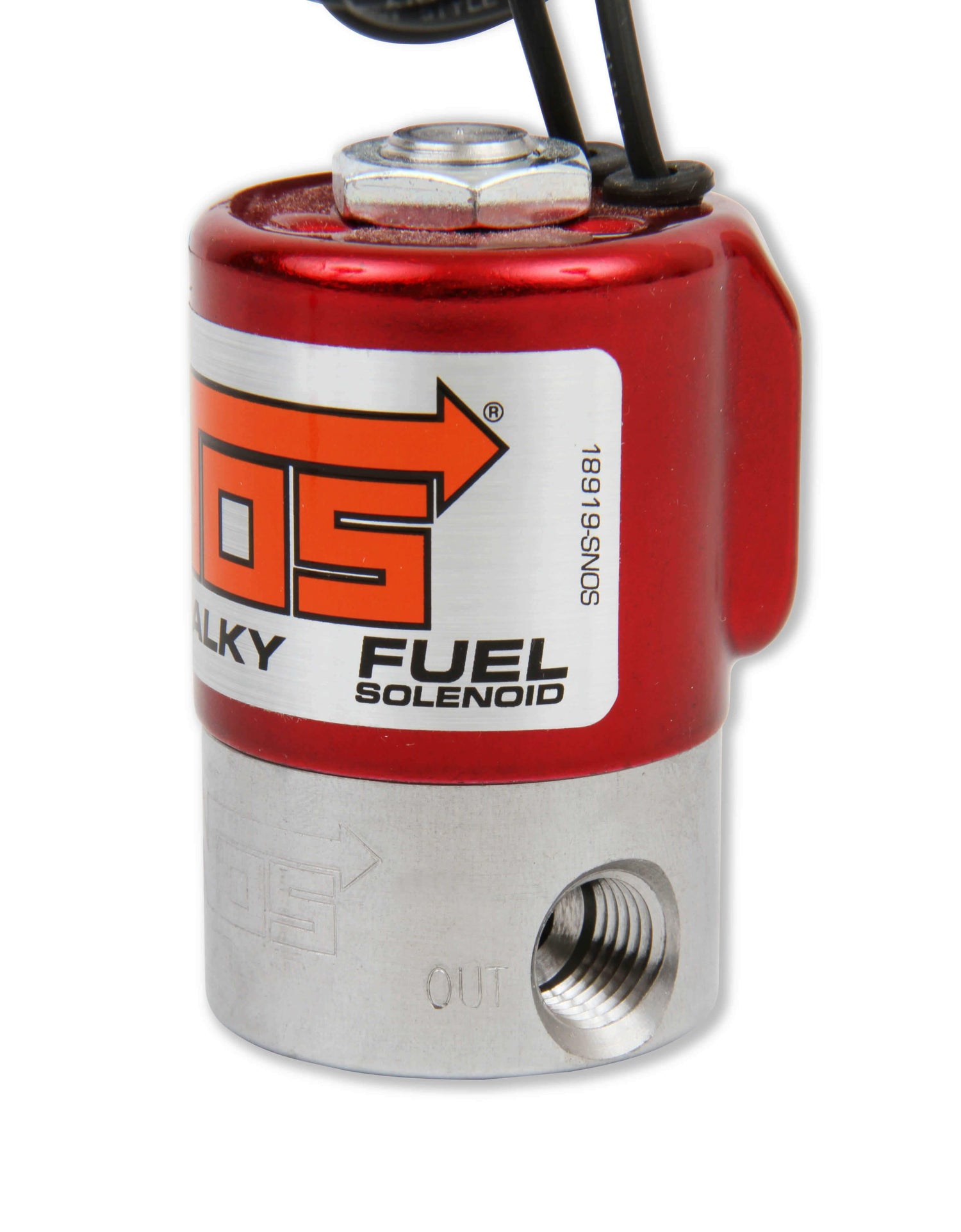

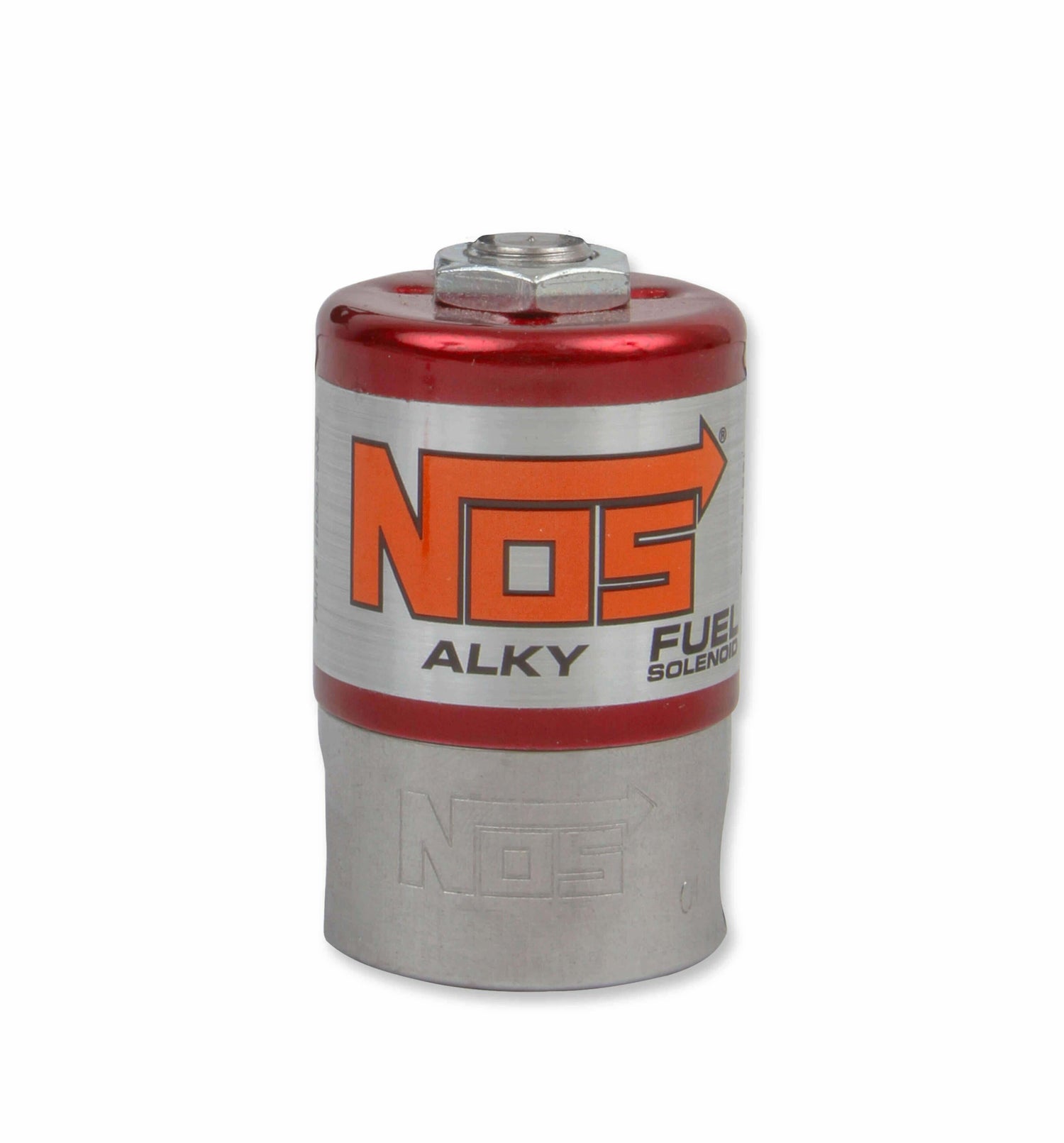

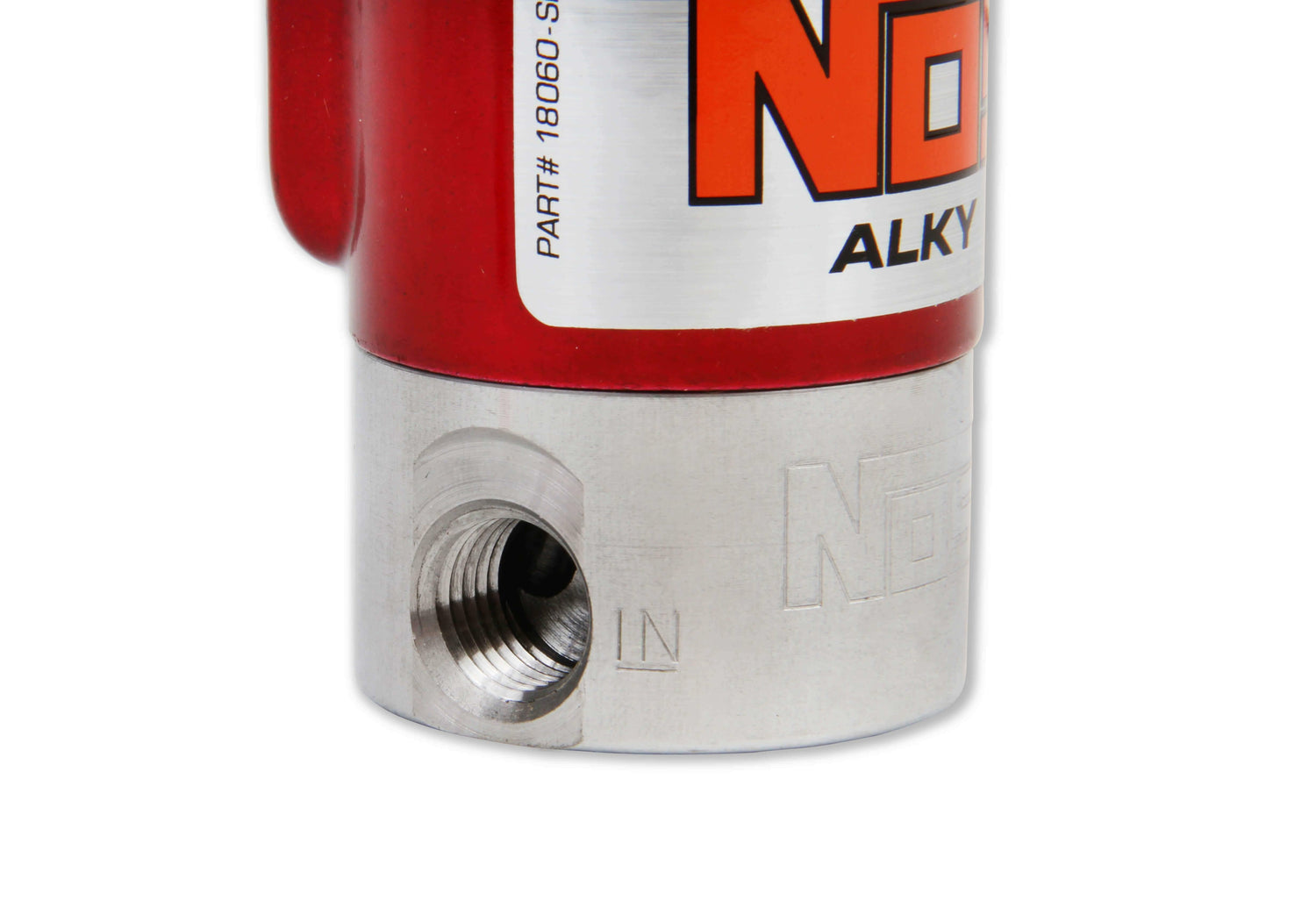

NOS 18060NOS NOS Fuel Solenoid - Red
NOS 18060NOS NOS Fuel Solenoid - Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
NOS solenoids have been the standard in the performance and racing world for over 35 years and are designed for optimum flow and operation. NOS has overhauled the entire line with new features and new part numbers.
The NOS fuel solenoids feature a red powder coated housing, large orifice sizes and FKM rubber plunger pucks for durability and sealing. All NOS solenoids feature stainless steel bases with the NOS logo along with in/out stamped in so you know it is a quality NOS solenoid.
Features:
- Inlet size - 1/4" NPT
- Outlet Size - 1/4" NPT
- Outlet Location - side
- Orifice - 1/4" (0.250")
- Plunger - BUNA-N
- Current Draw @12VDC - 5.75 amps
- Up to 600 HP
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Amp Draw | 5.75A |
|---|---|
| Bracket(s) Included | No |
| Brand | NOS |
| Color | Red |
| Emission Code | 4 |
| Finish | Natural |
| Fittings Included | No |
| Inlet | Side |
| Inlet Attachment | Female Threads |
| Inlet Thread | 1/4" NPT |
| Material | Stainless Steel |
| Max Horsepower | 600 |
| Orifice | 1/4" (0.250") |
| Outlet | Side |
| Outlet Attachment | Female Threads |
| Outlet Thread | 1/4" NPT |
| Plunger Material | BUNA-N |
| Product Line | Alky |
| Product Type | Fuel Solenoid |
| Purge Port | None |
| Solenoid Top Cover Color | Red |
