NOS Dry Nitrous Plate for Holley LS Hi-Ram EFI Intake Manifolds-Black 12535BNOS
NOS Dry Nitrous Plate for Holley LS Hi-Ram EFI Intake Manifolds-Black 12535BNOS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

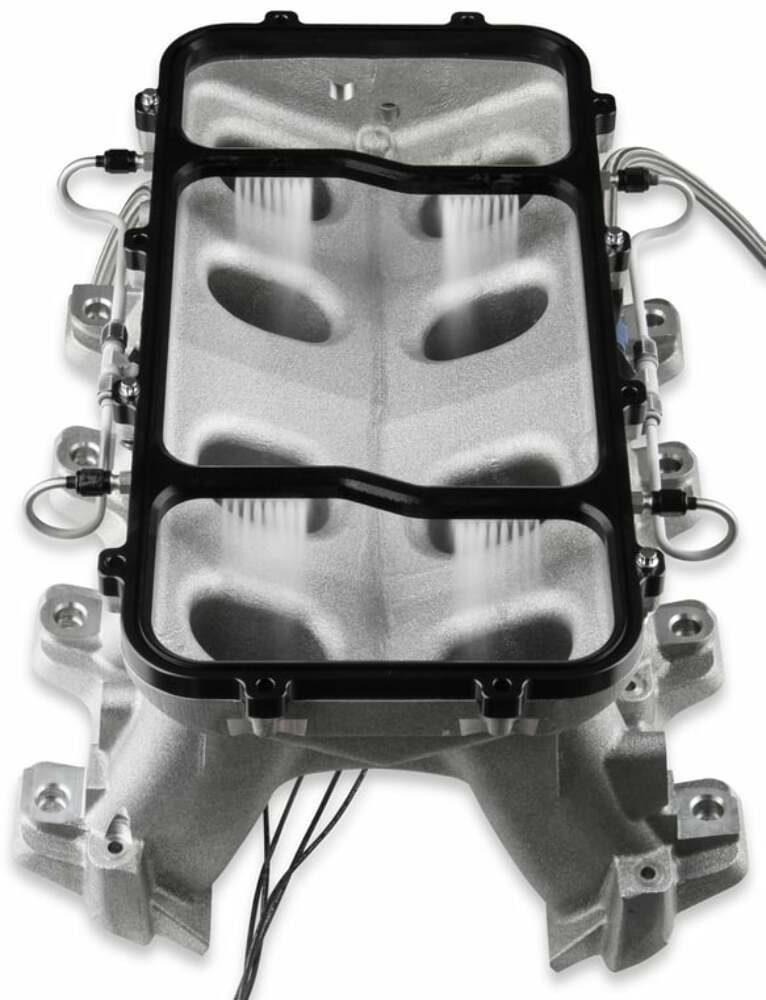

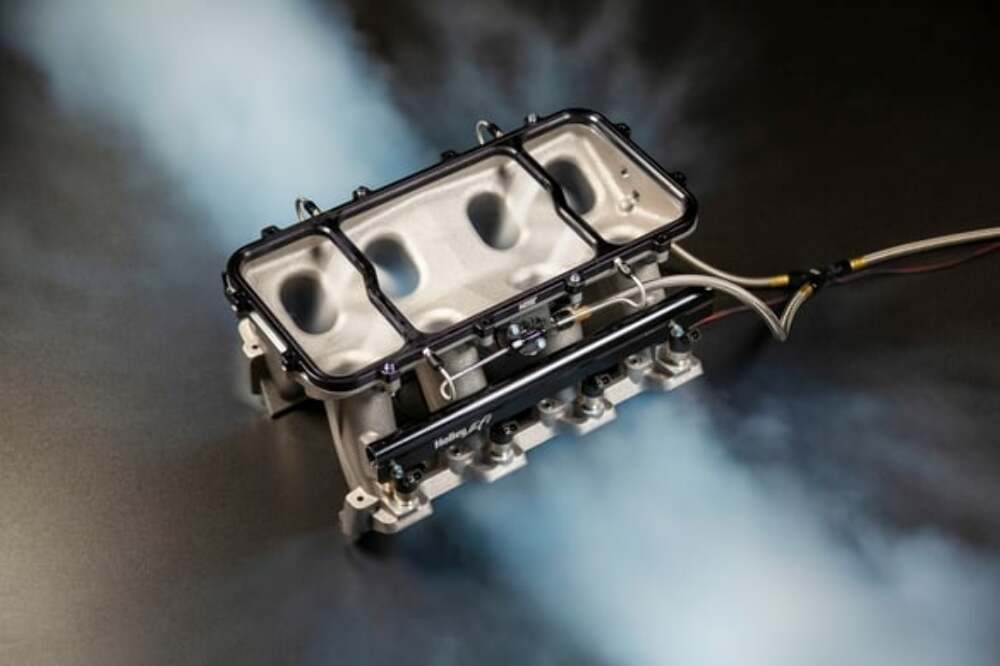

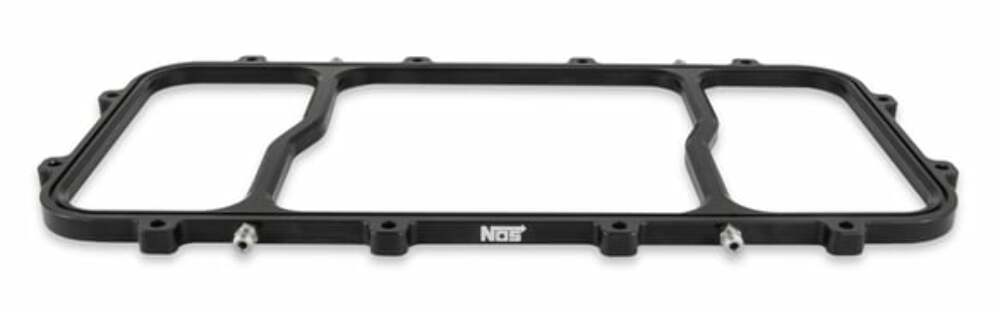

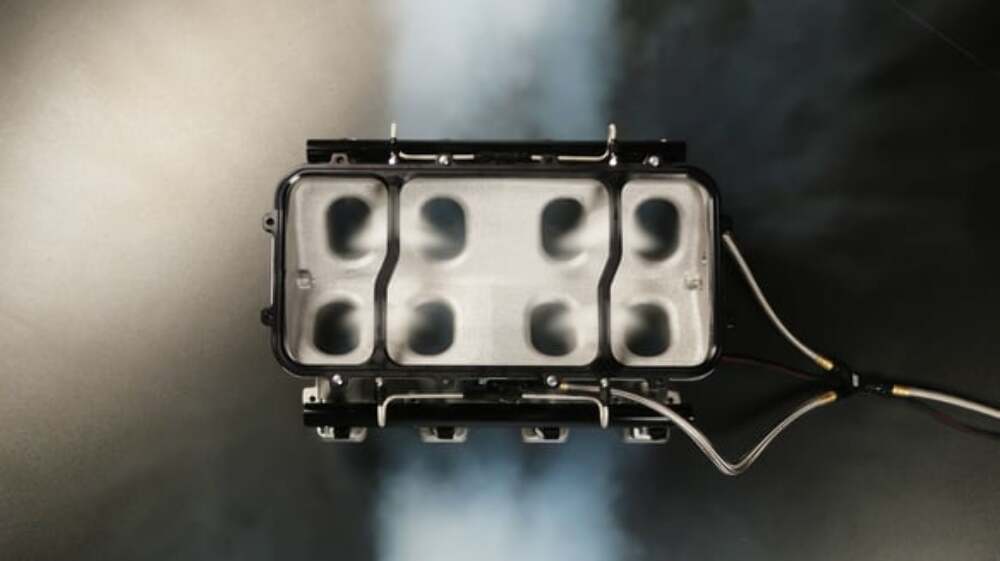

This NOS plate designed to bolt between the upper and lower intake manifold on Holley Hi-Ram LS manifolds. This sandwich-style plate gives you an easy way to add nitrous oxide to your Hi-Ram equipped LS engine. Our plate is machined from billet 6061-T6 aluminum, laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection.
Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning. Includes NOS plate, gasket, jet holders, and jets.
Features:
- This dry single stage plate sandwiches between the bottom base and top plate on Holley Hi-Ram intake manifolds
- Designed specifically for optimum nitrous distribution on LS-based engines

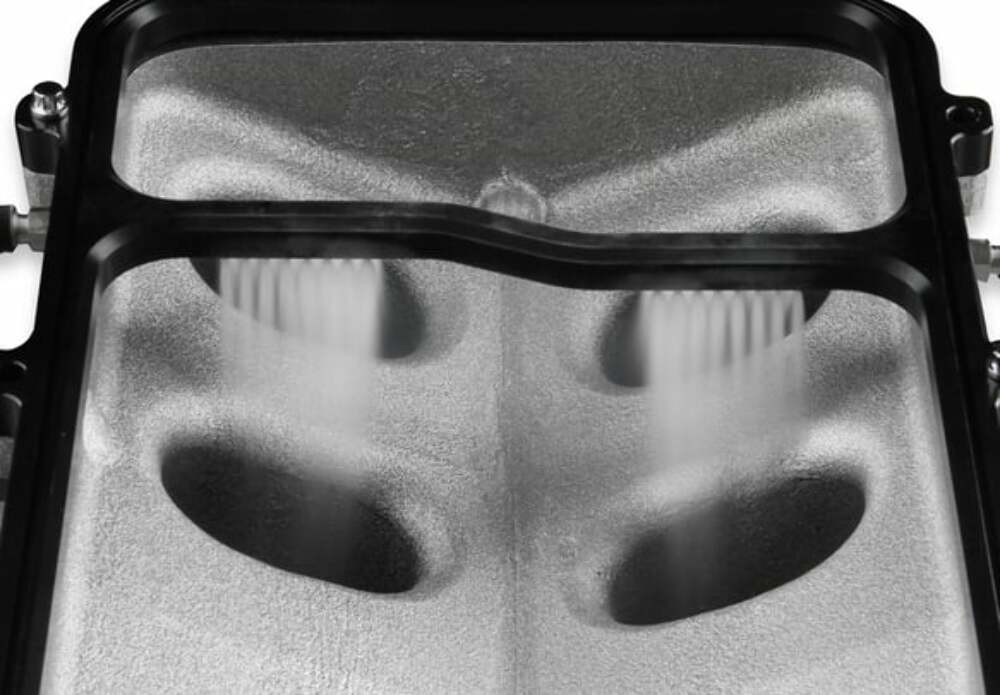

- Sprays nitrous directly into each cylinder runner for proper nitrous distribution

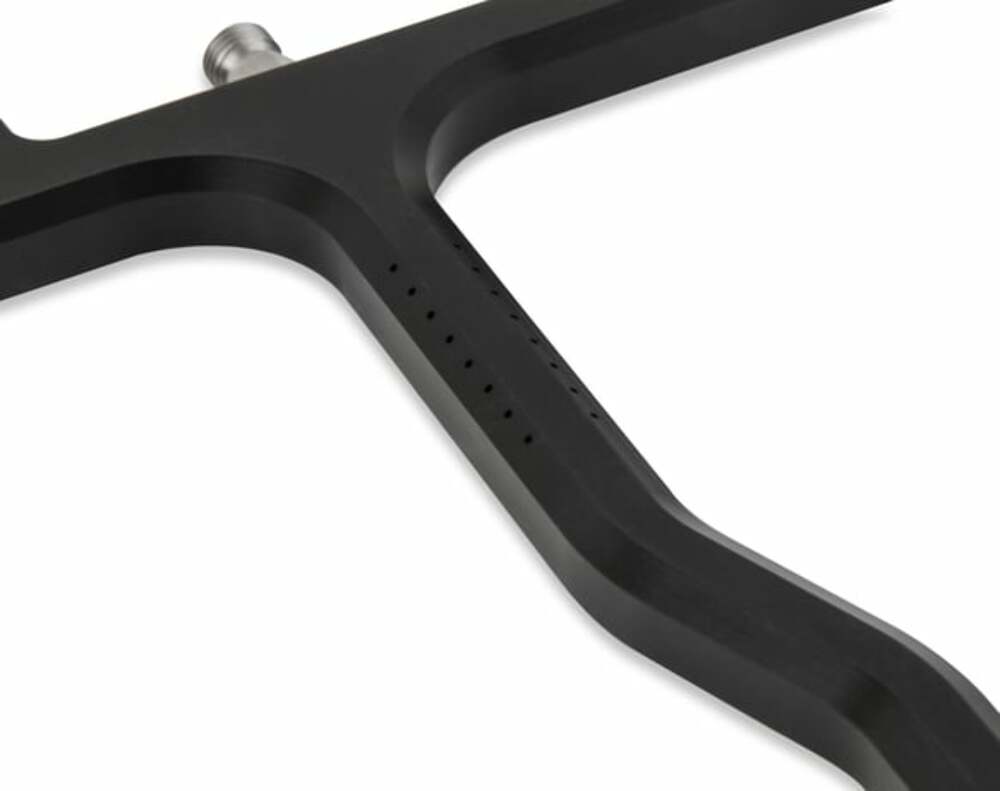

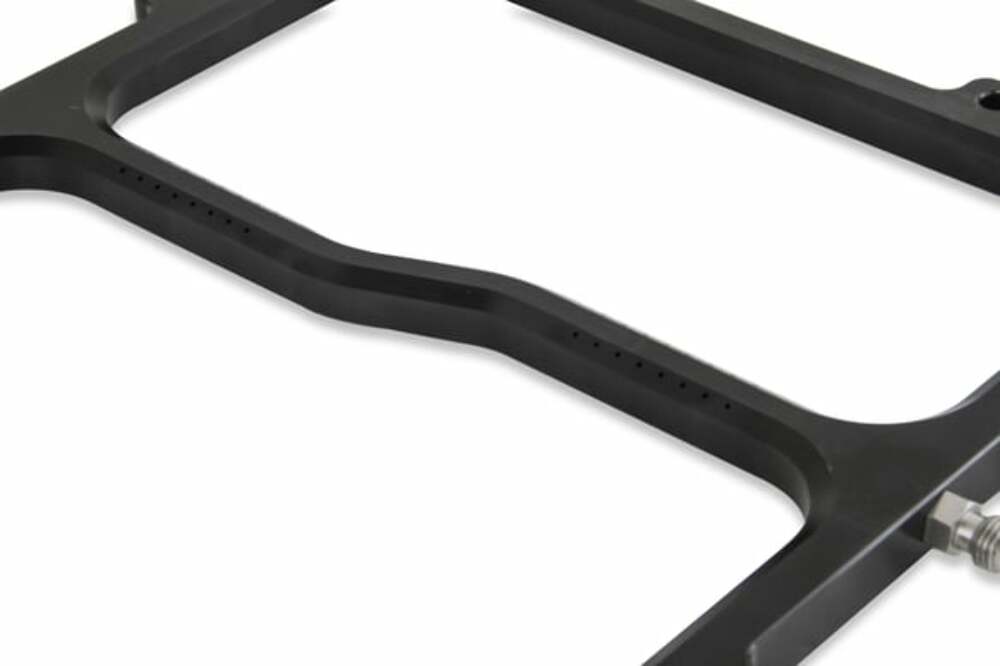

- Features a machined 0.103” passage that feeds eight 0.040” openings per intake runner
- Plate is made from billet 6061-T6 aluminum and has laser etched NOS logo
- Anodized Black for corrosion resistance and high quality appearance

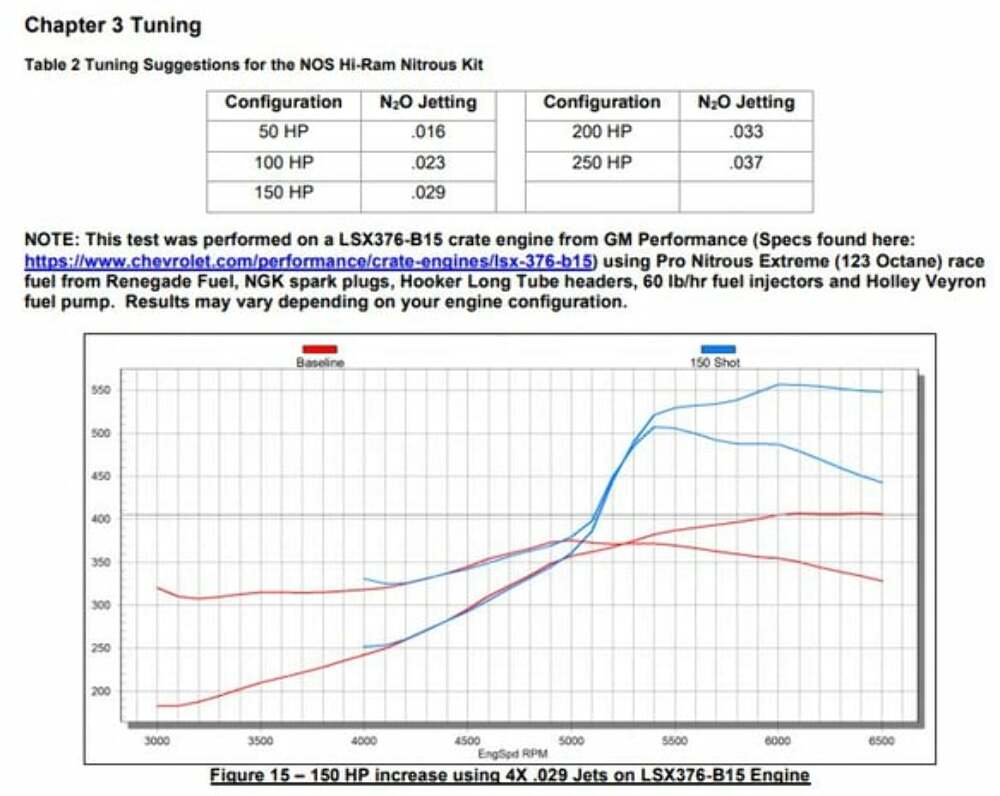

- Includes jetting for 50, 100, 150, 200, and 250 horsepower configurations
- Supports up to 1000+ horsepower (jets purchased separately)

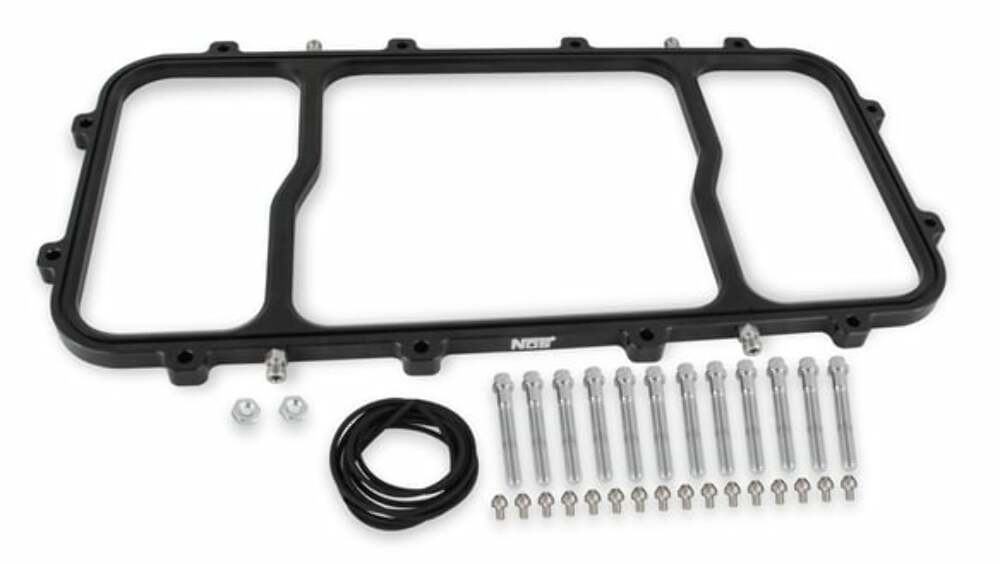

- Includes Plate, Gasket, Hardware, Jet Holders, and Jetting for up to 250 horsepower
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1997 - 2004 | Chevrolet | Corvette | 3.9/8 V | |
| 2004 - 2005 | Cadillac | CTS | 3.9/8 V | |
| 2010 - 2015 | Chevrolet | Camaro | 4.06/8 V | |
| 2014 - 2017 | Chevrolet | SS | 4.06/8 V | |
| 2008 - 2013 | Chevrolet | Corvette | 4.06/8 V | |
| 1998 - 2002 | Pontiac | Firebird | 3.9/8 V | |
| 2005 - 2007 | Chevrolet | Corvette | 4/8 V | |
| 2009 | Pontiac | G8 | 4.06/8 V | |
| 1998 - 2002 | Chevrolet | Camaro | 3.9/8 V | |
| 2004 | Pontiac | GTO | 3.9/8 V |
Specs:
| Adjustable | Yes |
|---|---|
| Bottle Included | No |
| Brackets Included | No |
| Brand | NOS |
| Color | Black |
| Delivery Style | Hi-Ram Plate |
| Emission Code | 4 |
| Included Jetting Horsepower | 50, 100, 150, 200, 250 |
| Jet Style | Flare |
| Material | Aluminum |
| Max Horsepower | 1000 |
| Plate Flange | Holley Hi-Ram |
| Plate Height | 1/2 inch |
| Plate Included | Yes |
| Product Type | Nitrous Plate |
| System Style | Dry |
