NOS Nitrous Oxide Injection System Kit 05160NOS; 150 HP Wet for Chevy LS-Series
NOS Nitrous Oxide Injection System Kit 05160NOS; 150 HP Wet for Chevy LS-Series is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

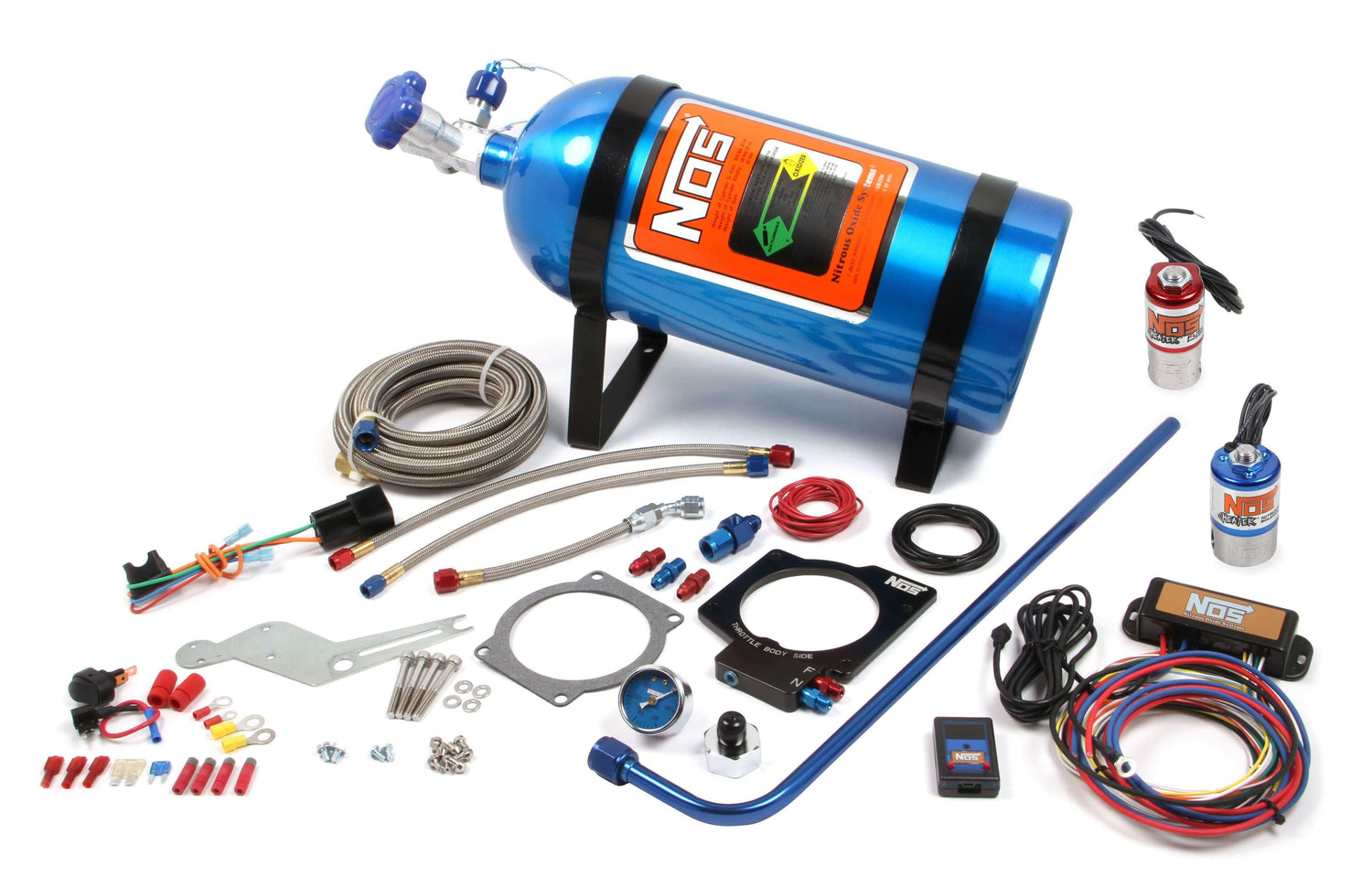

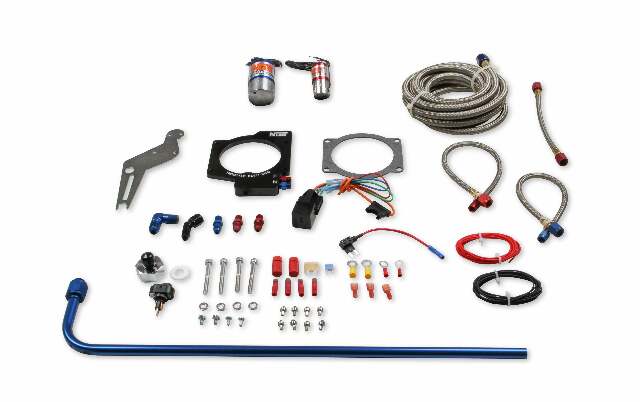

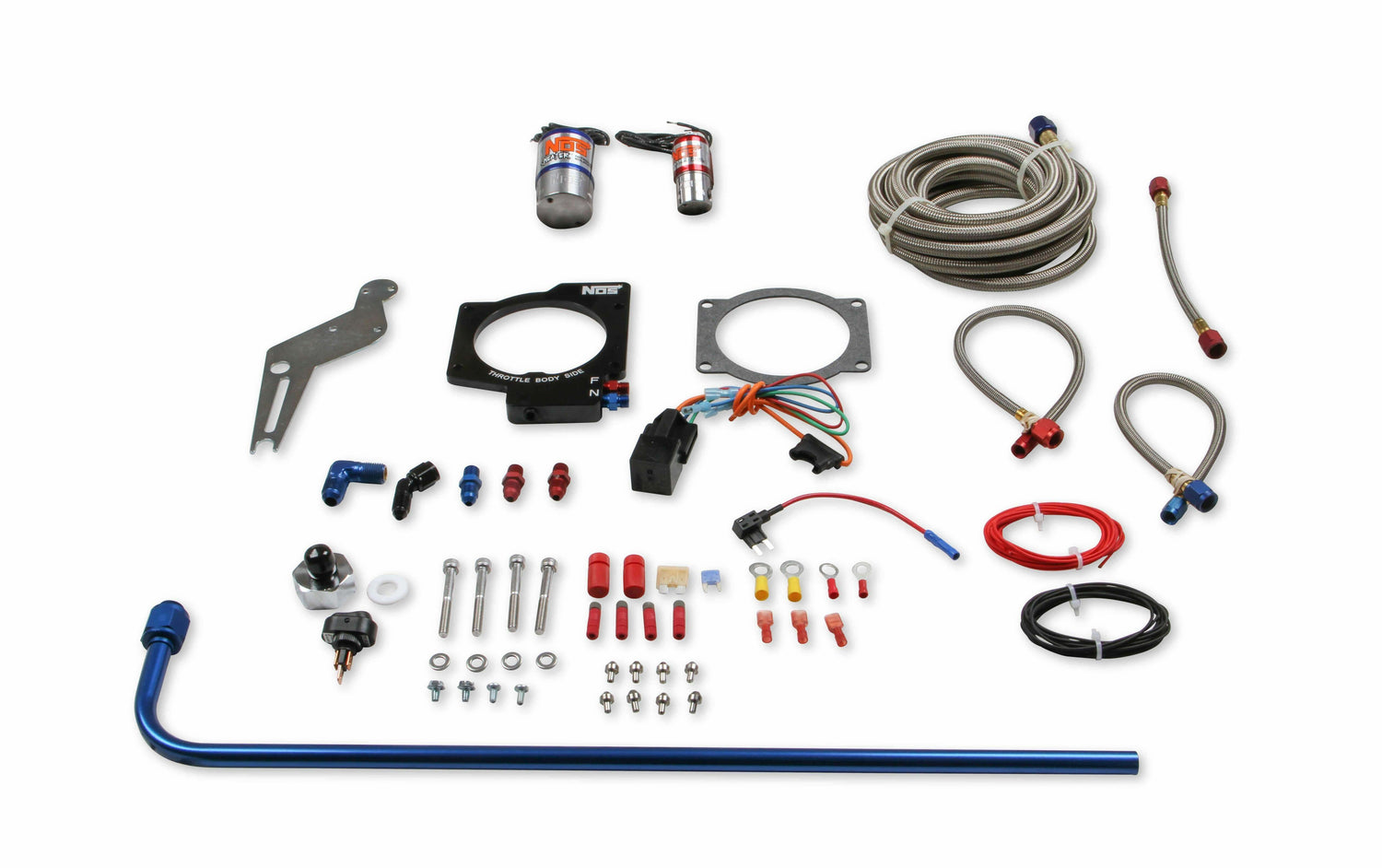

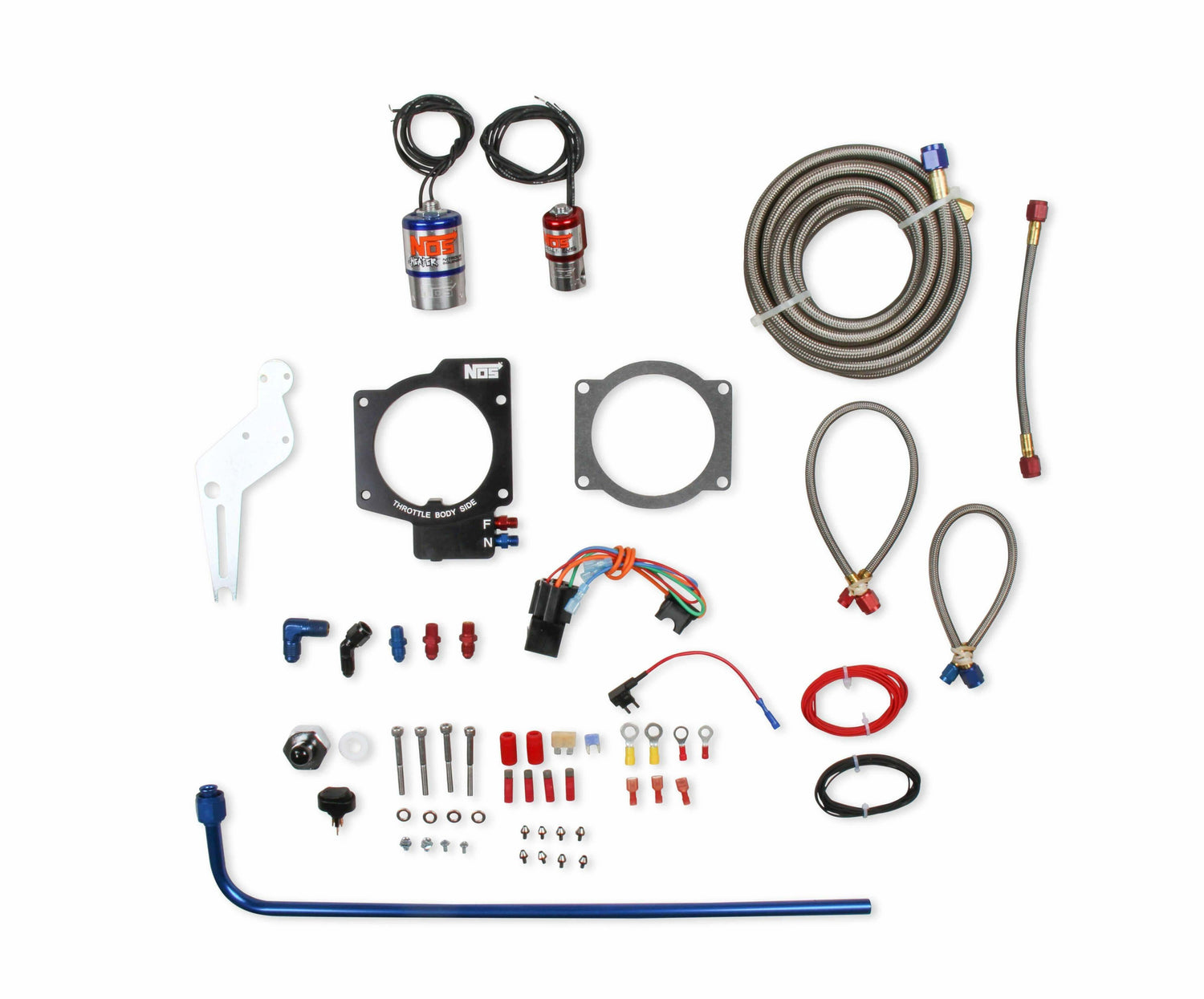

NOS have engineered a top quality, complete nitrous system which can add up to an additional 250 RWHP to the 2010 - 2015 Chevrolet Camaro, using the LS3 V8 engine. This is a "Wet" plate, meaning the additional fuel is added through the nitrous system, so there are no requirements for an injector or fuel system upgrade*. The unique feature of this kit is the inclusion of the NOS Mini 2-Stage Progressive Controller. NOS is the only manufacturer to supply a progressive controller in a kit at this price point. The progressive controller is key in supplying a smooth nitrous power delivery with factory EFI systems.
*Power levels exceeding 150 RWHP may require an upgraded fuel pump.
*NOTE; this kit was developed on a vehicle with electric assist power steering. For vehicles with hydraulic power steering, the solenoid bracket will require modification.
Features:
- Includes an NOS Mini 2-Stage Progressive Controller
- Provides exceptionally smooth power delivery
- Single ¼” plate between the throttle body and manifold
- Throttle body mounts in stock orientation
- Supports up to 250 RWHP (Rear Wheel Horse Power)
- Includes jetting for 75, 100, 125, & 150 RWHP
- New 90mm plate outlet design maximizes distribution
- Includes a 10 lb. “NOS Blue” nitrous bottle with brackets
- 6061 Billet Aluminum, CNC Machined Plate
- Also available as a “Plate Only” kit p/n 13436NOS
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2010 - 2015 | Chevrolet | Camaro | 4.06/8 V |
Specs:
| Adjustable | Yes |
|---|---|
| Bottle Color | Blue |
| Bottle Included | Yes |
| Bottle Material | 6061 T-6 Aluminum |
| Bottle Size | 10 lb |
| Bottle Valve | Super Hi-Flo |
| Bracket Material | Steel |
| Brackets Included | Yes |
| Brand | NOS |
| Color | Blue |
| Delivery Style | EFI Spacer Plate |
| Emission Code | 4 |
| Feed Line Size | 6AN |

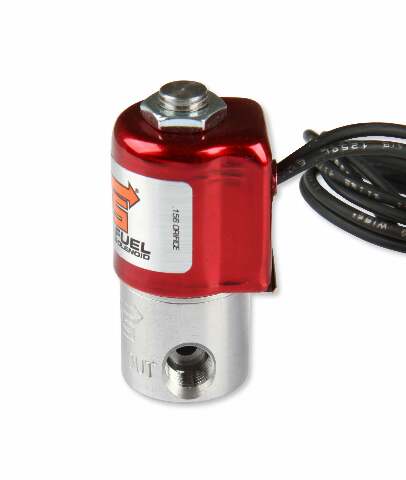

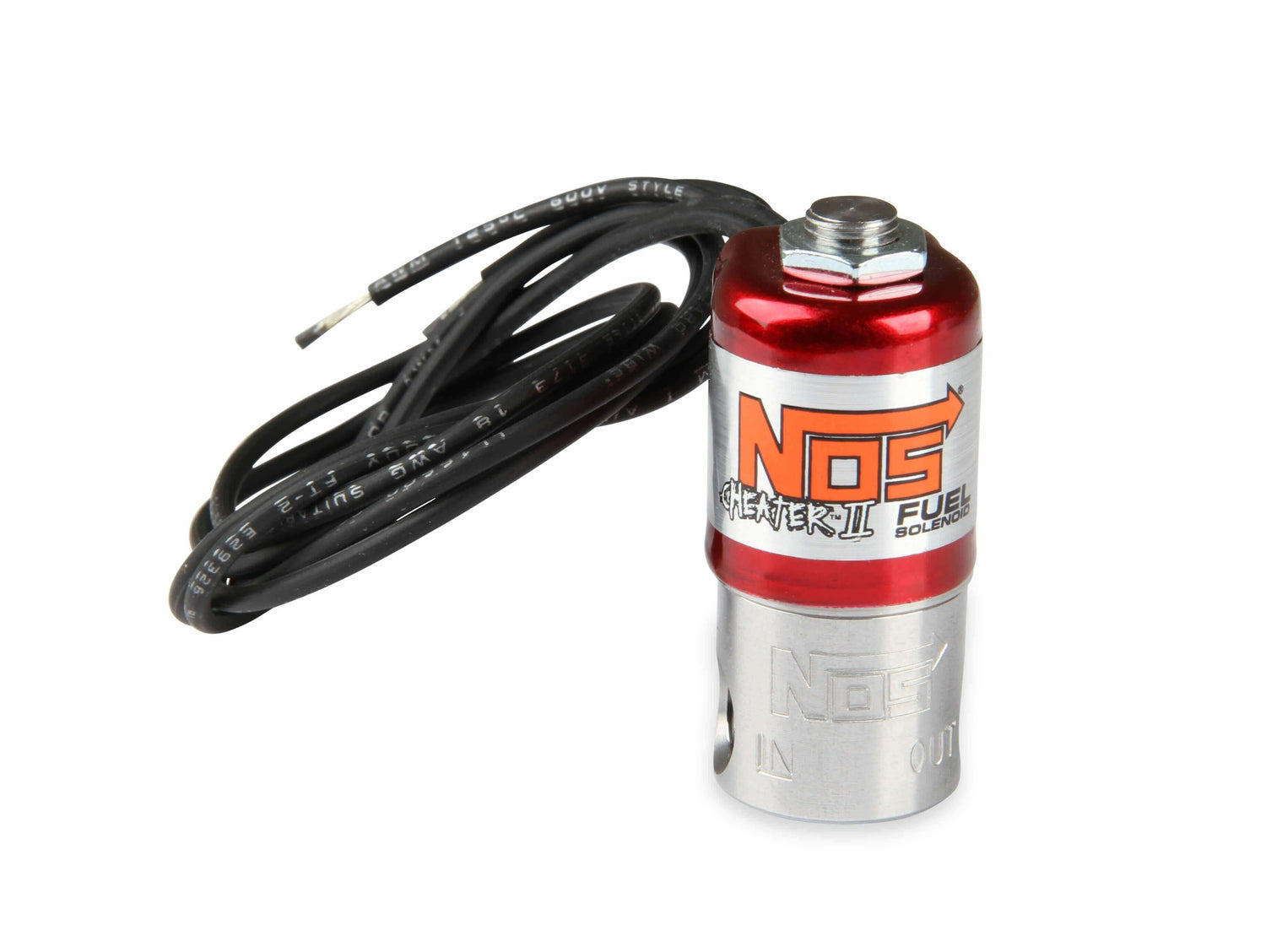

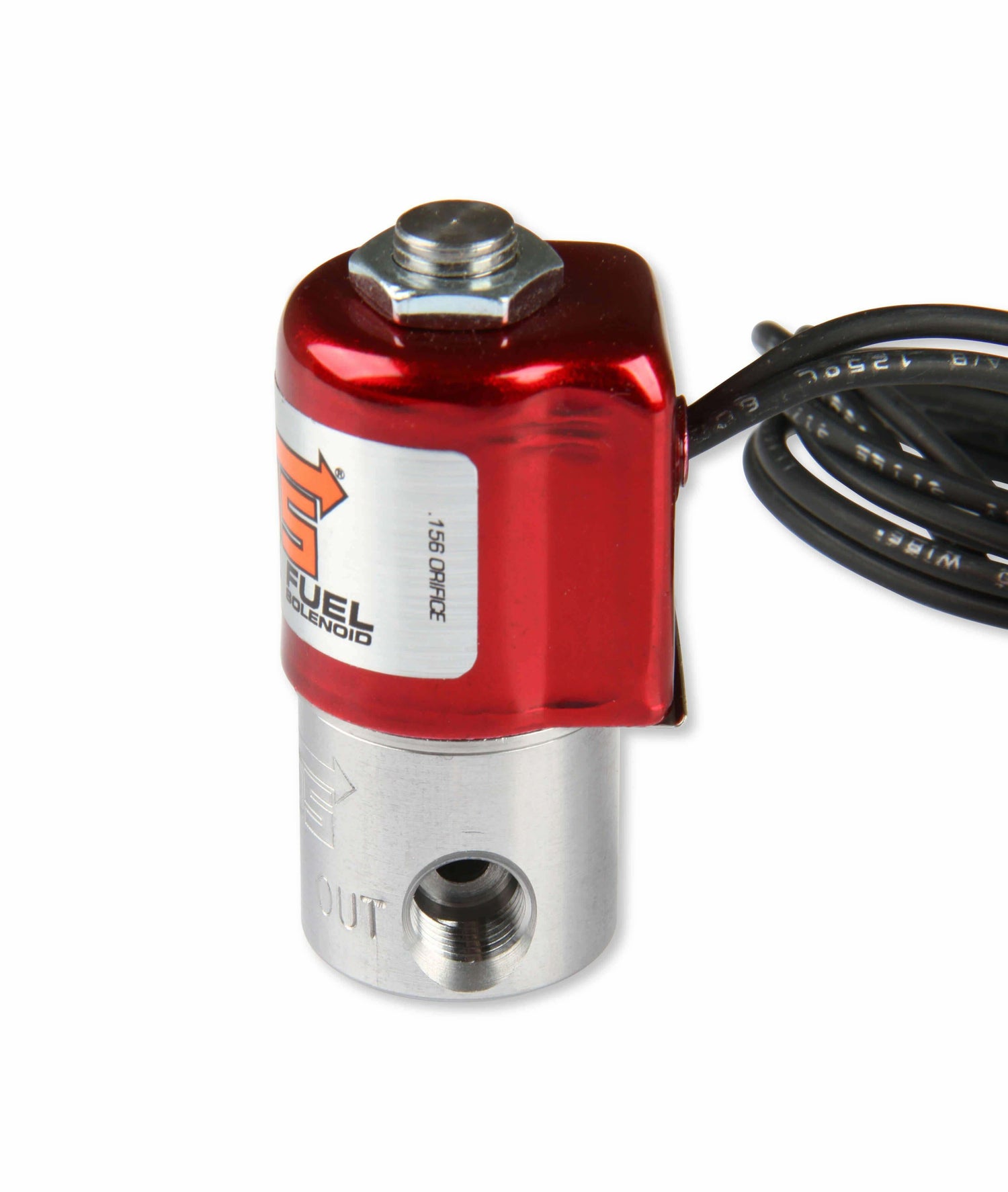

| Fuel Solenoid | Cheater ll |
| Included Jetting Horsepower | 75, 100, 125, 150 |
| Jet Sizes Included | 75, 100, 125, 150 hp |
| Jet Style | Flare |
| Material | 6061 T-6 Aluminum |
| Max Horsepower | 250 |
| Nitrous Bottle Capacity | 10 lbs |

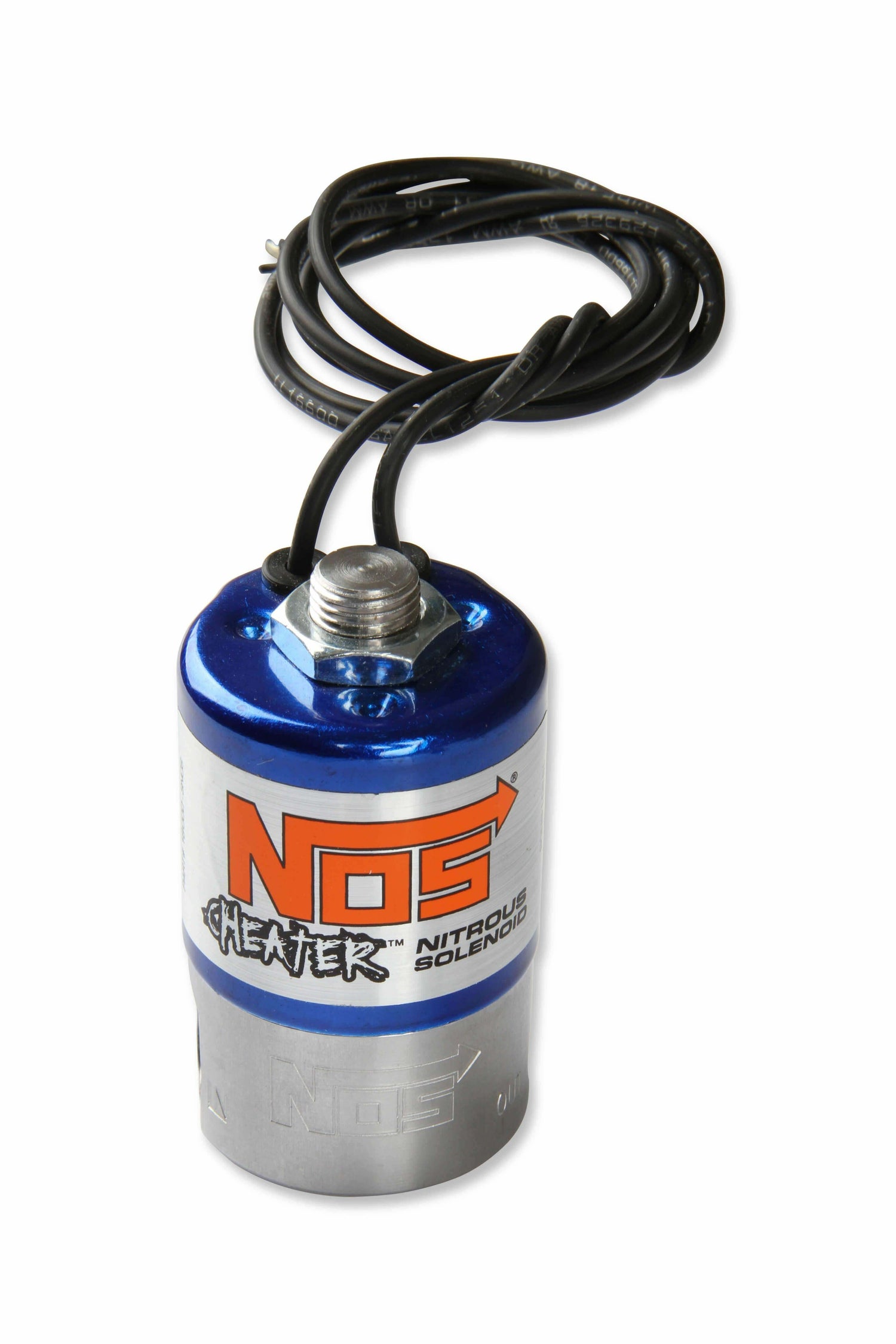

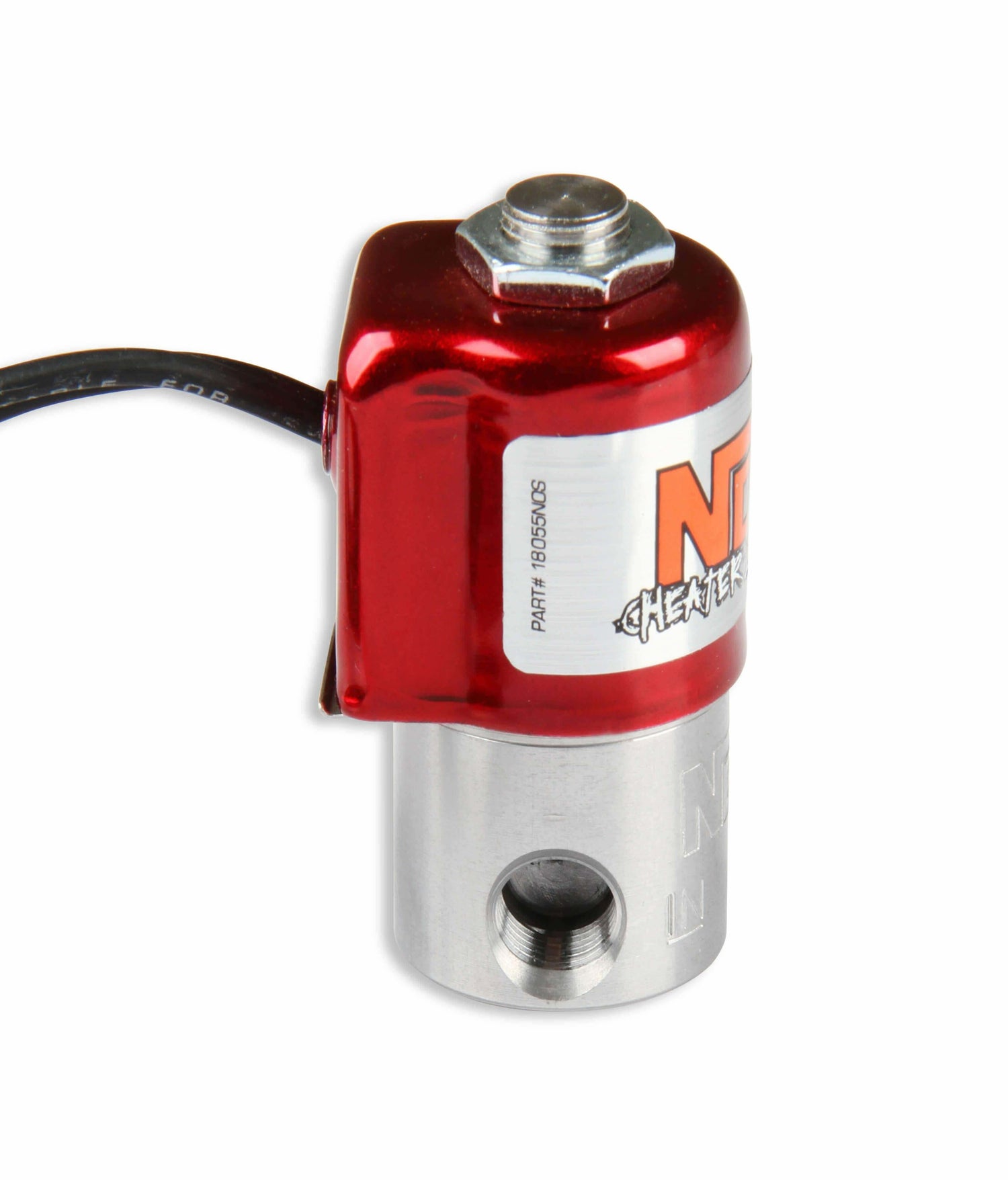

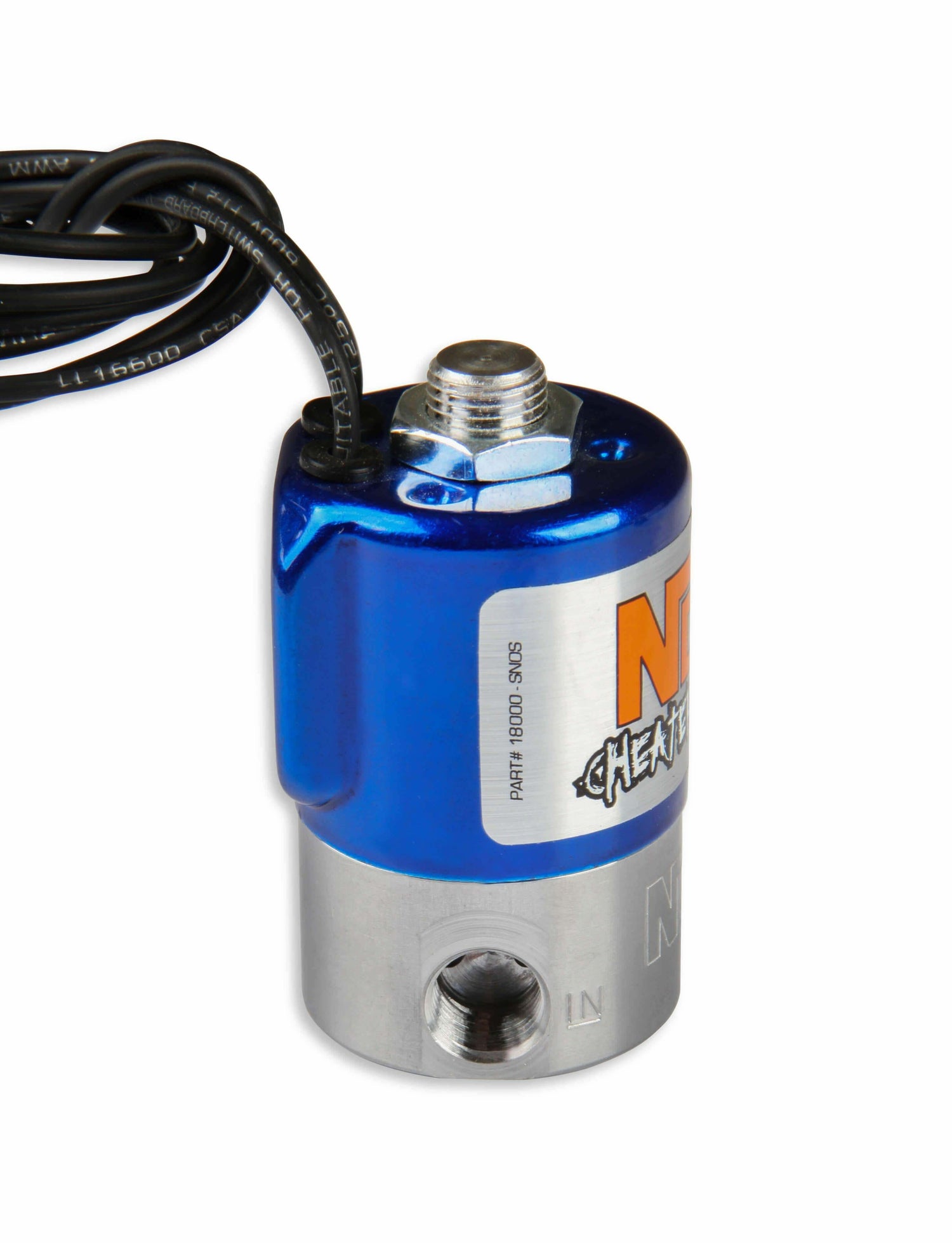

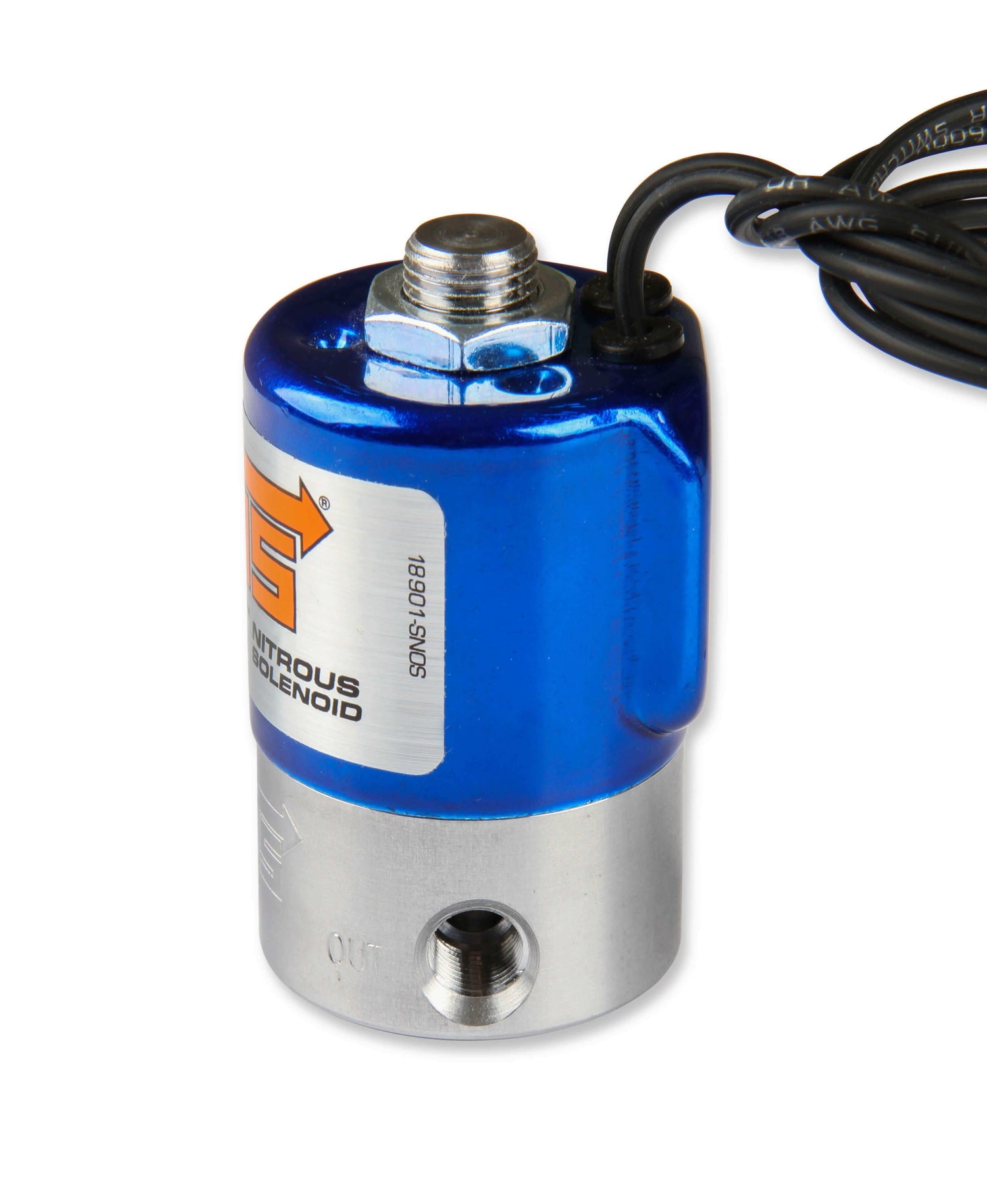

| Nitrous Solenoid | Cheater |
| Plate Bolt Pattern | 4 bolt |
| Plate Diameter | 90 mm |
| Plate Flange | GM LS 90mm 4-Bolt |
| Plate Height | 1/4 inch |
| Plate Included | Yes |
| Plate Thickness | 1/4 inch |
| Product Type | Nitrous System |
| Solenoid Top Cover Color | Blue/Red |
| Style | Wet |
| System Style | Wet |
| Warning | California Proposition 65 |
