NOS Nitrous Solenoid - Black - 18178BNOS
NOS Nitrous Solenoid - Black - 18178BNOS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

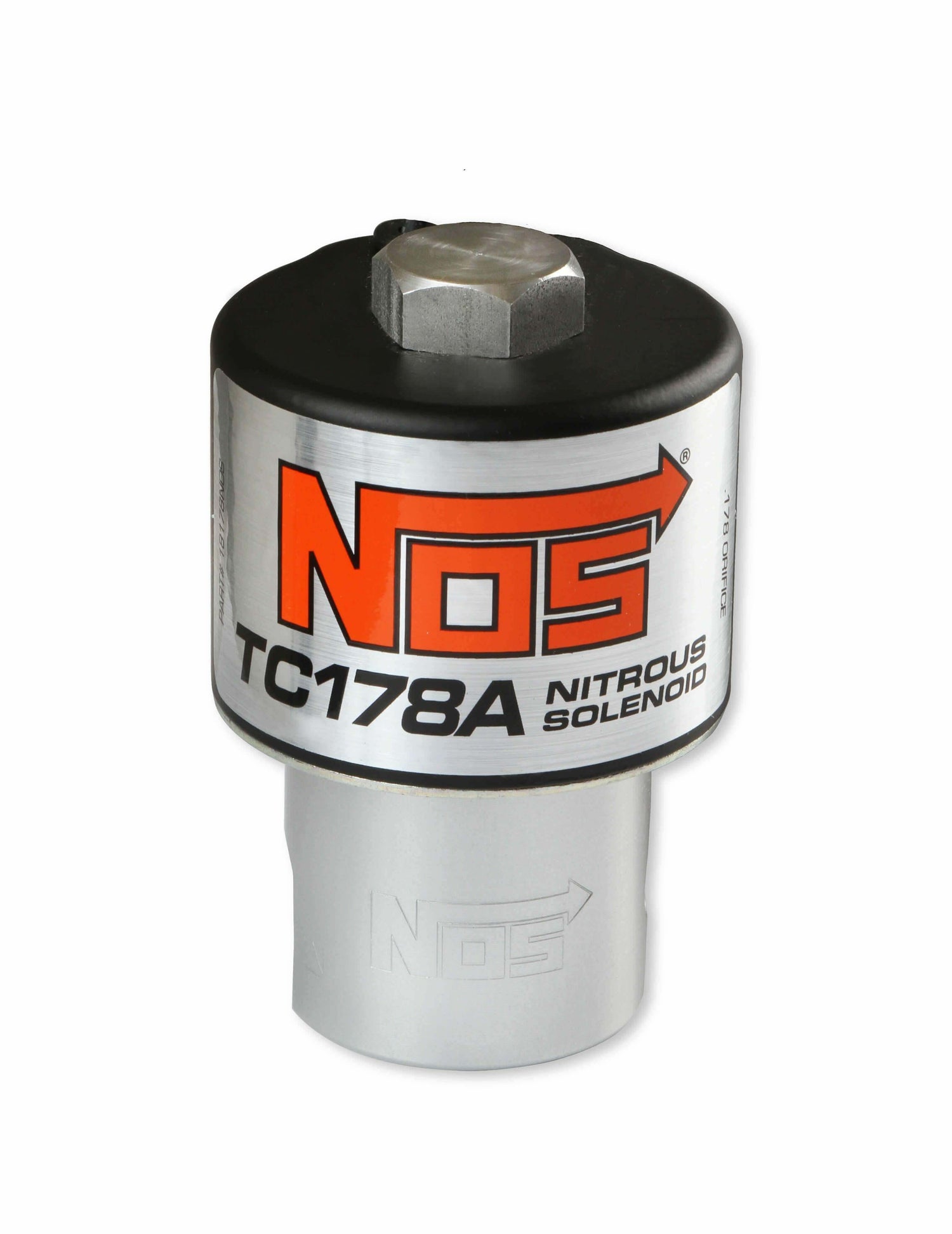

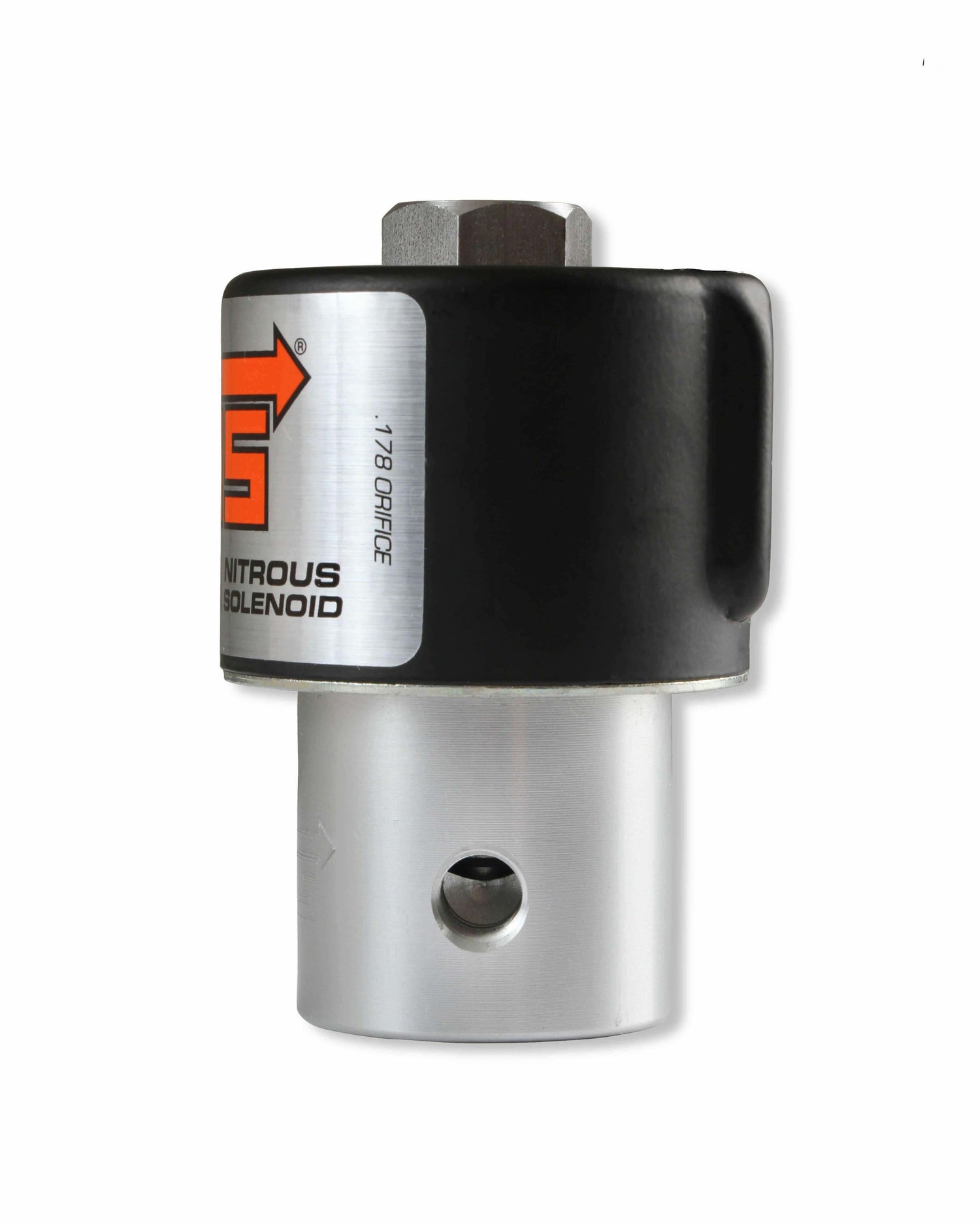

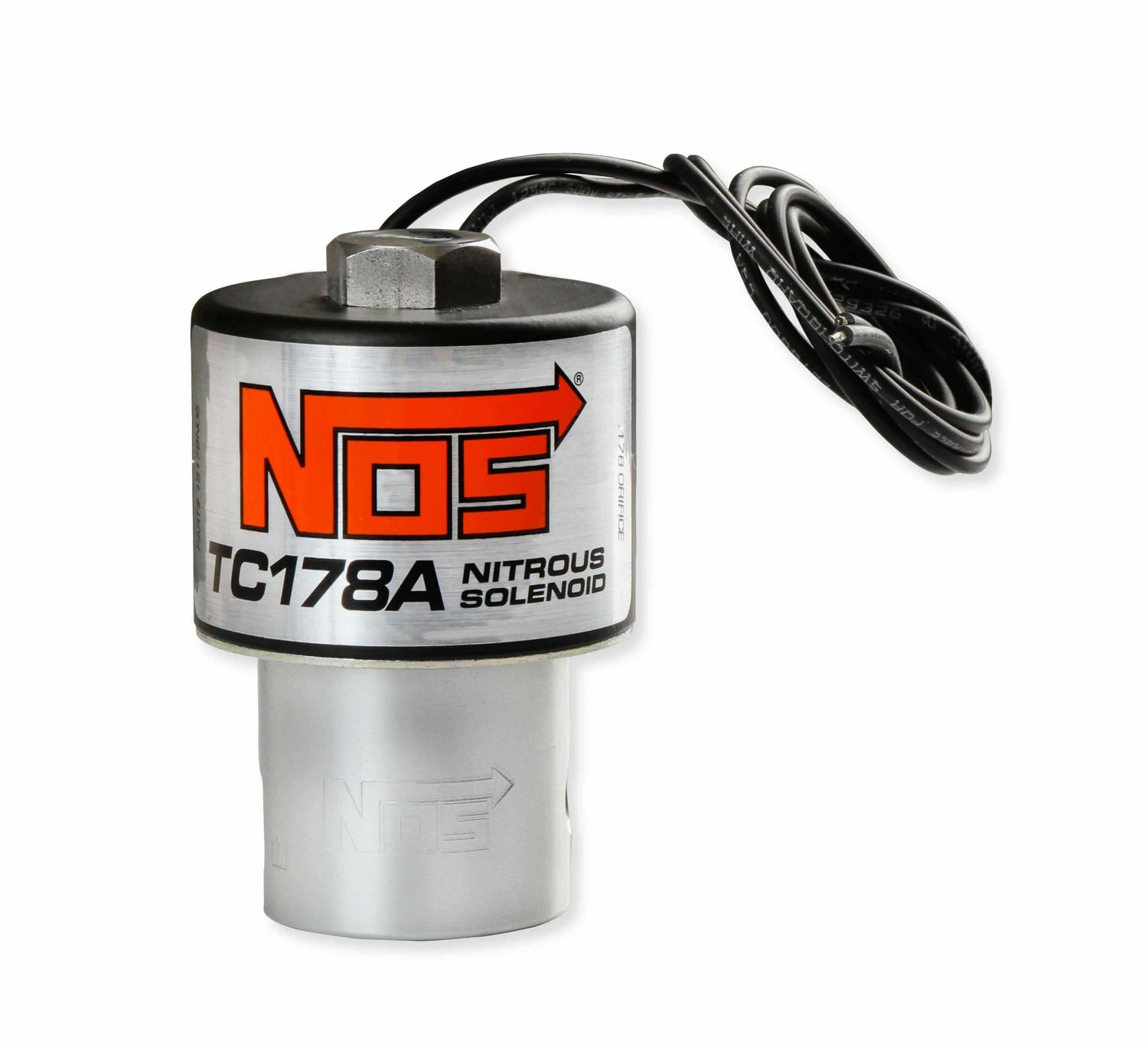

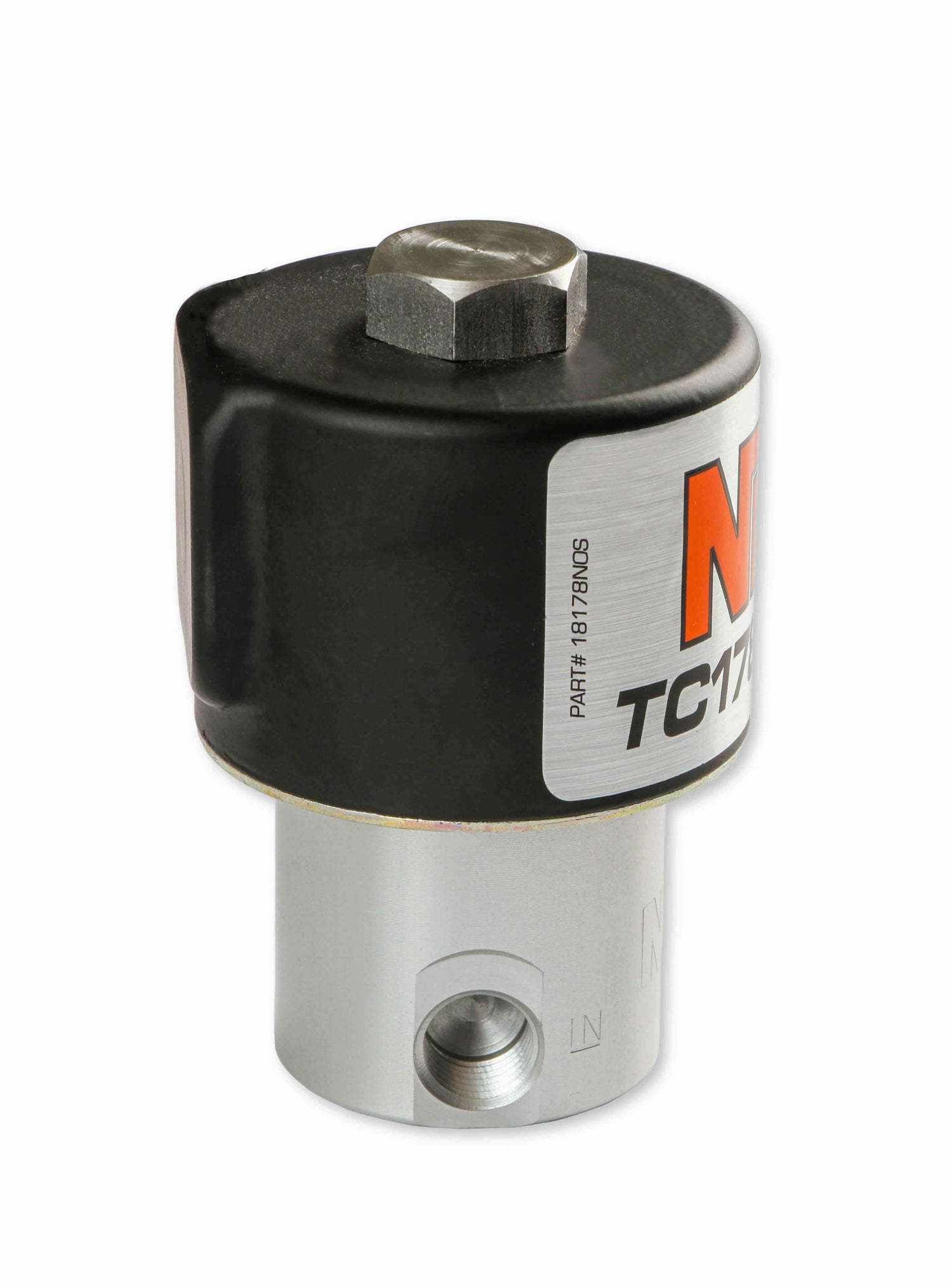

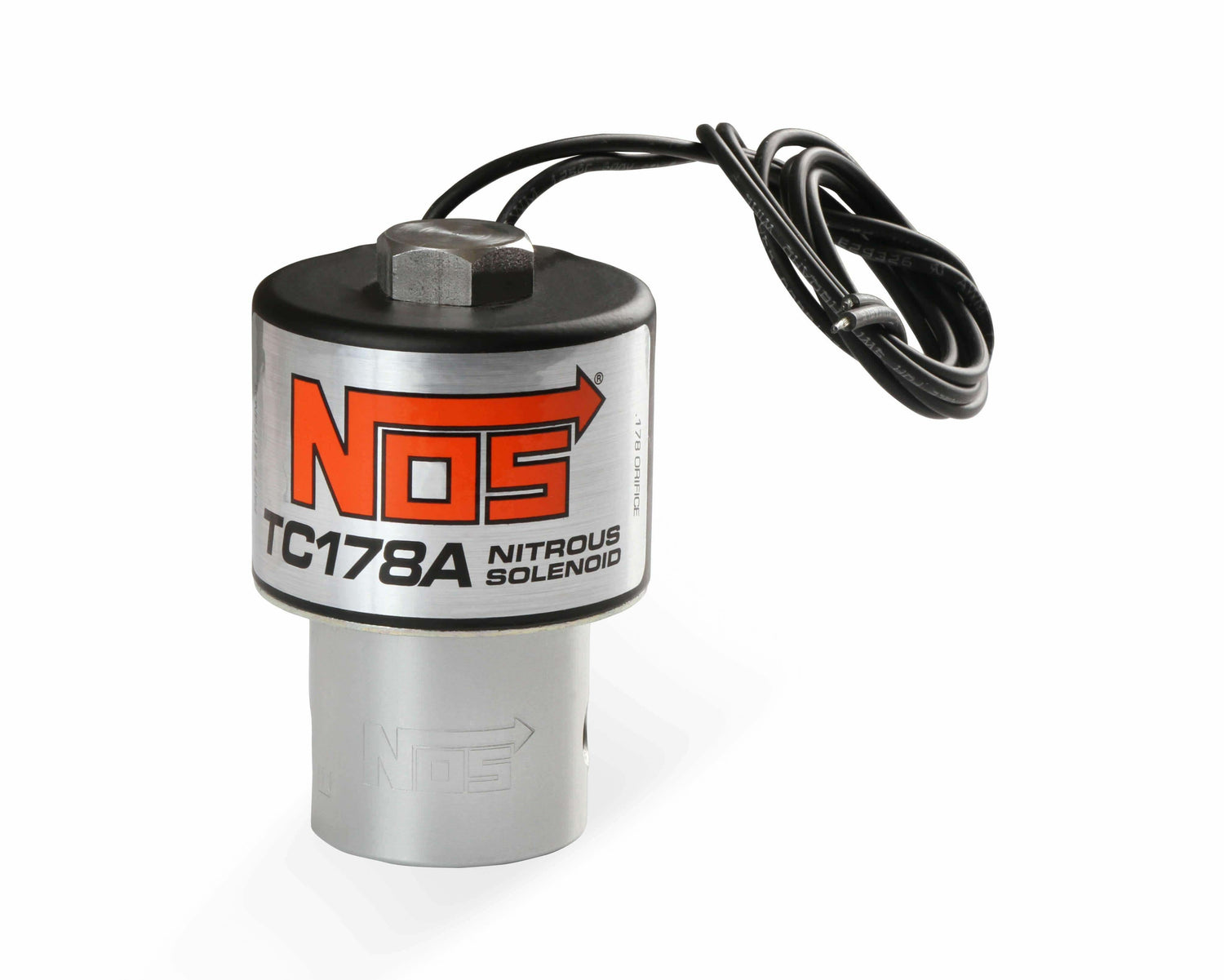

NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17
Current Draw is 20 Amps at 12 volts DC.
This Solenoid can be used with a progressive controller
Features:
- Supports in excess of 900 horsepower

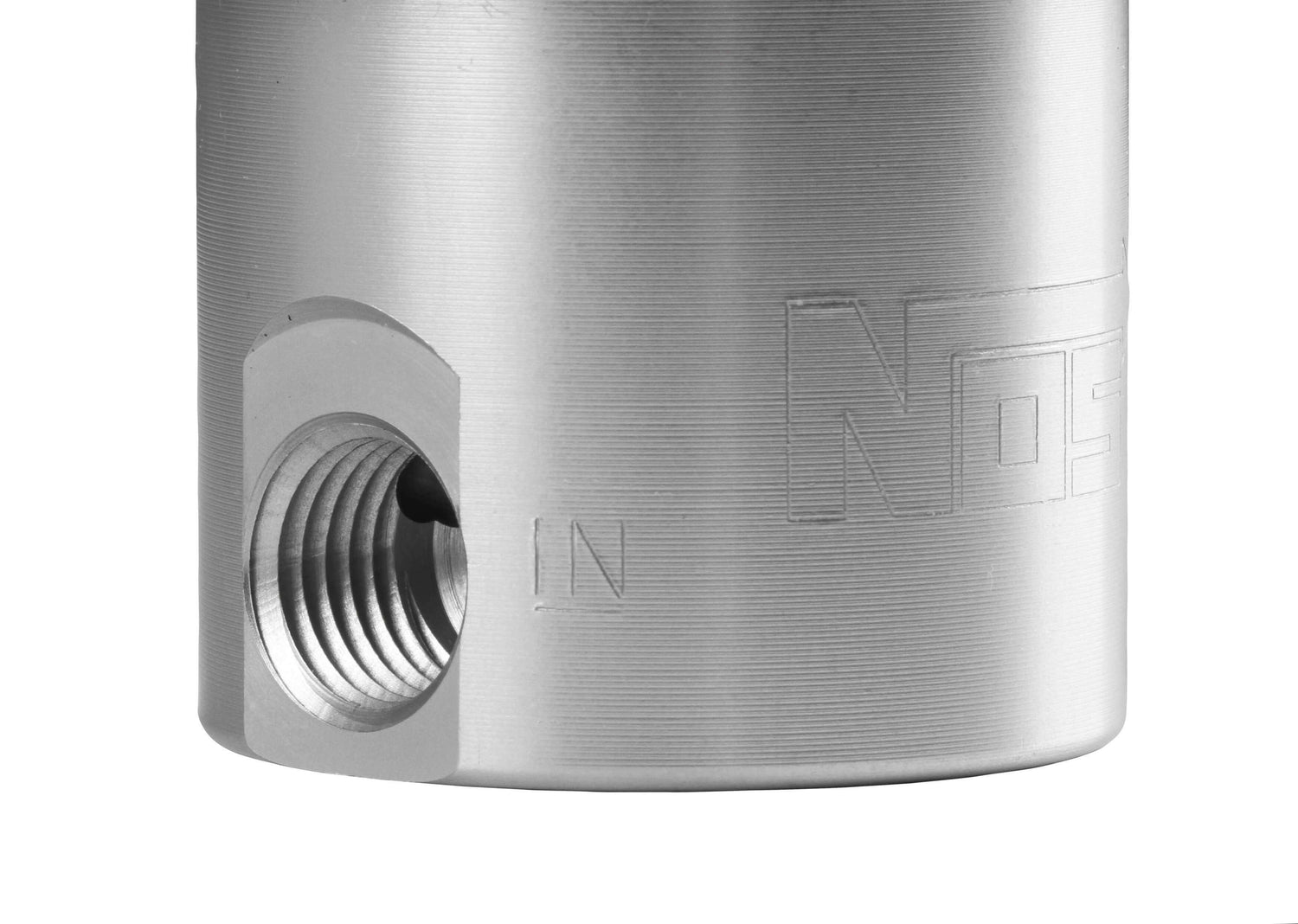

- Inlet Port Size - 1/4" NPT (Side)
- Outlet Port Size - 1/8" NPT (Bottom)

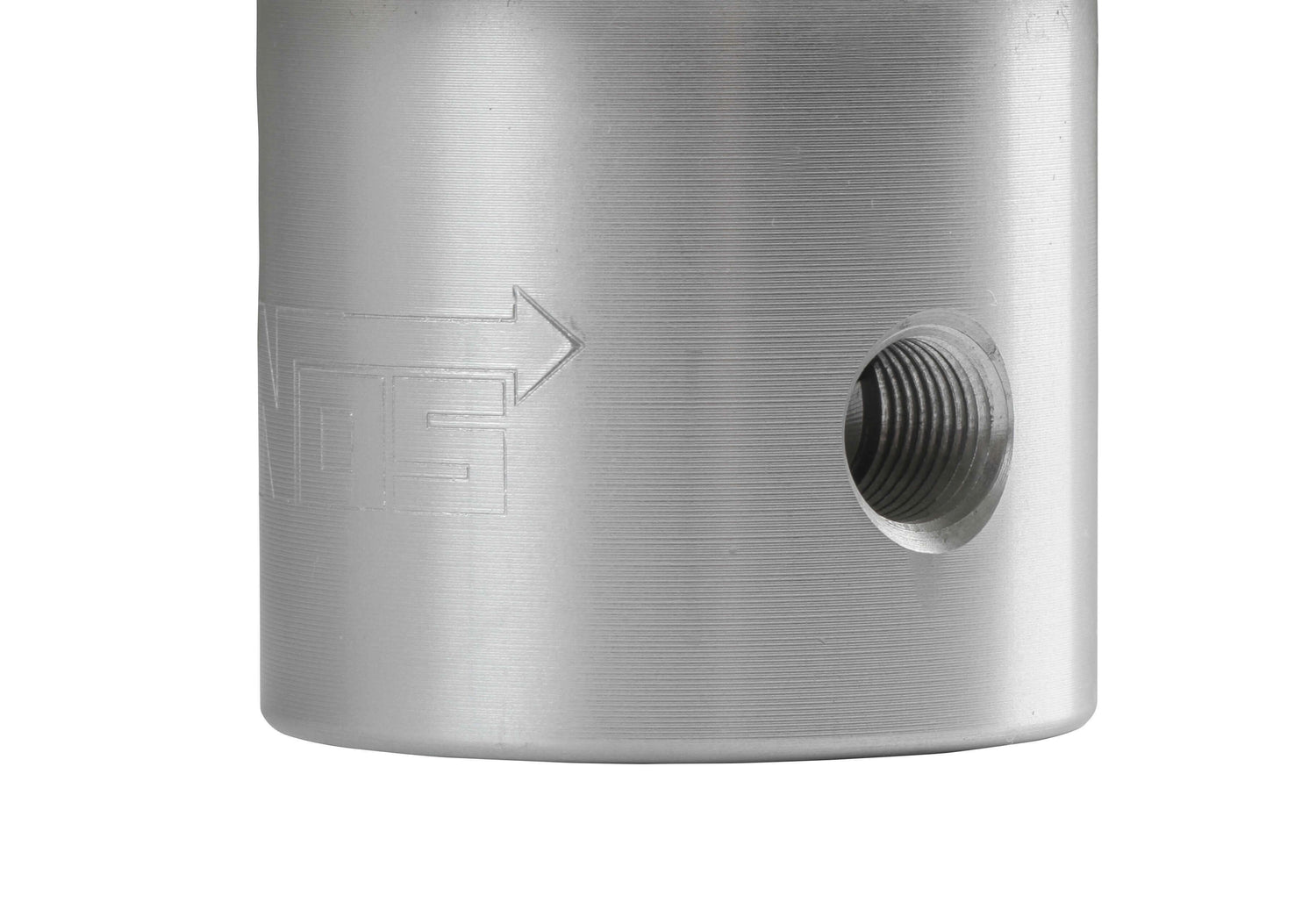

- Purge Port Size - 1/8" NPT (Side)
- Orifice - 0.178"
- Plunger - PTFE
- Light Weight Aluminum - 1.66 lbs.
- Material - 6061 Aluminum
- Saves 1/4 lb. over similar steel solenoids
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Amp Draw | 20A |
|---|---|
| Bracket(s) Included | No |
| Brand | NOS |
| Color | Black |
| Emission Code | 4 |
| Finish | Natural |
| Fittings Included | No |
| Inlet | Side |
| Inlet Attachment | Female Threads |
| Inlet Thread | 1/4" NPT |
| Material | 6061 T-6 Aluminum |
| Max Horsepower | 900 |
| Orifice | 0.178" |
| Outlet | Bottom |
| Outlet Attachment | Female Threads |
| Outlet Thread | 1/8" NPT |
| Plunger Material | PTFE |
| Product Line | TC178 |
| Product Type | Nitrous Solenoid |
| Purge Port | 1/8" NPT |
| Solenoid Top Cover Color | Black |
