Overview:

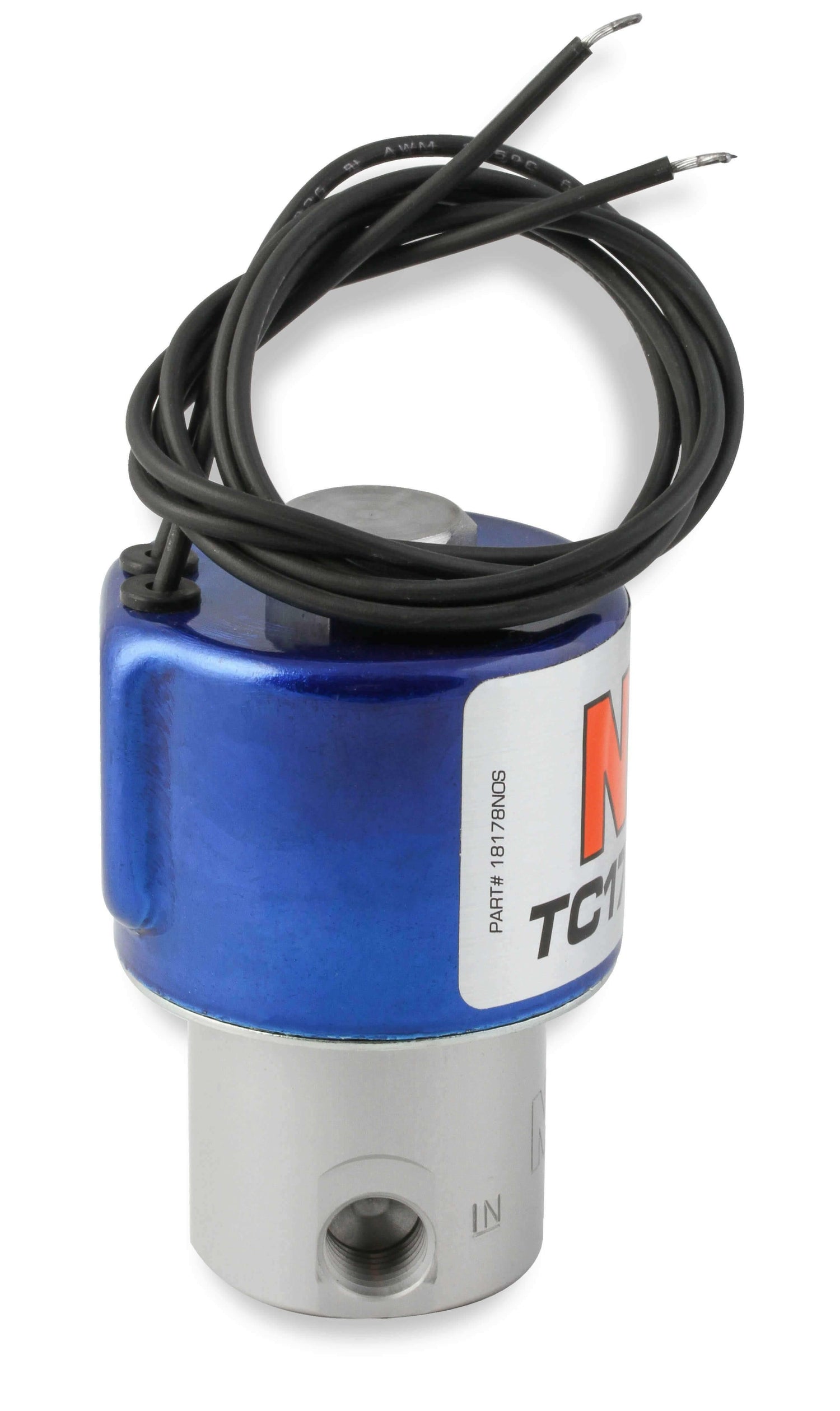

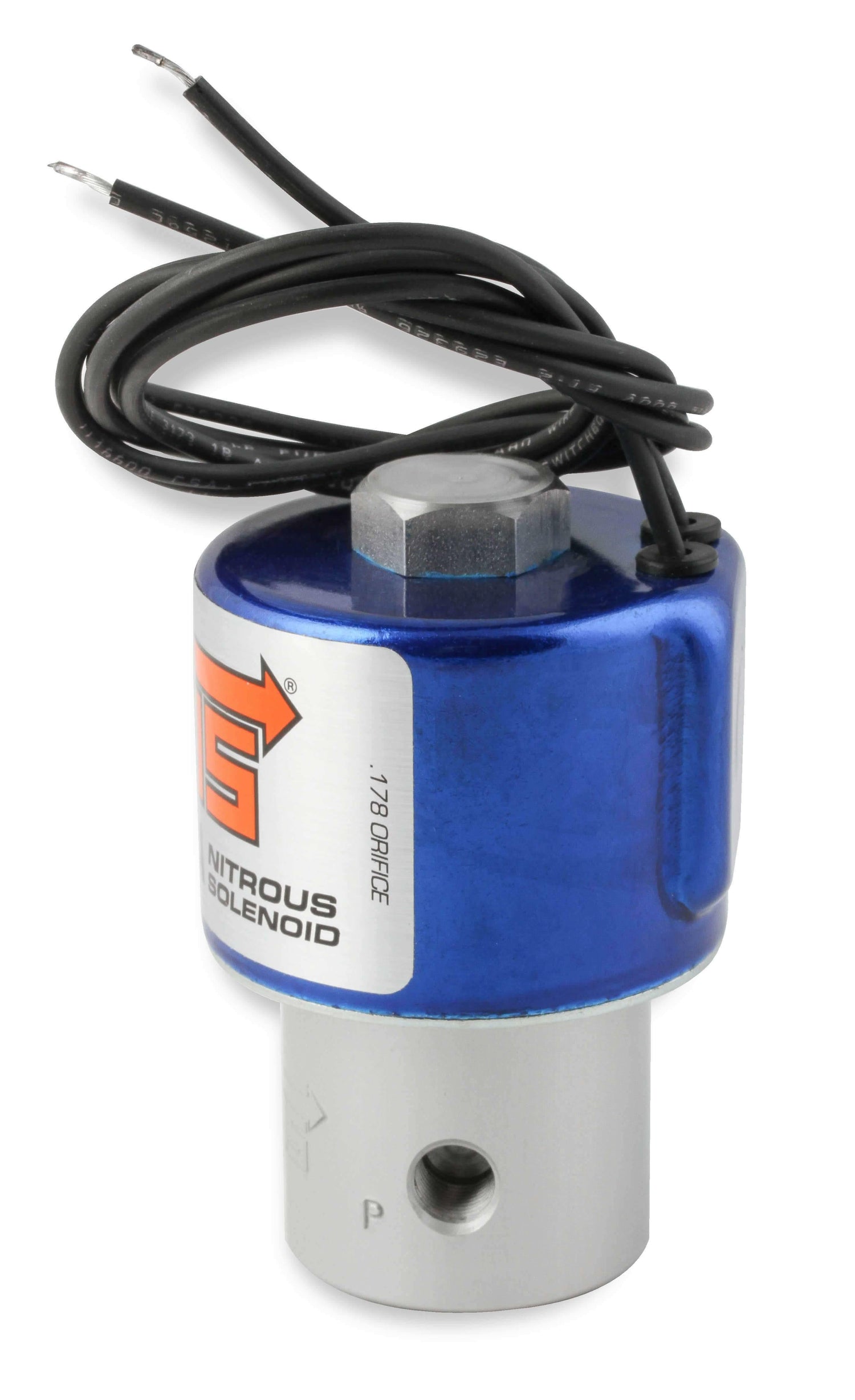

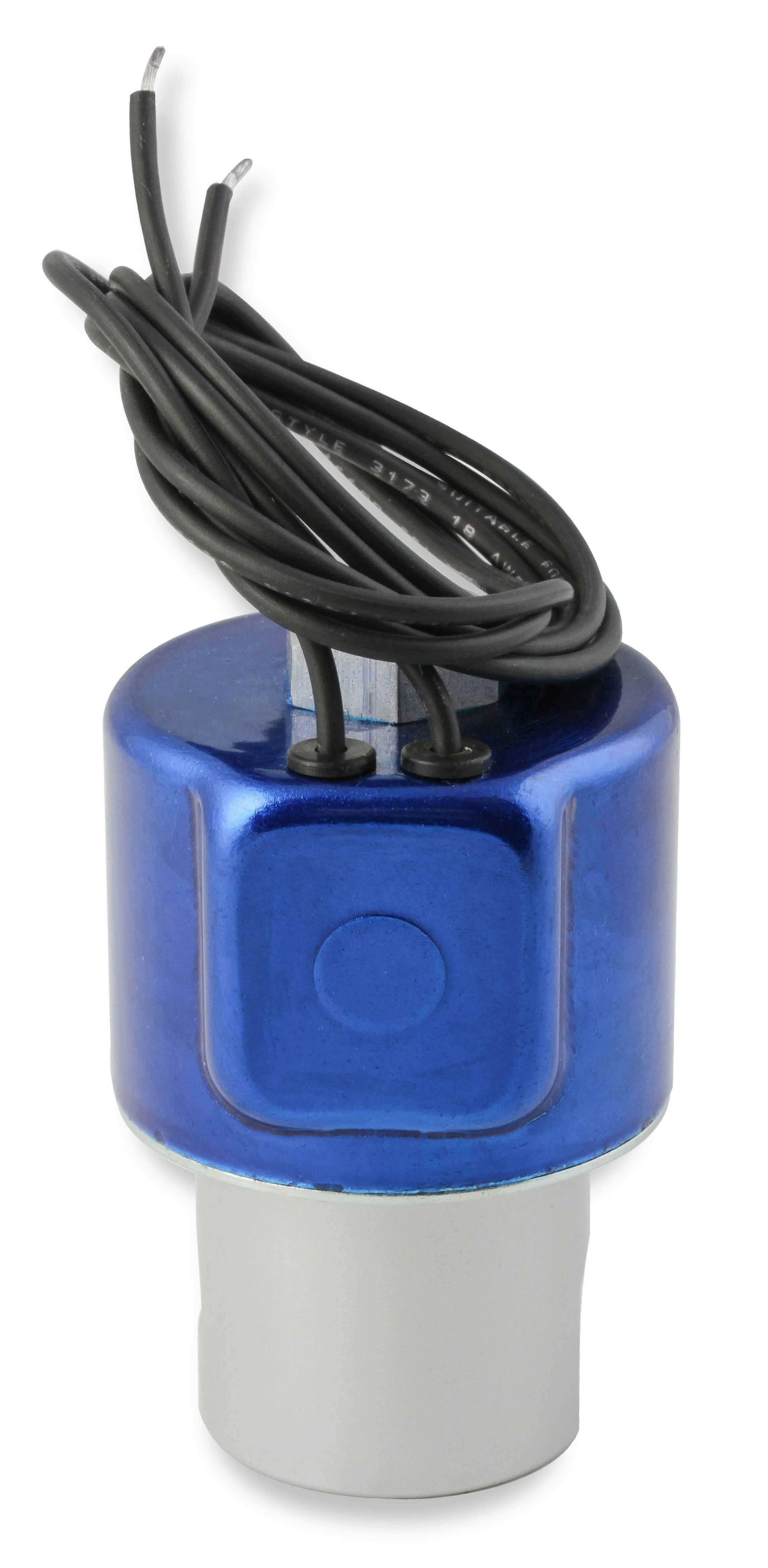

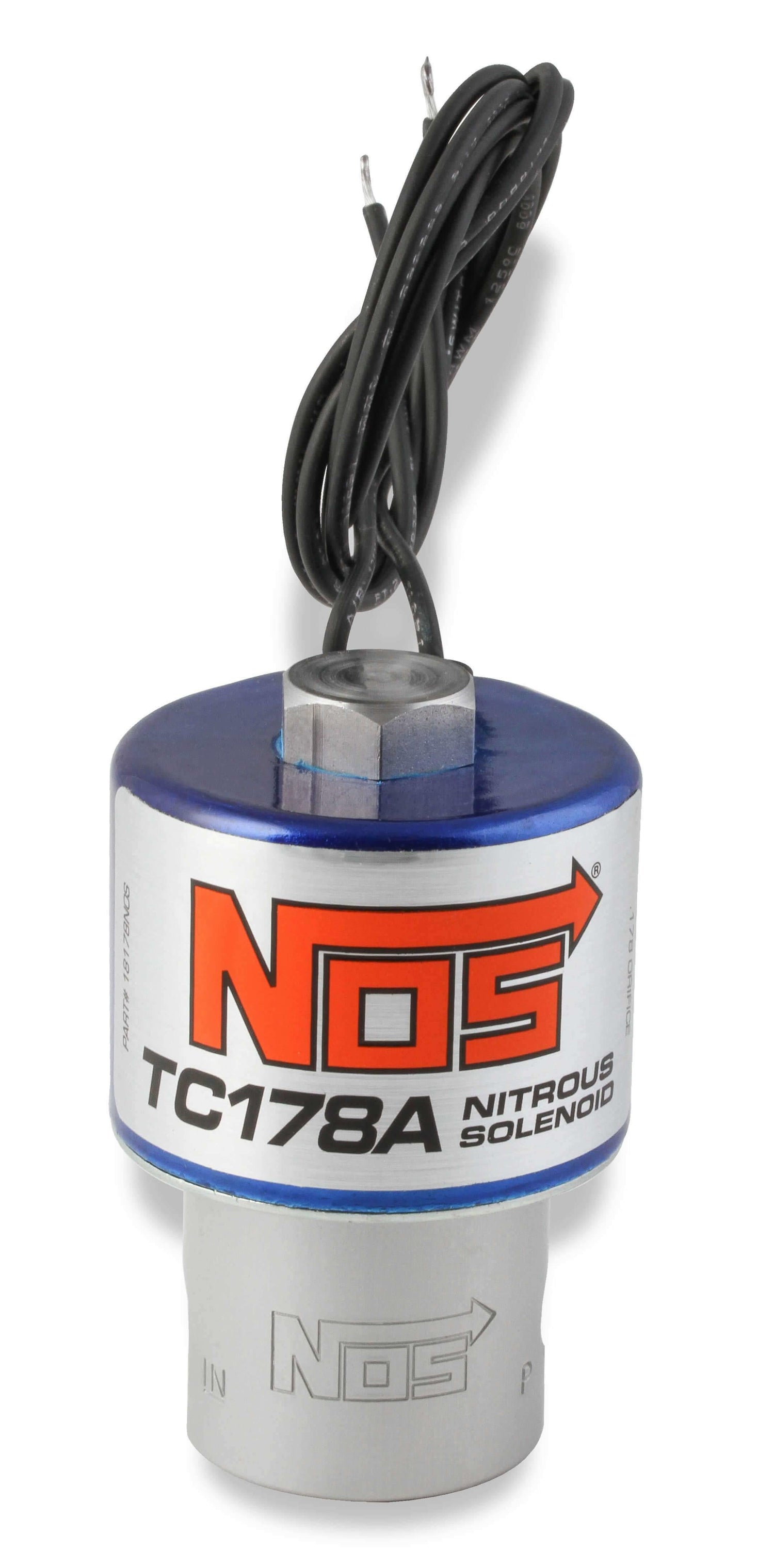

NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17
Current Draw is 20 Amps at 12 volts DC.
This Solenoid can be used with a progressive controller
Features:
- Supports in excess of 900 horsepower
- Inlet Port Size - 1/4" NPT (Side)

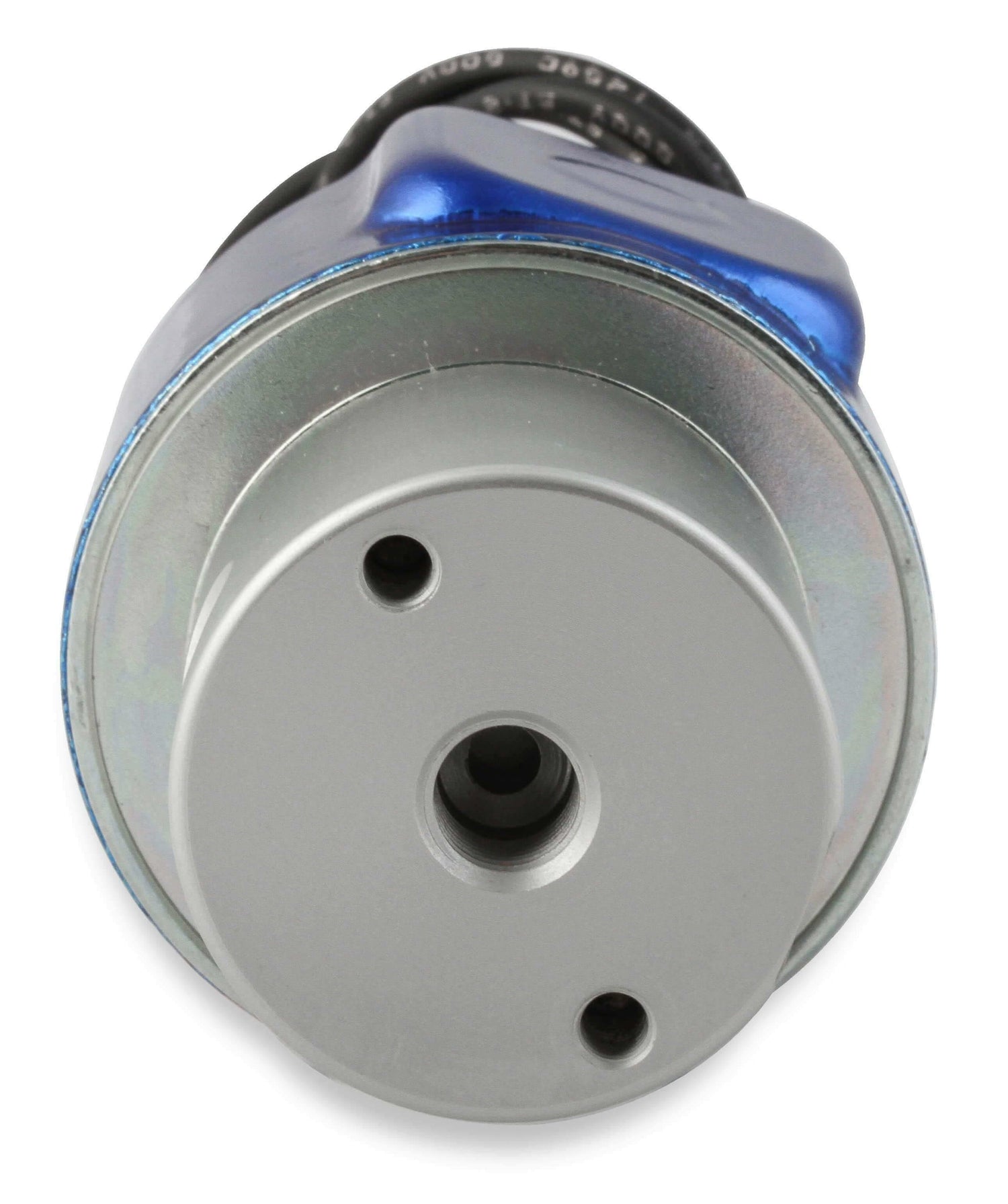

- Outlet Port Size - 1/8" NPT (Bottom)
- Purge Port Size - 1/8" NPT (Side)
- Orifice - 0.178"
- Plunger - PTFE
- Light Weight Aluminum - 1.66 lbs.
- Material - 6061 Aluminum
- Saves 1/4 lb. over similar steel solenoids
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Amp Draw | 20A |
|---|---|
| Bracket(s) Included | No |
| Brand | NOS |
| Color | Blue |
| Emission Code | 4 |
| Finish | Natural |
| Fittings Included | No |
| Inlet | Side |
| Inlet Attachment | Female Threads |
| Inlet Thread | 1/4" NPT |
| Material | 6061 T-6 Aluminum |
| Max Horsepower | 900 |
| Orifice | 0.178" |
| Outlet | Bottom |
| Outlet Attachment | Female Threads |
| Outlet Thread | 1/8" NPT |
| Plunger Material | PTFE |
| Product Line | TC178 |
| Product Type | Nitrous Solenoid |
| Purge Port | 1/8" NPT |
| Solenoid Top Cover Color | Blue |
