Overview:

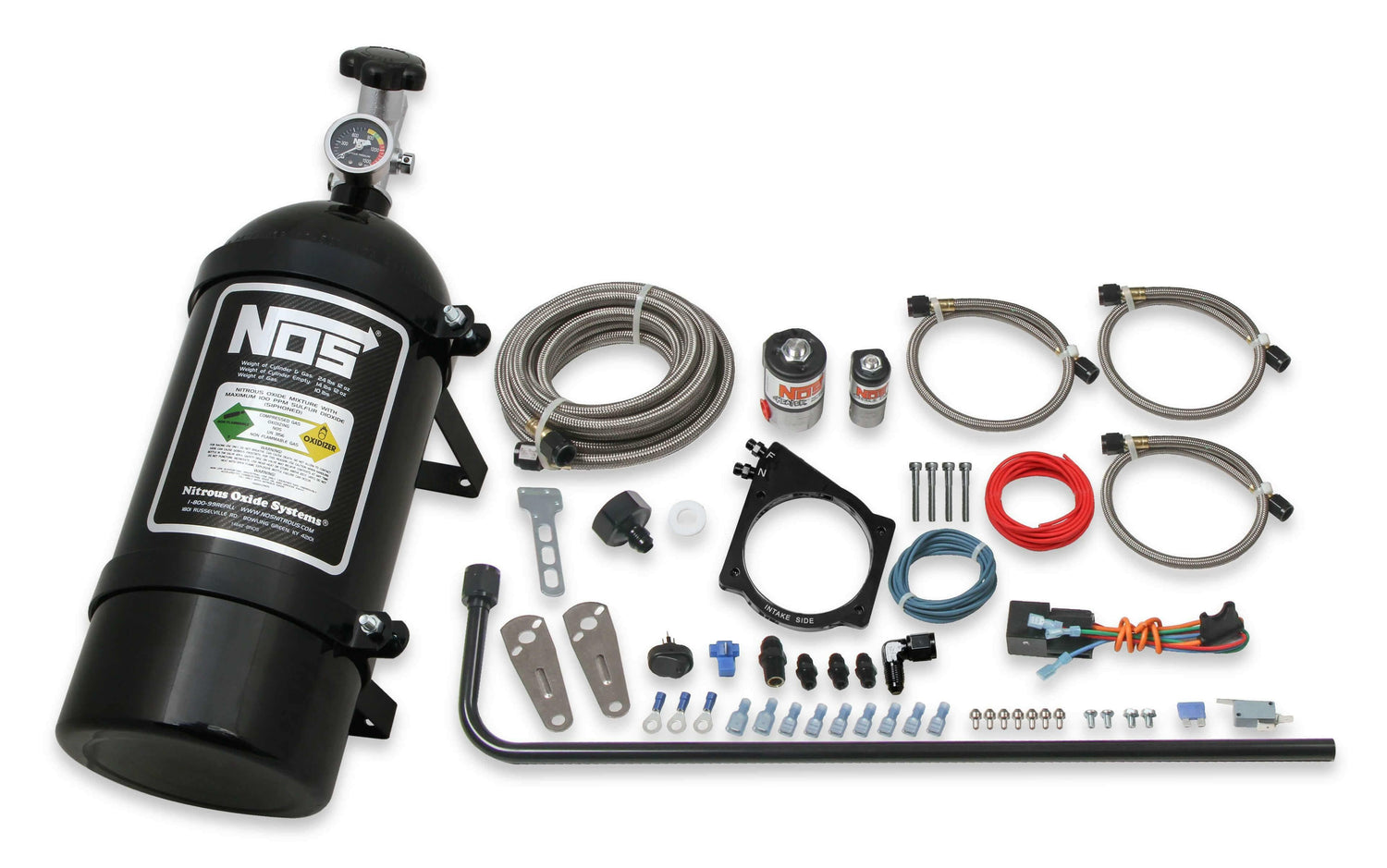

NOS is now offering a black version of its popular GM LS-engine wet nitrous system for 102mm or 105mm cable driven throttle bodies. The throttle body injector plate is made from 1/2 inch thick billet 6061-T6 aluminum then anodized black for great looks under the hood. This system includes a pair of black top solenoids, black 10 lb. bottle, along with mounting hardware and instructions.
Features:
- Fits GM LS engines with cable style 102mm or 105mm throttle body

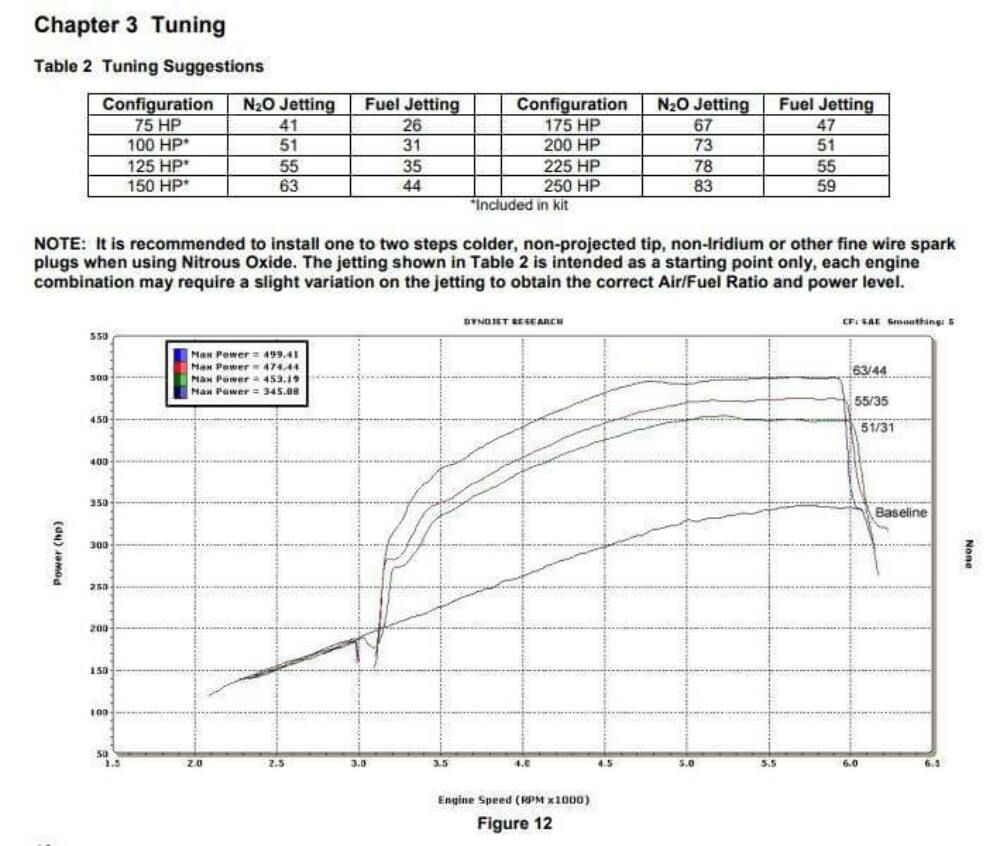

- Includes jetting for 100, 125, & 150 horsepower
- Fits Holley and Sniper EFI intake manifolds
- This wet kit provides exceptionally smooth power delivery

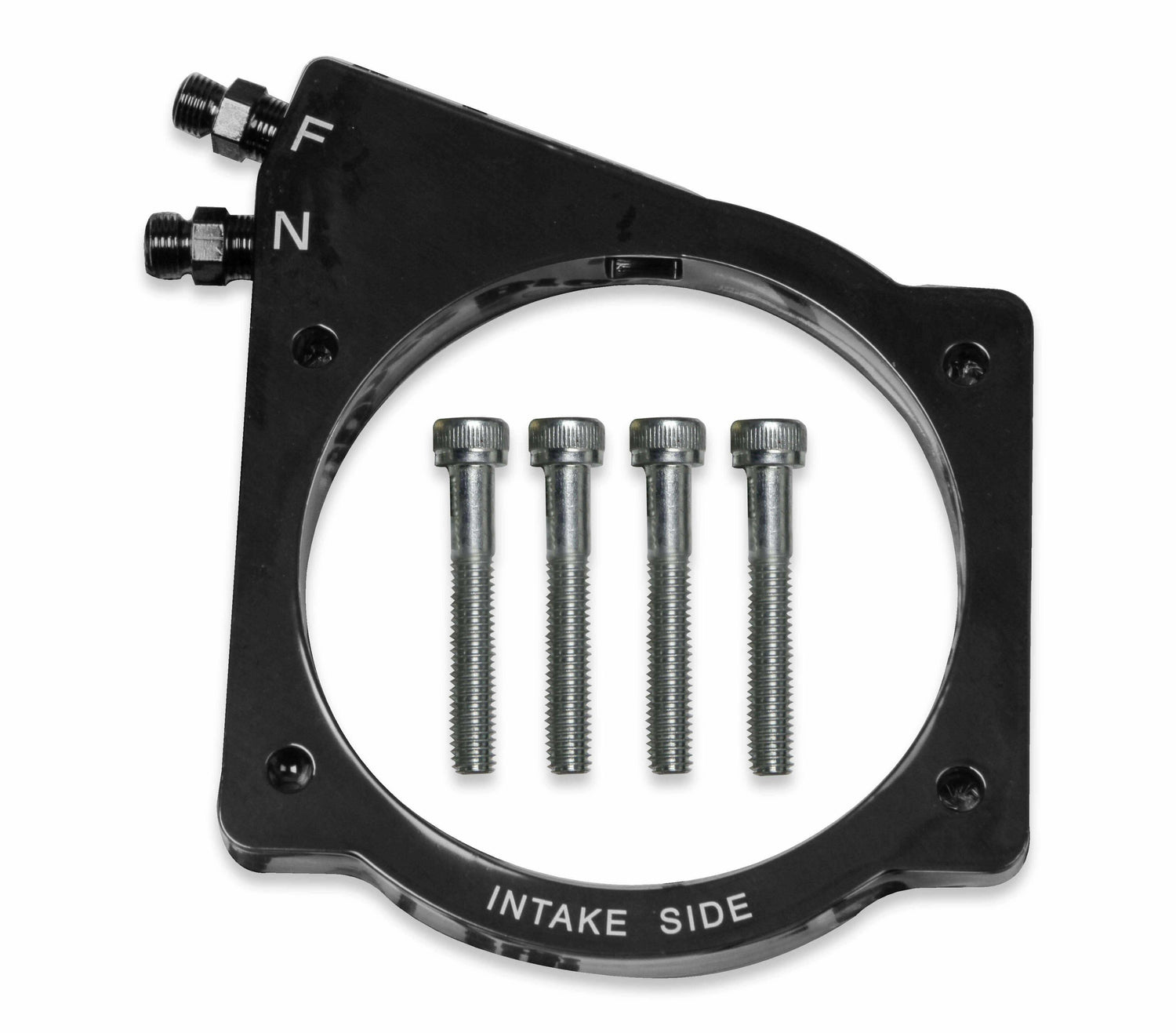

- Single 105mm ½ inch thick black plate between the throttle body and manifold
- Bottle is made from 6061-T6 Aluminum
- Supports up to 250 RWHP (jets purchased separately)
- Includes a 10 lb. black nitrous bottle with brackets
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2006 - 2013 | Chevrolet | Corvette | 4.13/8 V | |
| 2009 - 2015 | Cadillac | CTS | 4.06/8 V | |
| 1997 - 2004 | Chevrolet | Corvette | 3.9/8 V | |
| 2006 - 2009 | Chevrolet | Impala | 3.78/8 V | |
| 1998 - 2002 | Chevrolet | Camaro | 3.9/8 V | |
| 2008 - 2009 | Buick | Allure | 3.78/8 V | |
| 2005 - 2006 | Pontiac | GTO | 4/8 V | |
| 2010 - 2015 | Chevrolet | Camaro | 4.06/8 V | |
| 2006 - 2009 | Chevrolet | Trailblazer | 4/8 V | |
| 2008 - 2013 | Chevrolet | Corvette | 4.06/8 V | |
| 2008 - 2009 | Buick | LaCrosse | 3.78/8 V | |
| 2006 - 2007 | Chevrolet | Monte Carlo | 3.78/8 V | |
| 2014 - 2017 | Chevrolet | SS | 4.06/8 V | |
| 2005 - 2007 | Chevrolet | Corvette | 4/8 V | |
| 1998 - 2002 | Pontiac | Firebird | 3.9/8 V | |
| 2005 - 2006 | Chevrolet | SSR | 4/8 V | |
| 2009 | Pontiac | G8 | 4.06/8 V | |
| 2005 - 2008 | Pontiac | Grand Prix | 3.78/8 V | |
| 2004 | Pontiac | GTO | 3.9/8 V | |
| 2014 - 2015 | Chevrolet | Camaro | 4.13/8 V | |
| 2006 - 2007 | Cadillac | CTS | 4/8 V | |
| 2004 - 2005 | Cadillac | CTS | 3.9/8 V |
Specs:
| Adjustable | Yes |
|---|---|
| Bottle Color | Black |
| Bottle Included | Yes |
| Bottle Material | 6061 T-6 Aluminum |
| Bottle Size | 10 lb |

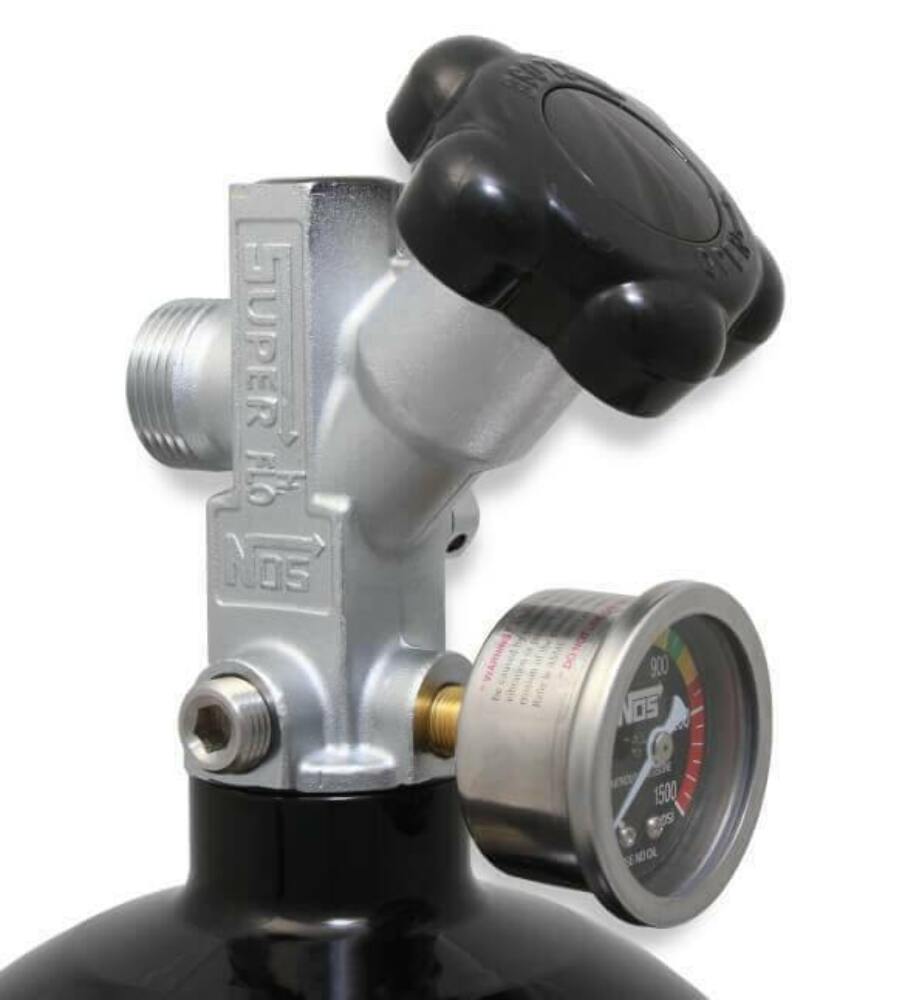

| Bottle Valve | Super Hi-Flo |
| Bracket Material | Steel |
| Brackets Included | Yes |
| Brand | NOS |
| Color | Black |
| Delivery Style | EFI Spacer Plate |
| Emission Code | 4 |
| Feed Line Size | 6AN |
| Fuel Solenoid | Cheater |
| Included Jetting Horsepower | 100, 125, 150 |
| Jet Sizes Included | 100, 125, 150 hp |
| Jet Style | Flare |
| Material | 6061 T-6 Aluminum |
| Max Horsepower | 250 |
| Nitrous Bottle Capacity | 10 lbs |

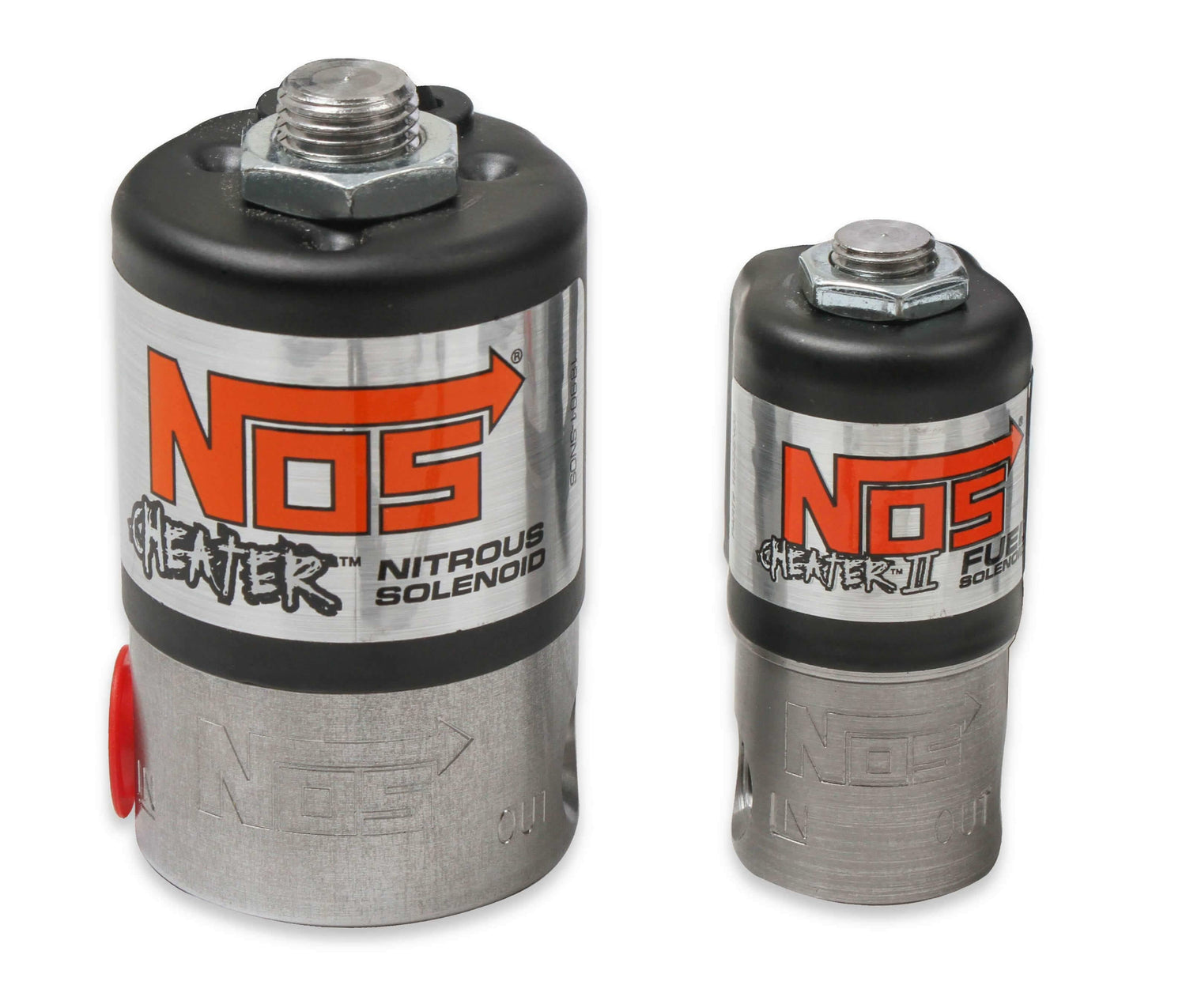

| Nitrous Solenoid | Cheater |
| Number of Solenoids | 2 |
| Plate Bolt Pattern | 4 bolt |
| Plate Diameter | 105 mm |
| Plate Flange | GM 4-Bolt LS |
| Plate Height | 1/2 inch |
| Plate Included | Yes |
| Plate Thickness | 1/2 inch |
| Product Type | Nitrous System |
| Solenoid Top Cover Color | Black |
| Style | Wet |
| System Style | Wet |
| Warning | California Proposition 65 |
