NOS Plate Wet Nitrous System - GM - 05163NOS
NOS Plate Wet Nitrous System - GM - 05163NOS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you.
These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*.
*It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.

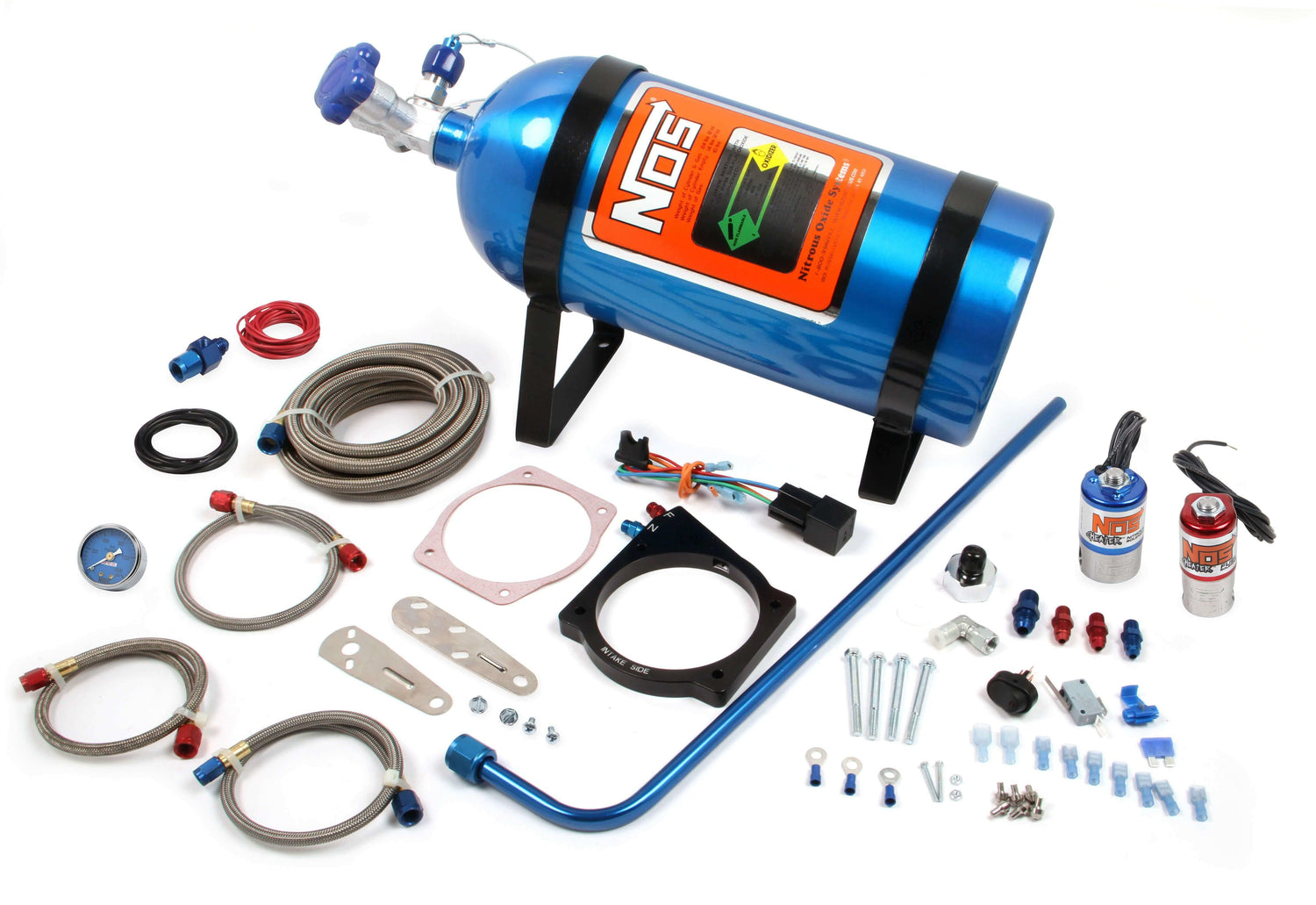

Features:
- Fits 90mm or 92mm cable actuated throttle body
- For use with drive-by-wire or cable operated Throttle Bodies
- Single ½” plate between the throttle body and manifold
- Ideal for use with the Holley Hi-Ram & MSD Atomic LS Manifold
- Supports up to 250 RWHP (Rear Wheel Horse Power)
- Plate outlet design maximizes distribution
- Includes a 10 lb. “NOS Blue” nitrous bottle with brackets
- 6061 Billet Aluminum, CNC Machined Plate
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2005 - 2007 | Chevrolet | Corvette | 4/8 V | |
| 2006 - 2013 | Chevrolet | Corvette | 4.13/8 V | |
| 2008 - 2013 | Chevrolet | Corvette | 4.06/8 V | |
| 2005 - 2006 | Chevrolet | SSR | 4/8 V | |
| 2009 - 2015 | Cadillac | CTS | 4.06/8 V | |
| 2005 - 2006 | Pontiac | GTO | 4/8 V | |
| 2010 - 2015 | Chevrolet | Camaro | 4.06/8 V | |
| 1997 - 2004 | Chevrolet | Corvette | 3.9/8 V | |
| 2006 - 2009 | Chevrolet | Impala | 3.78/8 V | |
| 2014 - 2017 | Chevrolet | SS | 4.06/8 V | |
| 1998 - 2002 | Chevrolet | Camaro | 3.9/8 V | |
| 2005 - 2008 | Pontiac | Grand Prix | 3.78/8 V | |
| 1998 - 2002 | Pontiac | Firebird | 3.9/8 V | |
| 2008 - 2009 | Buick | LaCrosse | 3.78/8 V | |
| 2008 - 2009 | Saab | 9-7x | 4/8 V | |
| 2014 - 2015 | Chevrolet | Camaro | 4.13/8 V | |
| 2006 - 2009 | Chevrolet | Trailblazer | 4/8 V | |
| 2006 - 2007 | Chevrolet | Monte Carlo | 3.78/8 V | |
| 2004 - 2005 | Cadillac | CTS | 3.9/8 V | |
| 2008 - 2009 | Buick | Allure | 3.78/8 V | |
| 2006 - 2007 | Cadillac | CTS | 4/8 V | |
| 2009 | Pontiac | G8 | 4.06/8 V | |
| 2004 | Pontiac | GTO | 3.9/8 V |
Specs:
| Adjustable | Yes |
|---|---|
| Bottle Color | Blue |
| Bottle Included | Yes |
| Bottle Material | 6061 T-6 Aluminum |
| Bottle Size | 10 lb |
| Bottle Valve | Super Hi-Flo |
| Bracket Material | Steel |
| Brackets Included | Yes |
| Brand | NOS |
| Color | Blue |
| Delivery Style | EFI Spacer Plate |
| Emission Code | 4 |
| Feed Line Size | 6AN |
| Fuel Solenoid | Cheater ll |
| Included Jetting Horsepower | 100, 125, 150 |
| Jet Sizes Included | 100, 125, 150 hp |
| Jet Style | Flare |
| Material | 6061 T-6 Aluminum |
| Max Horsepower | 250 |
| Nitrous Bottle Capacity | 10 lbs |
| Nitrous Solenoid | Cheater |
| Number of Solenoids | 2 |
| Plate Bolt Pattern | 4 bolt |
| Plate Diameter | 90 mm |
| Plate Flange | GM 90mm LS 4 bolt |
| Plate Height | 1/2 inch |
| Plate Included | Yes |
| Plate Thickness | 1/2 inch |
| Product Type | Nitrous System |
| Solenoid Top Cover Color | Blue/Red |
| Style | Wet |
| System Style | Wet |
| Warning | California Proposition 65 |
