NOS Plate Wet Nitrous System - GM - 05164BNOS
NOS Plate Wet Nitrous System - GM - 05164BNOS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

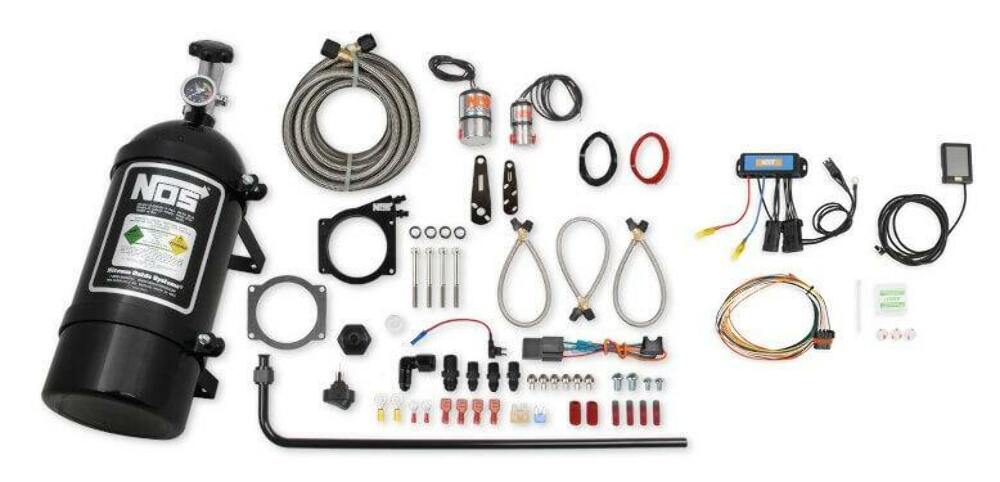

Overview:
If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you.
These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*.
*It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.
Features:
- Fits GM LS engines with drive-by-wire style 90mm or 92mm throttle body

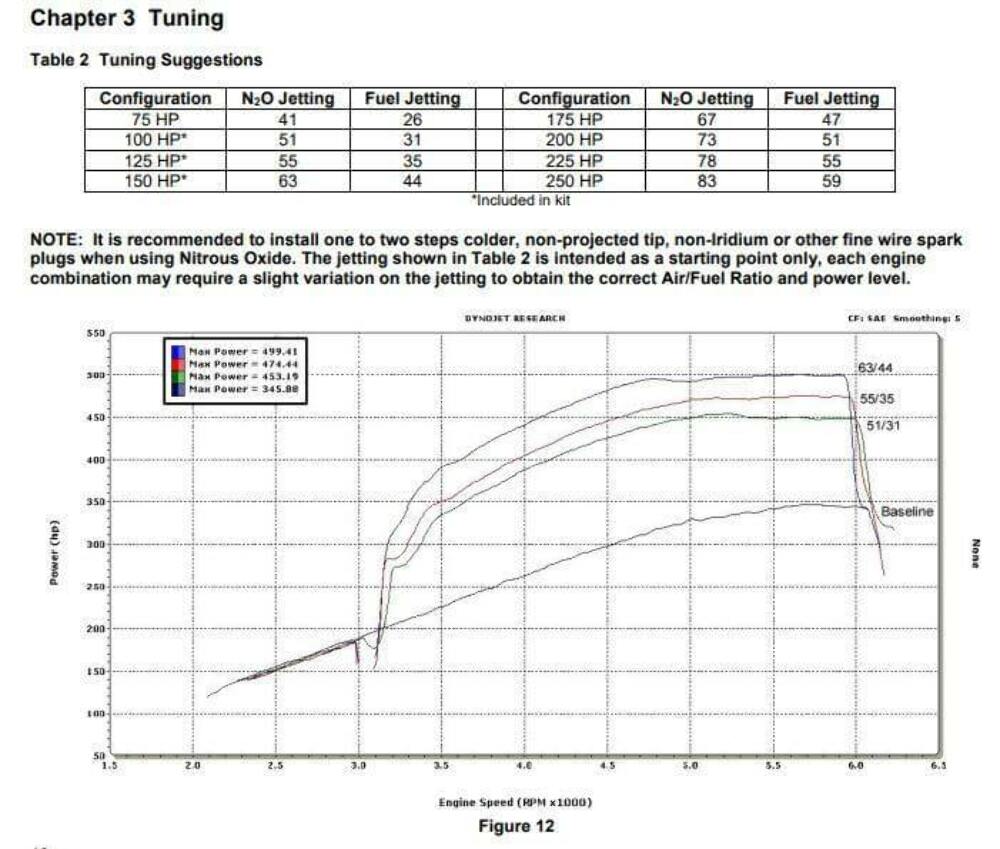

- Includes jetting for 100, 125, & 150 horsepower
- Fits Holley and Sniper EFI , or MSD Atomic intake manifolds
- This wet kit provides exceptionally smooth power delivery

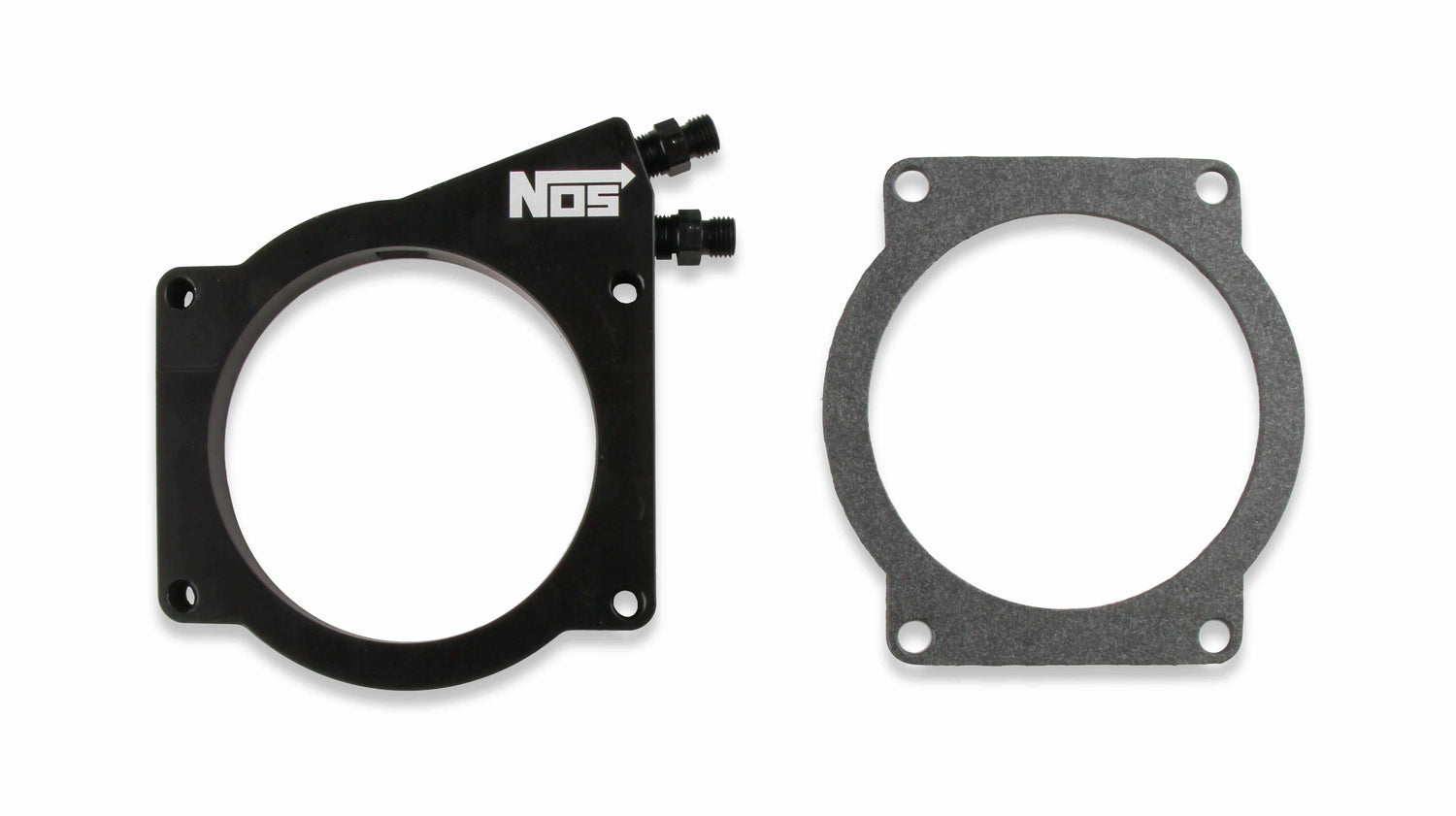

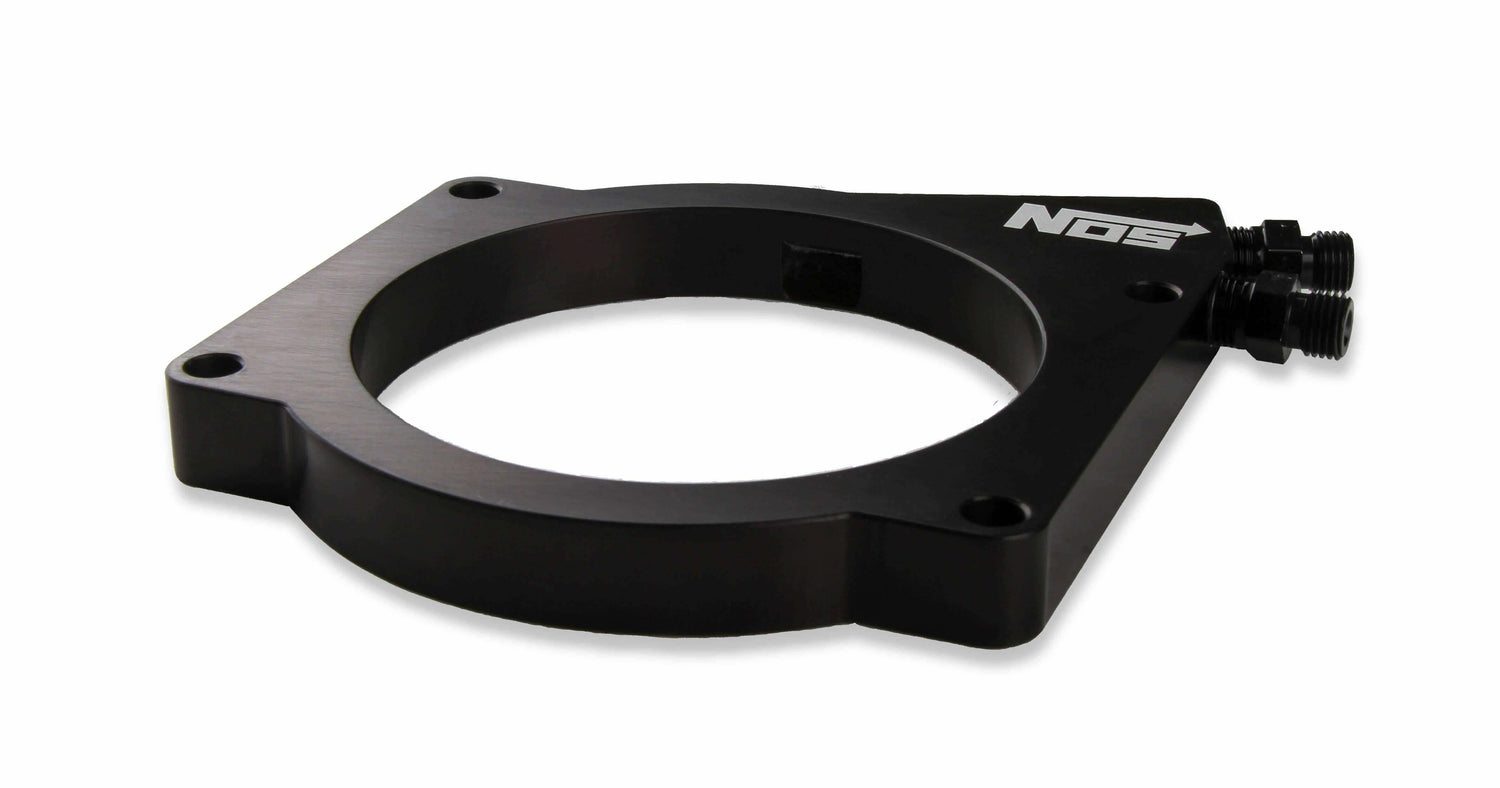

- Single 90mm ½ inch thick black plate between the throttle body and manifold
- Bottle is made from 6061-T6 Aluminum
- Supports up to 250 RWHP (jets purchased separately)
- Includes a 10 lb. black nitrous bottle with brackets
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2006 - 2009 | Chevrolet | Trailblazer | 4/8 V | |
| 2010 - 2015 | Chevrolet | Camaro | 4.06/8 V | |
| 2008 - 2013 | Chevrolet | Corvette | 4.06/8 V | |
| 2009 - 2015 | Cadillac | CTS | 4.06/8 V | |
| 1997 - 2004 | Chevrolet | Corvette | 3.9/8 V | |
| 2005 - 2006 | Pontiac | GTO | 4/8 V | |
| 1998 - 2002 | Chevrolet | Camaro | 3.9/8 V | |
| 2008 - 2009 | Saab | 9-7x | 4/8 V | |
| 2006 - 2007 | Chevrolet | Monte Carlo | 3.78/8 V | |
| 2006 - 2007 | Cadillac | CTS | 4/8 V | |
| 2014 - 2017 | Chevrolet | SS | 4.06/8 V | |
| 2006 - 2013 | Chevrolet | Corvette | 4.13/8 V | |
| 2014 - 2015 | Chevrolet | Camaro | 4.13/8 V | |
| 2009 | Pontiac | G8 | 4.06/8 V | |
| 2004 - 2005 | Cadillac | CTS | 3.9/8 V | |
| 1998 - 2002 | Pontiac | Firebird | 3.9/8 V | |
| 2008 - 2009 | Buick | Allure | 3.78/8 V | |
| 2006 - 2009 | Chevrolet | Impala | 3.78/8 V | |
| 2005 - 2006 | Chevrolet | SSR | 4/8 V | |
| 2005 - 2008 | Pontiac | Grand Prix | 3.78/8 V | |
| 2008 - 2009 | Buick | LaCrosse | 3.78/8 V | |
| 2004 | Pontiac | GTO | 3.9/8 V | |
| 2005 - 2007 | Chevrolet | Corvette | 4/8 V |
Specs:
| Adjustable | Yes |
|---|---|
| Bottle Color | Black |
| Bottle Included | Yes |
| Bottle Material | 6061 T-6 Aluminum |
| Bottle Size | 10 lb |
| Bottle Valve | Super Hi-Flo |
| Bracket Material | Steel |
| Brackets Included | Yes |
| Brand | NOS |
| Color | Black |
| Delivery Style | EFI Spacer Plate |
| Emission Code | 4 |
| Feed Line Size | 6AN |

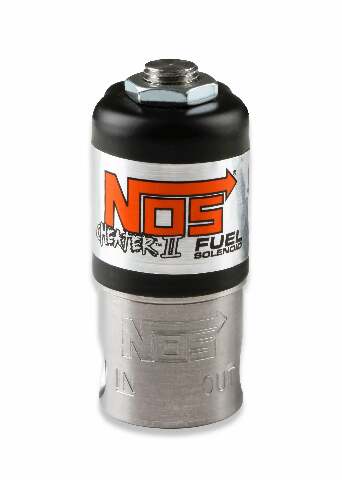

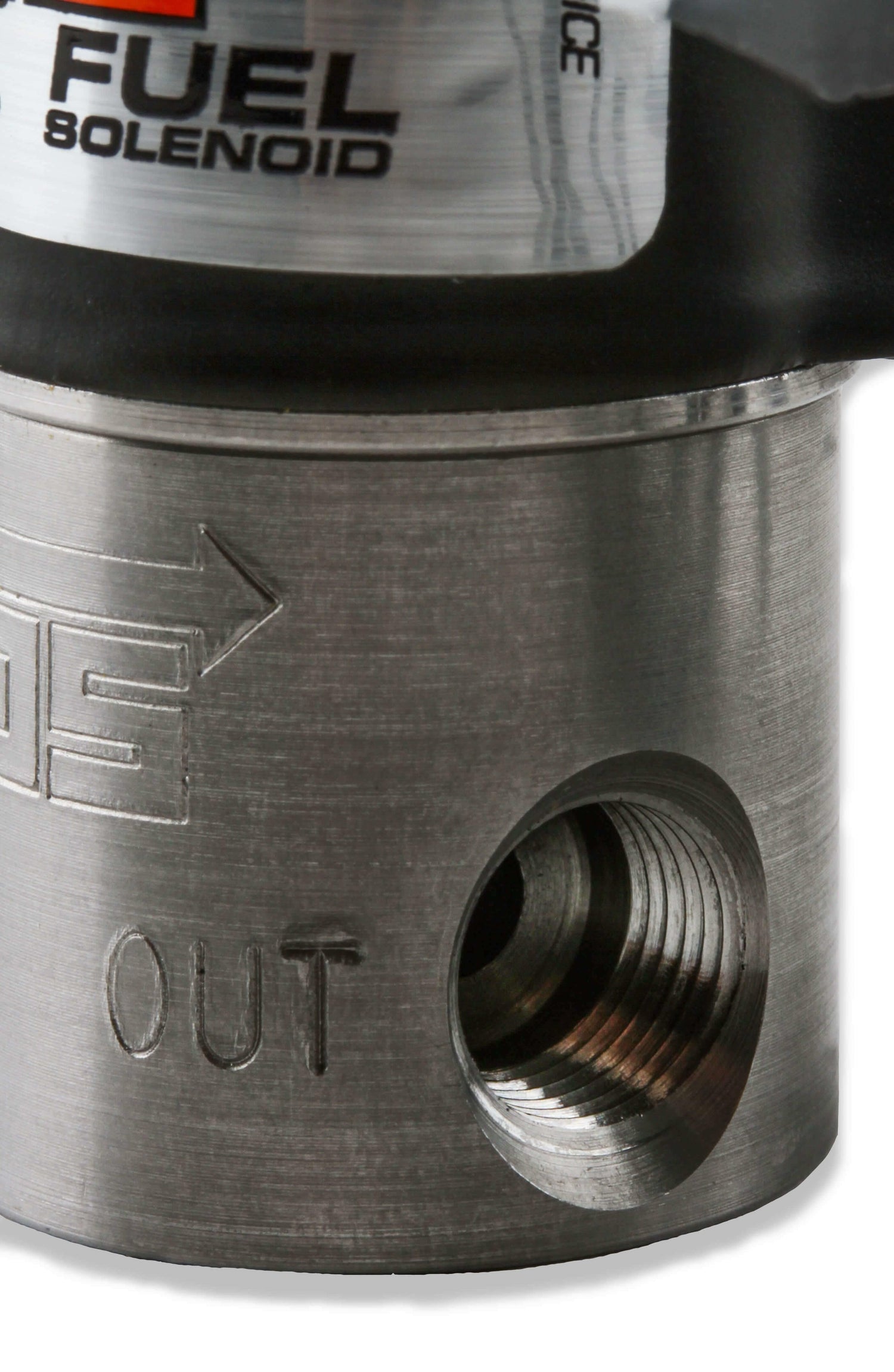

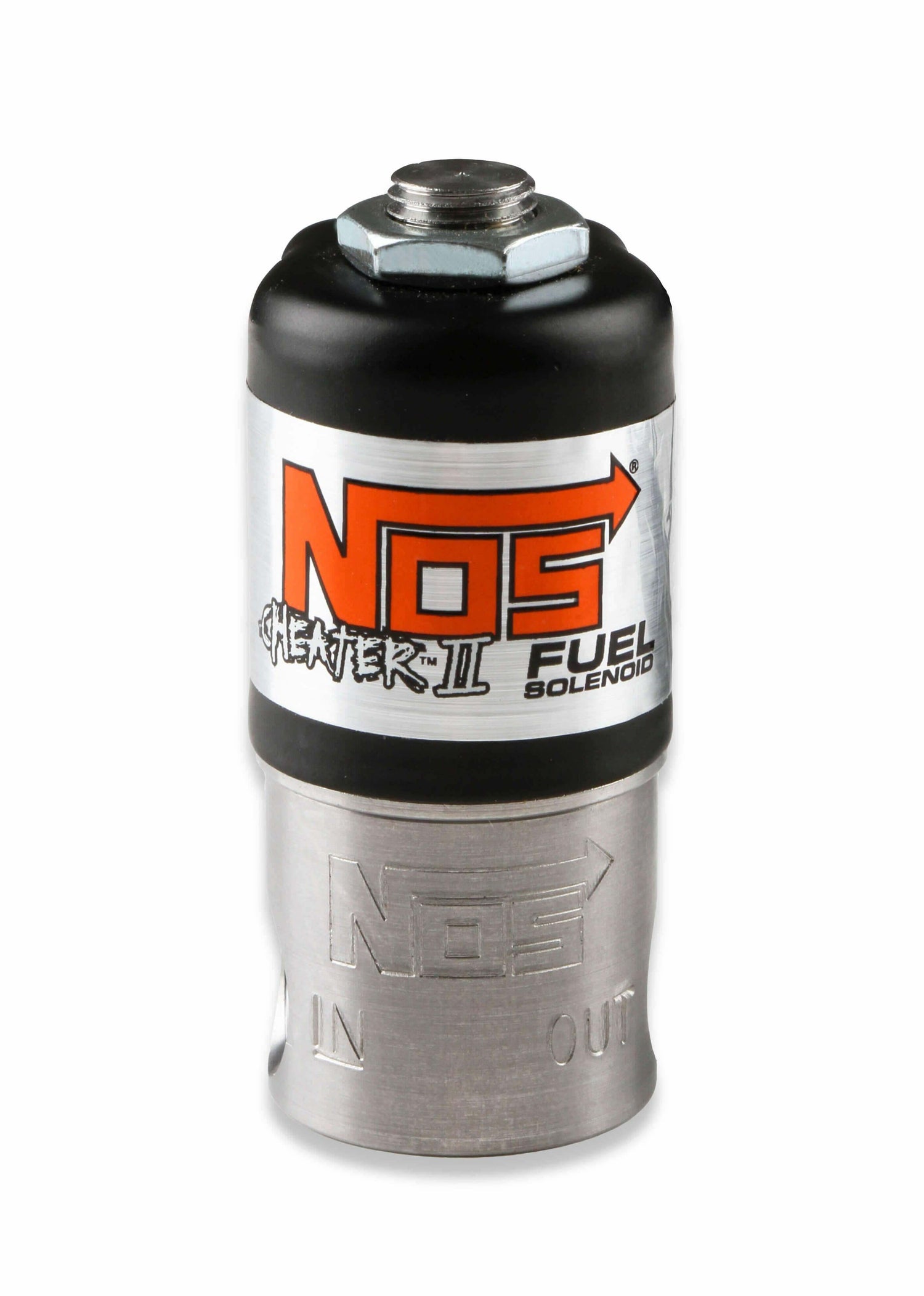

| Fuel Solenoid | Cheater |
| Included Jetting Horsepower | 100, 125, 150 |
| Jet Sizes Included | 100, 125, 150 hp |
| Jet Style | Flare |
| Material | 6061 T-6 Aluminum |
| Max Horsepower | 250 |
| Nitrous Bottle Capacity | 10 lbs |

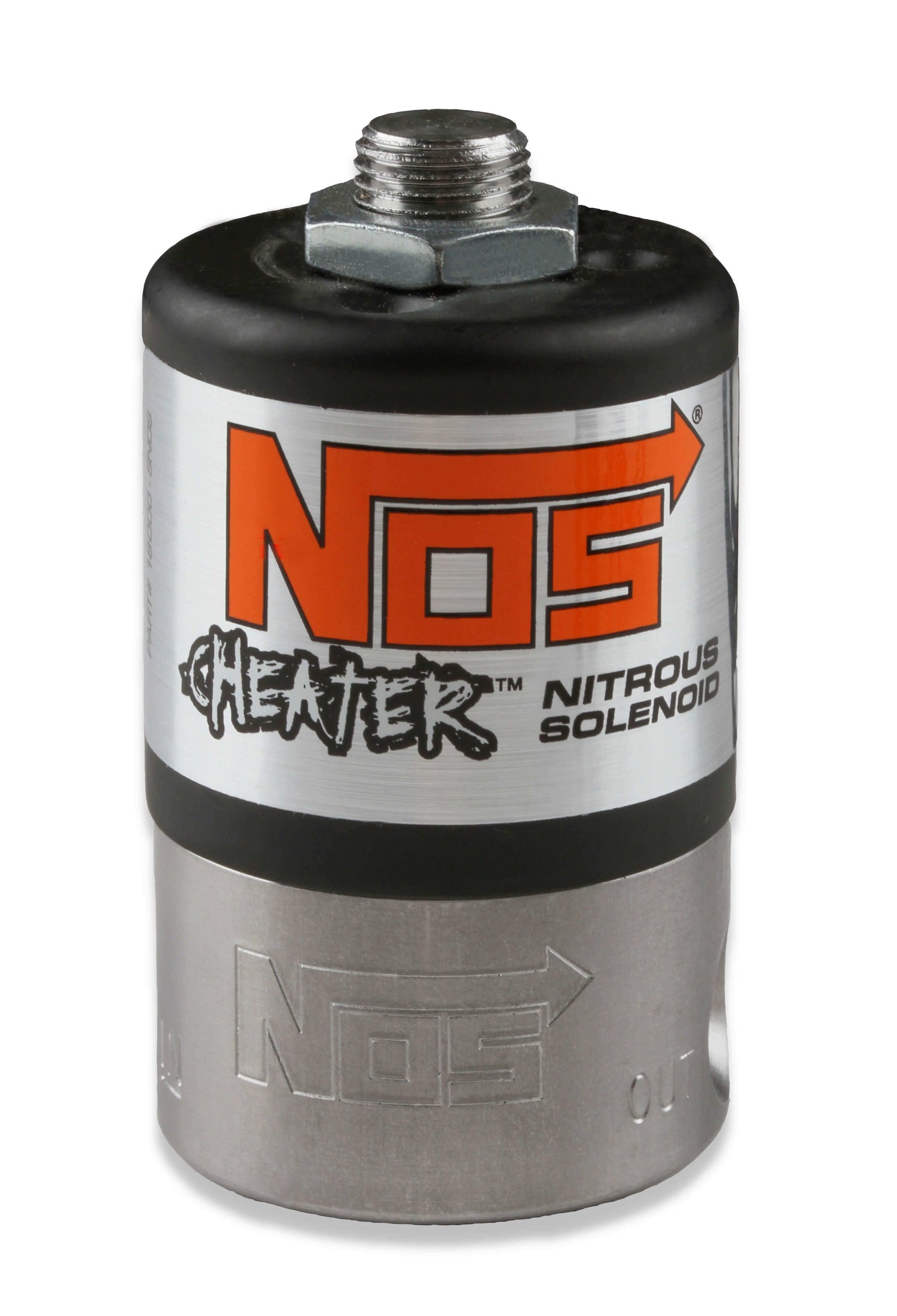

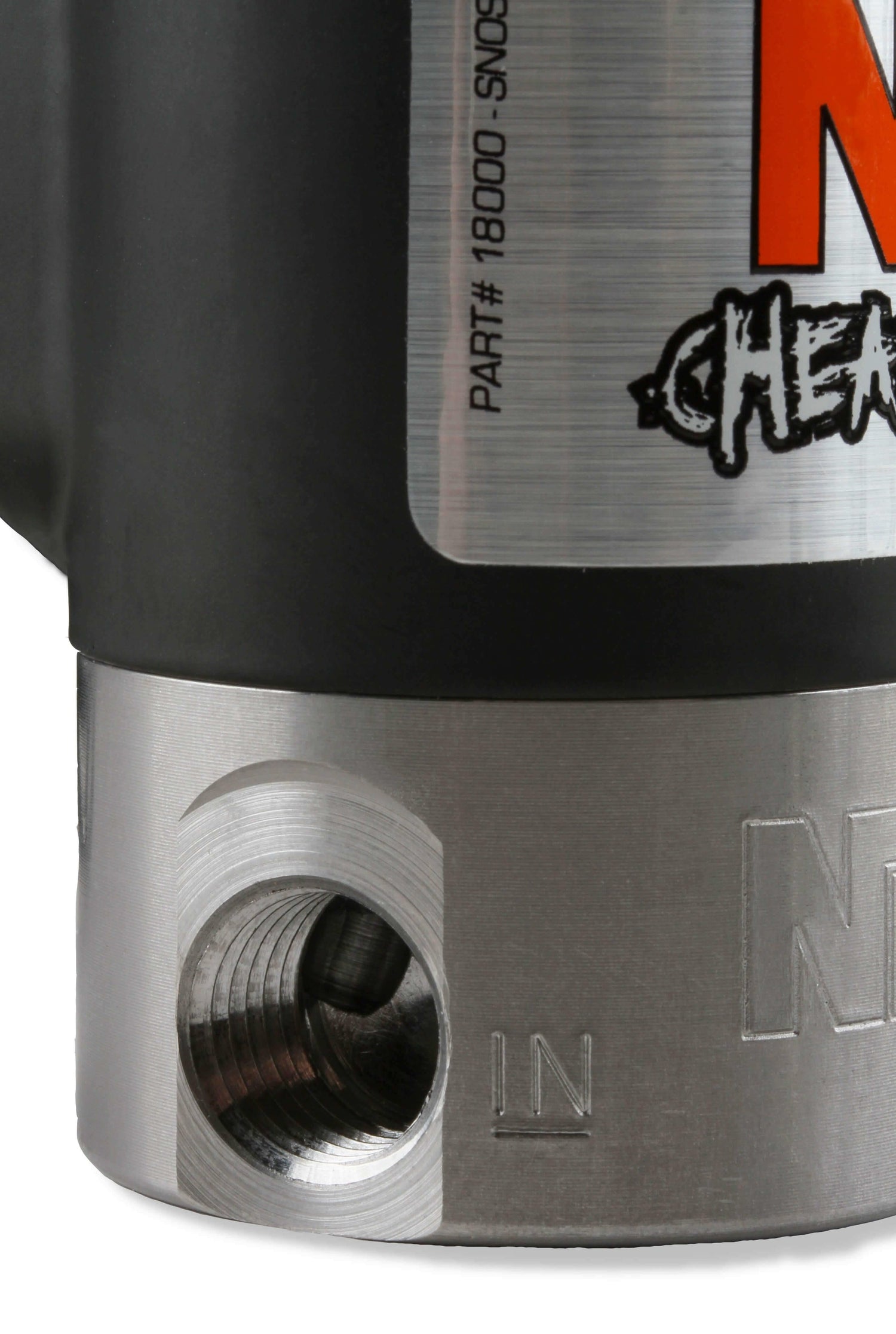

| Nitrous Solenoid | Cheater |
| Number of Solenoids | 2 |
| Plate Bolt Pattern | 4 bolt |
| Plate Diameter | 90 mm |
| Plate Flange | GM 90mm LS 4 bolt |
| Plate Height | 1/2 inch |
| Plate Included | Yes |
| Plate Thickness | 1/2 inch |
| Product Type | Nitrous System |
| Solenoid Top Cover Color | Black |
| Style | Wet |
| System Style | Wet |
| Warning | California Proposition 65 |
