NOS Plate Wet Nitrous System - GM - 05169NOS
NOS Plate Wet Nitrous System - GM - 05169NOS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

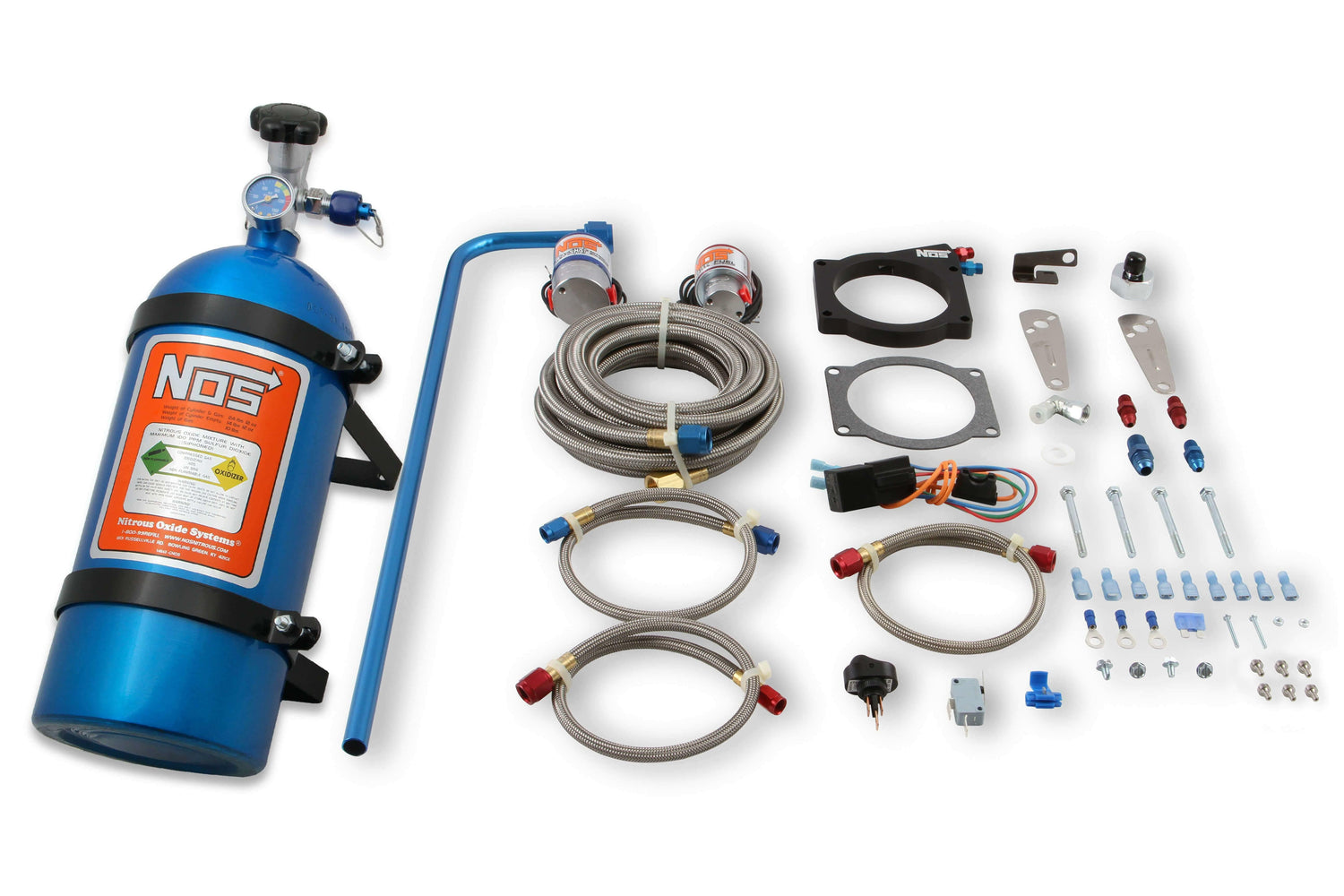

The NOS LS 90mm 4 Bolt Throttle Body plate system uses a billet plate with no spray bars. This system will fit a 90mm or 92mm throttle body and intake manifold. This unique design allows better atomization which prevents fuel puddles in your manifold and provides the best cylinder to cylinder distribution for maximum power. This is no ordinary low HP kit. The plate and solenoids supplied will easily support 200 HP.
Features:
- Fits 90mm or 92mm intake manifolds
- Adjustable to 200 HP
- Includes required hardware for most applications
- On demand power doesn''t affect daily driving characteristics
- Best "horsepower per dollar" modification available
- Drive By Wire applications require p/n 15972NOS
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2005 | Pontiac | GTO | 4/8 V | |
| 2005 | Chevrolet | Corvette | 4/8 V | |
| 2005 | Chevrolet | SSR | 4/8 V |
Specs:
| Adjustable | Yes |
|---|---|
| Bottle Color | Blue |
| Bottle Included | Yes |
| Bottle Material | 6061 T-6 Aluminum |

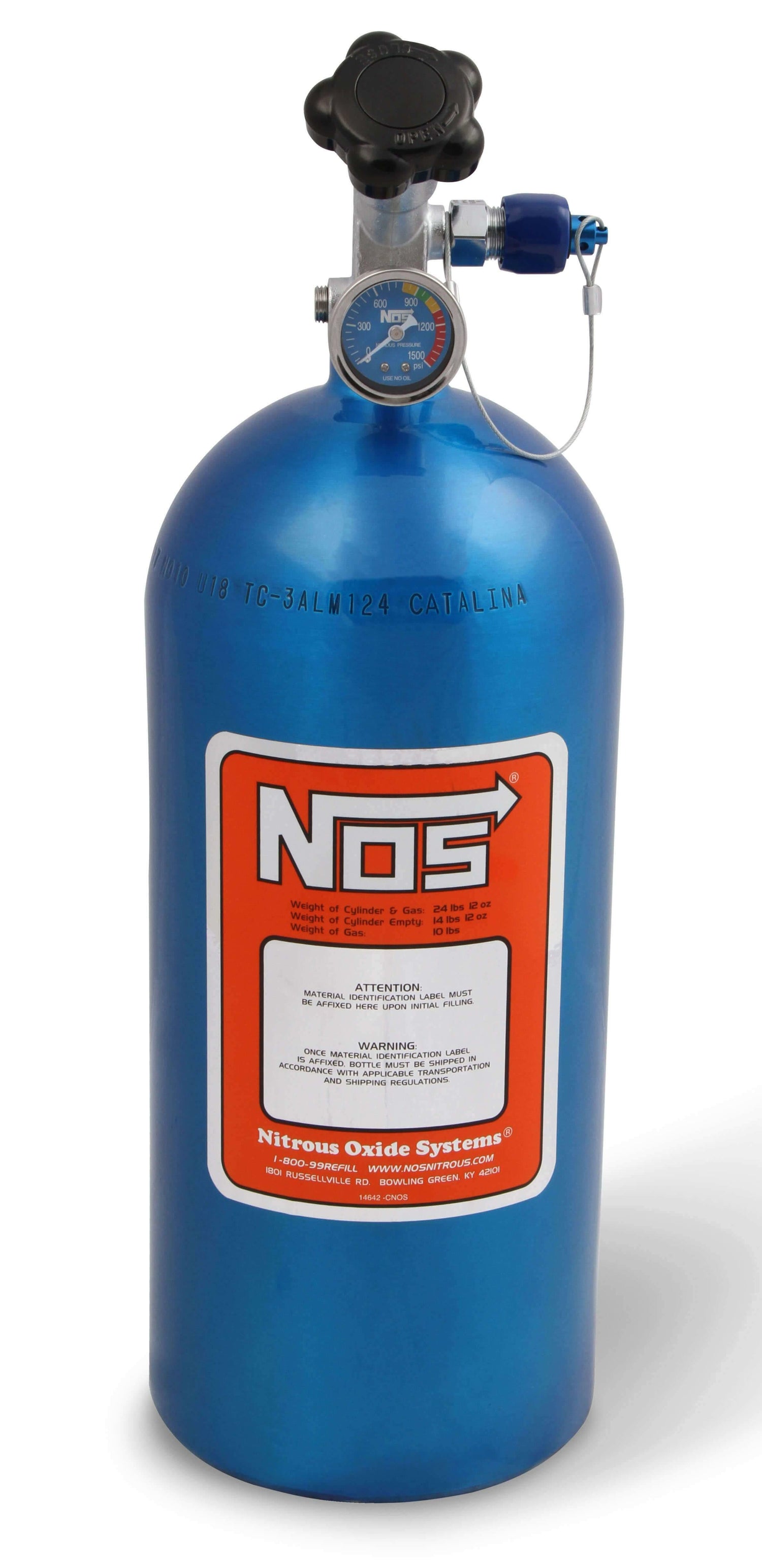

| Bottle Size | 10 lb |

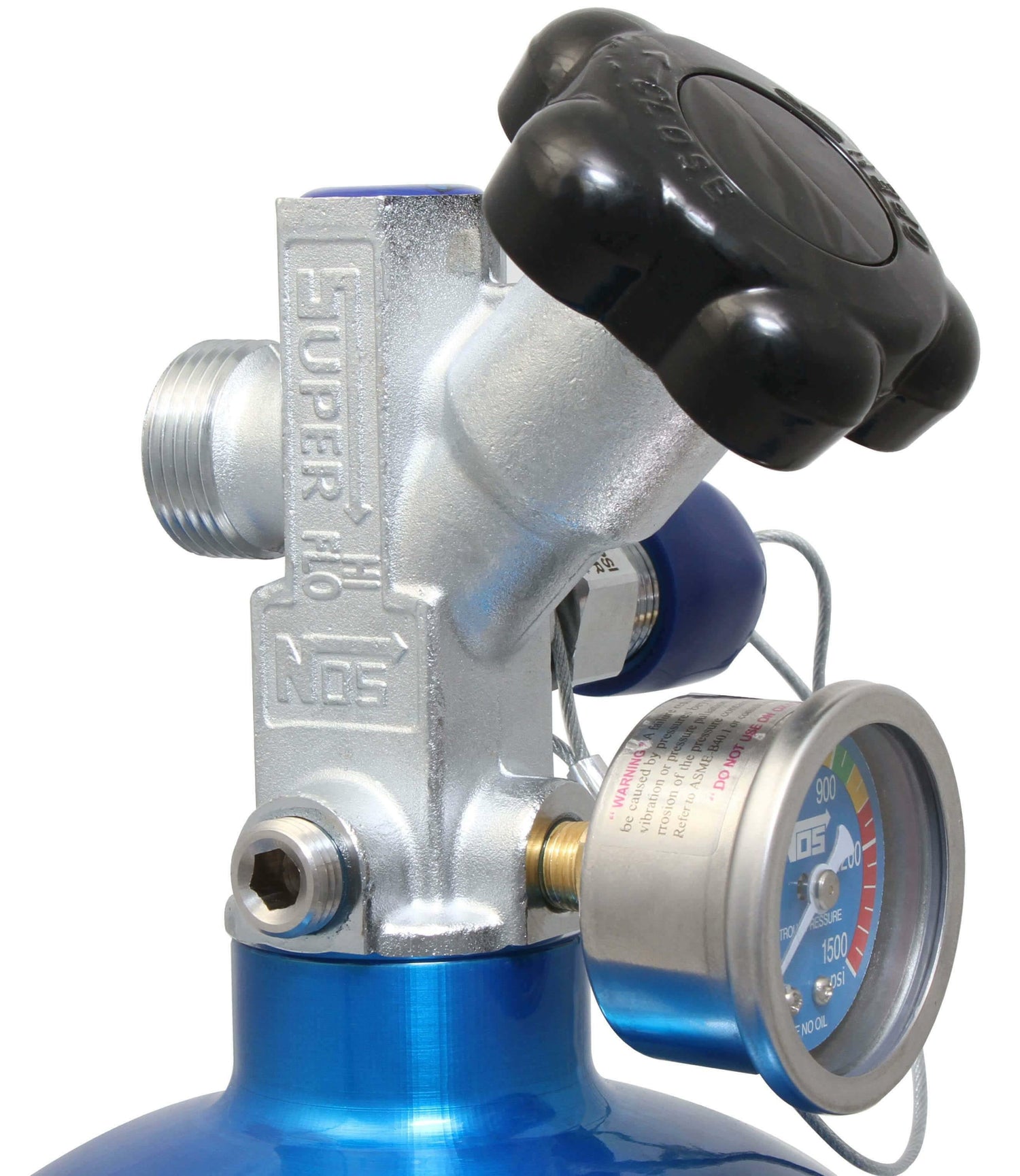

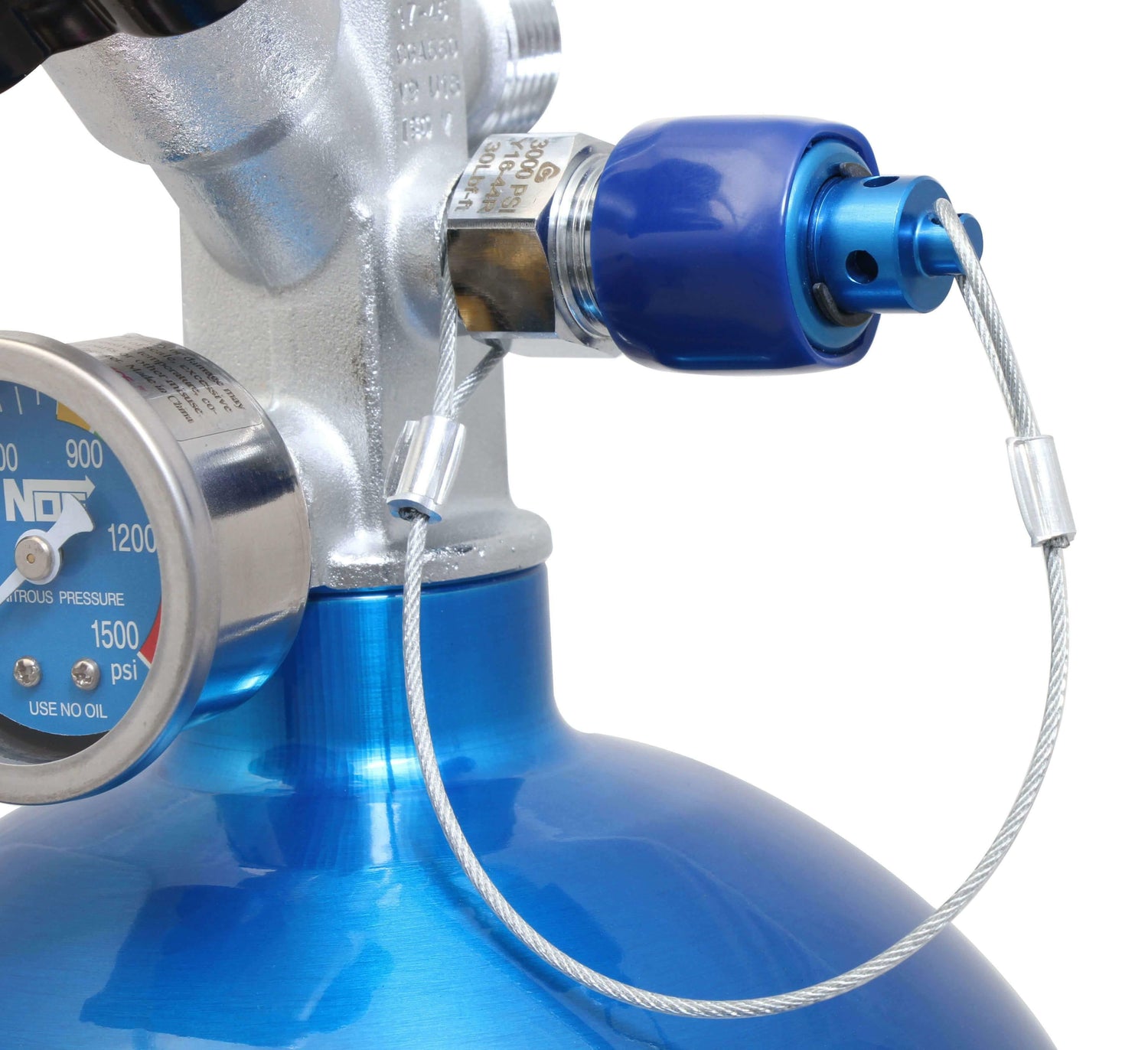

| Bottle Valve | Super Hi-Flo |
| Bracket Material | Steel |
| Brackets Included | Yes |
| Brand | NOS |
| Color | Blue |
| Delivery Style | EFI Spacer Plate |
| Emission Code | 4 |
| Feed Line Size | 6AN |

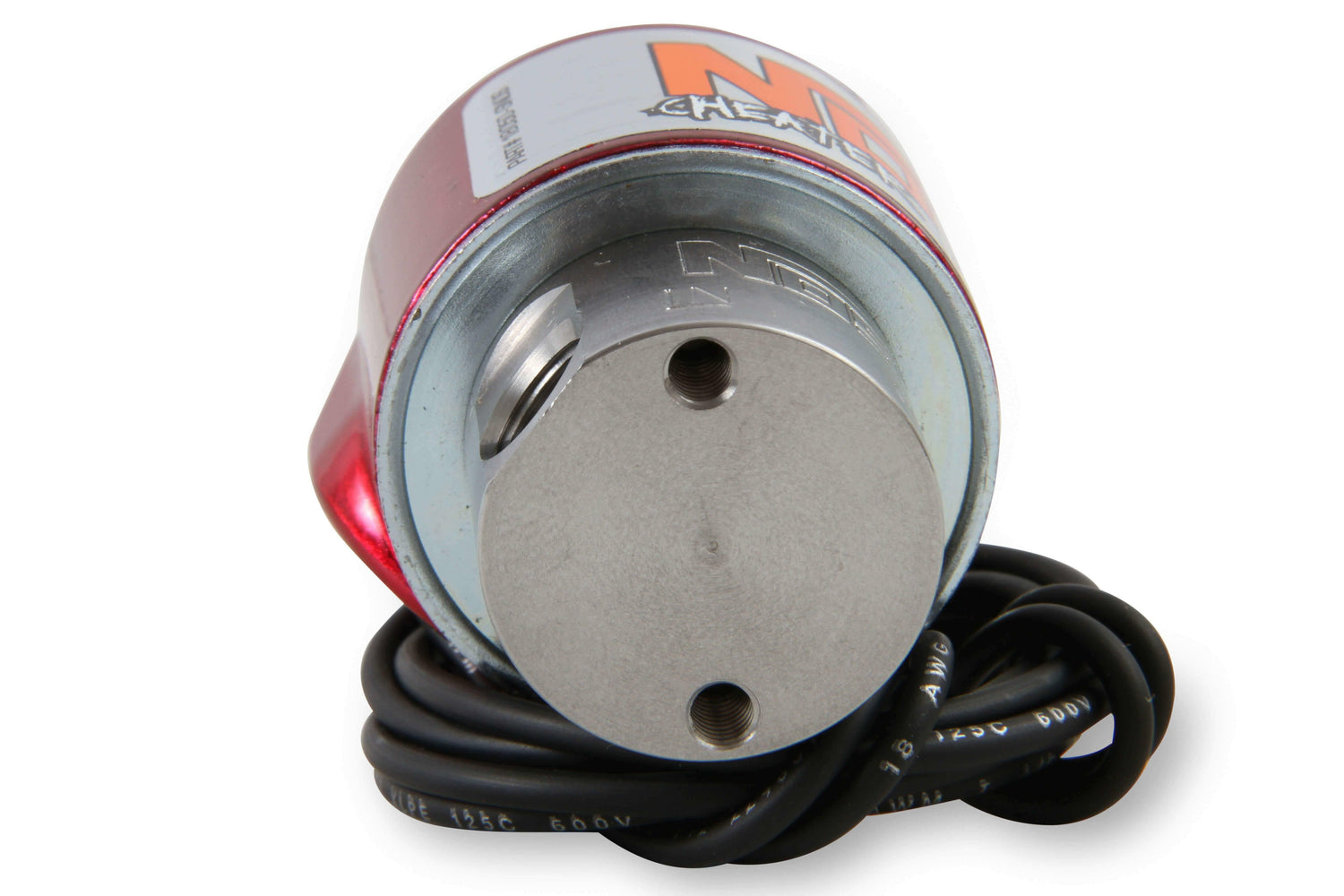

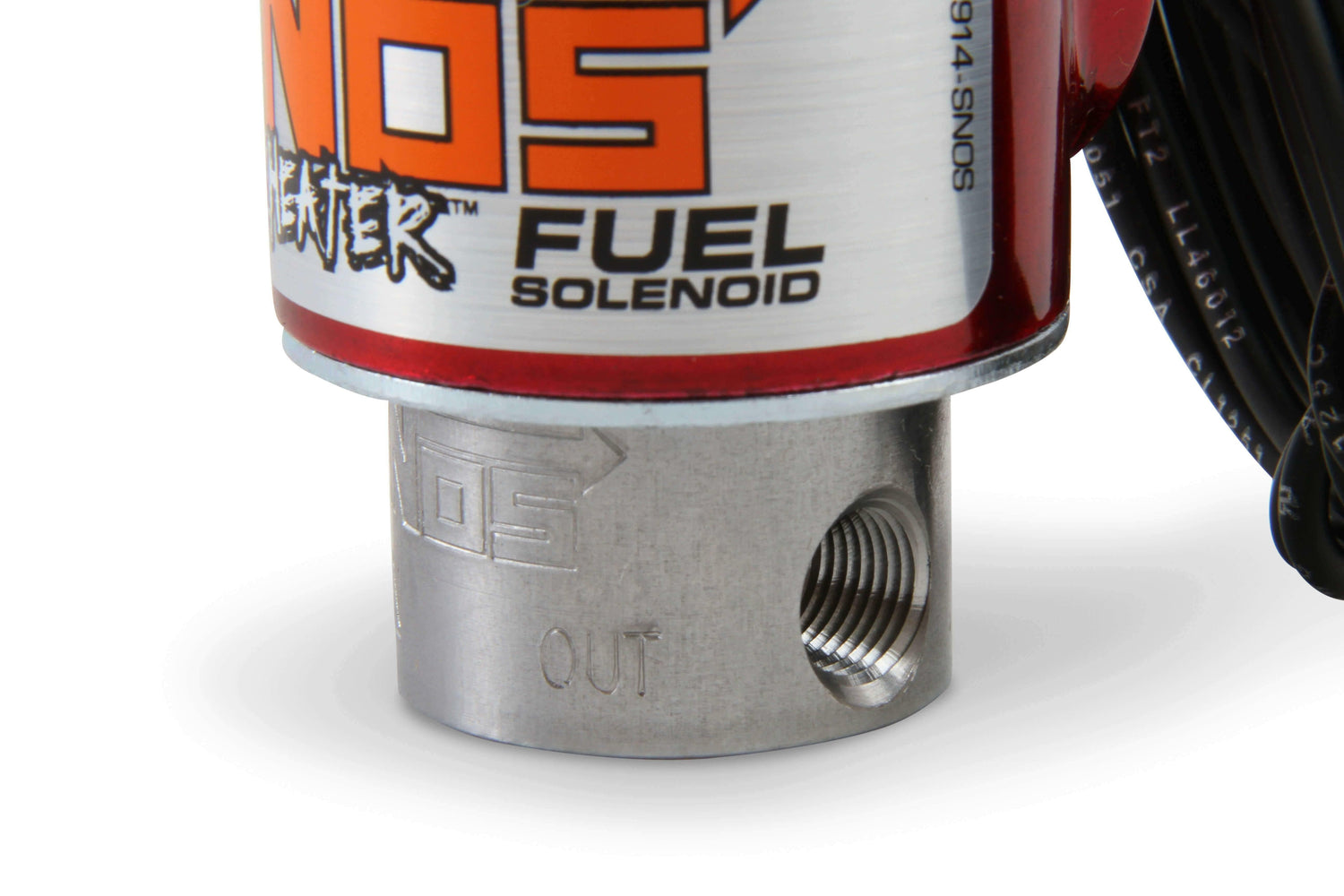

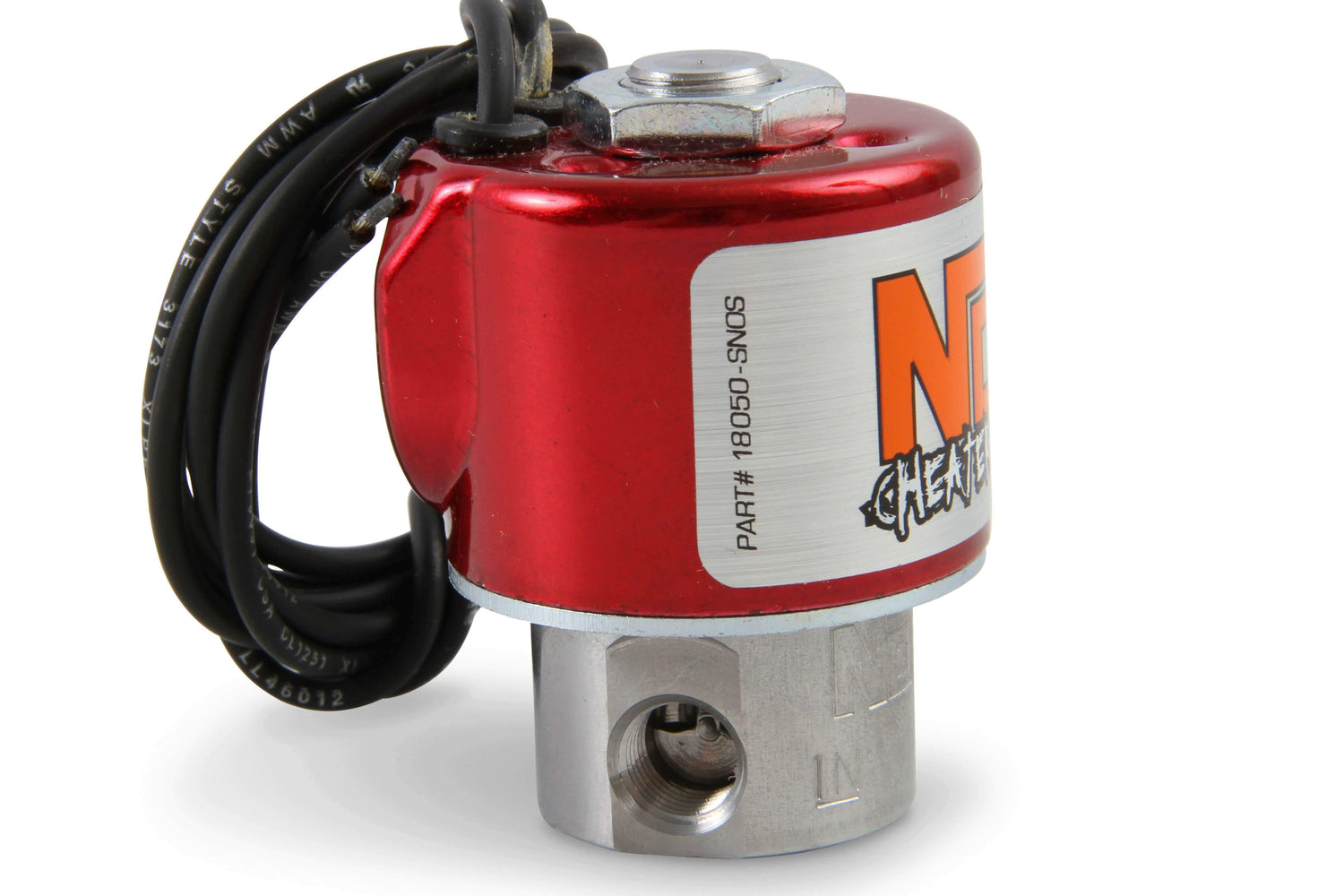

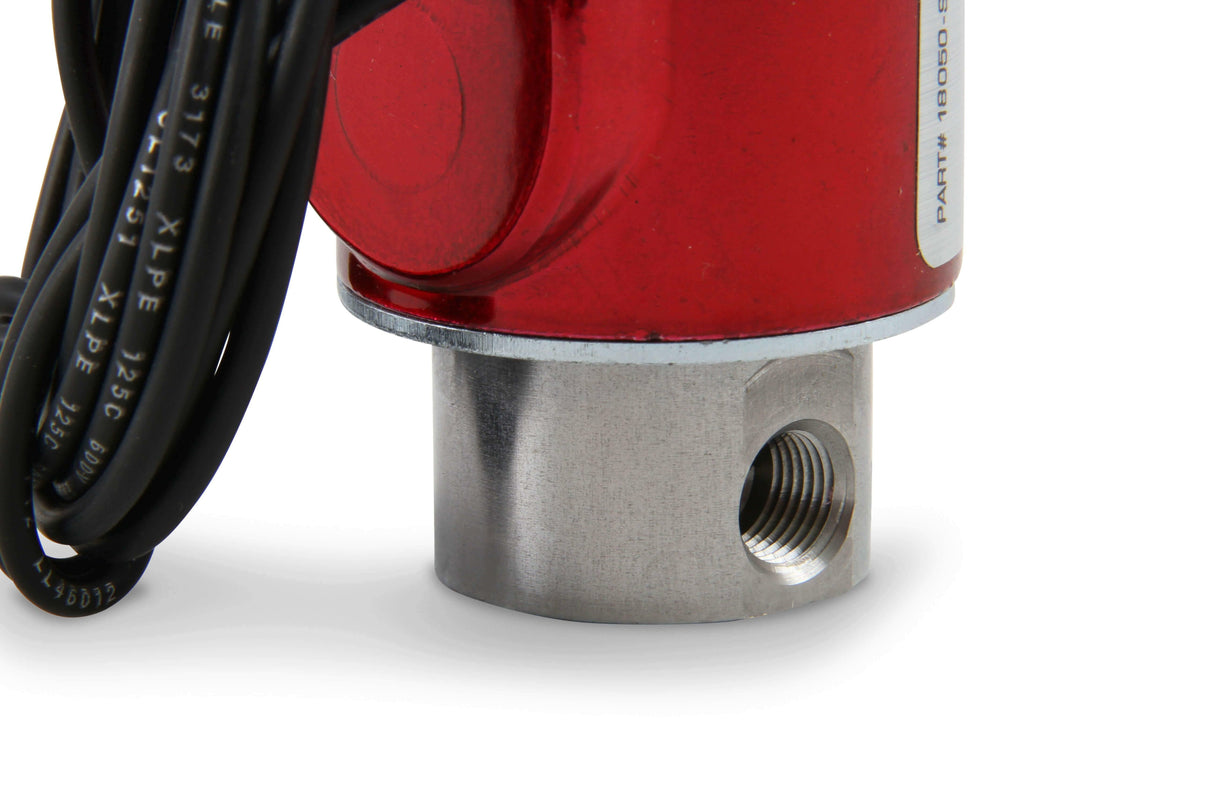

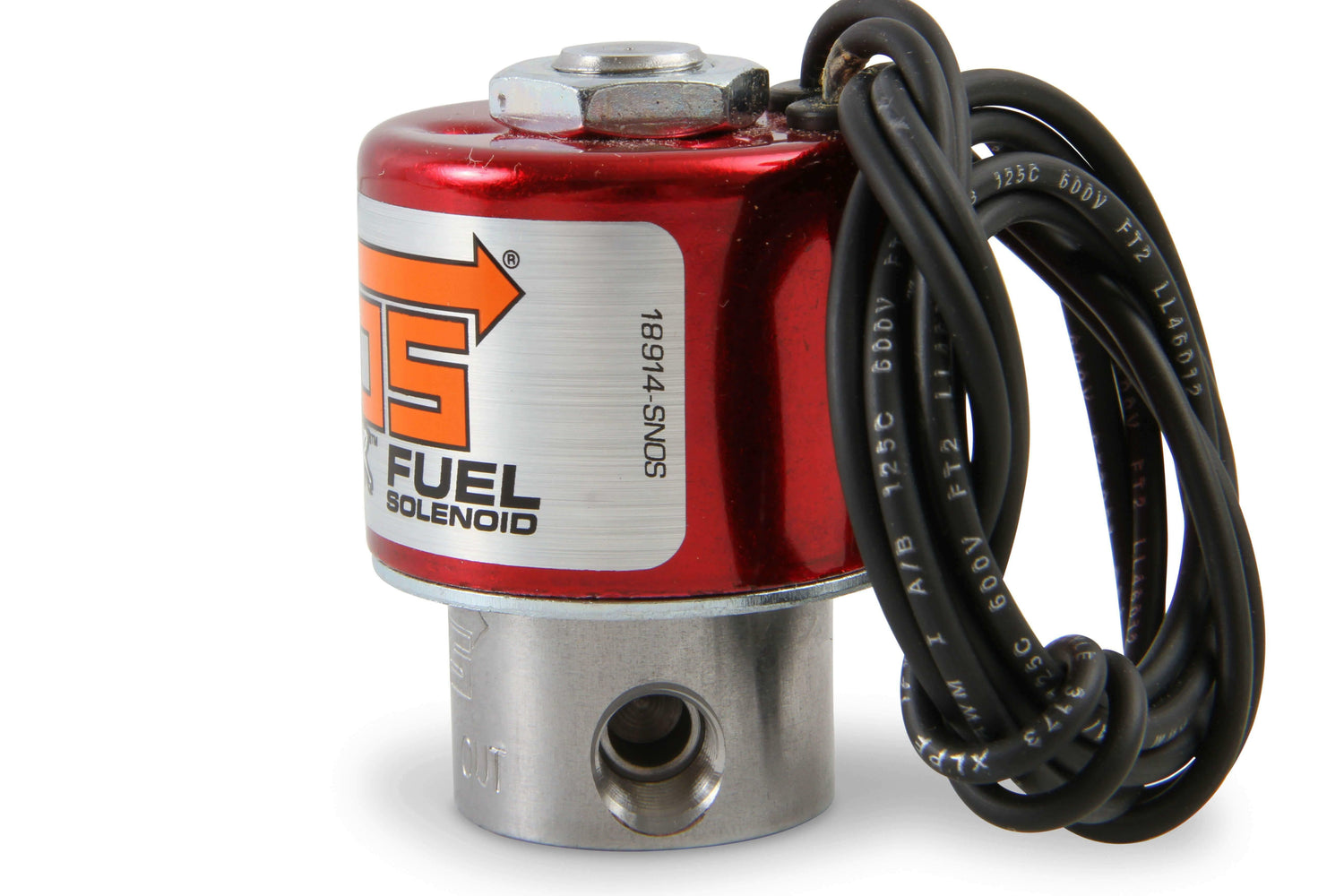

| Fuel Solenoid | Cheater |
| Included Jetting Horsepower | 100, 125, 150 |
| Jet Sizes Included | 100, 125, 150 hp |
| Jet Style | Flare |
| Material | 6061 T-6 Aluminum |
| Max Horsepower | 200 |
| Nitrous Bottle Capacity | 10 lbs |

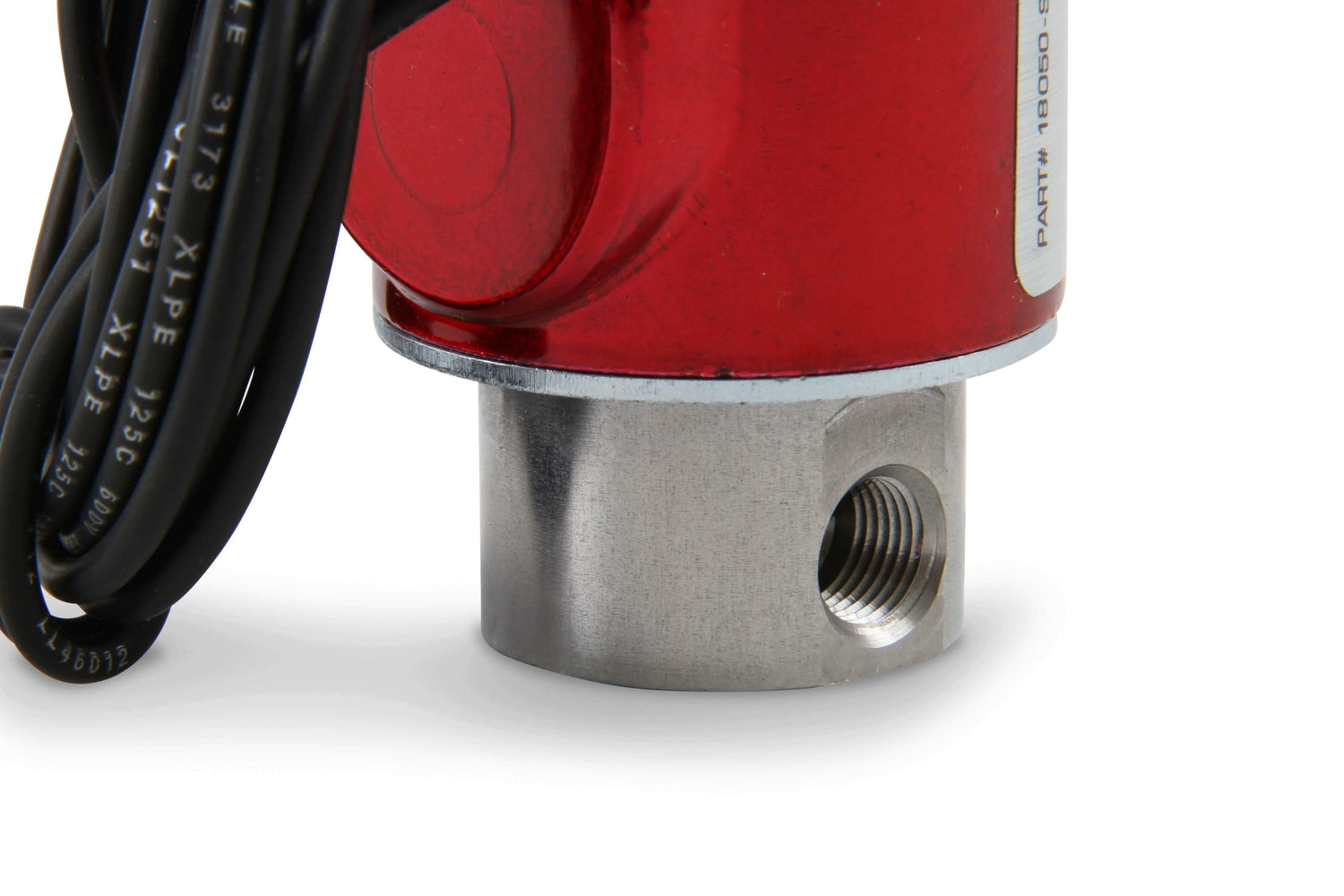

| Nitrous Solenoid | Super ProShot |
| Number of Solenoids | 2 |
| Plate Bolt Pattern | 4 bolt |
| Plate Diameter | 90 mm |
| Plate Flange | GM 90mm LS 4 bolt |
| Plate Height | 1/2 inch |
| Plate Included | Yes |
| Plate Thickness | 1/2 inch |
| Product Type | Nitrous System |
| Solenoid Top Cover Color | Blue/Red |
| Style | Wet |
| System Style | Wet |
| Warning | California Proposition 65 |
