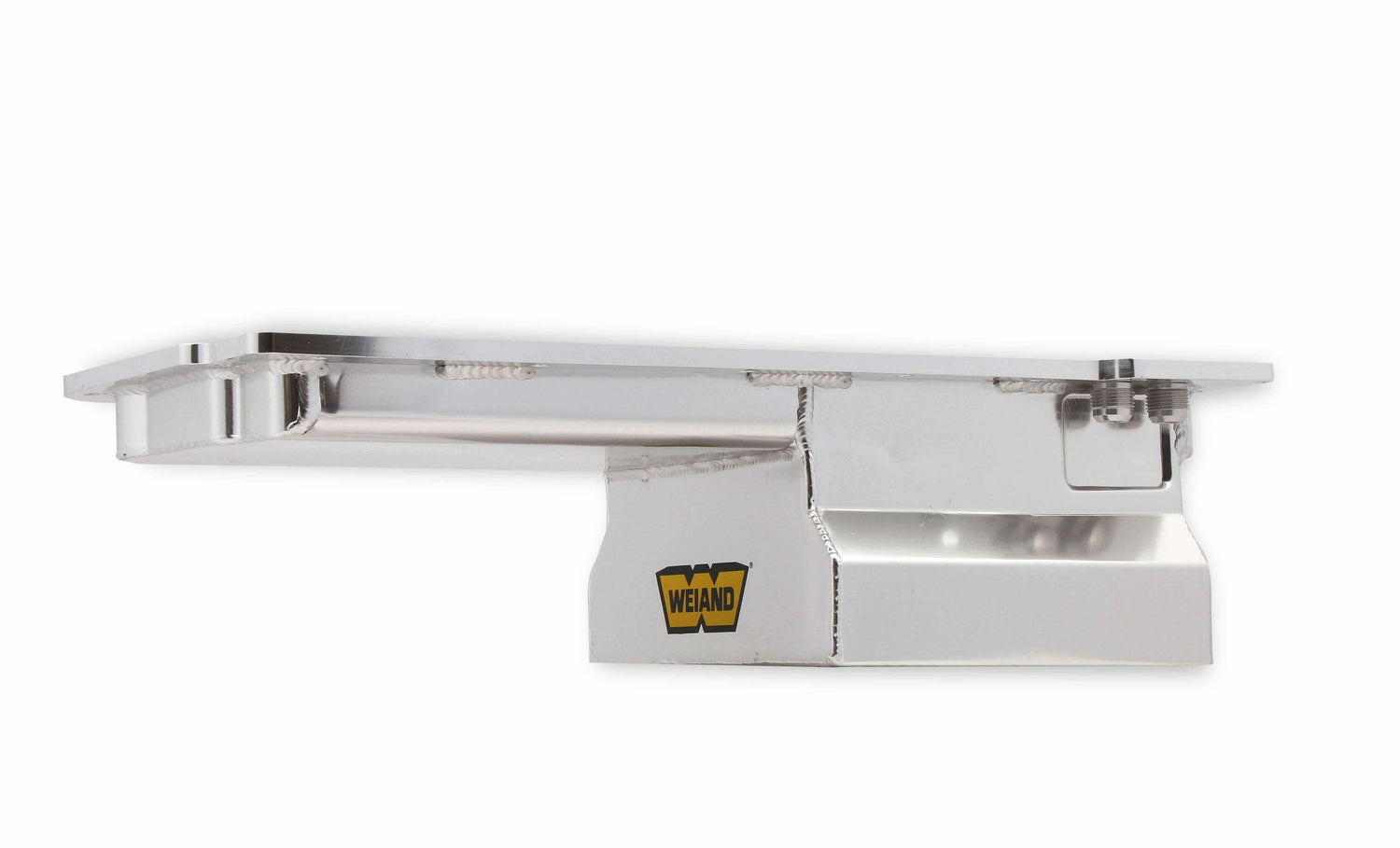

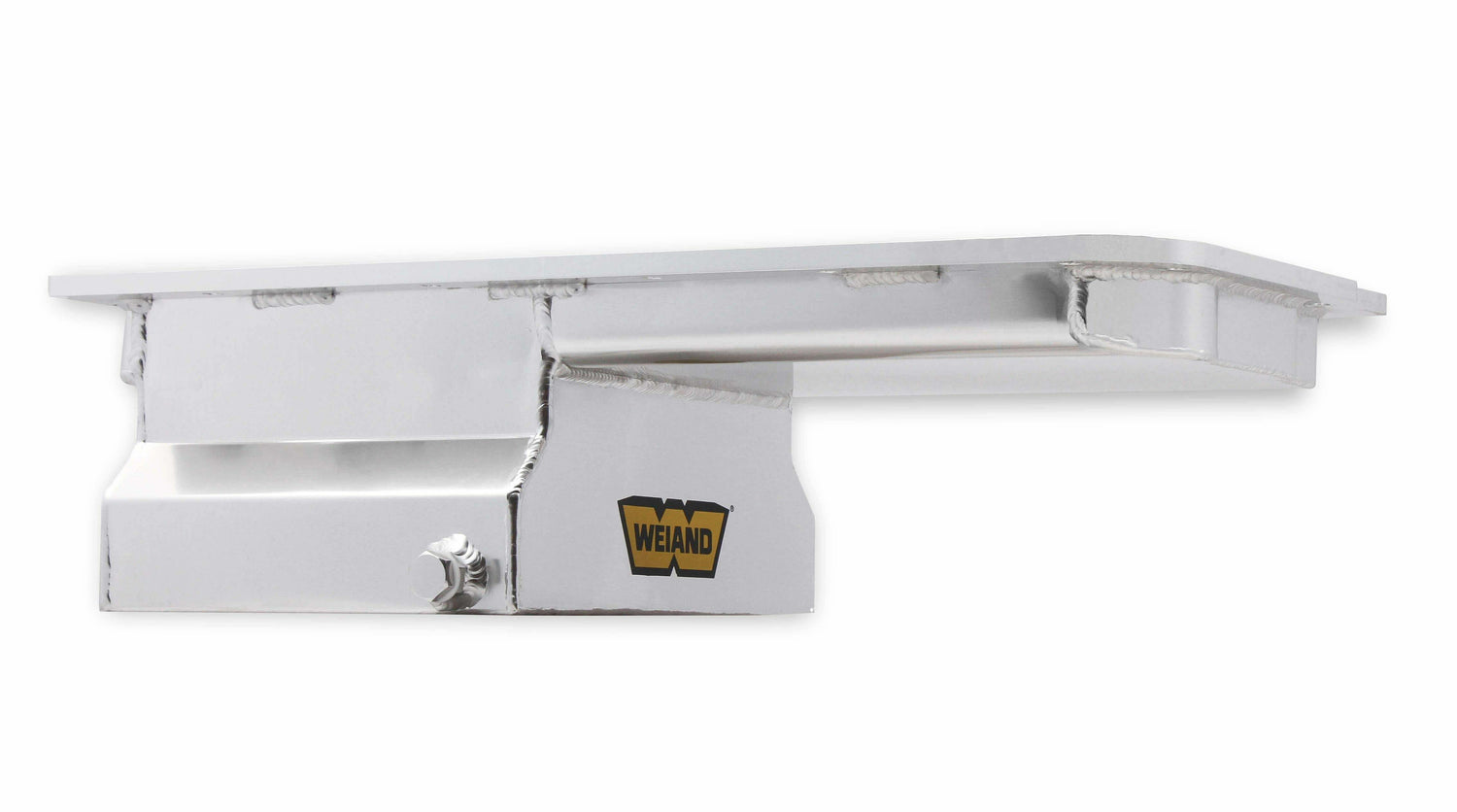

Oil Pan Kit - Fabricated - 5045WND
Oil Pan Kit - Fabricated - 5045WND is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Save time and aggravation with this money saving oil pan kit for GM LS Engines. Each kits comes with everything you need to get the job of changing out your oil pan!
Features:
- Increased 7QT oil capacity to keep your high performance engine systems fed properly

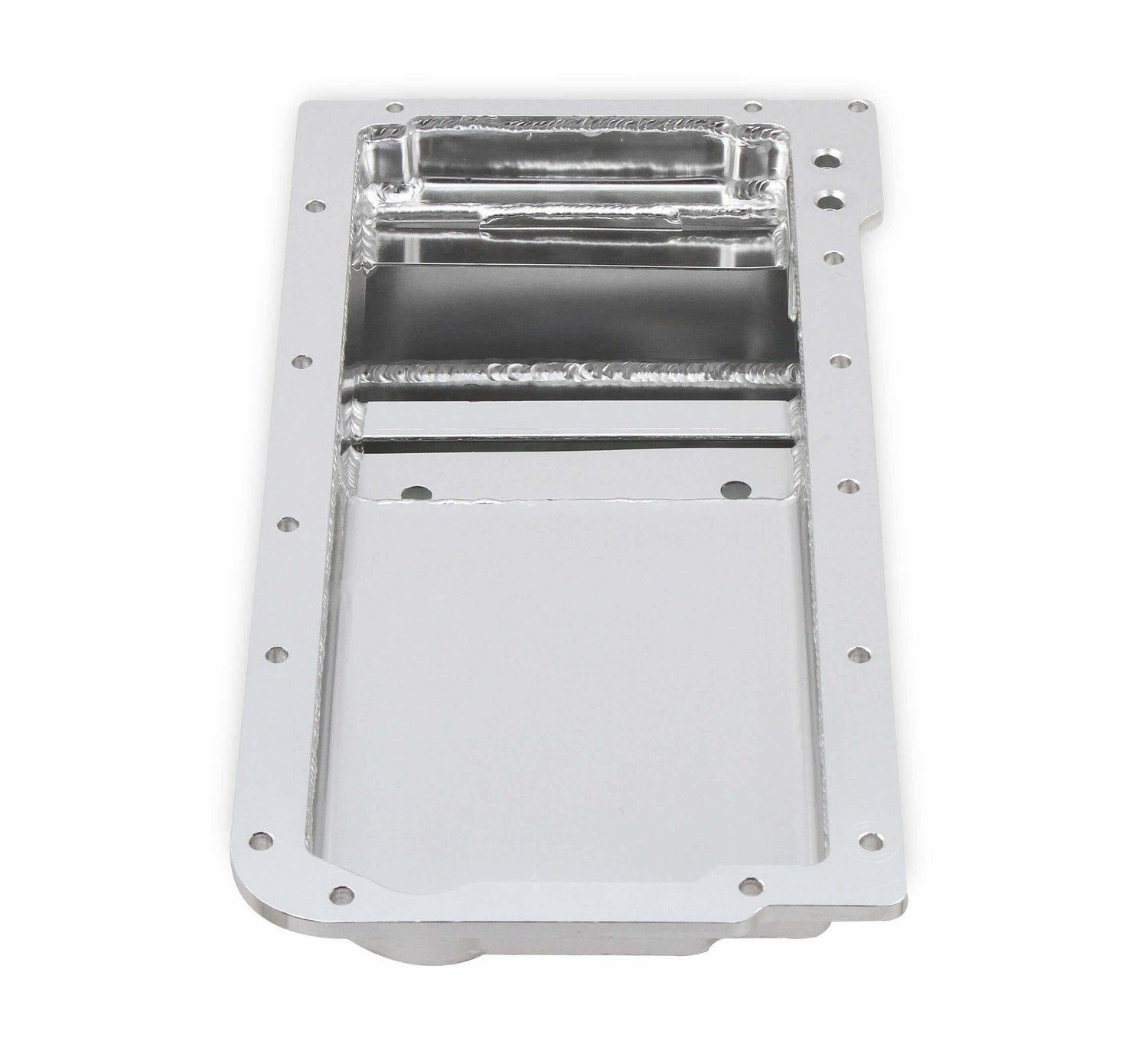

- Featured 3/8" thick pan mounting flange for enhanced strength
- Pan Available in four finishes (Silver, Black, Gold Zinc, and Polished)

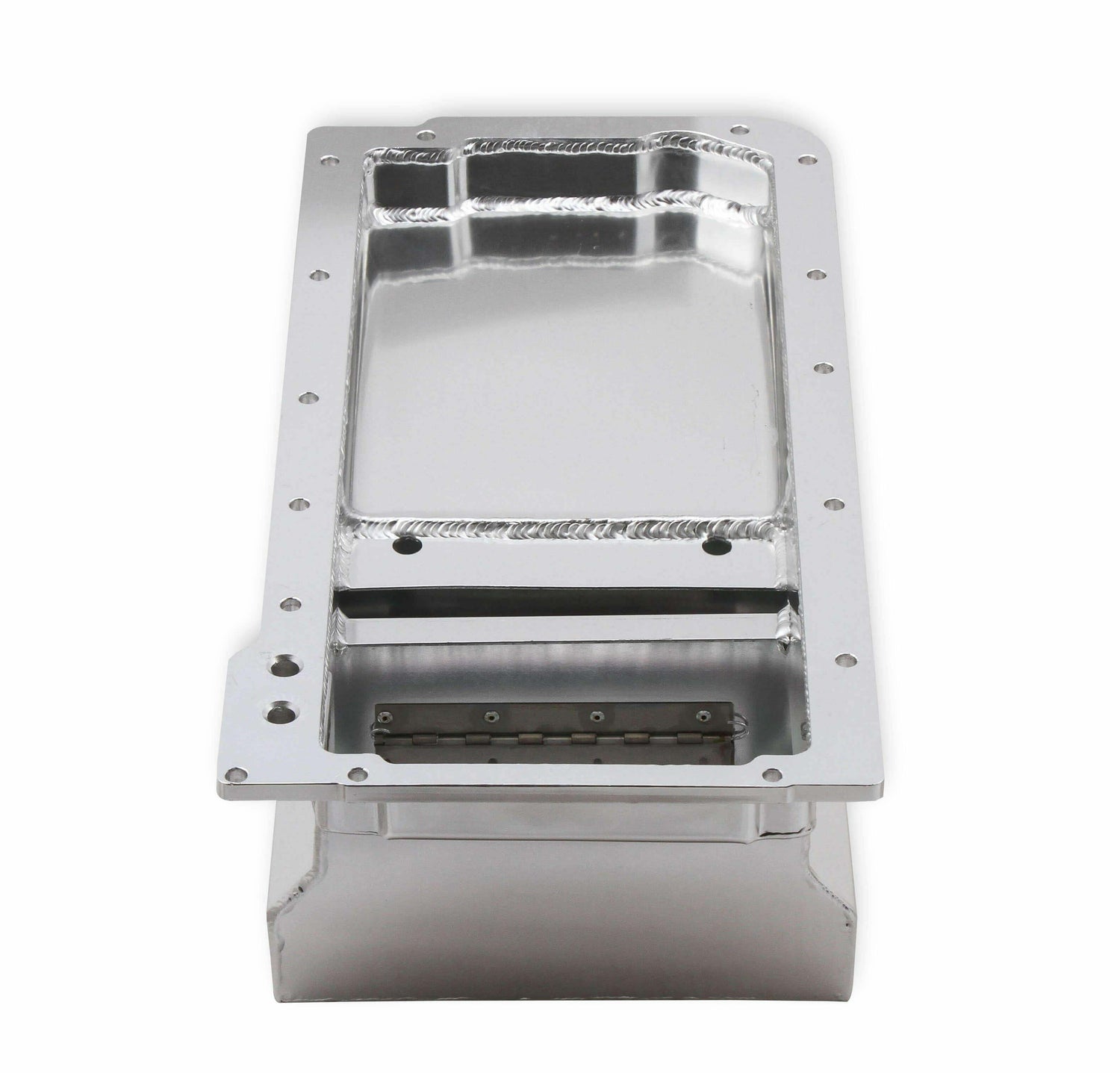

- Baffles keep oil from sloshing during hard acceleration resulting in oil starvation
- Rear Sump design for GM LS1/2/6 and LQ9 engines

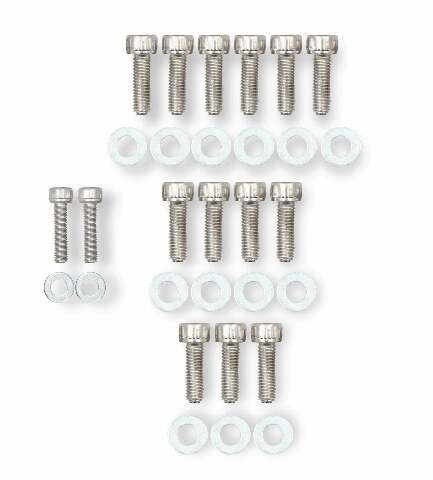

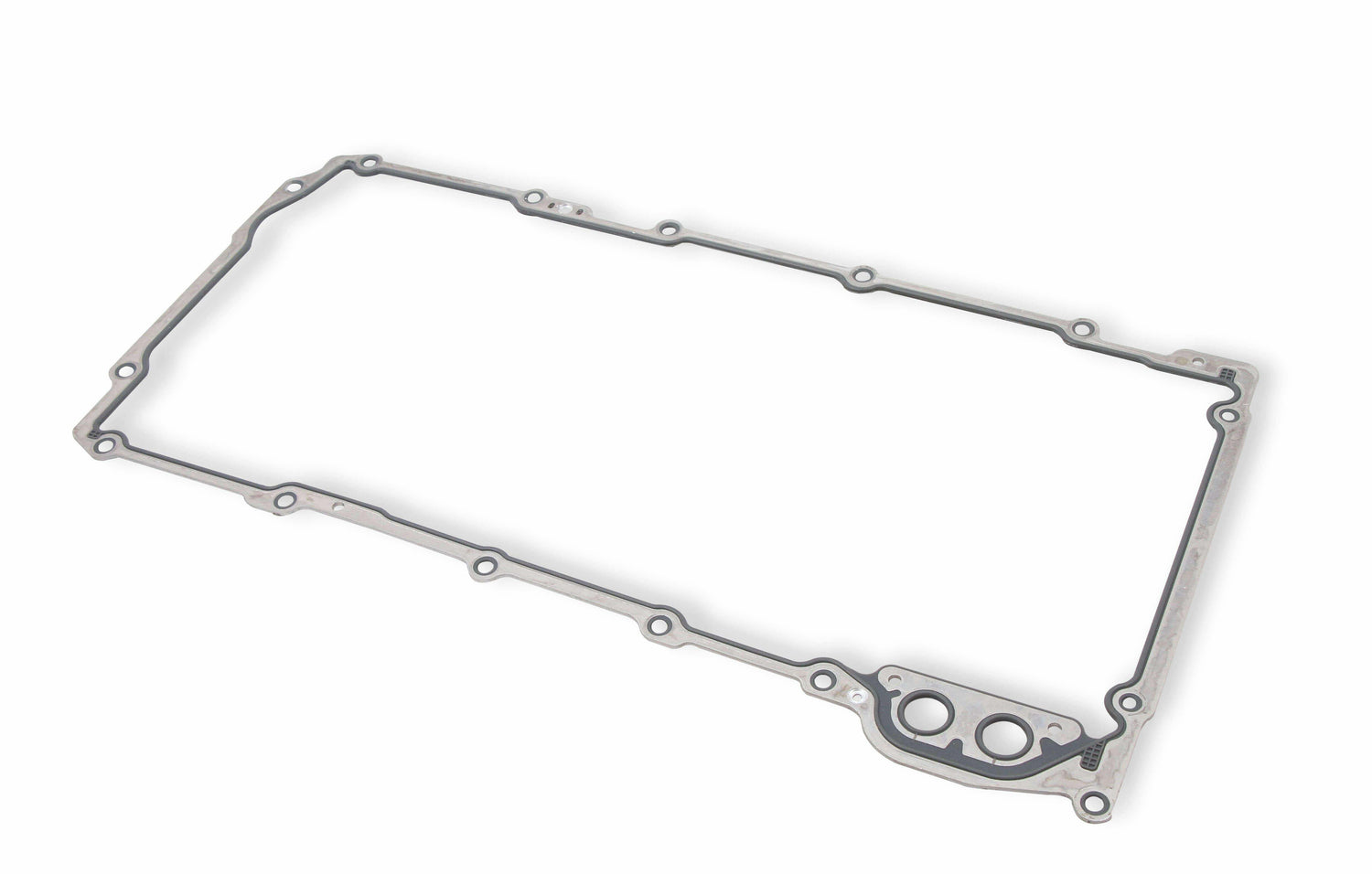

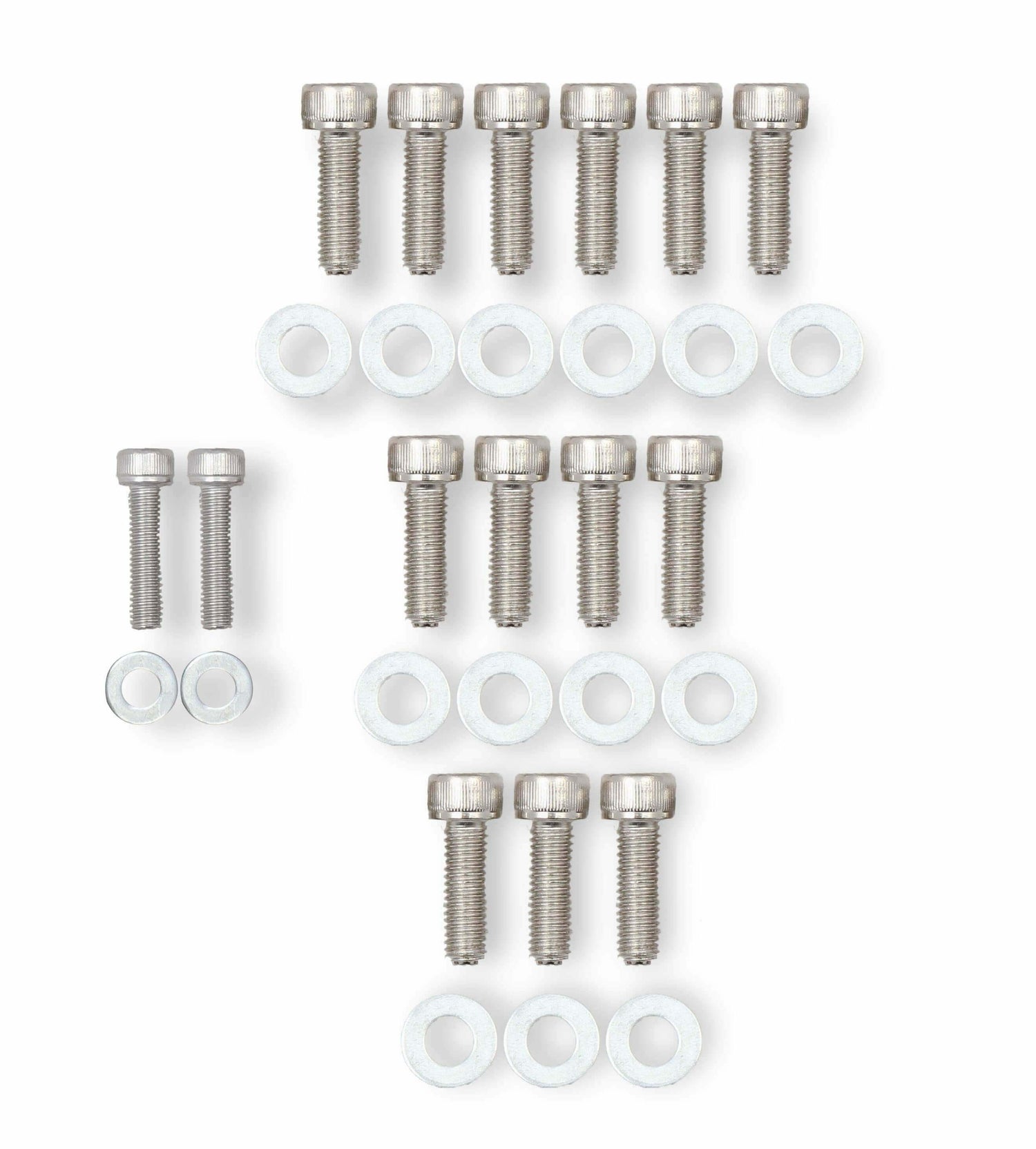

- Complete Kit includes oil pan, oil pan gasket, oil pan pickup tube, and oil pan mounting hardware
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1998 - 2002 | Pontiac | Firebird | 350/5.7L V8 | |
| 2005 - 2006 | GMC | Sierra 1500 | 364/6L V8 | |
| 1997 - 2005 | Chevrolet | Corvette | ||
| 2003 - 2006 | Cadillac | Escalade ESV | ||
| 2007 - 2016 | Isuzu | NPR-HD | 364/6L V8 | |
| 2004 - 2006 | Pontiac | GTO | ||
| 2007 - 2016 | Isuzu | NPR | 364/6L V8 | |
| 2001 - 2004 | Avanti | II | ||
| 2007 | GMC | Sierra 1500 Classic | 364/6L V8 | |
| 2002 - 2006 | Cadillac | Escalade EXT | ||
| 2006 - 2009 | Chevrolet | Trailblazer | 364/6L V8 | |
| 1998 - 2002 | Chevrolet | Camaro | 350/5.7L V8 | |
| 2002 - 2005 | Cadillac | Escalade | 364/6L V8 | |
| 2004 - 2005 | Cadillac | CTS | 346/5.7L V8 | |
| 2003 - 2005 | Chevrolet | Silverado 1500 | 364/6L V8 | |
| 2005 - 2006 | Chevrolet | SSR | ||
| 2006 - 2007 | Chevrolet | Corvette | 364/6L V8 | |
| 2006 | Cadillac | Escalade | ||
| 2006 - 2007 | Cadillac | CTS | 364/6L V8 |
Specs:
| Brand | Weiand |
|---|---|
| Crank Scraper Included | No |
| Dipstick Location | None |
| Emission Code | 5 |
| Finish | Silver |

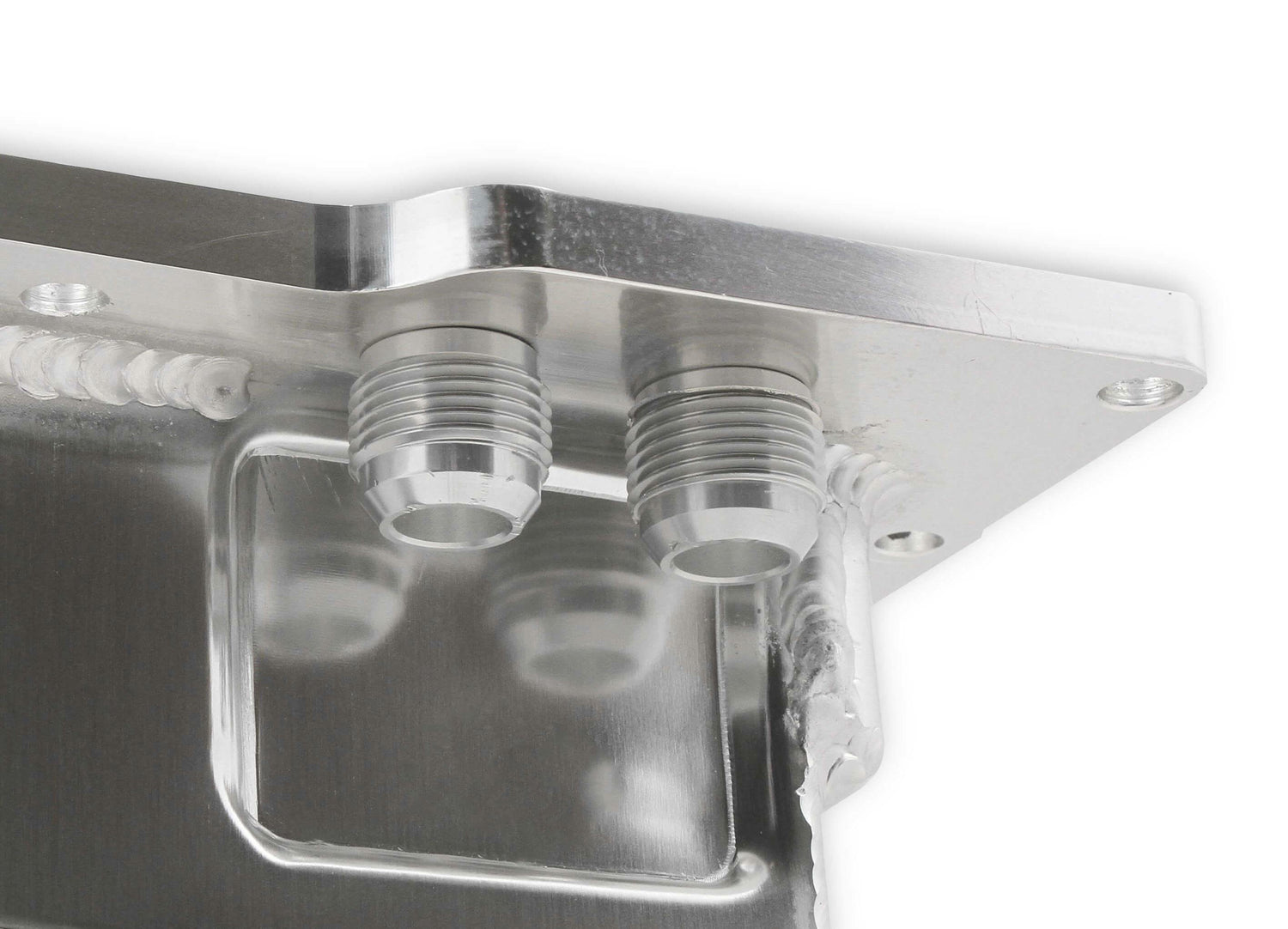

| Fitting Size | Dual 10AN Fittings |
| Material | Aluminum |
| Oil Pan Capacity | 7.0 Quarts |
| Oil Pan Depth | 6.375" |
| Oil Pan Sump Length | 8.375 |
| Oil Pan Sump Width | 10.375 |
| Oil Pan Type | Fabricated |
| Product Type | Oil Pan Kit |
| Sump Location | Rear |
| Warranty | Limited 90 Day |
| Windage Tray Included | No |
