Pontiac V8 Crank Trigger Kit - 8650

Pontiac V8 Crank Trigger Kit - 8650

SKU: 8650
$512.95 USD
$512.95 USD
Sale Sold out

Overview:

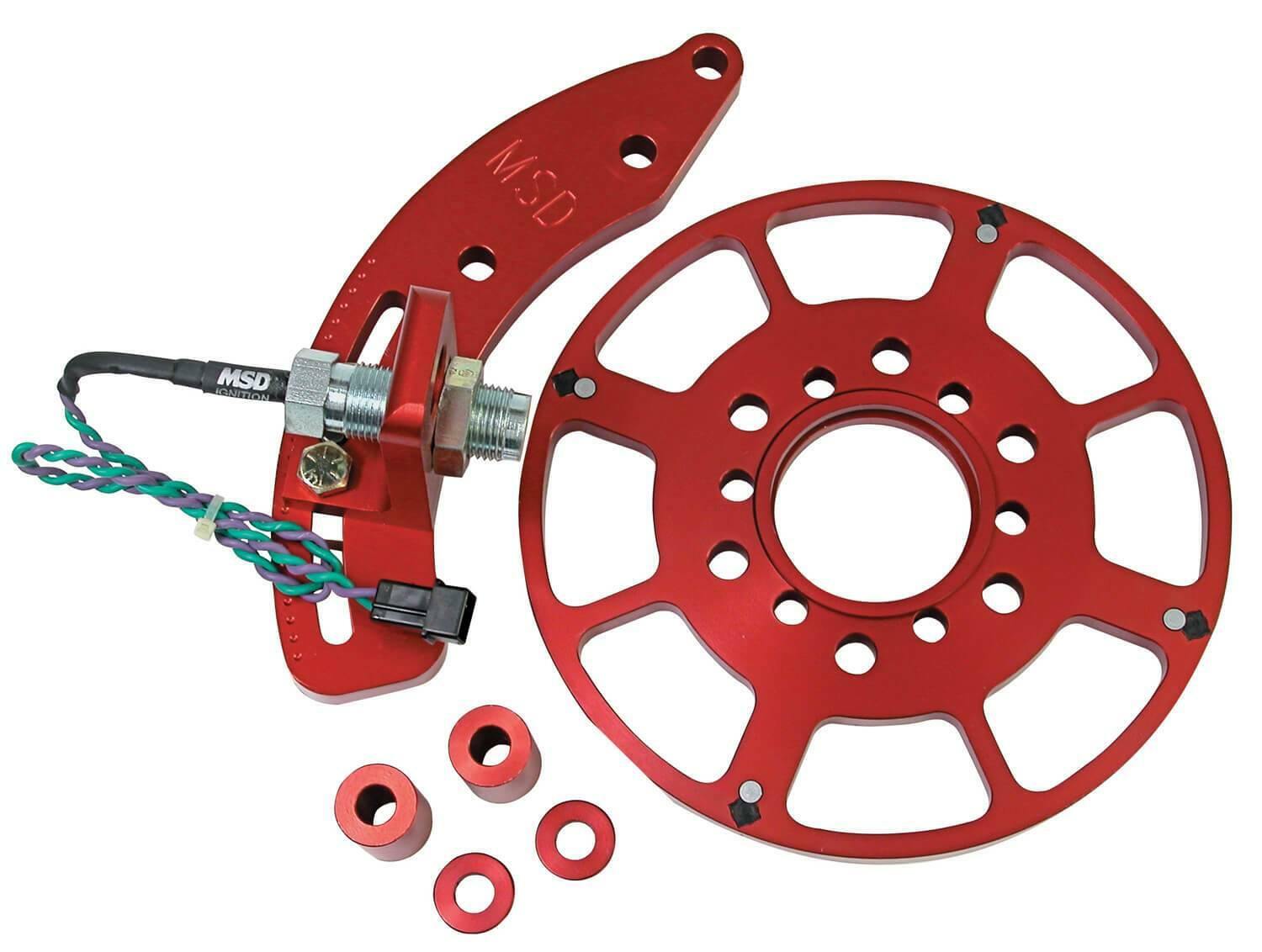

For a long time, racers have known that one of the best things to do to an engine to improve its performance is to stabilize the ignition timing. The MSD Flying Magnet Crank Trigger system does exactly that by using four magnets embedded in an aluminum wheel. Although similar in appearance to other crank triggers, the MSD Flying Magnet design works on a different principle. Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns, the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be triggered by other bolts, debris or even vibrations which will cause a loss of power or engine damage. The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be false triggered. Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustment. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25" motor plate. These systems will trigger MSD 6, 7 and 8 Series Ignitions and all MSD Timing Accessories.

Features:

    Year Make Model Submodel Engine Size
    1977 - 1980 Pontiac Catalina 4/8 V
    1975 - 1978 Pontiac Grand Safari 4.13/8 V
    1974 - 1977 Pontiac LeMans 3.88/8 V
    1974 Pontiac Bonneville U/K/8 V
    1974 - 1977 Pontiac Firebird 3.88/8 V
    1975 - 1977 Pontiac LeMans 4.13/8 V
    1974 - 1975 Pontiac Grand Safari U/K/8 V
    1977 - 1981 Pontiac Firebird 4/8 V
    1974 - 1975 Pontiac Grandville 4.15/8 V
    1977 - 1981 Pontiac LeMans 4/8 V
    1977 - 1980 Pontiac Bonneville 4/8 V
    1974 Pontiac LeMans U/K/8 V
    1974 - 1976 Pontiac Firebird 4.15/8 V
    1975 - 1977 Pontiac Grand LeMans 4.13/8 V
    1974 Pontiac Catalina U/K/8 V
    1974 - 1976 Pontiac Catalina 4.15/8 V
    1973 - 1974 Pontiac LeMans 4.12/8 V
    1975 - 1979 Pontiac Firebird 4.13/8 V
    1975 - 1978 Pontiac Bonneville 4.13/8 V
    1975 - 1977 Pontiac Grand Prix 4.13/8 V
    1974 - 1975 Pontiac Grand Am 4.15/8 V
    1974 - 1976 Pontiac Grand Prix 4.15/8 V
    1974 Pontiac Grand Prix U/K/8 V
    1974 - 1976 Pontiac Grand Safari 4.15/8 V
    1975 - 1978 Pontiac Catalina 4.13/8 V
    1977 - 1981 Pontiac Grand LeMans 4/8 V
    1974 Pontiac Firebird U/K/8 V
    1974 Pontiac Catalina 4.12/8 V
    1978 - 1980 Pontiac Grand Am 4/8 V
    1975 Pontiac Grandville 4.13/8 V
    1974 - 1975 Pontiac Ventura 3.88/8 V
    1975 - 1976 Pontiac Grand LeMans 4.15/8 V
    1977 Pontiac Grand Safari 4/8 V
    1974 - 1976 Pontiac LeMans 4.15/8 V
    1977 - 1980 Pontiac Grand Prix 4/8 V
    1974 - 1976 Pontiac Bonneville 4.15/8 V
    1976 - 1977 Pontiac Catalina 3.88/8 V
    1974 Pontiac LeMans 3.8/8 V
    1974 Pontiac Grandville U/K/8 V
    1974 Pontiac Ventura 3.8/8 V
    1975 - 1977 Pontiac Grand LeMans 3.88/8 V
    1974 Pontiac Firebird 4.12/8 V
    1974 Pontiac Grand Am U/K/8 V
    1976 - 1977 Pontiac Grand Prix 3.88/8 V
    1975 Pontiac Grand Am 4.13/8 V
    1974 Pontiac Grand Safari 4.12/8 V
    1977 Pontiac Bonneville 3.88/8 V
    1977 Pontiac Ventura 4/8 V
    1974 Pontiac Grand Prix 4.12/8 V
    1974 Pontiac Grand Am 4.12/8 V
    1974 Pontiac Bonneville 4.12/8 V

    Brand MSD
    Color Red
    Diameter 7"
    Emission Code 4
    Make Pontiac/Oldsmobile
    Product Type Crank Trigger Kit
    Sensor Dimensions 3/4" x 2.25"
    Sensor Type Non Magnetic
    Trigger Type 4X
    Warning California Proposition 65
    Warranty Limited 1 Year Warranty
    Wheel Width 3/8"
