Holley EFI | SKU:
554-200

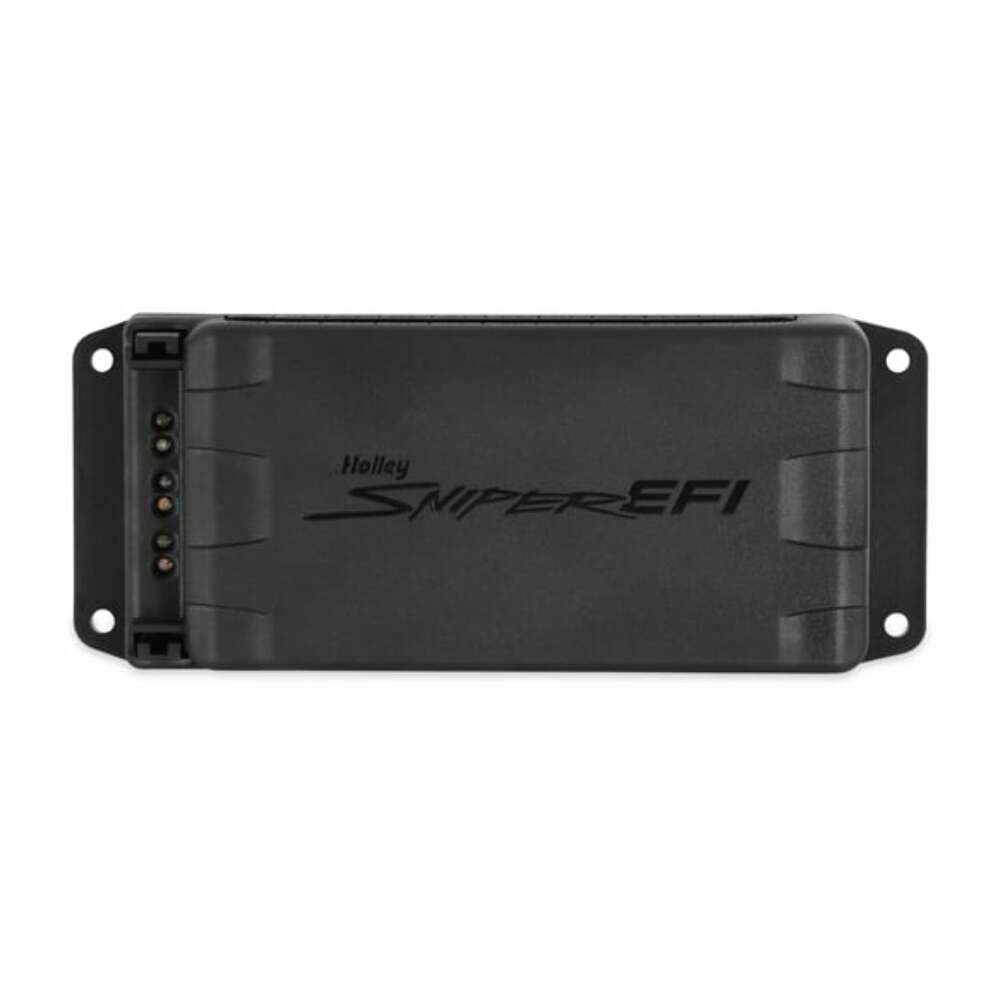

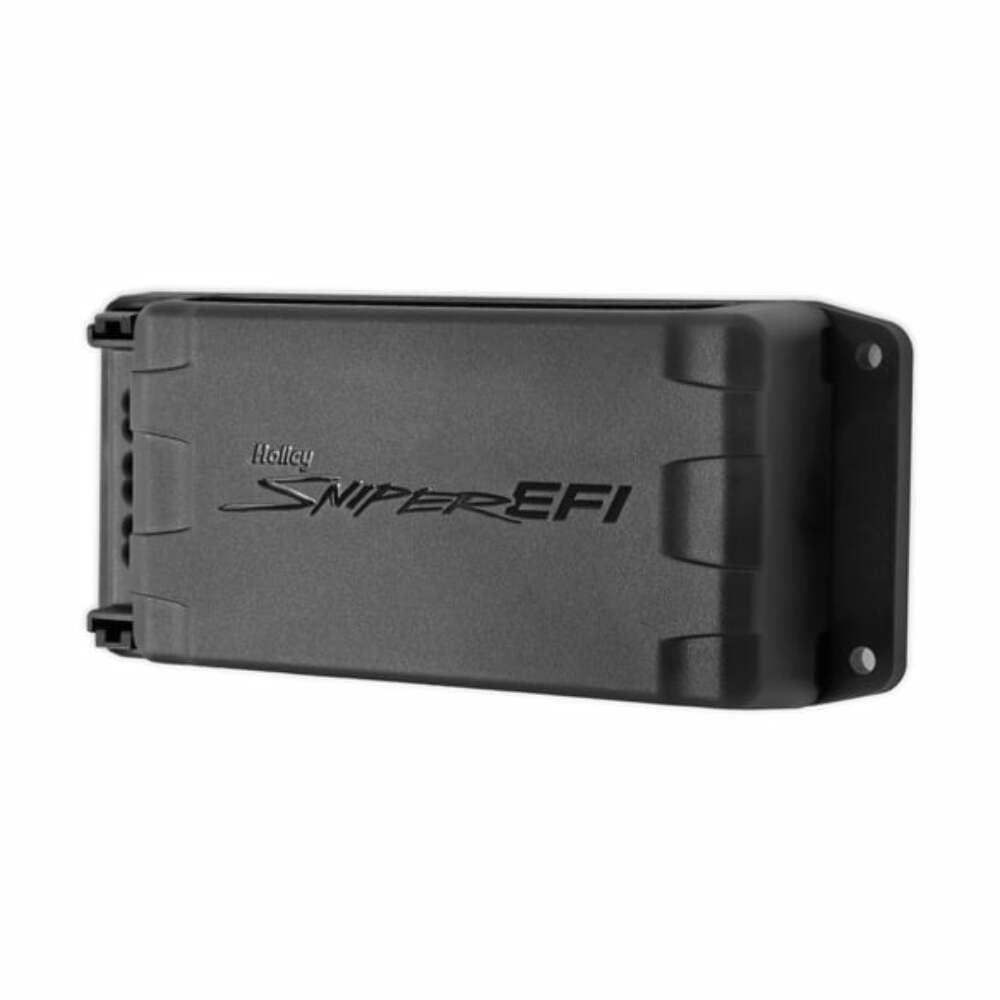

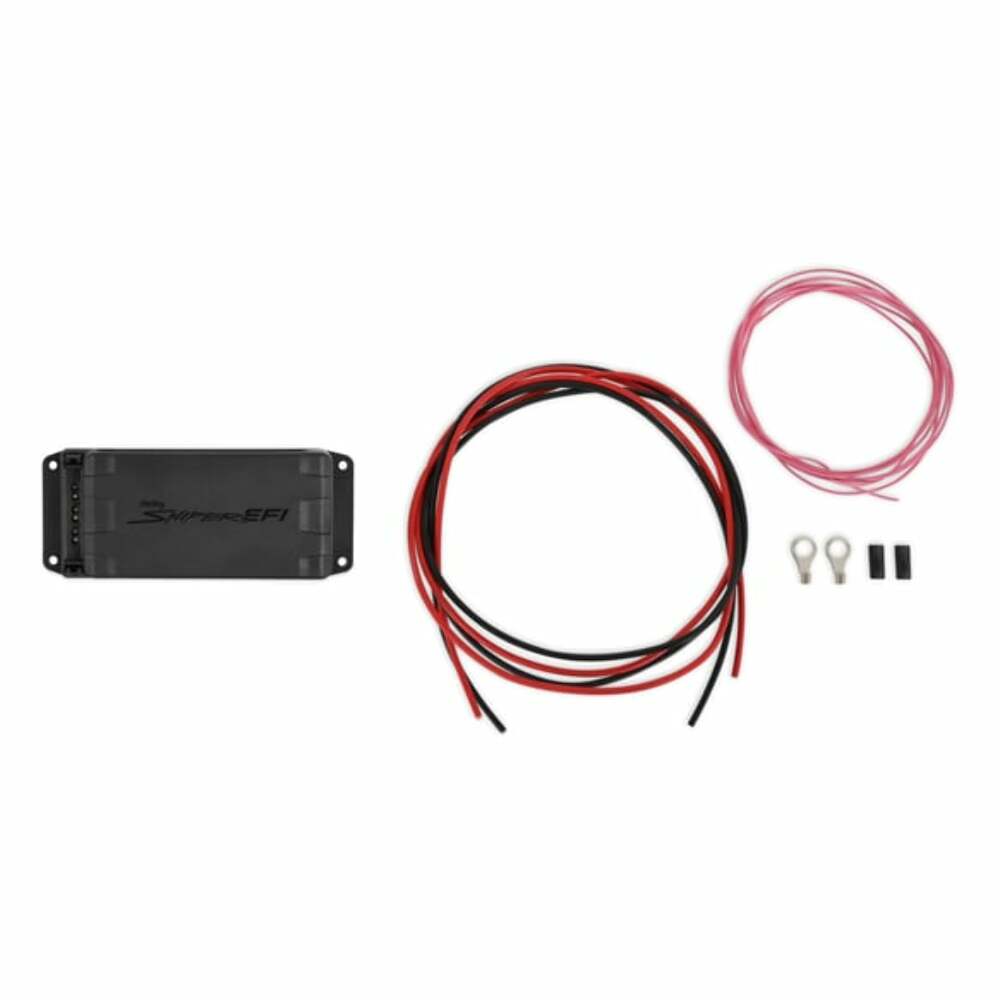

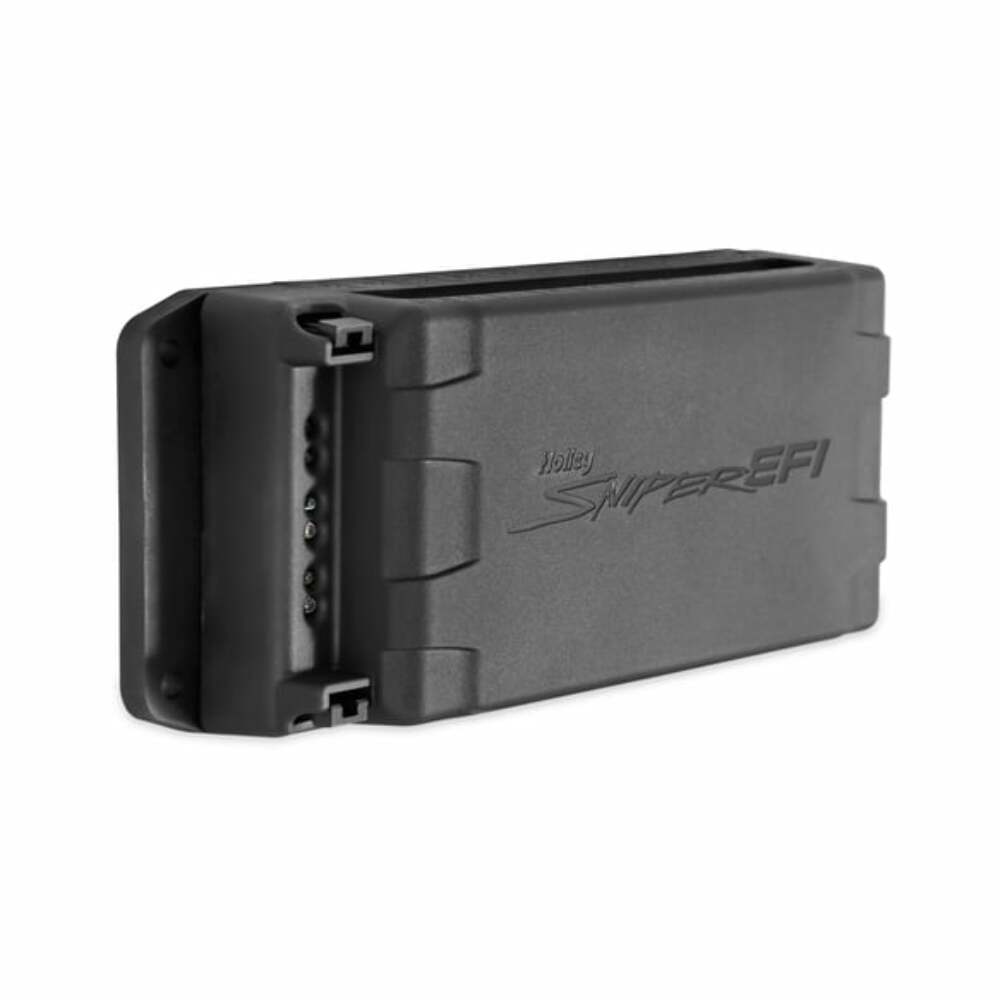

Power Distribution Module For Holley Sniper 2 EFI 554-200
Regular price
$174.55 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Power Distribution Module For Holley Sniper 2 EFI 554-200 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

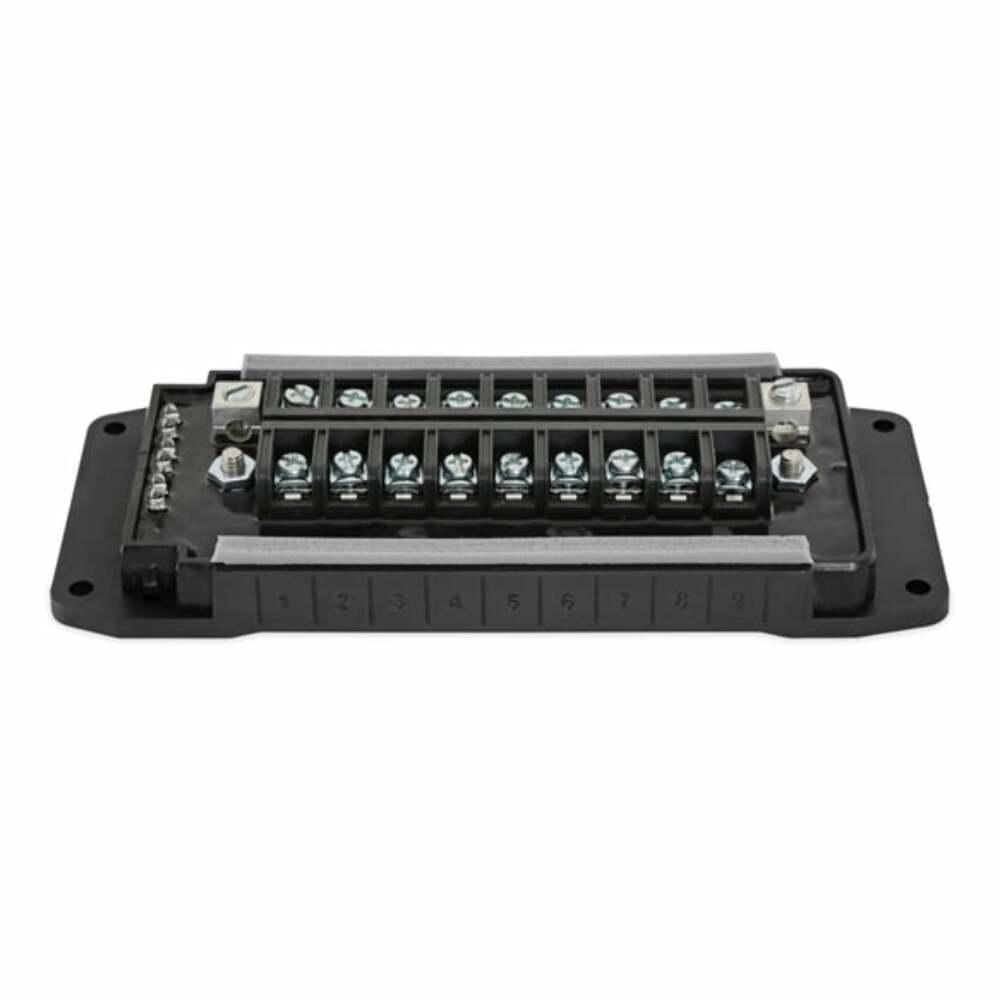

The Power Distribution Module (PDM) is a cost-effective and optional accessory that isolates the core of your EFI and ignition wiring into one, easy to use location. Simply slide the stripped wire ends under the positive lock connector and tighten down the set screw.
It also distributes power to your EFI fuel pump and a single fan (second fan can be ground triggered through the included input/output harness). Two additional 2-amp circuits can power low current accessories like gauges or to trigger relays.
Battery and a switched 12 volt source are all that's required from your vehicle to power the PDM.
It also distributes power to your EFI fuel pump and a single fan (second fan can be ground triggered through the included input/output harness). Two additional 2-amp circuits can power low current accessories like gauges or to trigger relays.
Battery and a switched 12 volt source are all that's required from your vehicle to power the PDM.
Features:
- Provides conditioned Power, Ground and Switched Connections for ALL components within a Sniper 2 EFI Install. (Throttle Body, Fuel Pump, HyperSpark Ignition System, and Optional Fan)
- 3 Relay Channels - 15A Powertrain (Sniper Throttle Body and Ignition System) 25A - Fuel Pump Output - 25A Fan Output
- LED status indicators, show you which channel is triggered at a glance

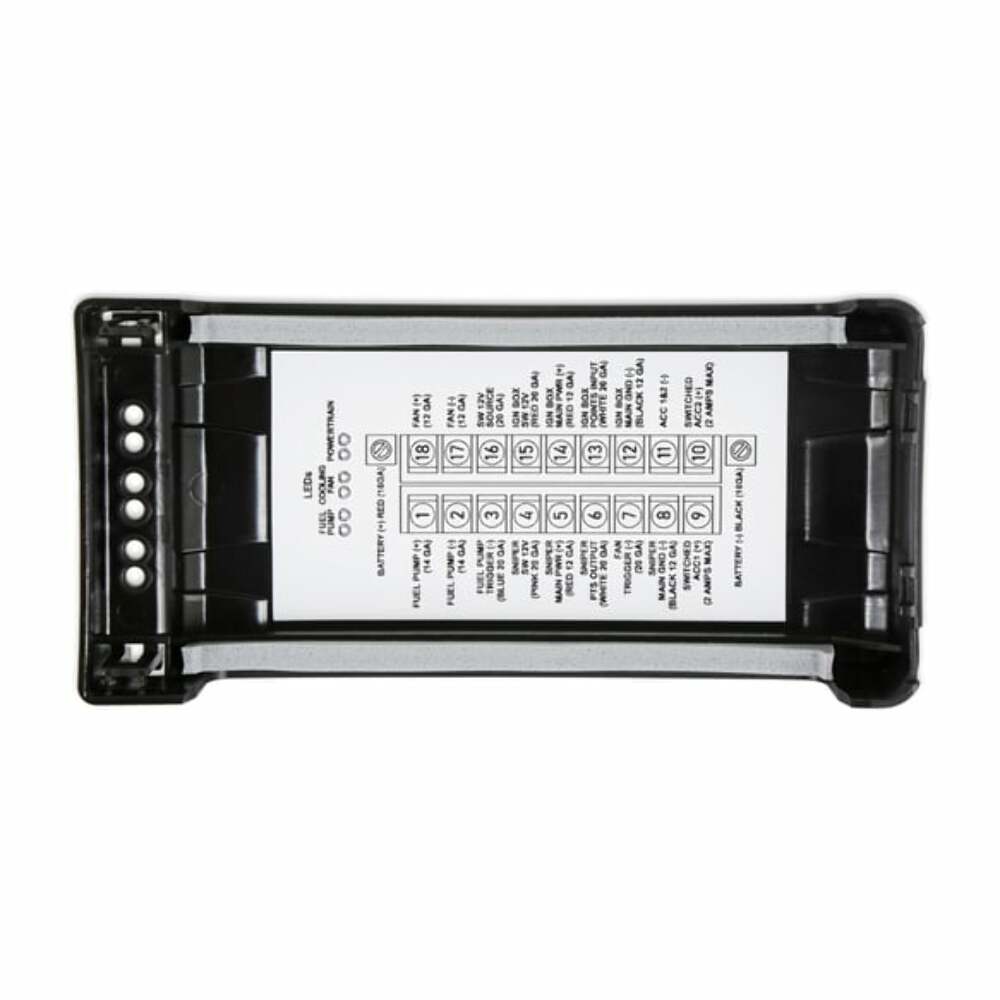

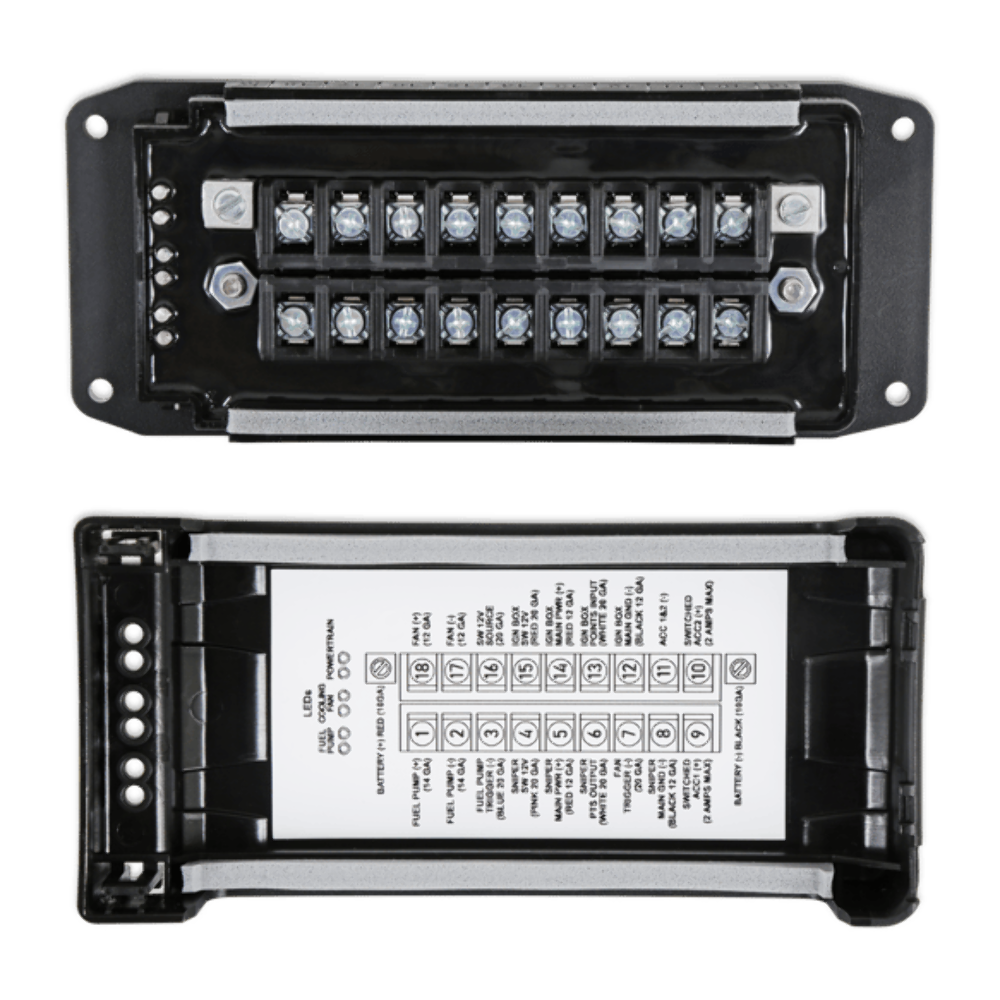

- Removable cover for easy accessibility, with wiring diagram built into the lid, like a fuel panel.
Specs:
| Brand | Holley Sniper EFI |
| Color | Black |
| Material | Polymer |
| Mounting Hole Quantity | 4 |
| Terminal Quantity | 20 |
| Terminal Type | Screw |
| Part Number | 554-200 |
