Pro-Dash Input/Output Harness - 558-456
Pro-Dash Input/Output Harness - 558-456 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

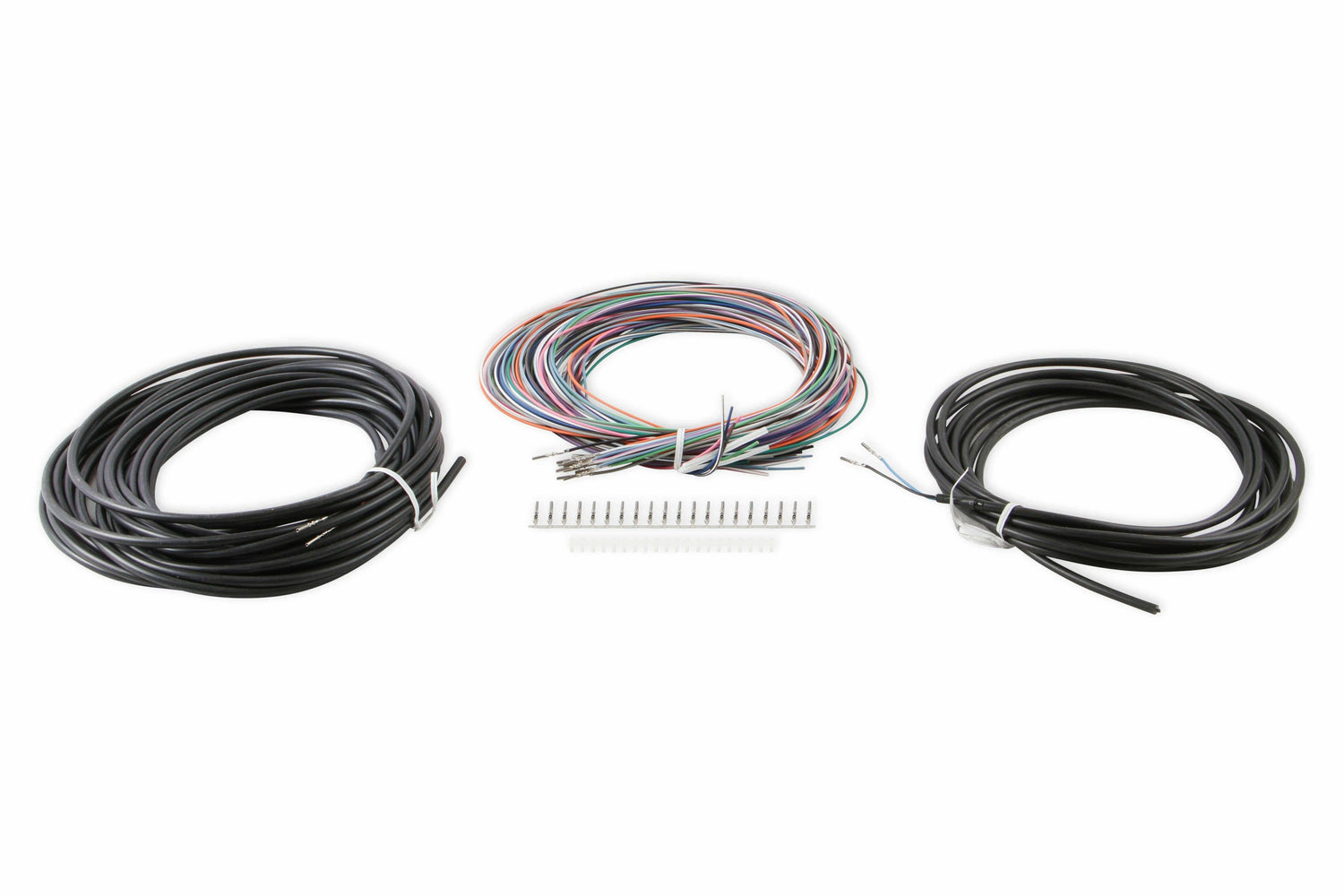

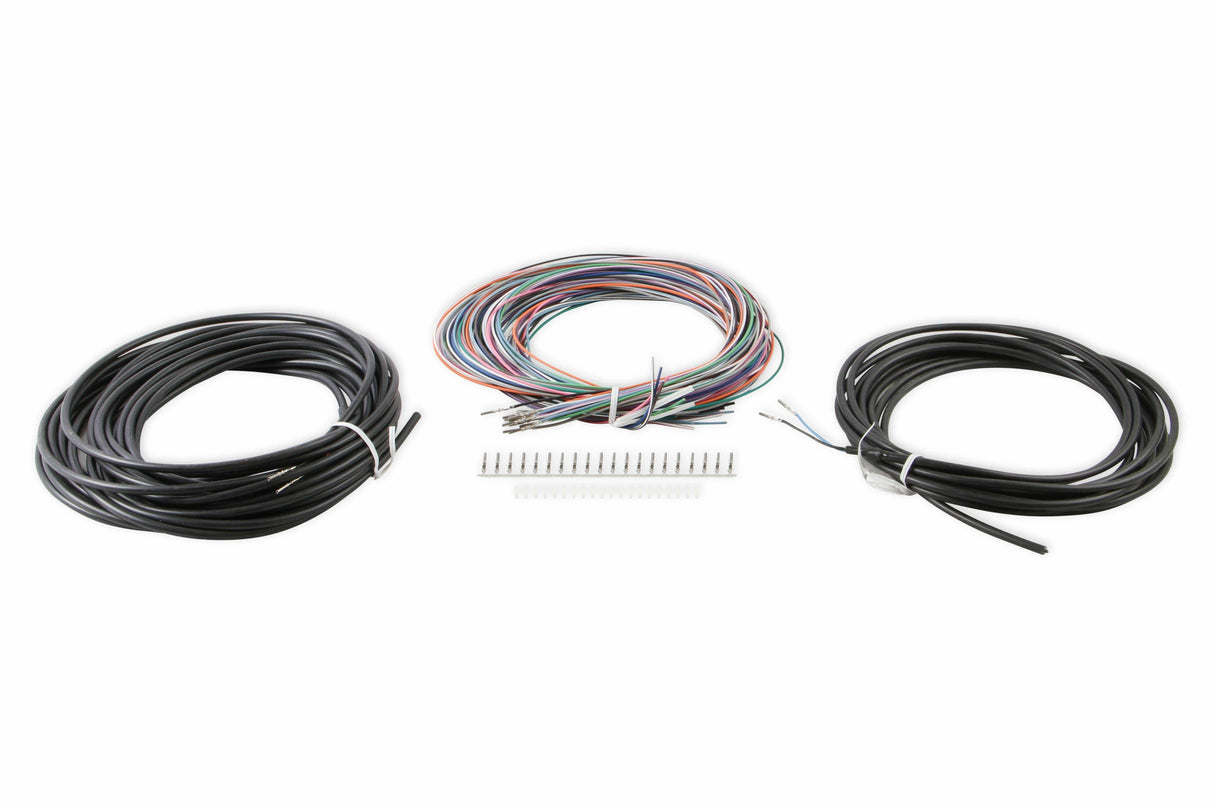

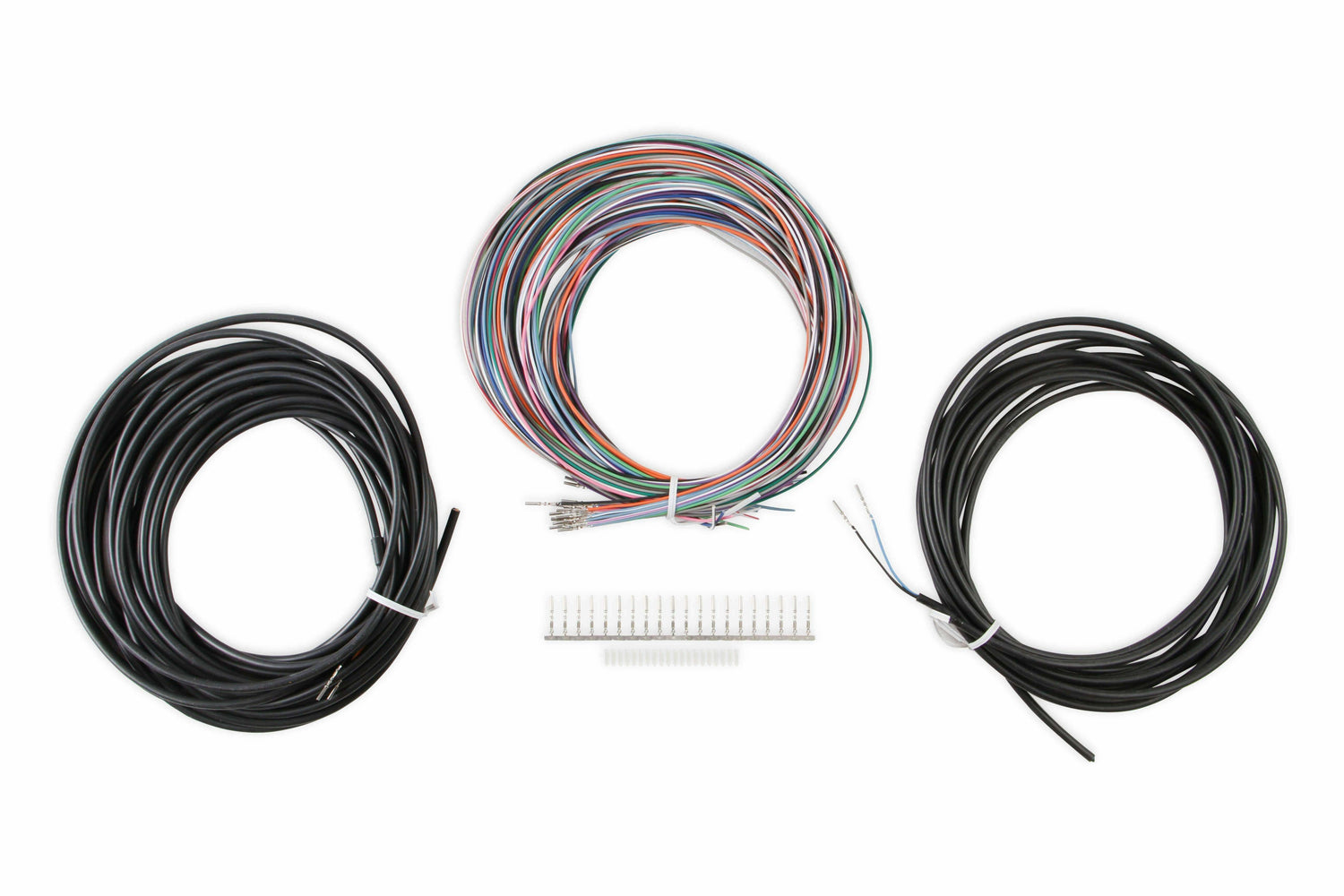

The 558-456 wiring kit is intended to fully populate all of the inputs and outputs for PNs 553-111 and 553-112 Pro Dashes. These can easily be inserted into the existing 34 pin dash connector. It contains loose wires and 2 and 3 conductor cable (jacketed but not shielded). The wire is 20
gauge TXL. There are TE Superseal pins crimped on every wire and cable. There are also extra pins that can be used
(likely needed when using the jacketed cable for more than one sensor). The kit contents include the following. The
installer can choose to match the color and functions given in the instructions for consistent installations.

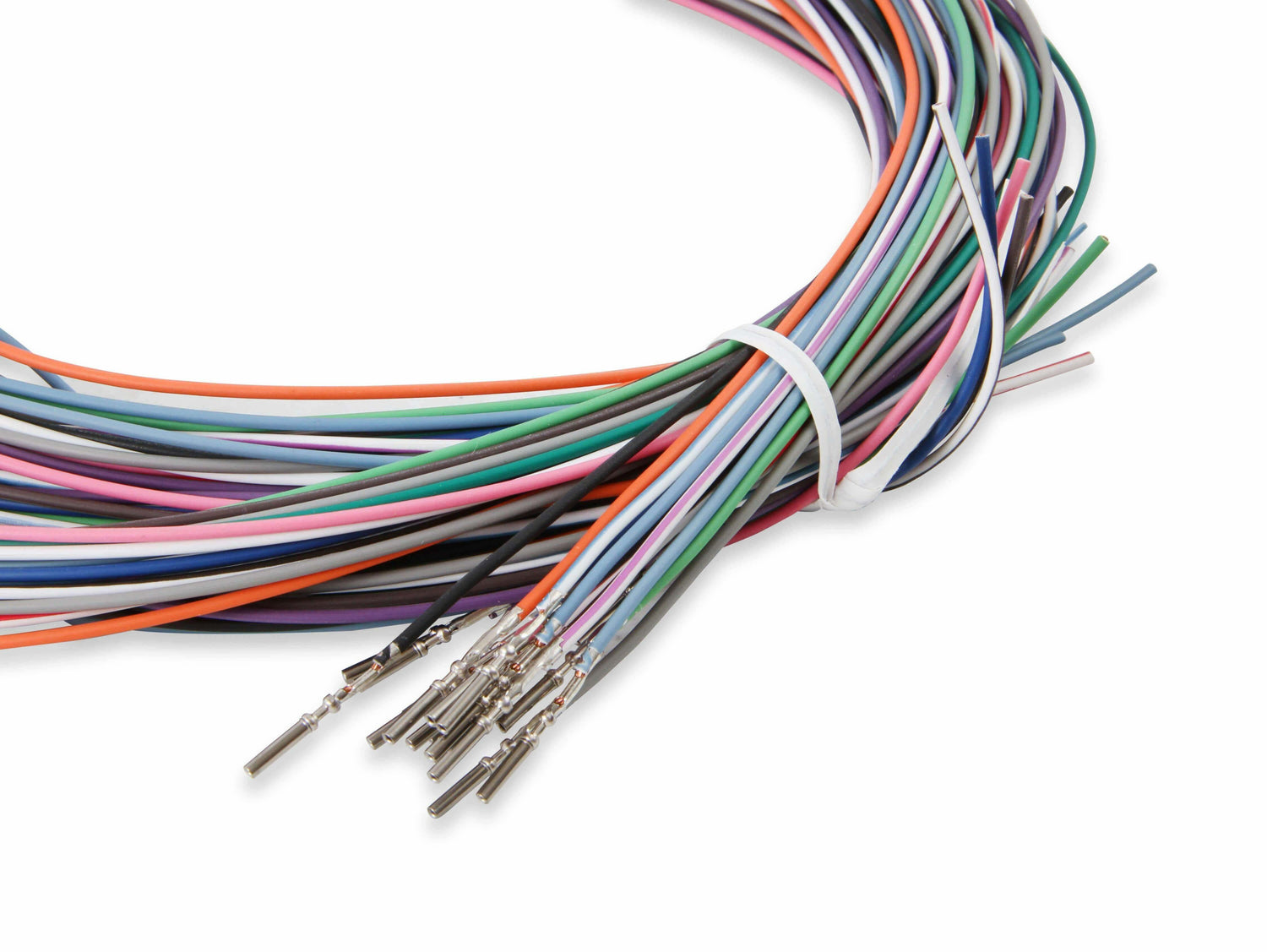

17 loose wires (10 feet each) with crimped tyco pins, in various colors.

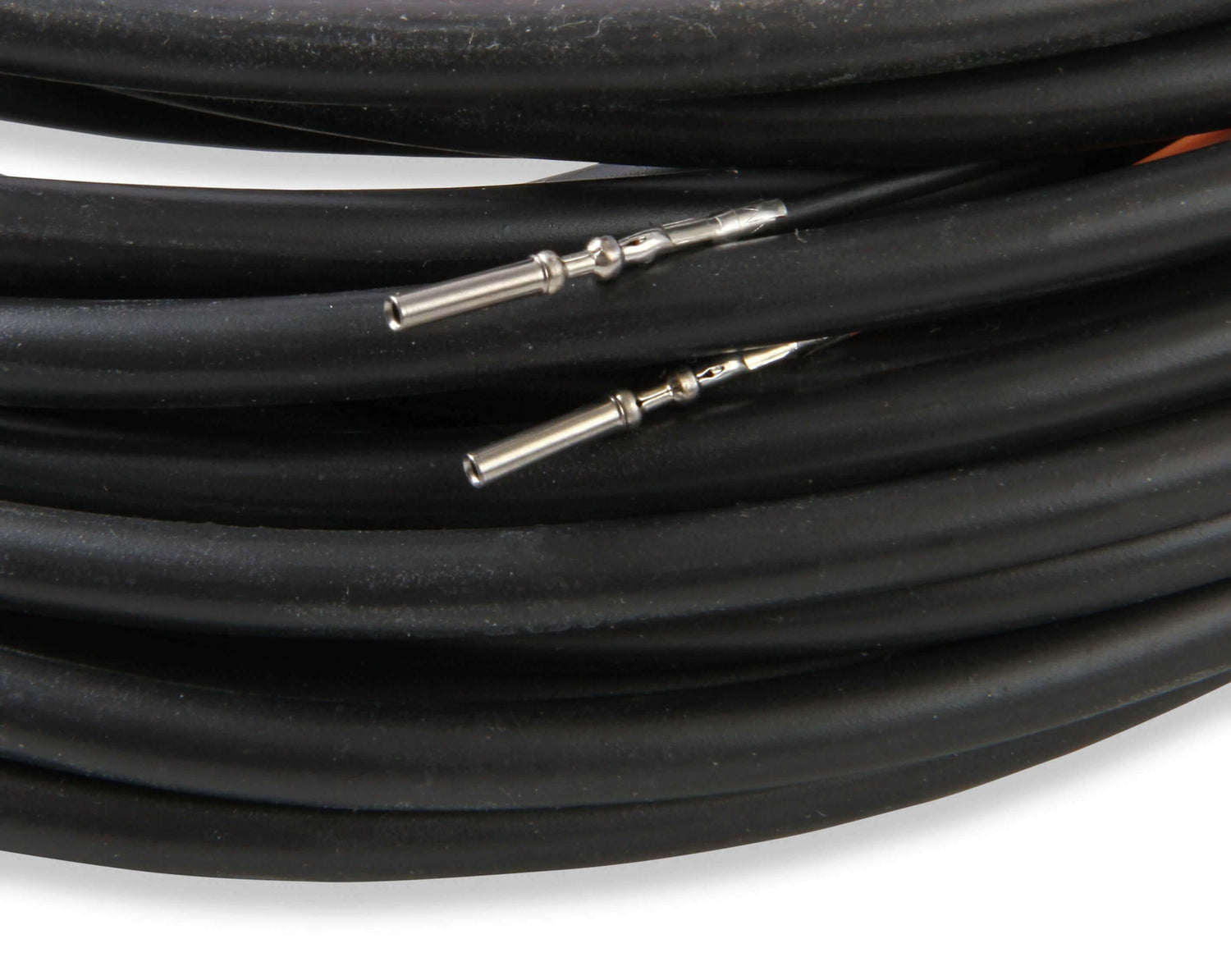

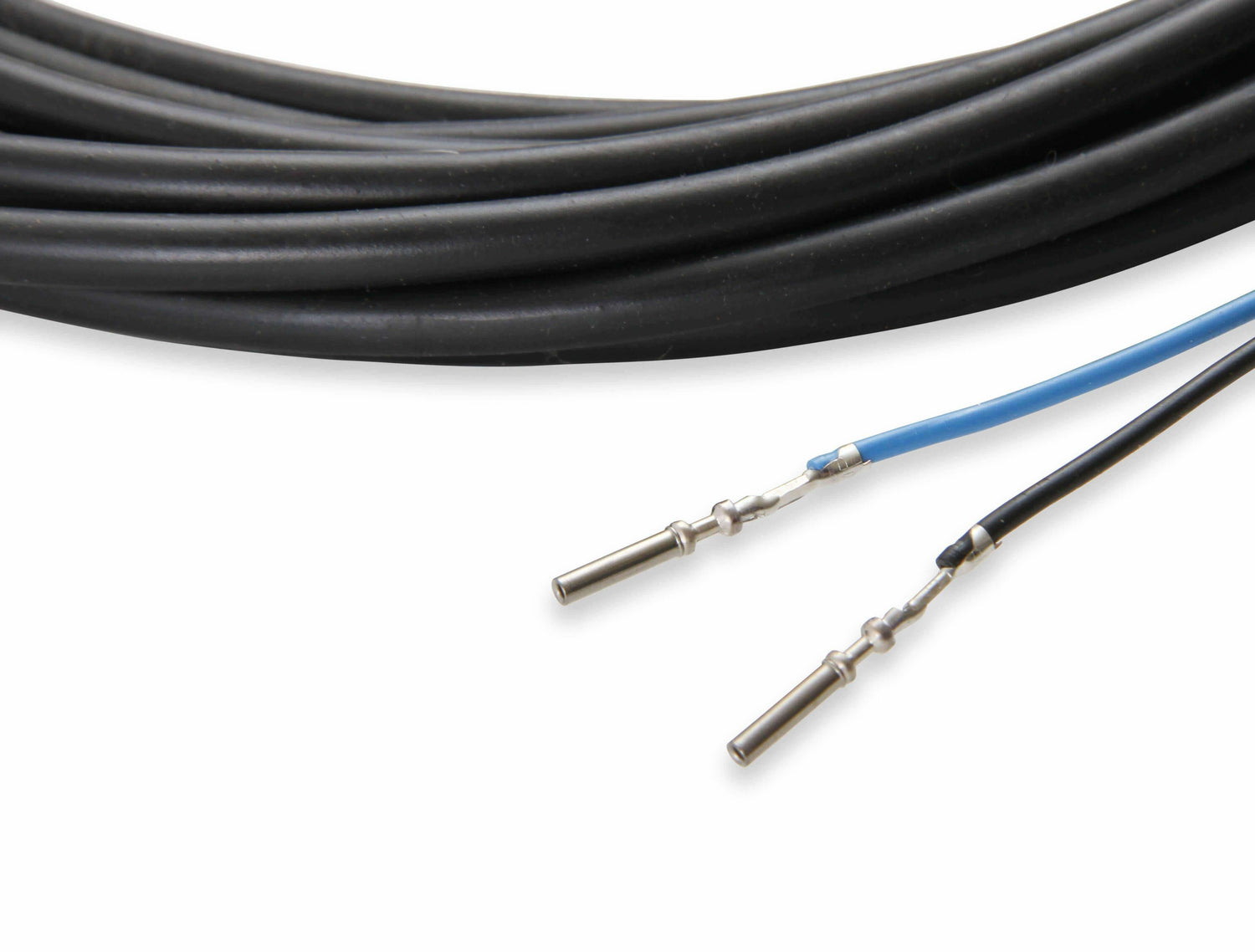

2 Conductor Cable (Black/Blue) 20 Feet
3 Conductor Cable (Orange/Green/Black)40 Feet
Superseal Pins 20
Superseal Plugs 20
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Holley EFI |
|---|---|
| Product Type | Harness |
