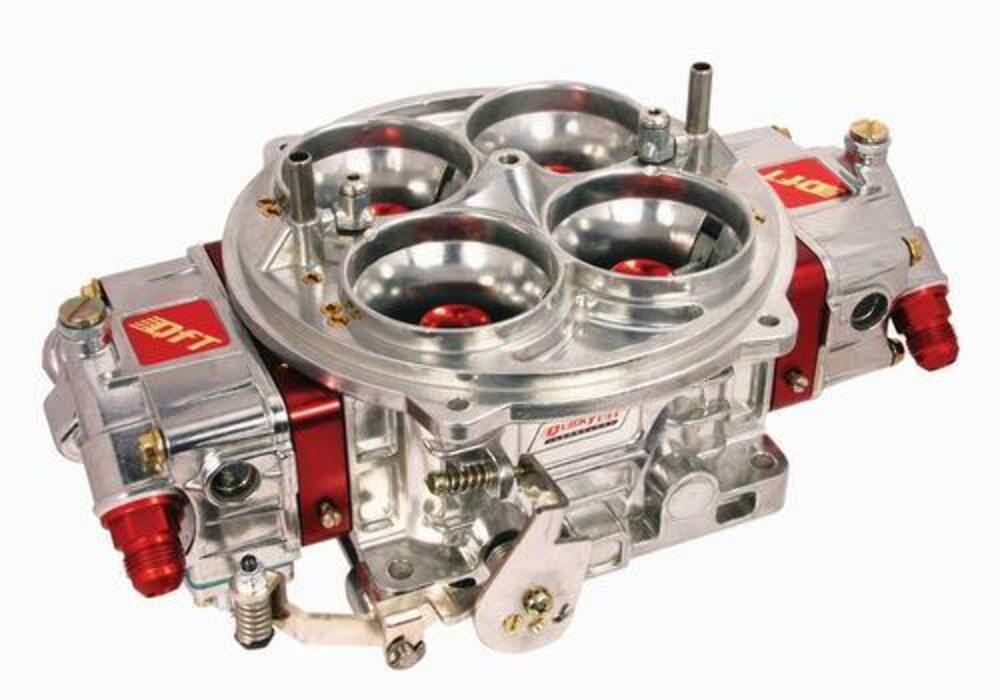

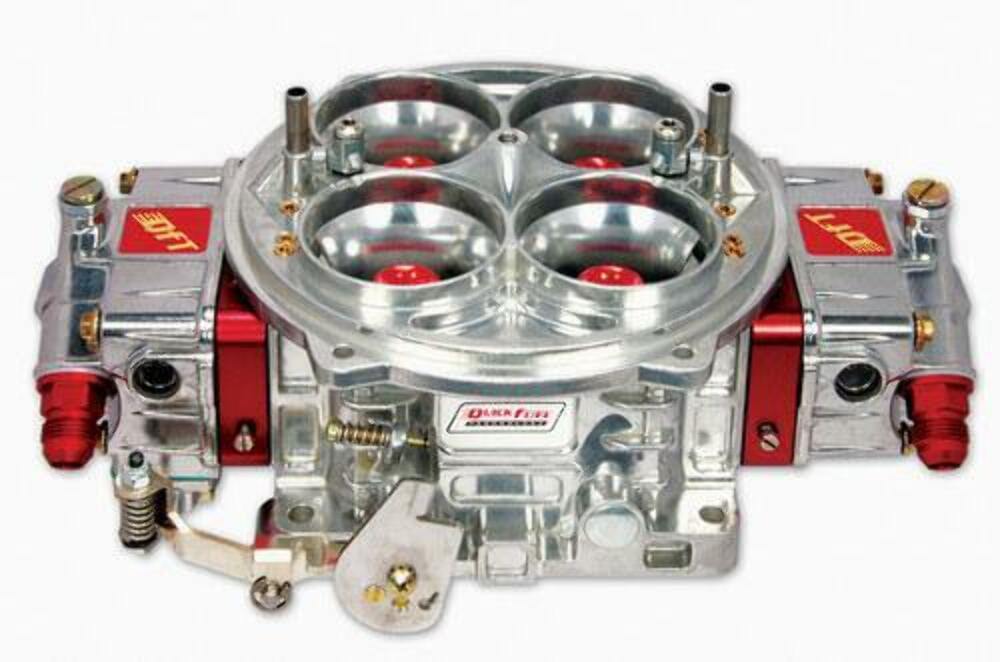

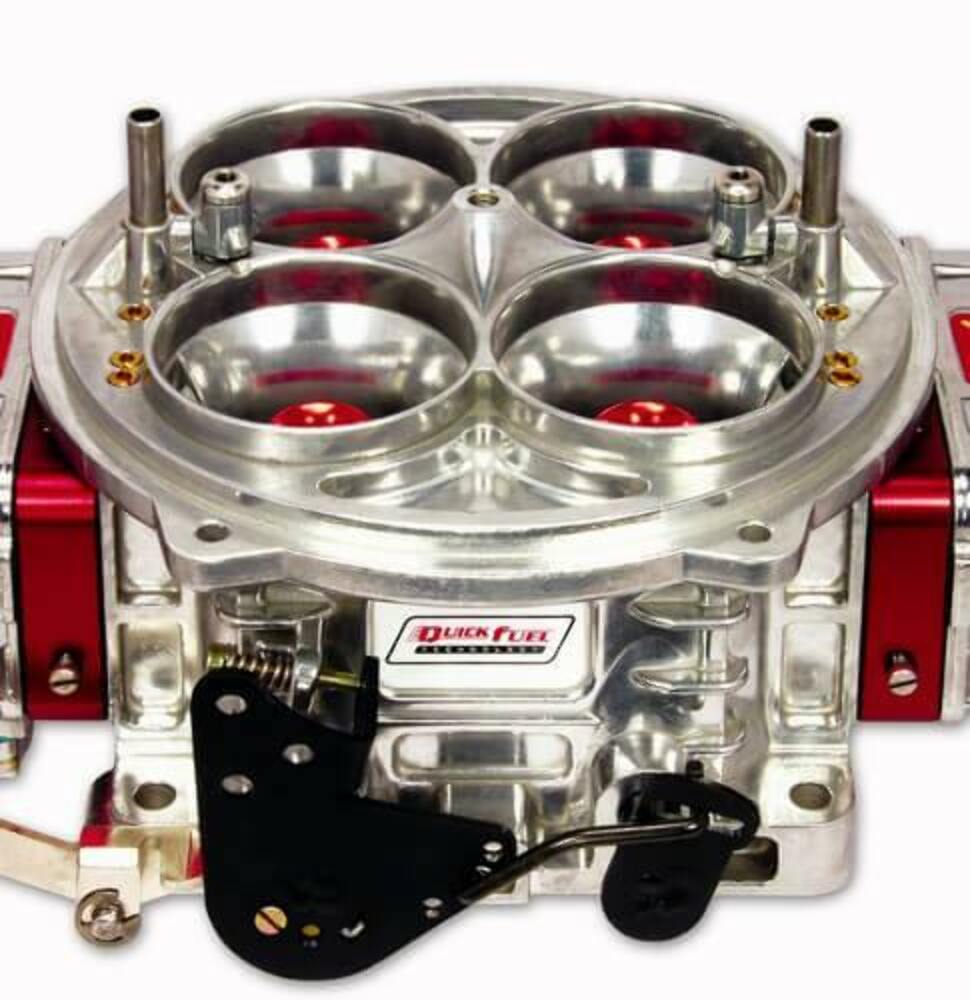

QFX Series 4700 Carburetor 1050CFM 2-Circuit - FX-4700
QFX Series 4700 Carburetor 1050CFM 2-Circuit - FX-4700 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Serious drag racing demand a serious drag racing carburetor, and the QFX-Series stands as the flagship model in QFT's lineup. Raised air horns improve entry angle into the venturi while ensuring undisrupted flow over the air bleeds. Annular boosters with CNC-machined billet aluminum inserts provide increased air flow, a stronger signal, and less turbulence. QFX carbs offer unparalleled fuel atomization with annular boosters specific for either gas, methanol, or E85 fuels. Five-emulsion billet metering blocks and four-corner idle circuits offer flexible tunability that today's high-horsepower engines demand. To cover a broad range of applications, methanol- and E85-compatible models, as well as two- and three-circuit fuel systems, are available. Ready to run out of the box, the QFX-Series carburetor will help you get to the winner's circle.
Even a carburetor that performs great can still be an eyesore, but it doesn't have to be that way. Quick Fuel Technology's proprietary Black Diamond® coating offers excellent corrosion resistance as well as a durable finish that easily stands up to dirt and oil. In addition to great looks, the PTFE coating reduces fuel temperature by six percent for improved performance.
QFX aluminum main body w/raised venturi
Billet aluminum metering blocks with screw in restrictions
Aluminum fuel bowls with dual sight windows and fuel inlets
Nitrophyl® Floats (notched rear) and jet extensions
Viton .130" Needles and Seats
Billet Aluminum annular booster inserts
QuickLink™ adjustable secondary opening adjustment
Hand assembled and engine tested
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Barrels | 4 |
|---|---|
| Billet Color | Red |
| Booster | Annular |
| Brand | Quick Fuel |
| Carburetor Use | Professional Race |
| CFM | 1050 |
| Choke | None |
| Circuit | 2 |
| Condition | New |
| Emission Code | 4 |
| Finish | Shiny |
| Fuel | Gasoline |
| Fuel System | Carbureted |
| High Speed Air Bleed | 31 |
| Idle Air Bleed Size | 63 |
| Marine Use | No |
| Material | Aluminum |
| Model | FX Series |
| Primary Main Jet | 84 |
| Primary Power Valve | 35 |
| Primary Pump Nozzle Size | 35 |
| Product Type | Carburetor |
| Secondaries | Mechanical |
| Secondary Main Jet | 92 |
| Supercharged Application | No |
| Throttle Bore | 2.000 inch |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
