Quick Time RM-6023 Chevy V8 to T-56 Adapter Bellhousing
Description
Description
Overview:

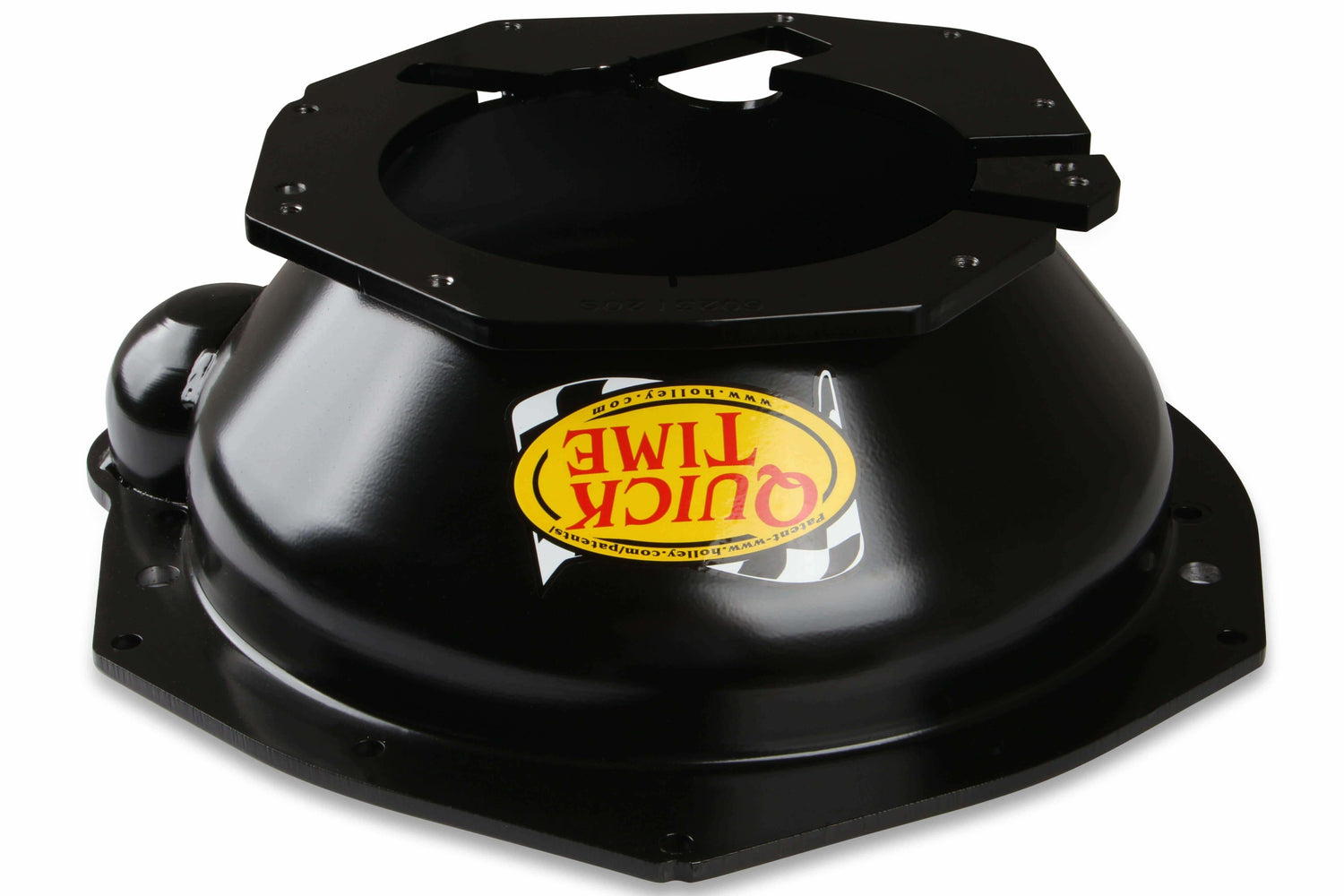

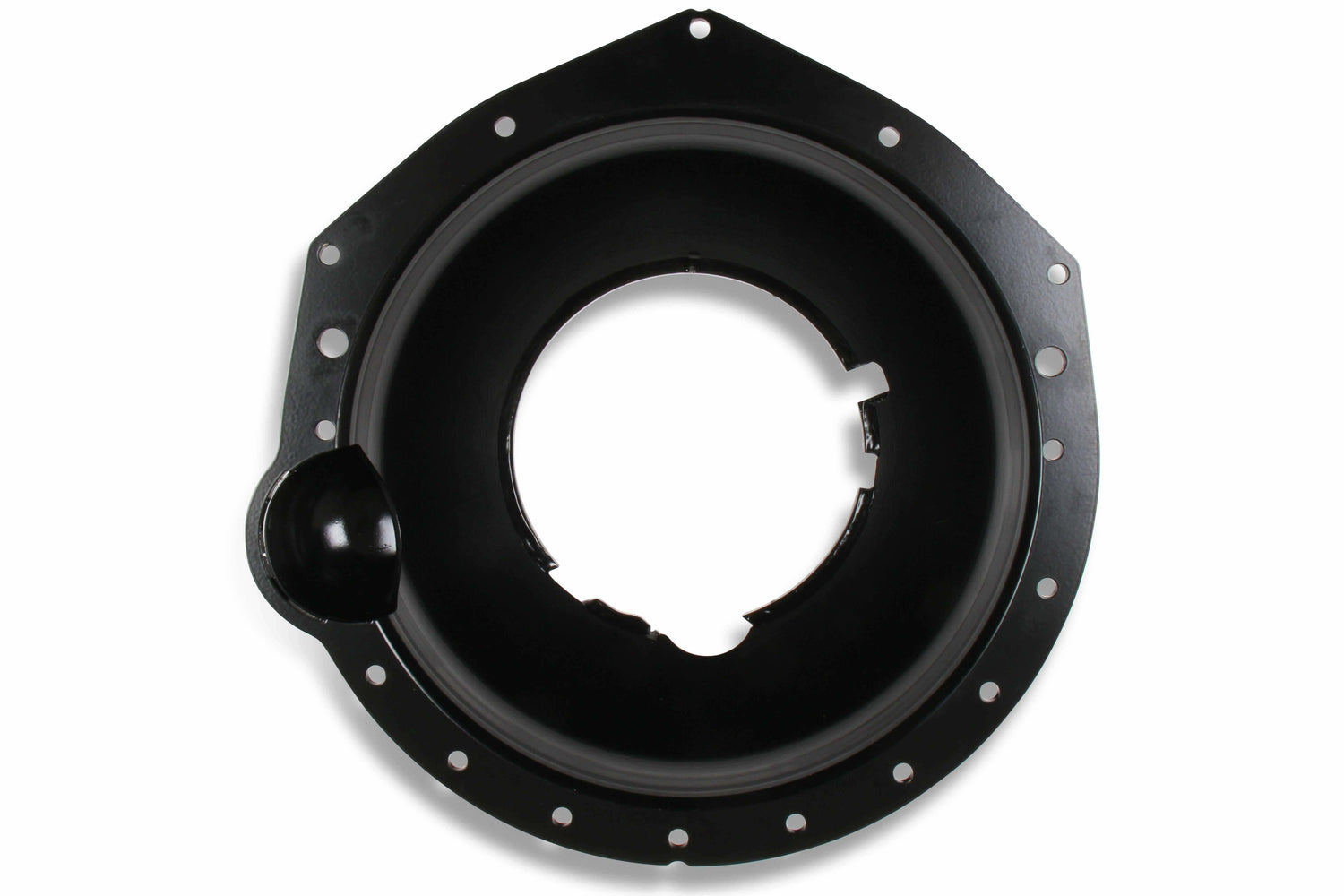

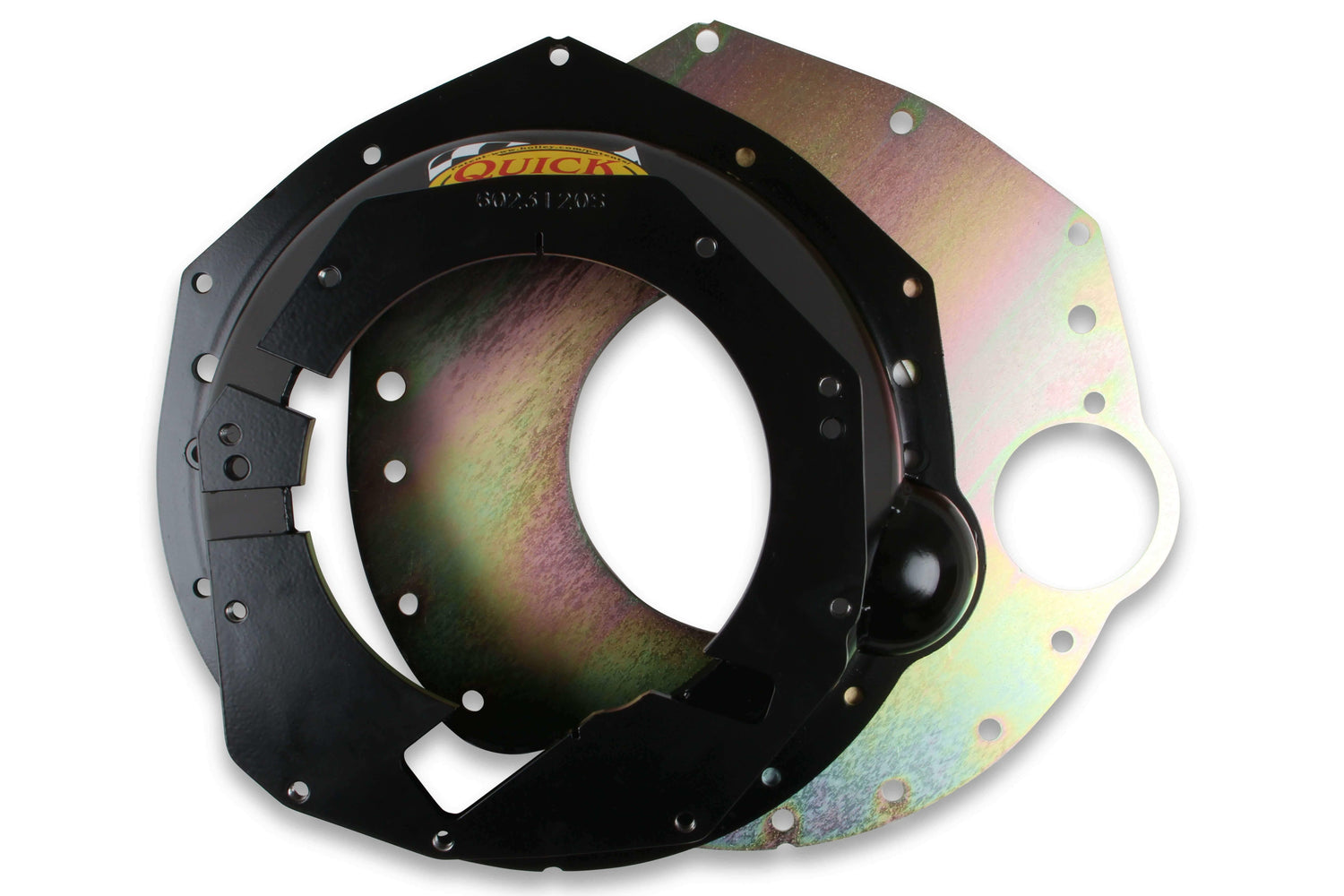

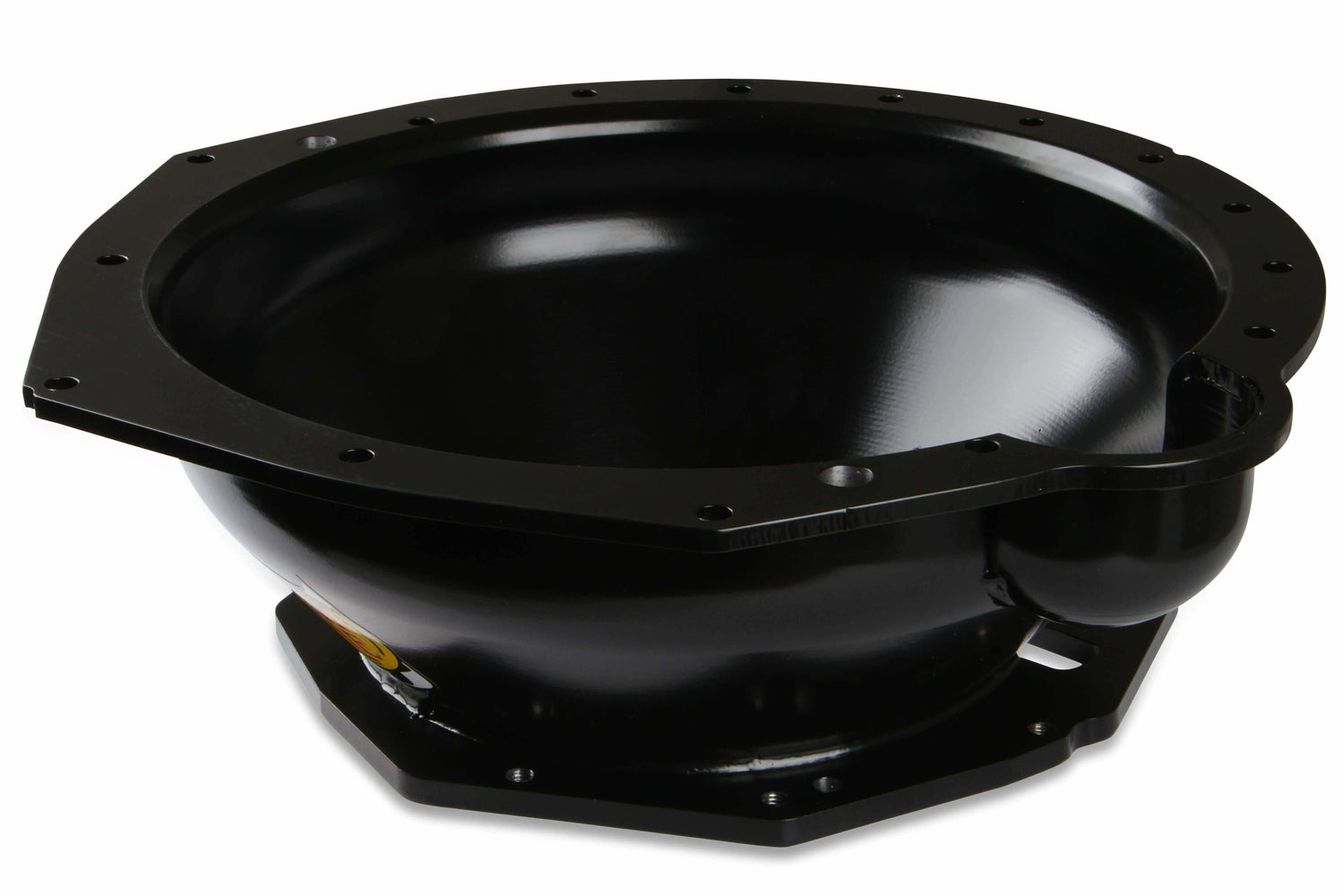

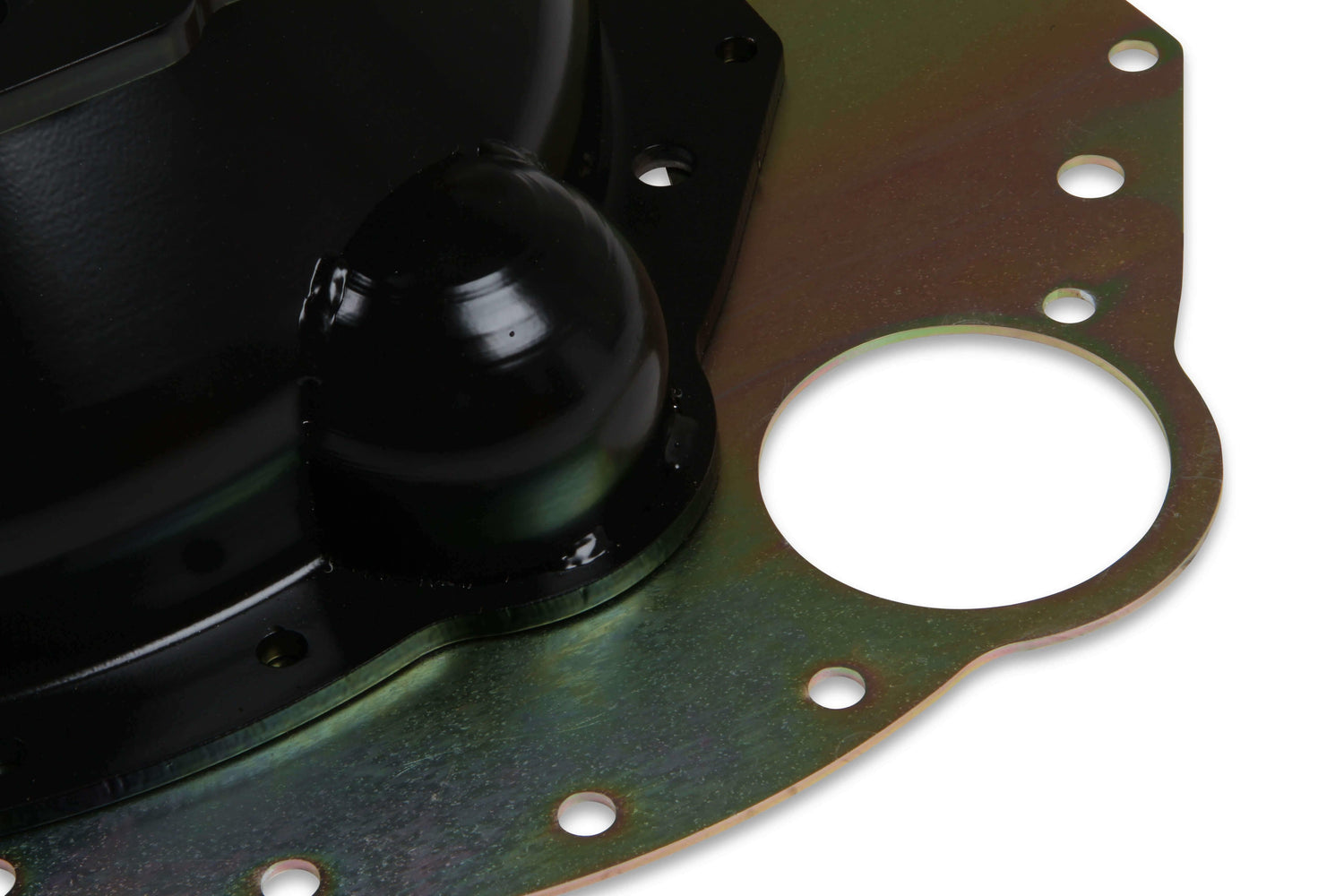

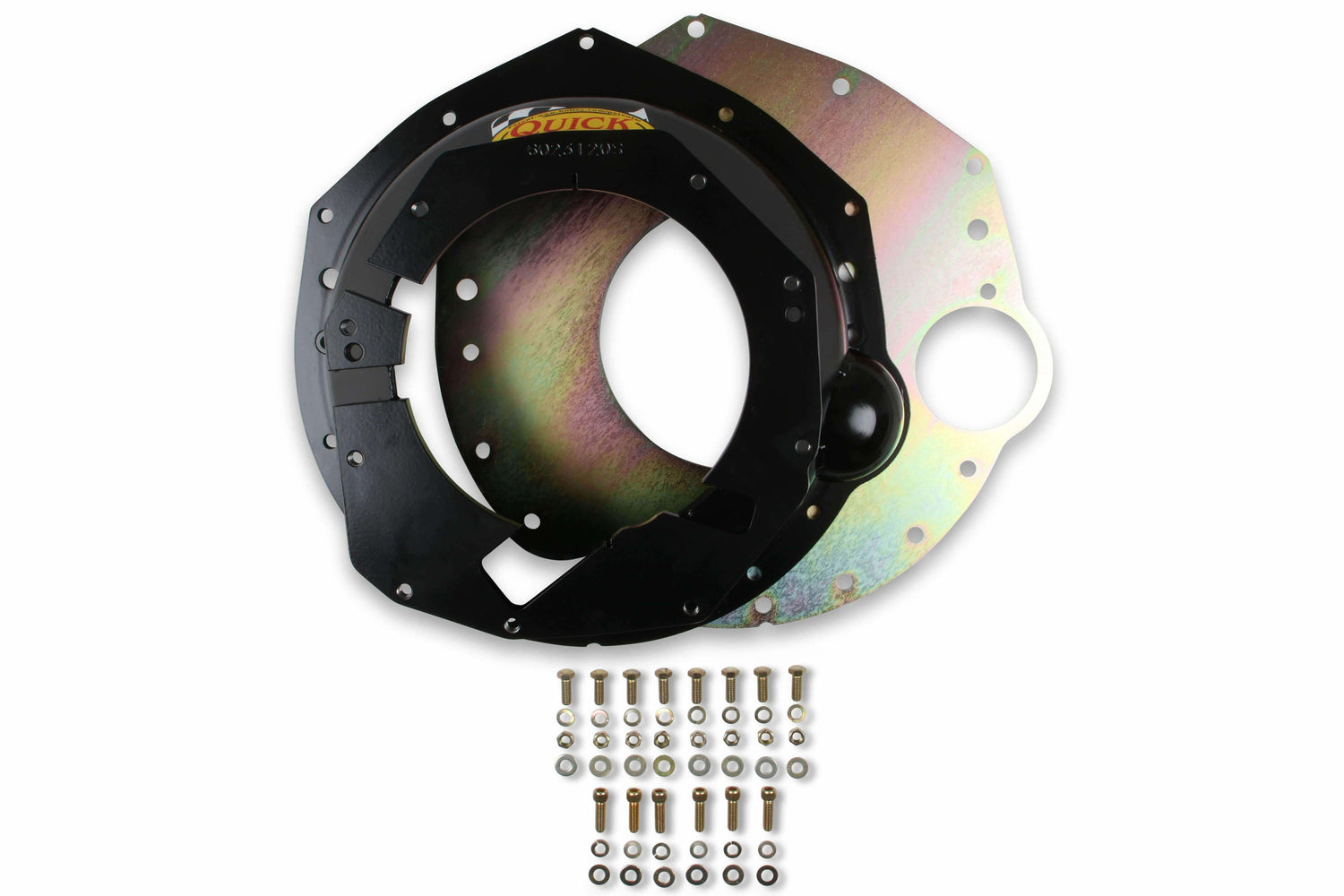

The Quick Time RM-6023 bellhousing connects a small block and big block Chevy engines to a T56 LS-1 Chevy, T-56 Magnum or T-56 Magnum XL transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Quick Time |
|---|---|
| Certification | 6.1 SFI |
| Clutch Diameter | 11" |
| Clutch Operation | Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I |
| Engine | Chevy Big Block V8 |
| Engine | Chevy LT1 |
| Engine Make | Chevrolet |

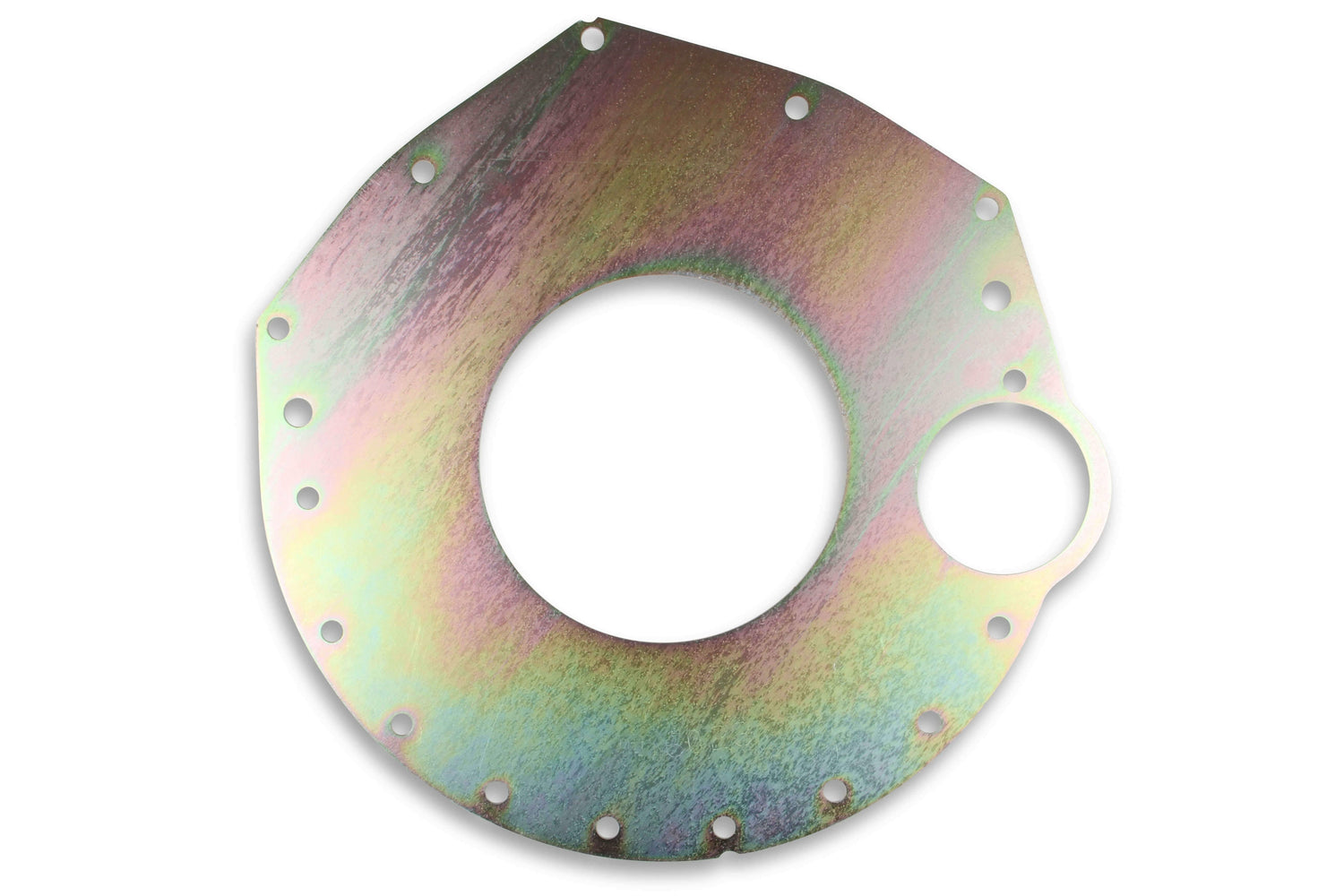

| Engine Plate | RM-6023-C |
| Finish | Semi-gloss |
| Flywheel | 153/168 Tooth |
| Height | 5.950 inch |
| Make | Chevrolet |
| Material | Steel |
| Product Type | Bellhousing |
| SFI Approved | Yes |
| SFI Certification | 6.1 |
| Trans Bore | N/A |
| Trans. Bore Diameter | N/A |
| Transmission | T56 GM |
| Transmission | T56 Magnum |
| Transmission Type | Manual |
| Warranty | Limited 90 Day Warranty |
| Weight | 22# |
