Quick Time RM-6081 Bellhousing, Ford Modular TKO/TR3550/T5
Quick Time RM-6081 Bellhousing, Ford Modular TKO/TR3550/T5 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

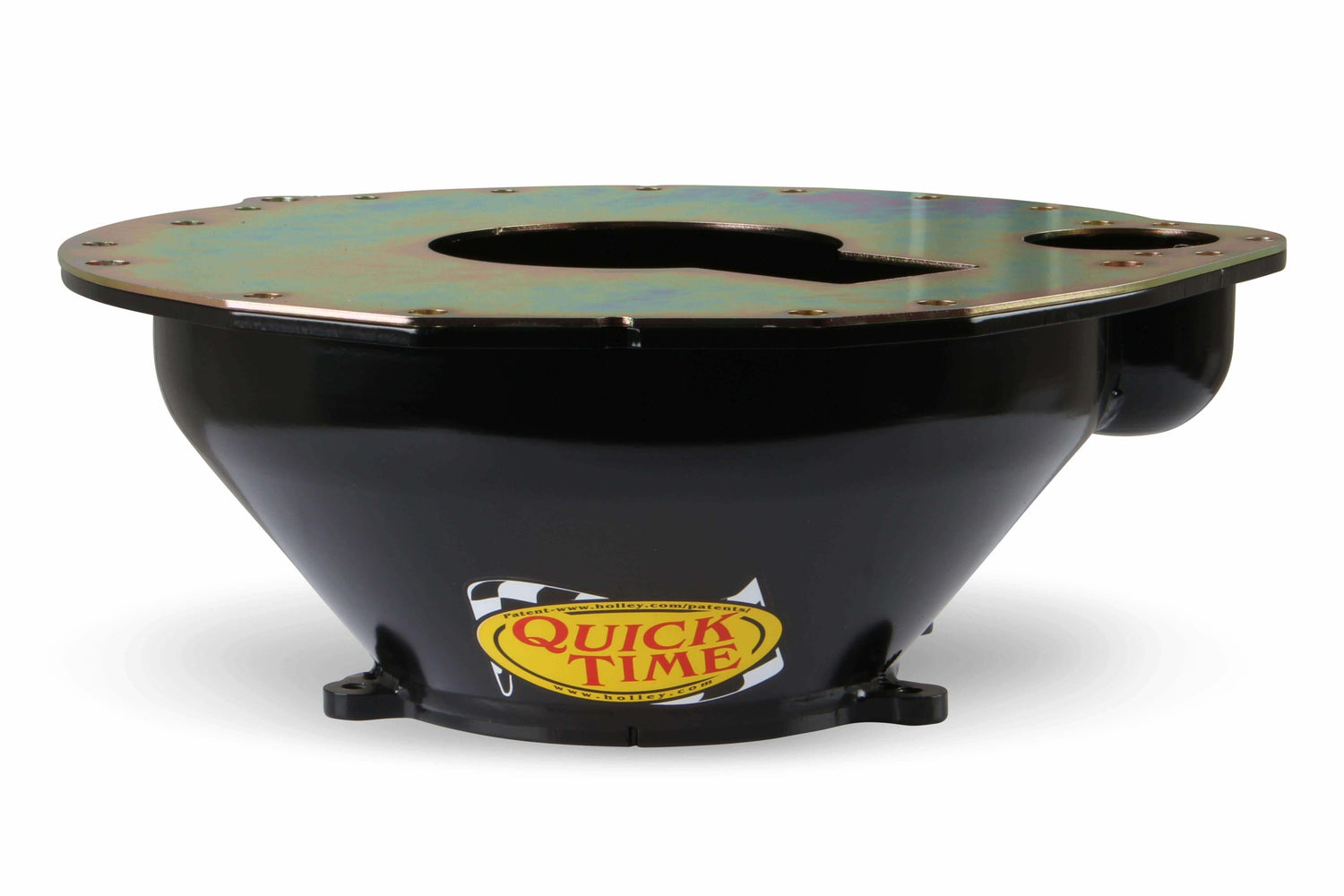

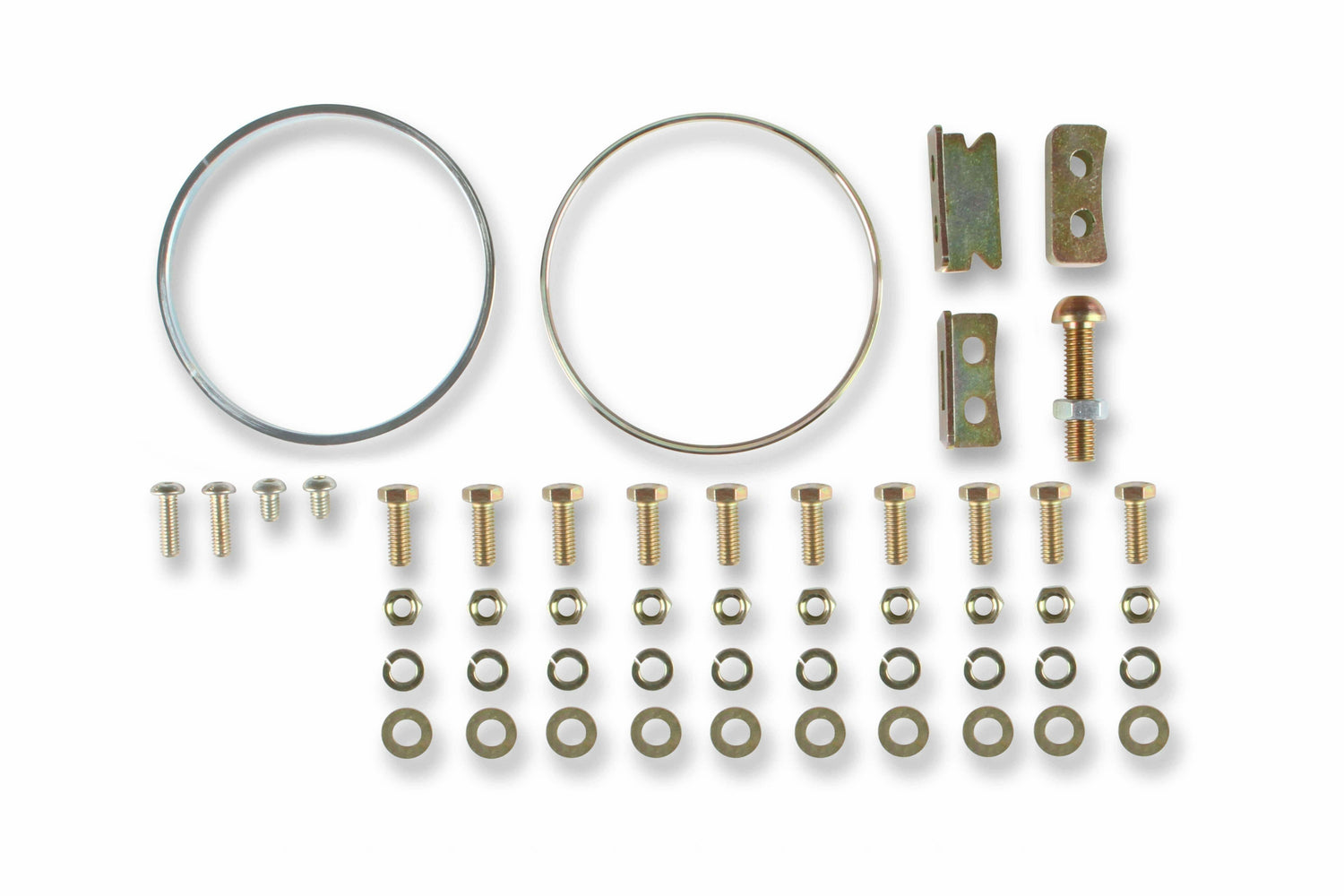

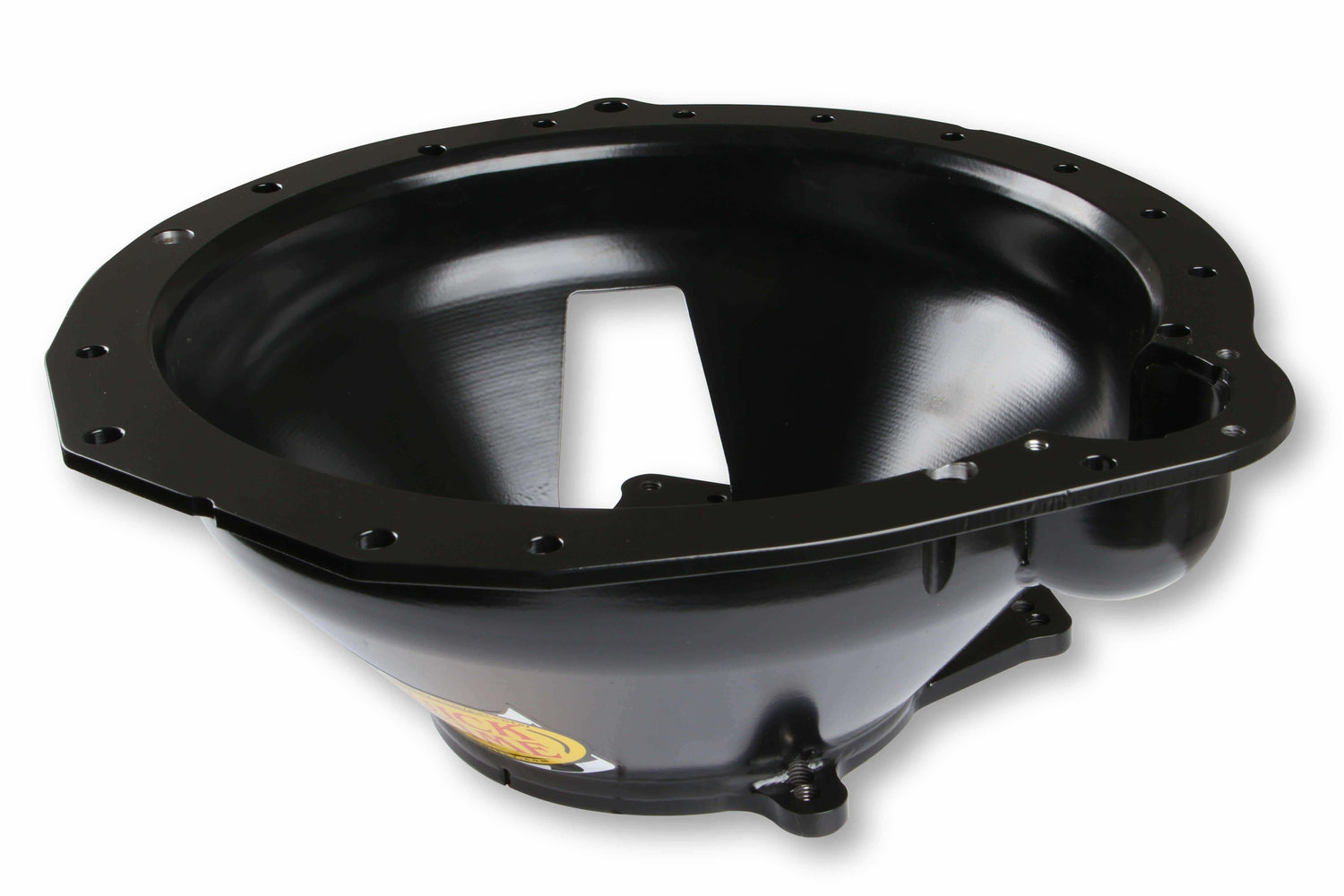

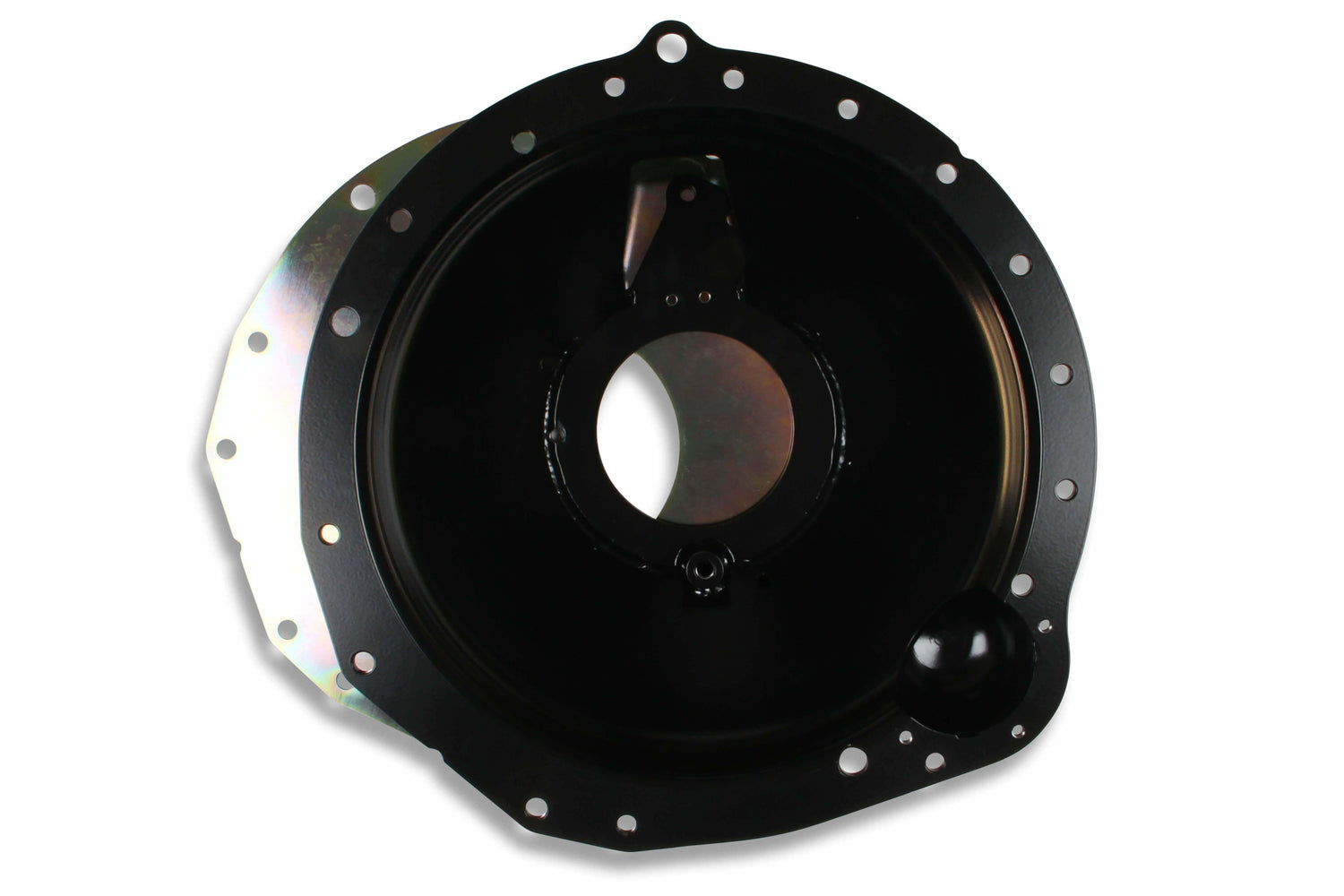

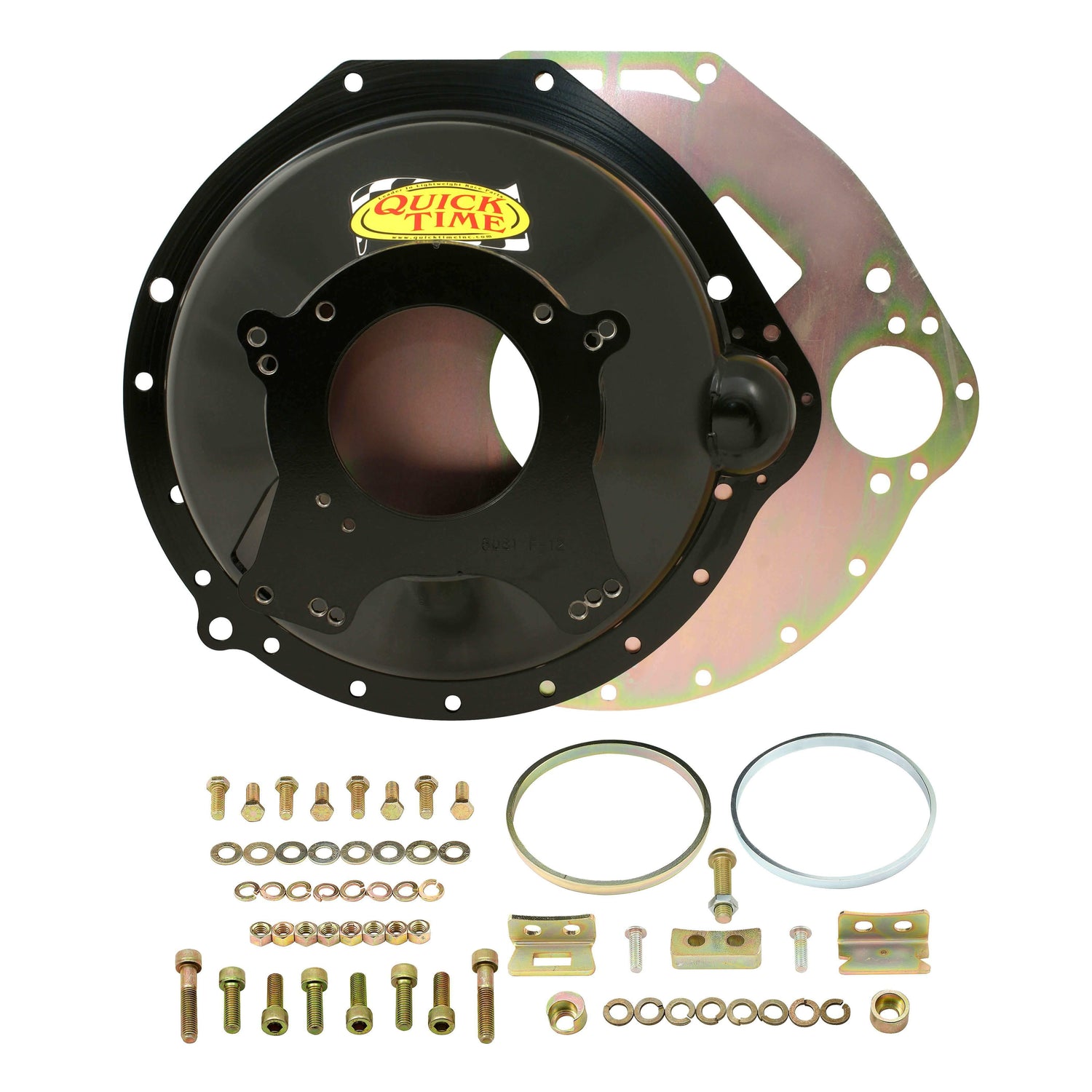

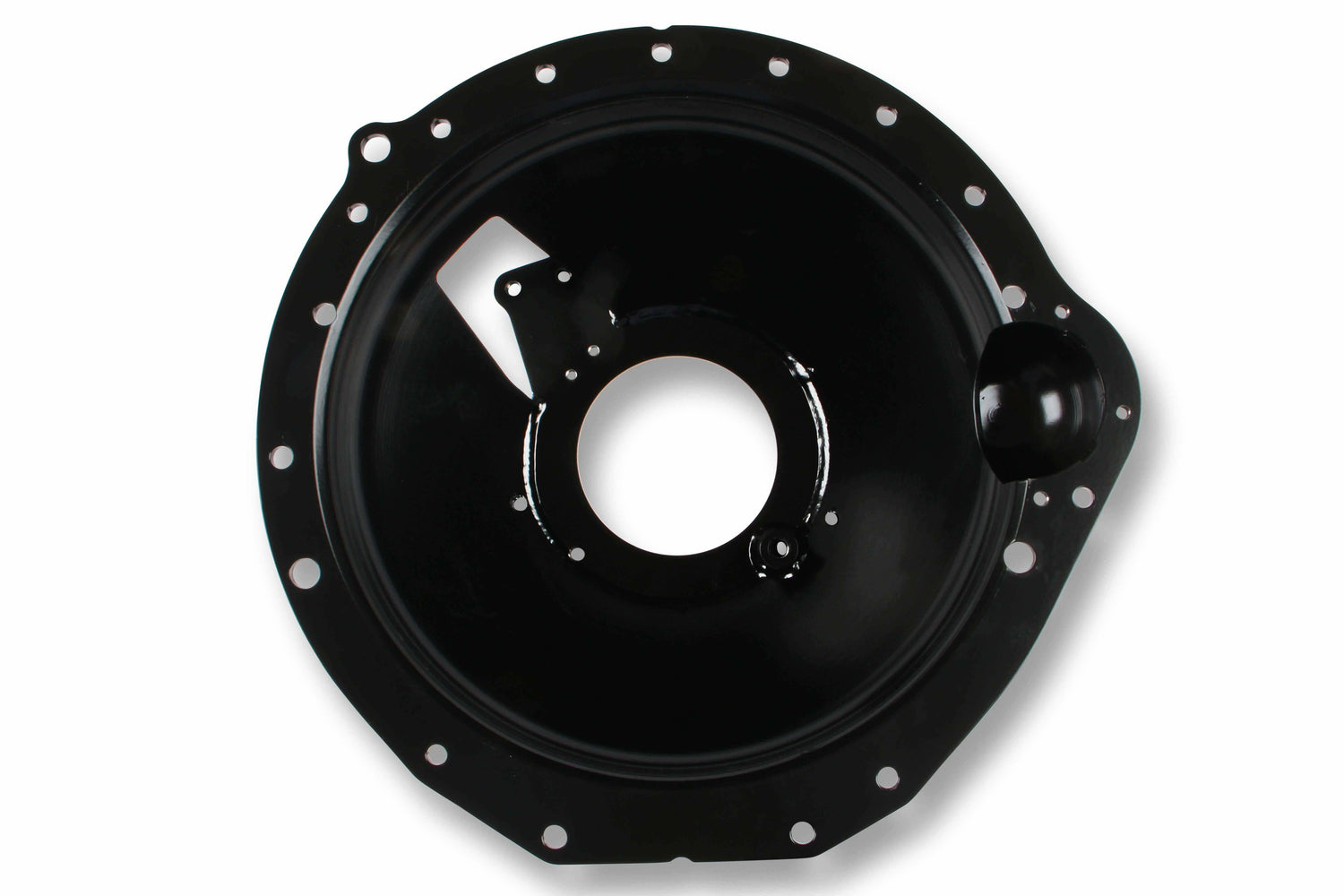

This S.F.I. 6.1 Bellhousing is designed for circle track, strip or street application. This bellhousing fits 4.6/5.0/5.4/5.8/6.2L Ford Modular Engines to Tremec transmission. Built from high grade steel, the cone is spun not stamped or rolled making this bellhousing the most dimensionally stable and accurate on the market today. This 6.925 in deep bellhousing will clear a 157 or 164 tooth flywheel and 11 in clutch assembly. Transmission bore is universal at 4.685 - 4.910 in. Kit complete with pivot ball, block plate and Grade 8 hardware.
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes

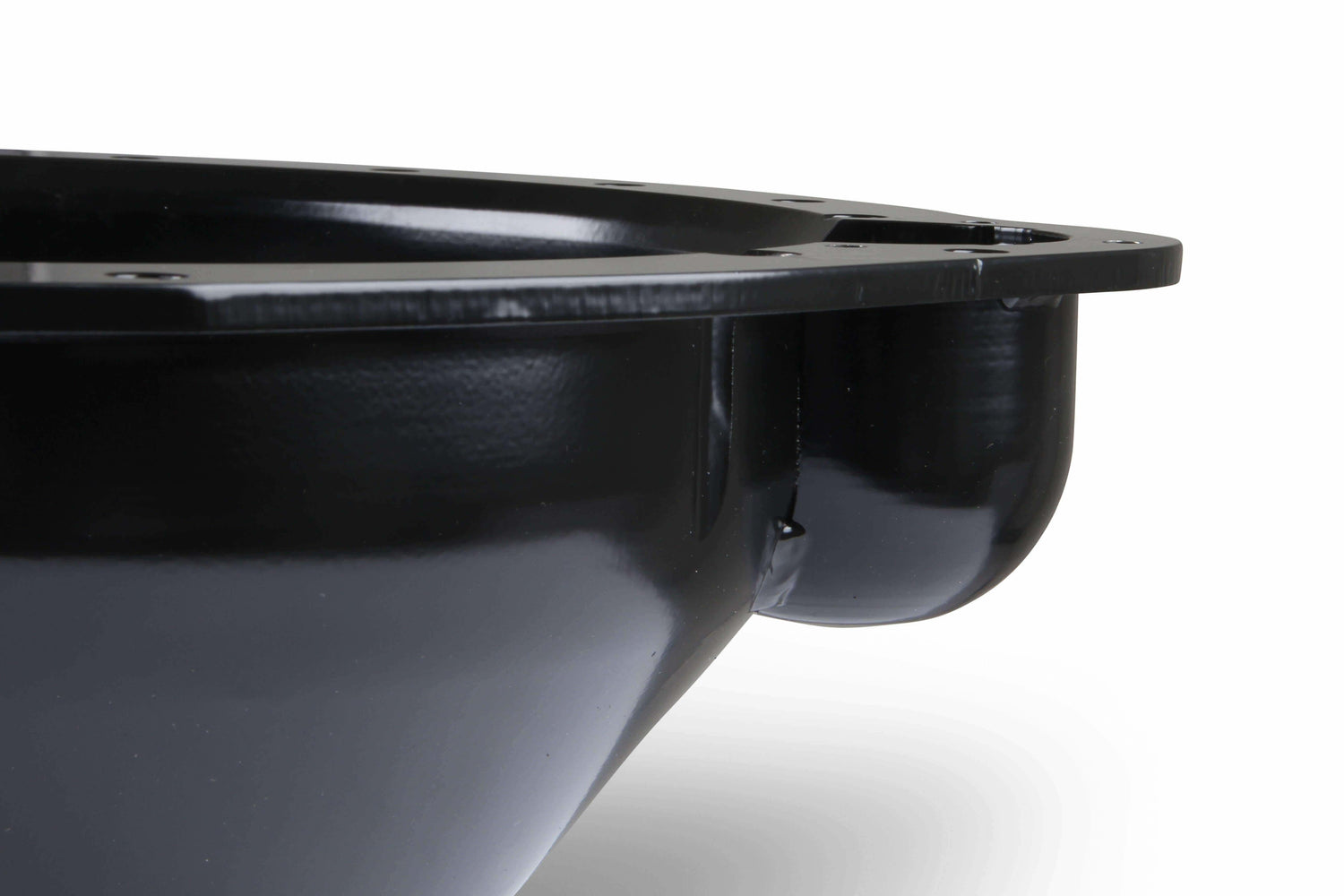

- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Quick Time |
|---|---|
| Certification | 6.1 SFI |
| Clutch Operation | Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | Ford 4.6 Modular |
| Engine | Ford 5.4 Modular |
| Engine | Ford 5.8 Modular |
| Engine | Ford 6.2 Modular |
| Engine | Ford Modular V8 |
| Engine Make | Ford |

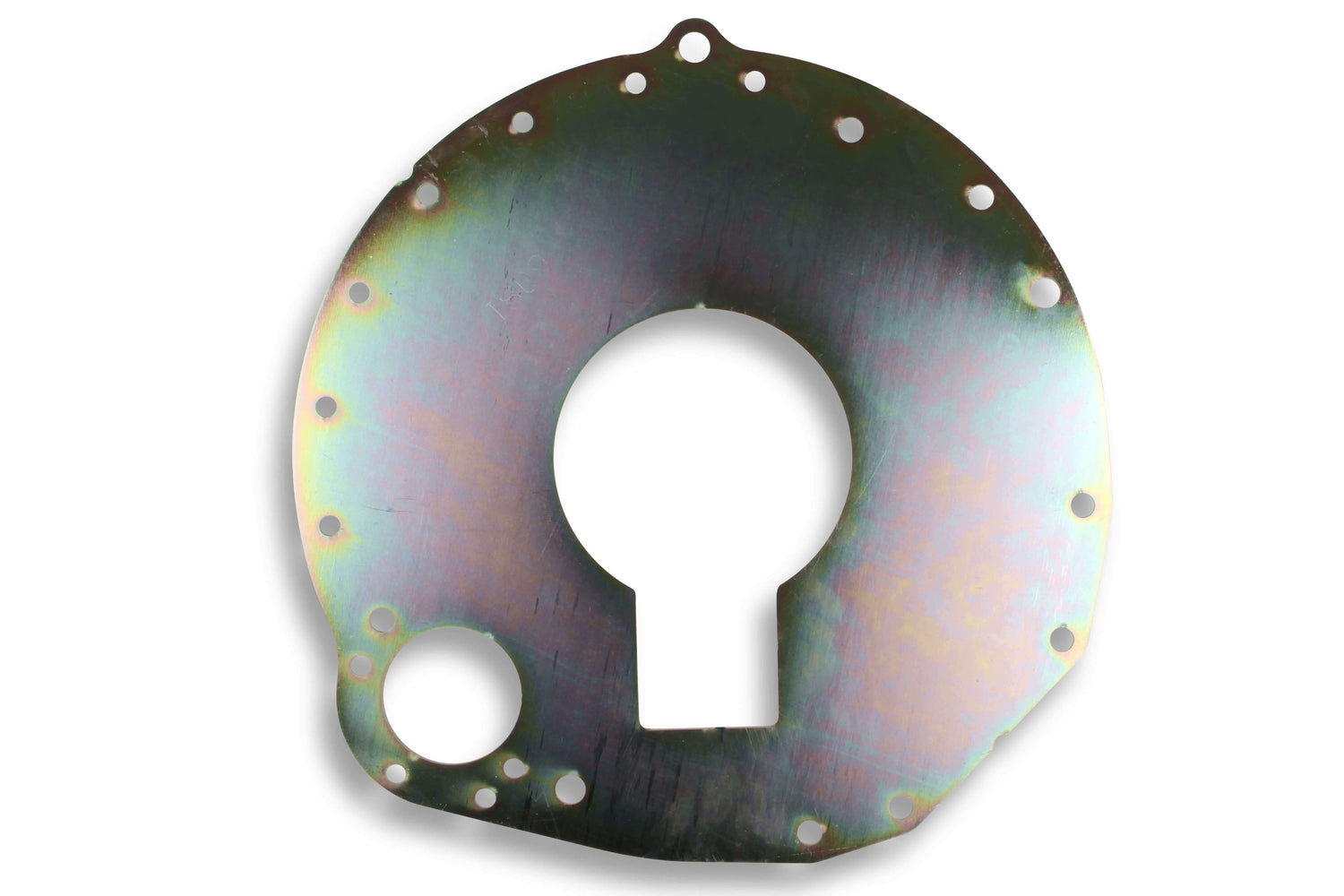

| Engine Plate | RM-6081-C |
| Finish | Semi-gloss |
| Flywheel | 157/164 Tooth |
| Height | 6.925 inch |
| Make | Ford |
| Material | Steel |
| Product Type | Bellhousing |
| SFI Approved | Yes |
| SFI Certification | 6.1 |
| Trans Bore | 4.85 / 4.91 / 5.12 |
| Transmission | T5 Mustang |
| Transmission | TKO 500/600 Ford |
| Transmission | TKX |
| Transmission | TR3550 |
| Transmission Type | Manual |
| Warranty | Limited 90 Day Warranty |
| Weight | 22# |
