REGULATOR/DAMPER, STANDARD RANGE 40-70PSI 12-1000
REGULATOR/DAMPER, STANDARD RANGE 40-70PSI 12-1000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

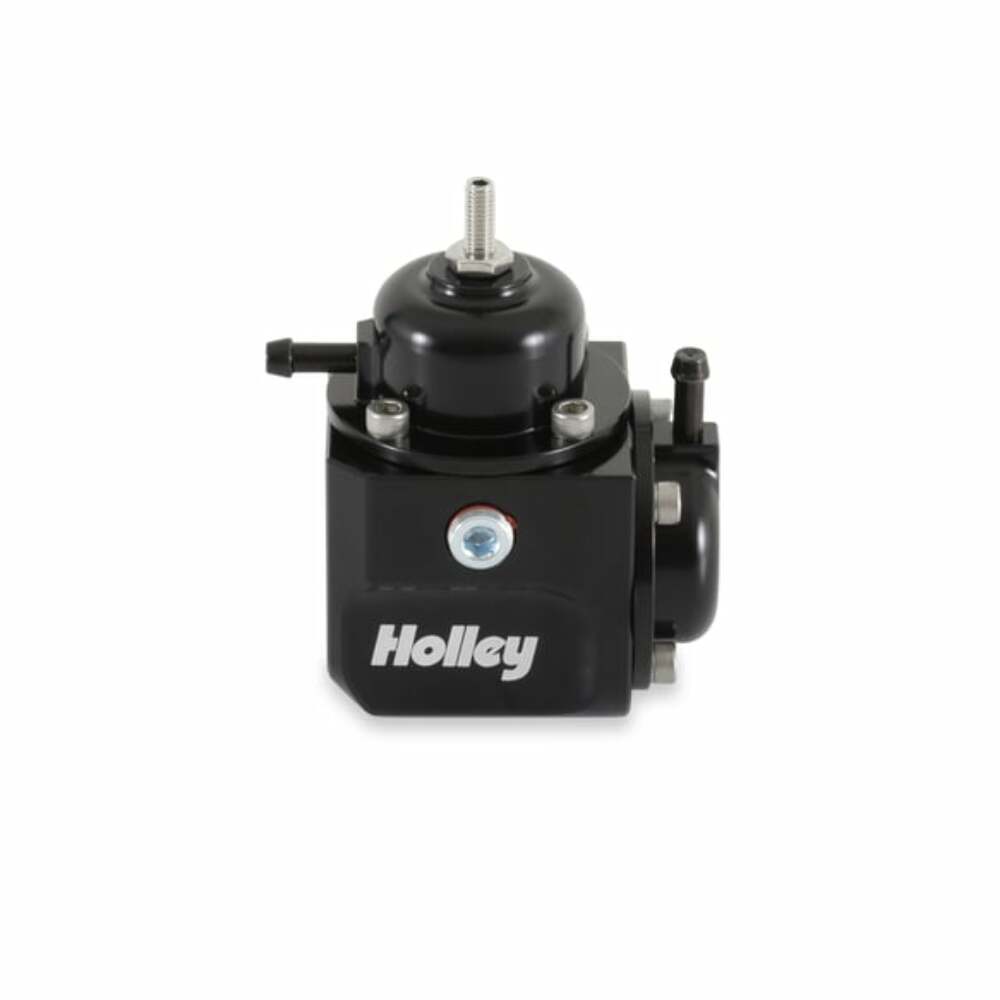

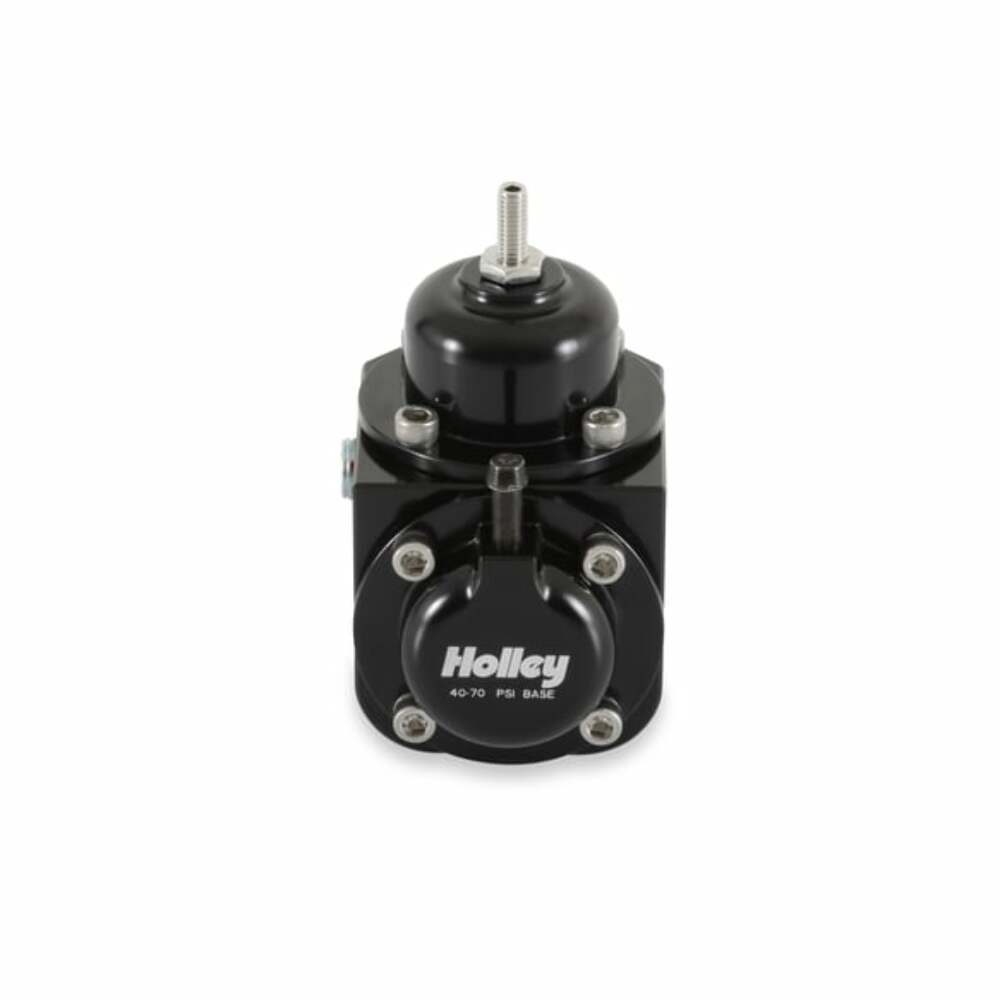

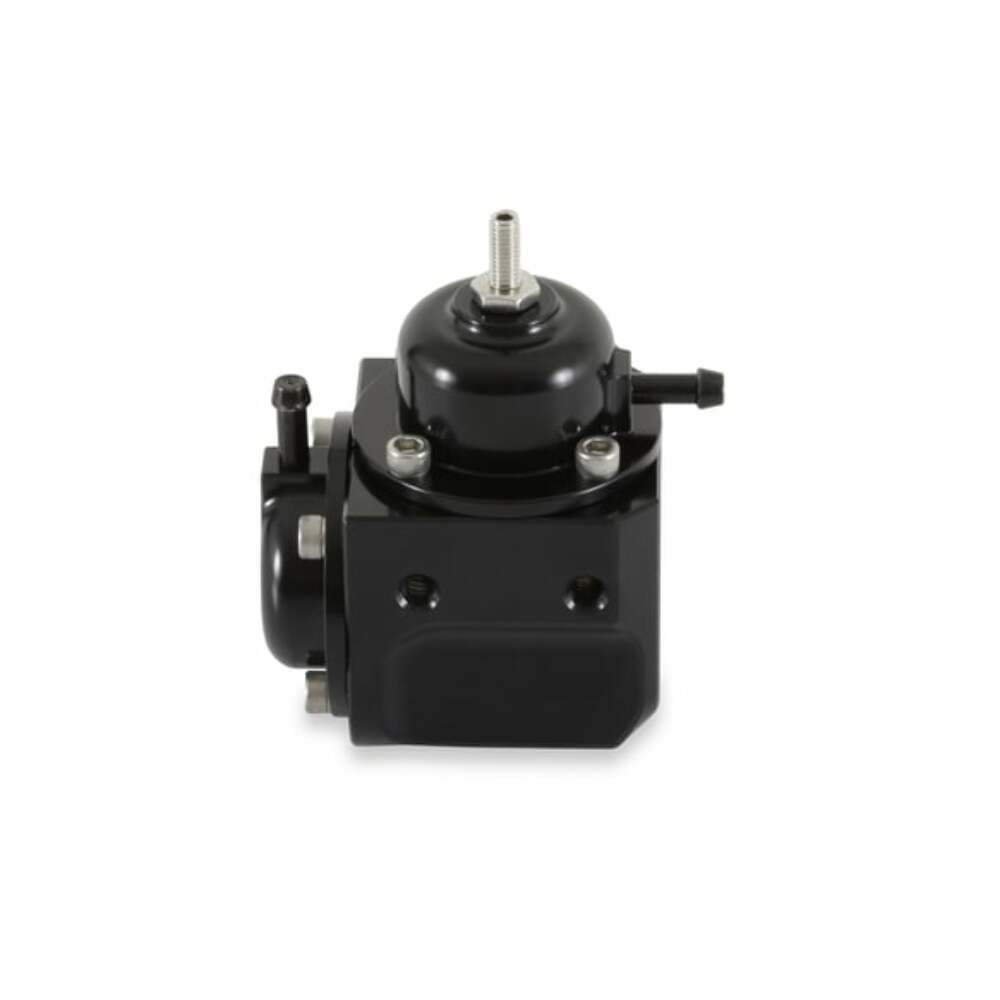

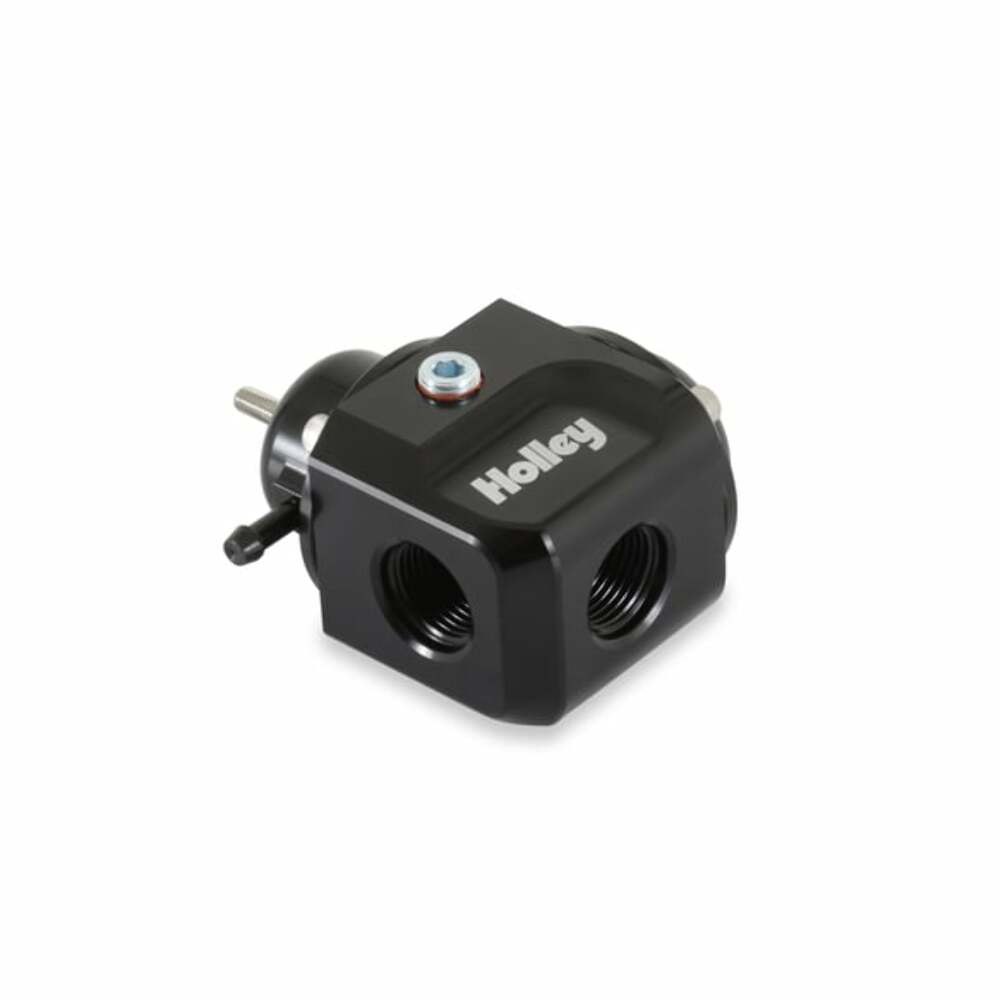

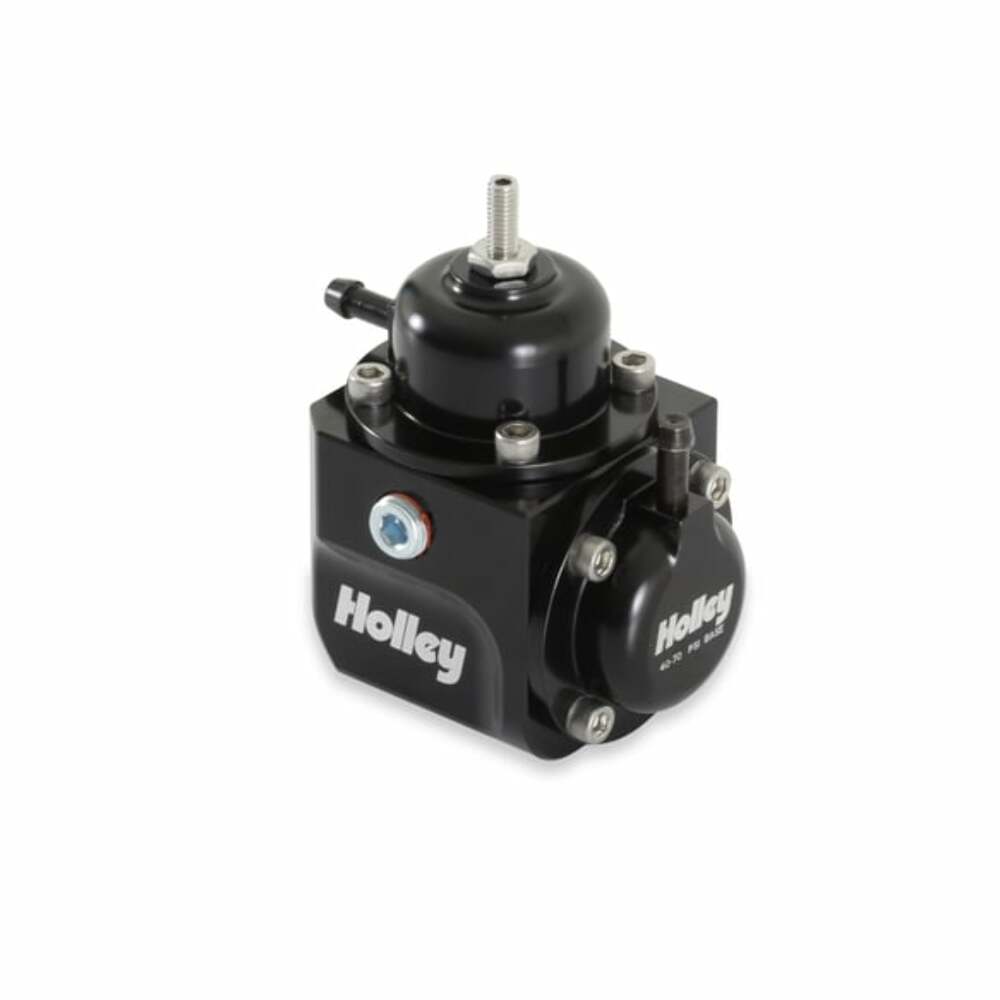

REGULATOR/DAMPER, STANDARD RANGE 40-70PSI
Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine.
Features:
- Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps
- Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm

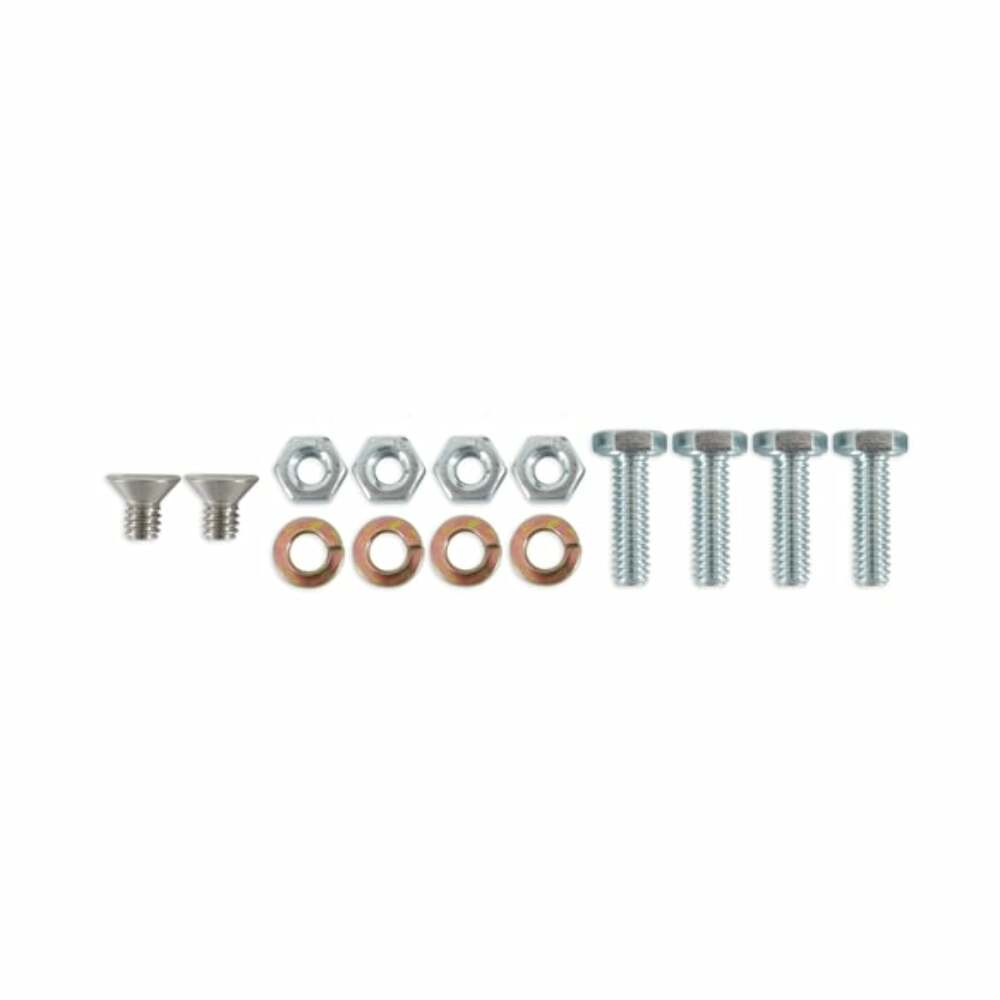

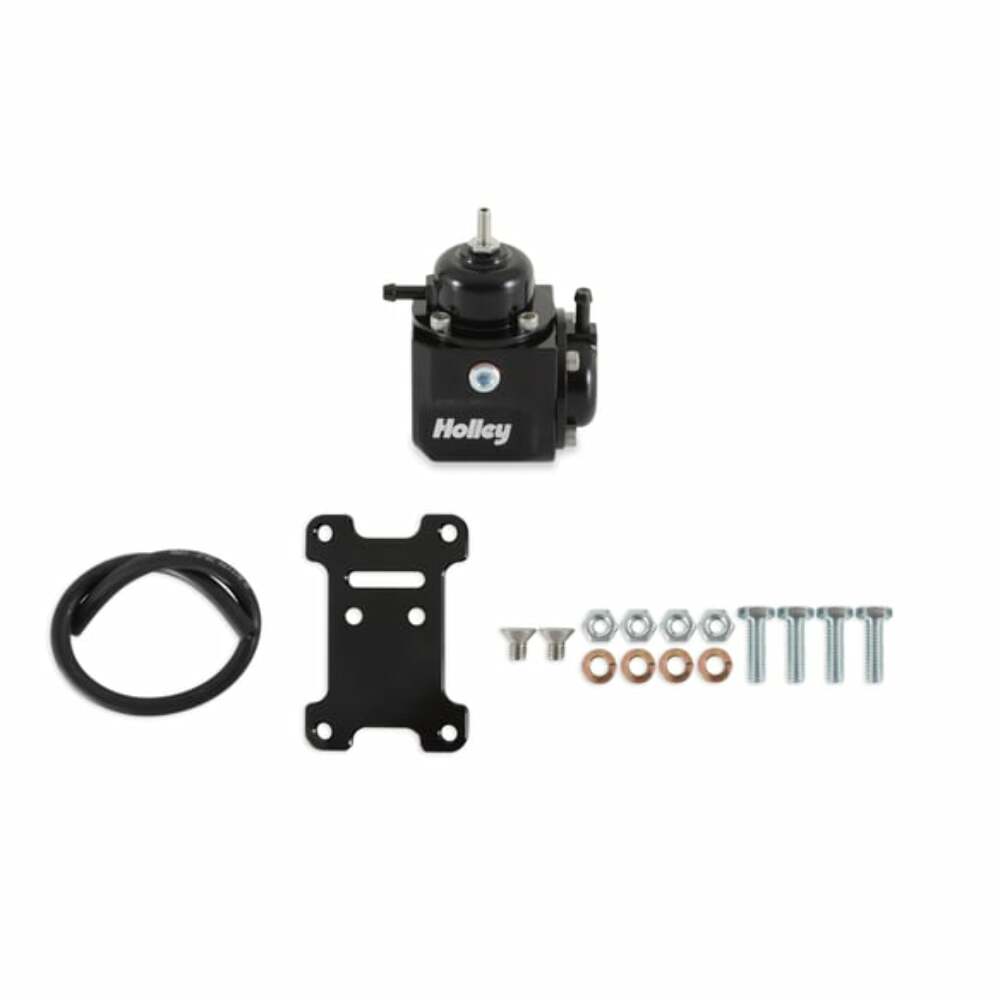

- Fittings included for damper/regulator?s and direct mount dampers
- 1/8" NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer

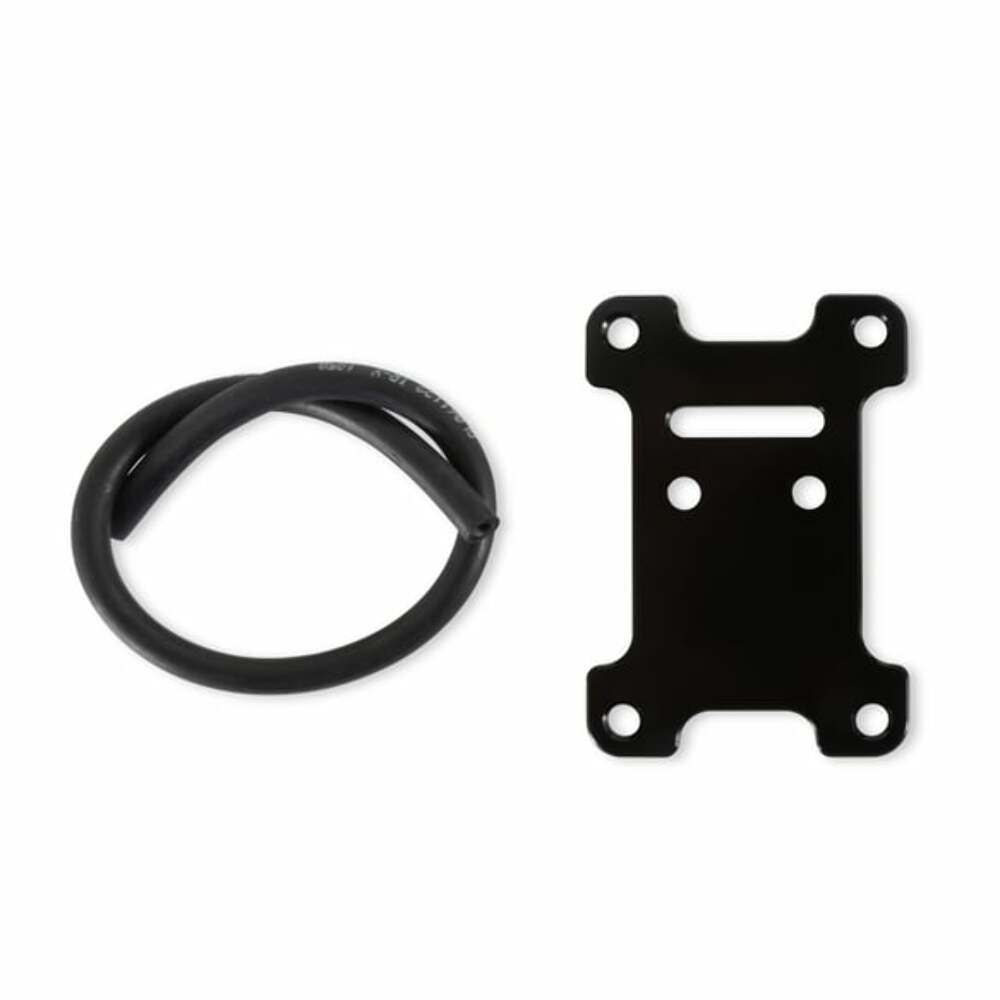

- Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
- Assembled and tested in the USA
Specs:
| Adjustable | Yes |
|---|---|
| Brand | Holley |
| Emission Code | 3 |
| Finish | Anodized Black |
| Fuel Type | Gasoline / Ethanol / Methanol / E85 |
| Gauge Included | No |
| Gauge Port Included | Yes |
| Grade Type | Performance |
| Inlet / Outlet Size | 3/4-16 Female O-Ring (AN 8) |
| Inlet Gender | Female |
| Inlet Port Diameter | 8 AN ORB |
| Inlet Port Quantity | 1 |
| Inlet Type | 8 AN ORB |
| Maximum Pressure | 70Pounds per Square Inch |
| Minimum Pressure | 40Pounds per Square Inch |
| Mounting Bracket Included | Yes |
| Mounting Type | Inline |
| Outlet Gender | Female |
| Outlet Port Diameter | 8 AN ORB |
| Outlet Port Quantity | 1 |
| Outlet Type | 8 AN ORB |
| Port Quantity | 2 |
| Pressure Range | 40-70 PSI |
| Product Type | Fuel Pressure Regulator/ Damper |
| Rebuildable | Yes |
| Style | Billet Aluminum |
| Vacuum Port Quantity | 2 |
| Warranty | Limited 90 Day |
