Tall LS Valve Cover Bolt Assembly - 8 Pack - 561-134
Tall LS Valve Cover Bolt Assembly - 8 Pack - 561-134 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

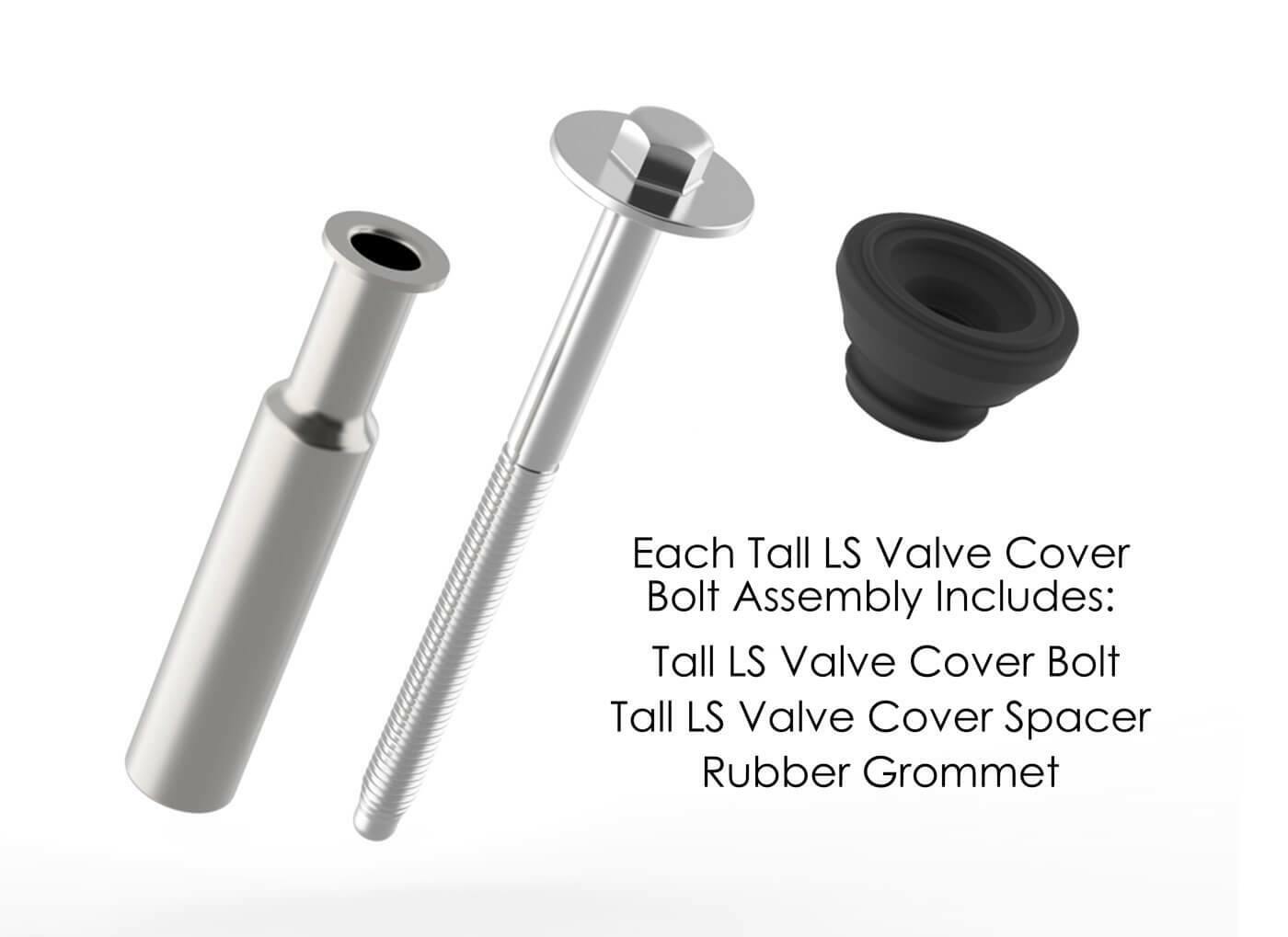

These hardware assemblies were developed specifically for Holley Tall LS valve covers and are available as a single service component or a full set of 8. Each assembly features a polished Holley Tall LS valve cover bolt (M6 x 1.0 threads), an aluminum spacer, and an OE style LS valve cover grommet.
Features:
- Replacement for Holley Tall LS Valve Cover extended length hardware assemblies only
- Torque mounting bolts to 106 in/lb (9 ft/lb)
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1997 - 2004 | Chevrolet | Corvette | 350/5.7L V8 | |
| 2006 - 2013 | Chevrolet | Corvette | 427/7L V8 | |
| 2008 - 2013 | Chevrolet | Corvette | 376/6.2L V8 | |
| 2010 - 2015 | Chevrolet | Camaro | 376/6.2L V8 | |
| 1998 - 2002 | Chevrolet | Camaro | 350/5.7L V8 | |
| 1998 - 2002 | Pontiac | Firebird | 350/5.7L V8 | |
| 2005 - 2008 | Pontiac | Grand Prix | 325/5.3L V8 | |
| 2006 - 2009 | Chevrolet | Impala | 325/5.3L V8 | |
| 2006 - 2009 | Chevrolet | Trailblazer | 364/6L V8 | |
| 2014 - 2017 | Chevrolet | SS | 376/6.2L V8 | |
| 2006 - 2007 | Chevrolet | Monte Carlo | 325/5.3L V8 | |
| 2008 - 2009 | Buick | LaCrosse | 325/5.3L V8 | |
| 2008 - 2009 | Buick | Allure | 325/5.3L V8 | |
| 2004 - 2005 | Cadillac | CTS | 346/5.7L V8 | |
| 2005 - 2006 | Chevrolet | SSR | 364/6L V8 | |
| 2014 - 2015 | Chevrolet | Camaro | 427/7L V8 | |
| 2004 | Pontiac | GTO | 350/5.7L V8 | |
| 2005 | Chevrolet | Corvette | 364/6L V8 | |
| 2009 | Pontiac | G8 | 376/6.2L V8 |
Specs:
| Application | Holley Tall LS Valve Covers |
|---|---|
| Brand | Holley |
| Coil Mounting Studs | n/a |
| Emission Code | 5 |
| Finish | Polished |
| Gromment(s) Included | Yes |
| Height | Tall |
| Hex Size | 9 mm |
| Logo | None |
| Material | Mixed |
| Product Type | Valve Cover Accessories |
| Qty | 8 |
| Spacer Included | Yes |
| Style | Components |

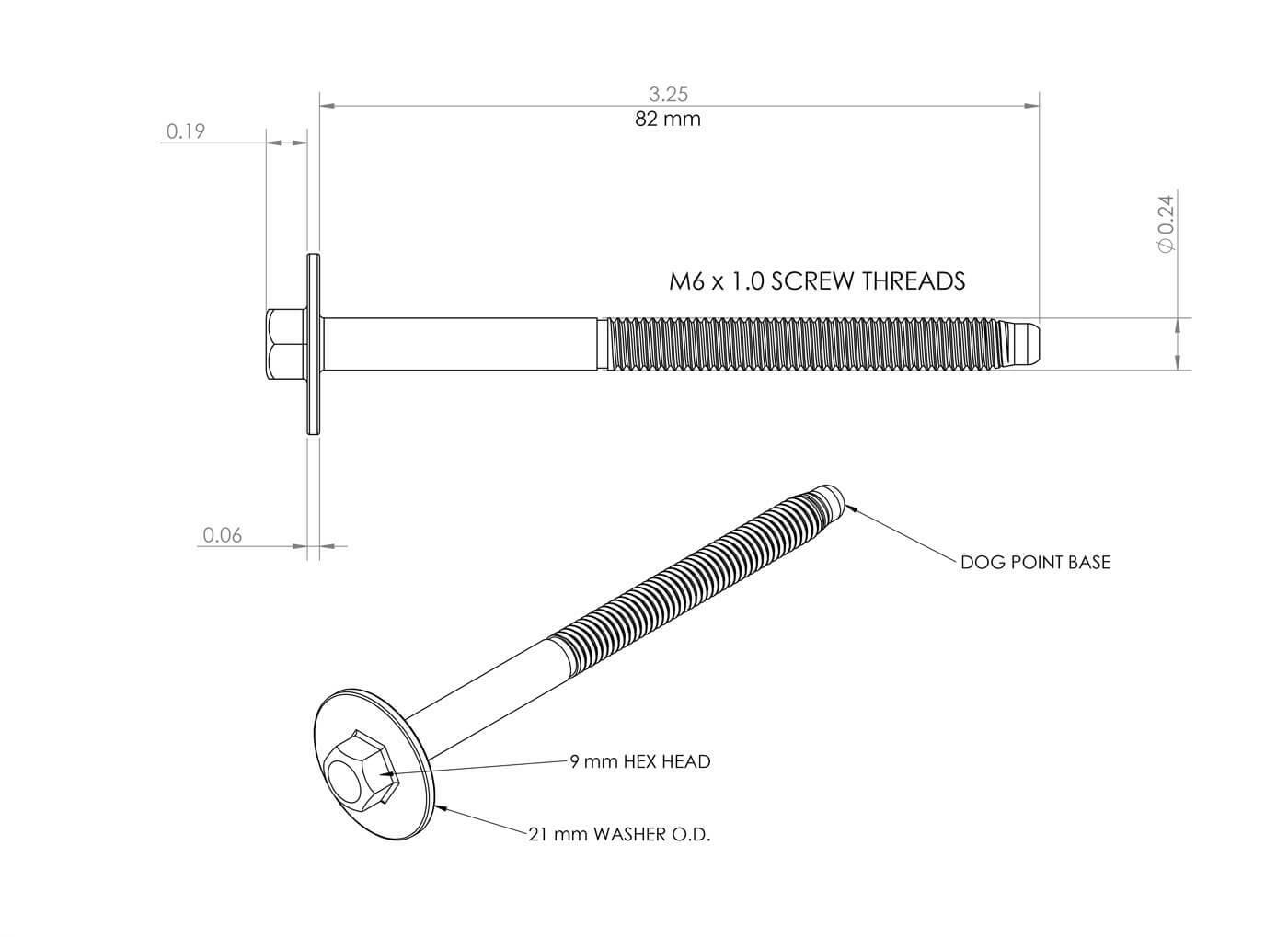

| Thread | M6 x 1.0 |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
