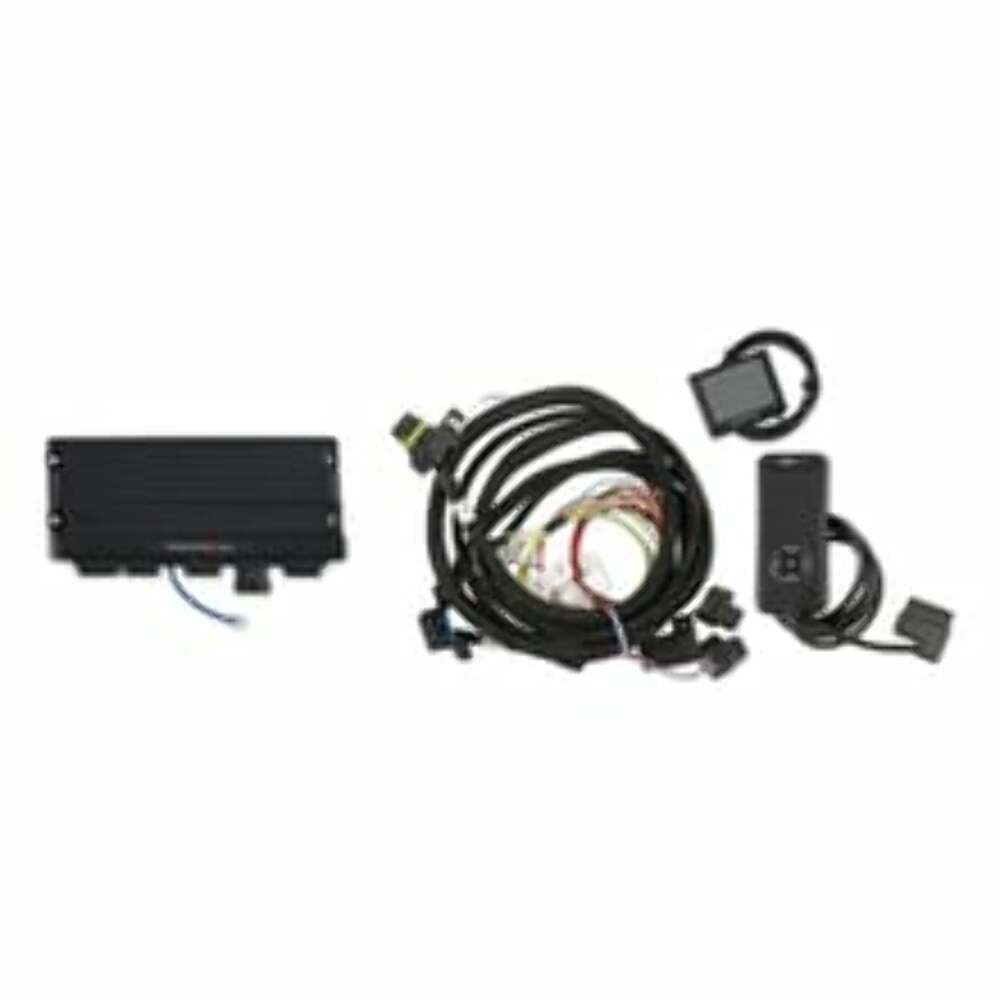

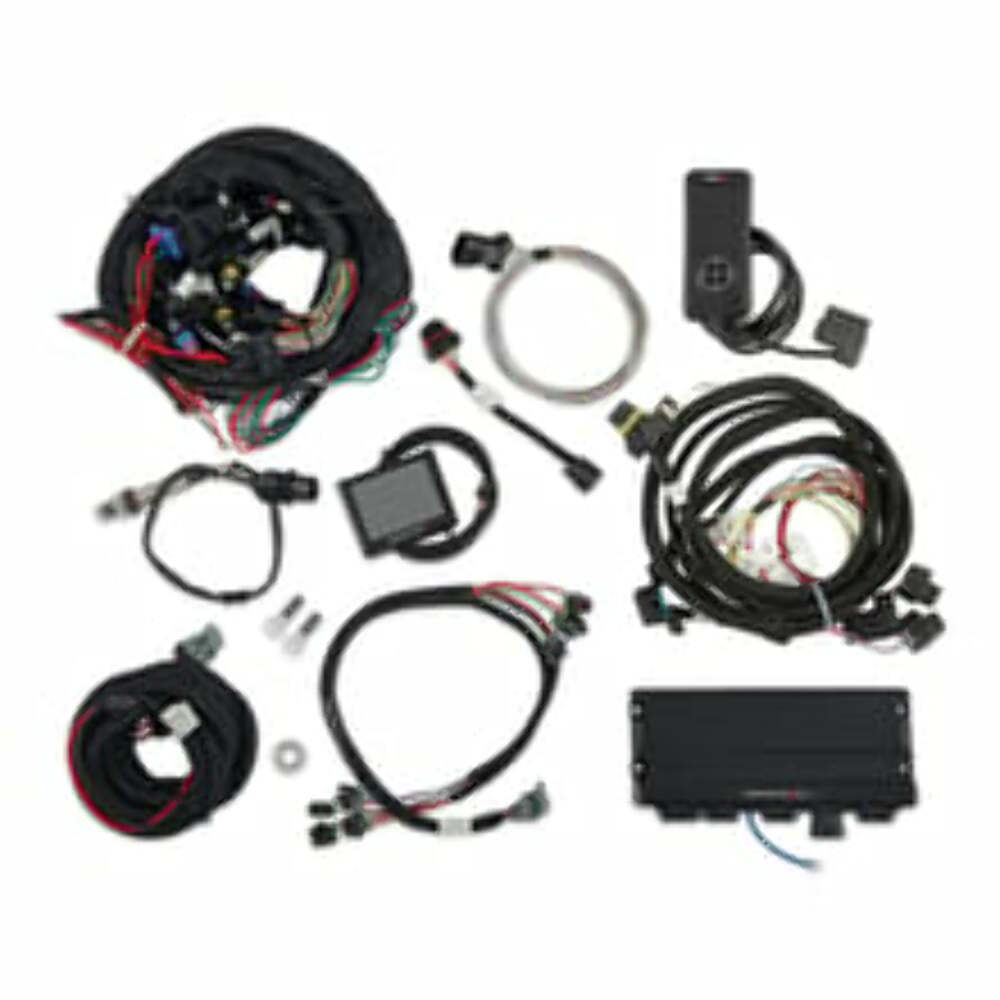

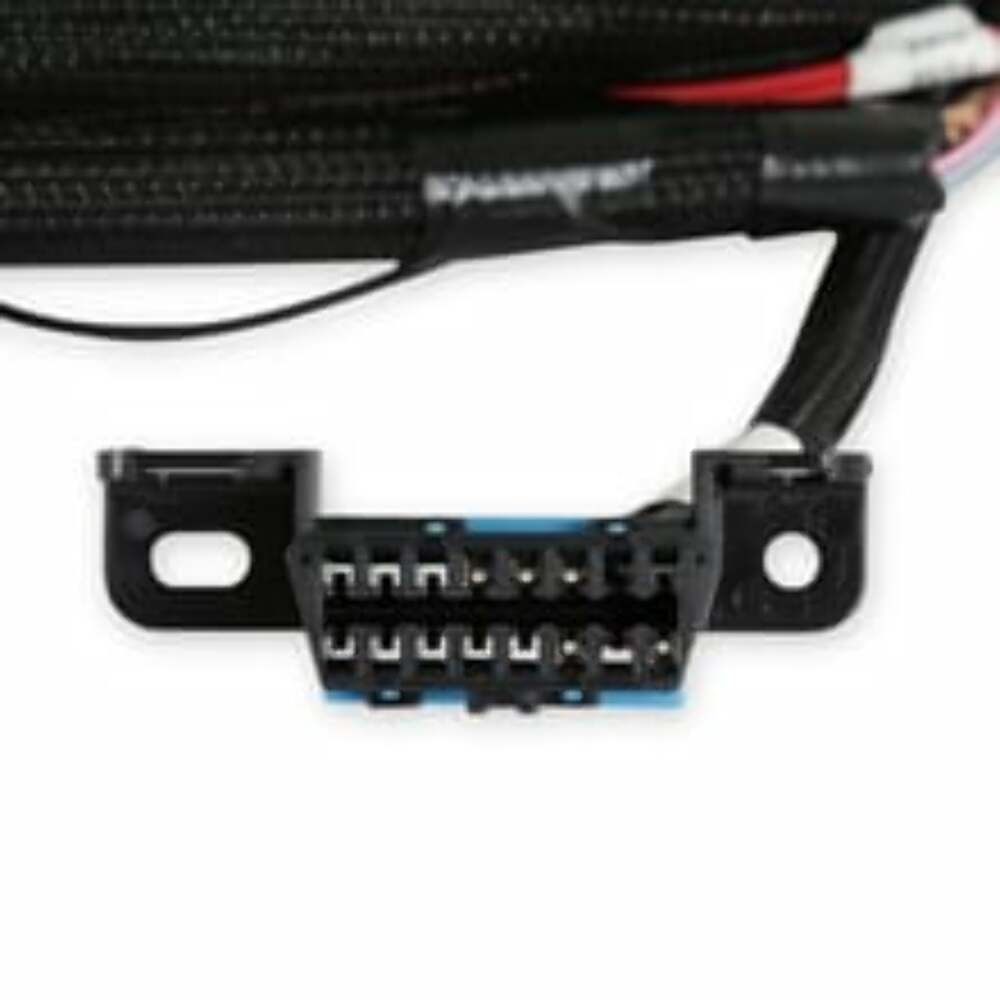

TERMINATOR X MAX 24x Early Truck with 6L80 CONTROL 550-917-6

24x Crank - 1x Cam - Multec 2 Injectors - 6L80/90 Transmission Control - 3.5-inch Touchscreen

Features:

• Included TCM handheld tuner with integrated wizard is required for setup in conjunction with the Terminator X 3.5-inch Handheld. Terminator X V3 software to unlock optional tuning parameters.1
• Supports ? Shift Mode ? Tap Up / Tap Down, and Torque Management2

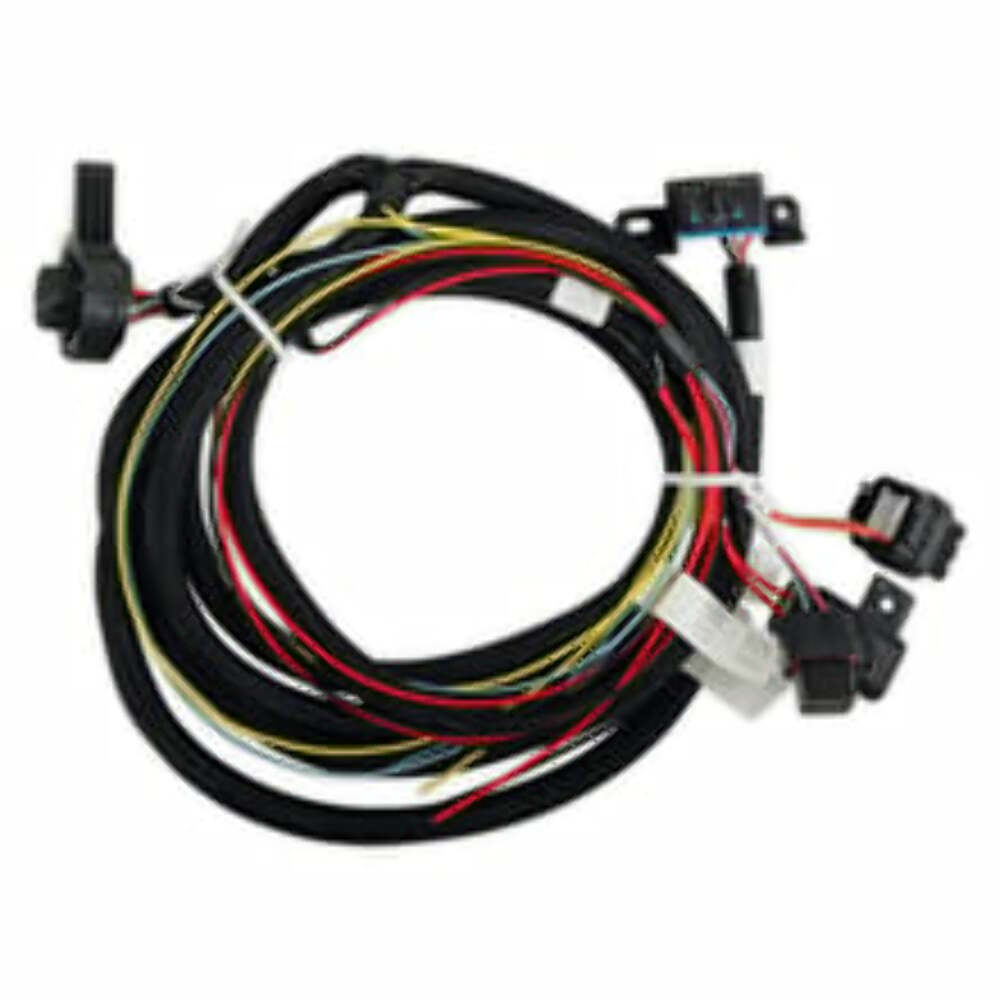

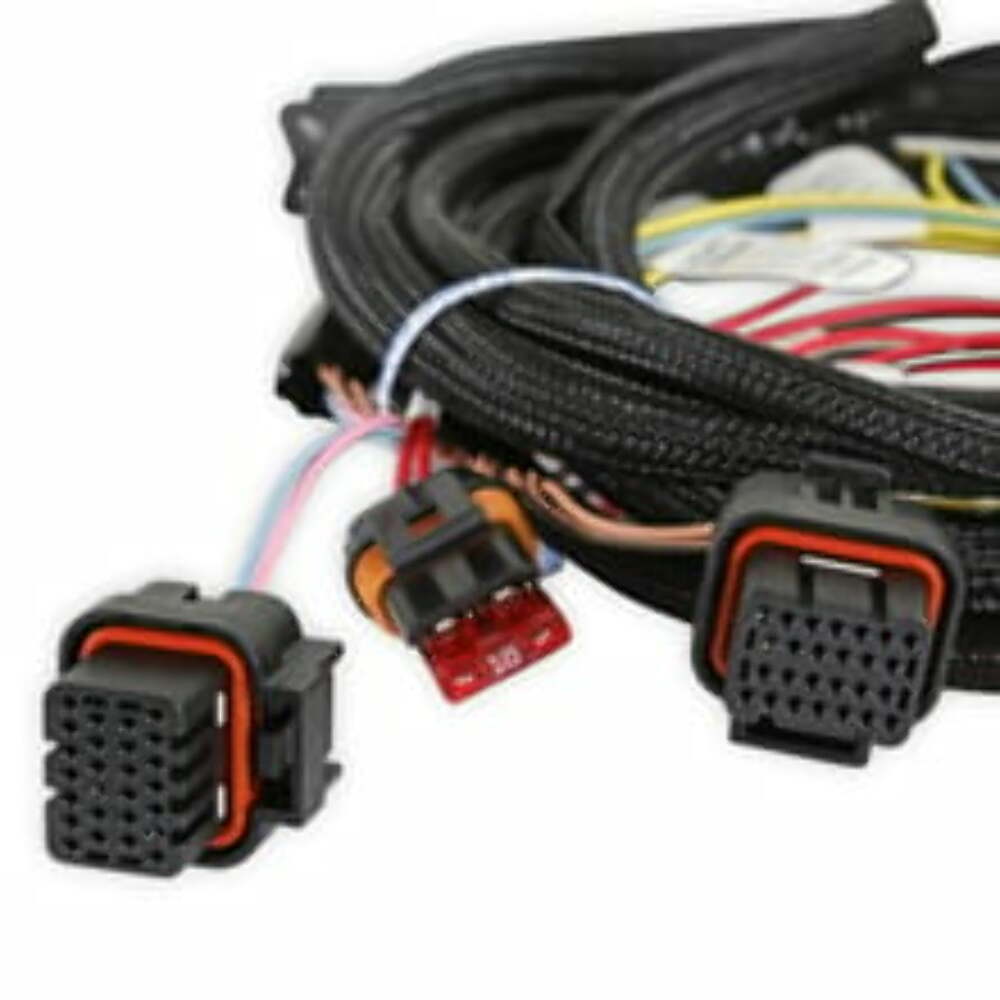

• Four loose wires:3
• o Power (Red) ? Supplies power to the transmission solenoids. This should be connected directly to the battery, or a constant battery source capable of supplying 5 amps4
• o Ground (Black) ? Connect to a good chassis/engine ground source5
• o Brake Switch (Light Blue/White) ? Wired to the brake light switch. This must be installed to a +12v source (as most brake light switches are)6
• o Park/Neutral Safety (Yellow) ? Circuit for starter solenoid. When the transmission is in Park or Neutral this Yellow Wire will be Grounded (-). When the transmission is in gear this circuit will be open.7

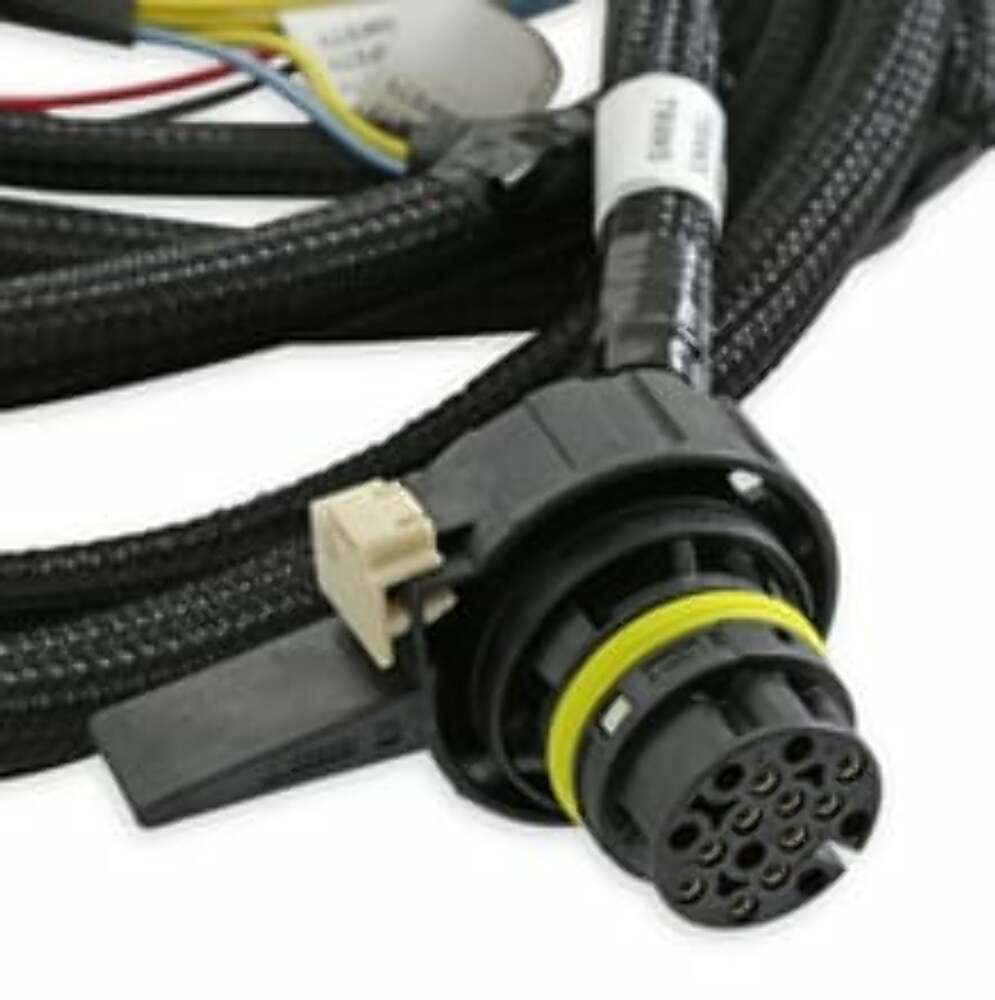

• 550-917-6 For GM LS 4.8/5.3/6.0 Truck Engines with 24x crank reluctor, 6L80/90e Transmission Control, and Multec 2 Injectors8
• Real-Time fuel map learn, takes the guess work out of tuning your base fuel table9
• High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)10
• All of the new Terminator X Max systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.11
• On-Board 1bar MAP sensor, is perfect for N/A or Nitrous engine combos. If your combination requires a 2+Bar, we recommend GM 12592525, and our adapter part number 558-416.12
• MAP Sensor vacuum hose adapters (1/8th ? ? and 3/16ths)13
• 4 Inputs ? 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake14
• 4 Outputs ? Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More15
• Boost Control ? Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties16
• Nitrous Control ? Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR17
• Advanced Tables ? 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!18
• On-Board Diagnostic LEDS for: ECU Power ? Engine Run ? Wideband Status ? TPS Calibration ? Crank Signal ?Cam Signal. Allow you to identify any Critical engine issues at a glance19
• The included 3.5-inch Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally, the handheld provides internal data-logging and a fully customizable gauge display.20

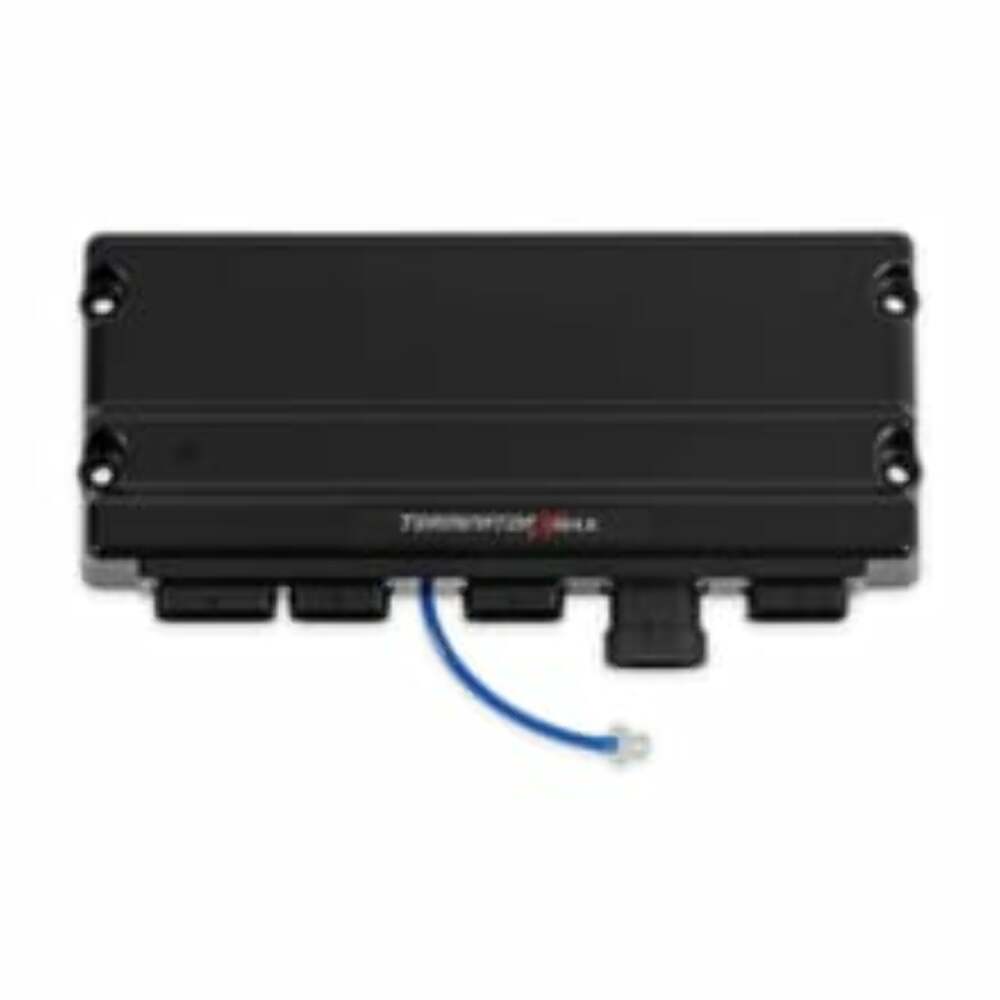

• The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!21
• Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, as well as 5, 6.86 and 12.3-inch Digital Dashes22
• Free EFI Tuning Software for complete control of your Terminator X power plant23
• Recommended Pedal part number - 1037903824
