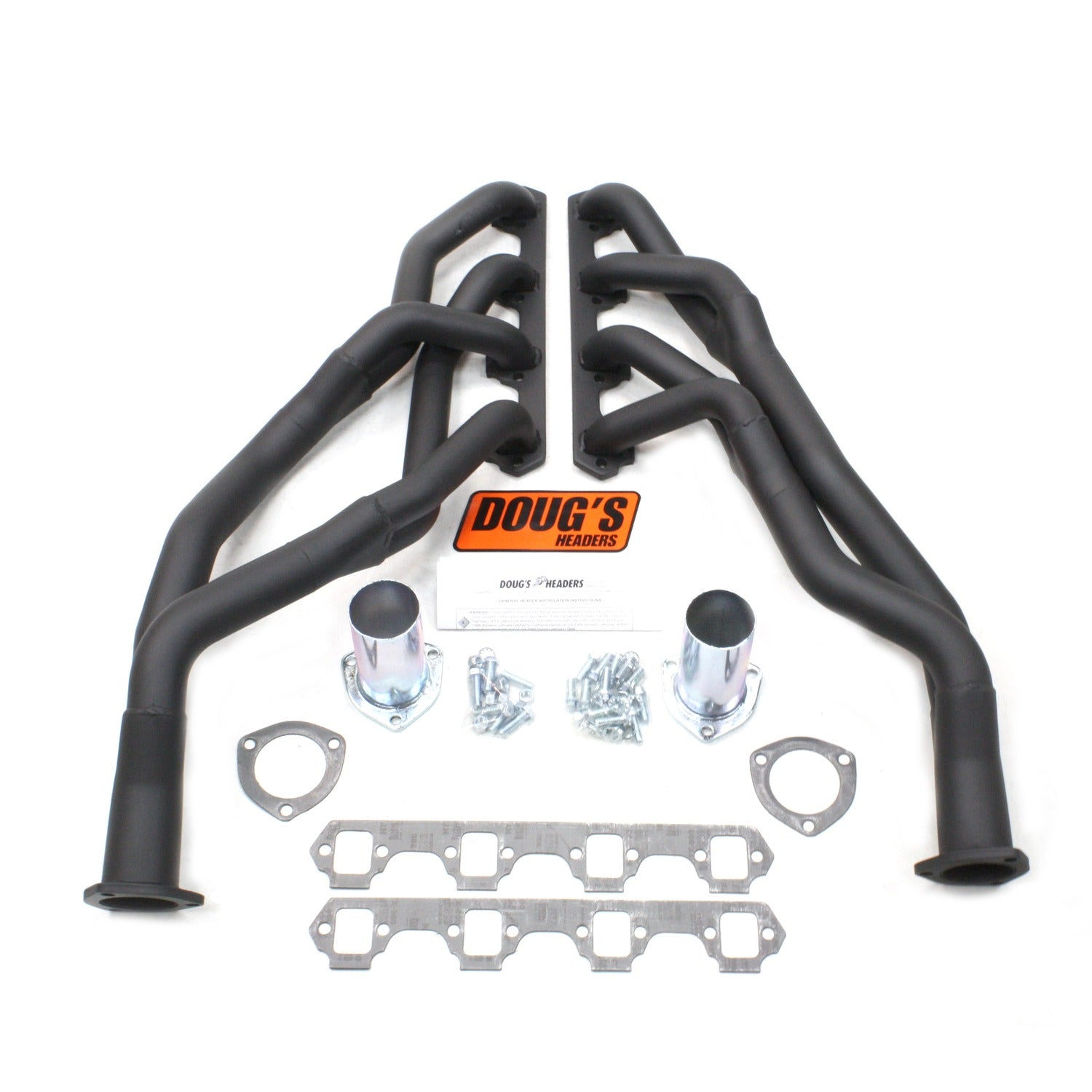

Tri-Y Headers for 60-65 Falcon 260-302 SBF Standard Trans D660YS-B
Tri-Y Headers for 60-65 Falcon 260-302 SBF Standard Trans D660YS-B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
60-65 Falcon SBF Tri Y Black Ctd
Doug's is the pioneering force behind the popular TRI-Y design for cars and trucks. The unique, shortend, paired primary tubes increase mid-range torque without sacrificing top end power. TRI-Y's are a great choice for daily drivers and heavy duty trucks looking to increase power from idle up to 4500 RPM while maintaining maximum fuel efficiency.
Features:
- 3/8" thick machined flanges to prevent warping
- CNC mandrel bent tubes ensure accurate fit and better flow
- Heavy 16-guage tubing for longer life
- Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating
Specs:
- Brand: Doug's Headers
- Collector Attachment: 3-Bolt Flange
- Collector Diameter: 2.5 IN
- Collector Port Diameter: 2.5 IN
- Color: Black
- Cylinder Head Port Shape: SAP
- Design: Tri-Y
- EGT Port: No
- Finish: Hi-Temp Black Coating
- Flange Thickness: 0.375 IN
- Gasket Or Seal Included: Yes
- Gaskets Included: Yes
- Grade Type: Performance
- Header Material: Steel
- Header Style: Tri-Y
- Material: Steel
- Mounting Hardware Included: Yes
- Oxygen Sensor Port: No
- Port Shape: SAP
- Primary Tube Outside Diameter: 1.625 IN
- Primary Tubing Diameter: 1.625 IN
- Prop 65 (C, R or CR): CR
- Prop 65 Yes/No: Yes
- Sheen Level: Matte
- Title: Doug's Tri Y Header 60-65 Falcon 260-302 SBF Standard Trans 1 5/8-2" Primary 2 1/2" Collector Black Hi Temp Coated D660YS-B
- Tube Wall Thickness: 16 GU
- Part Number: D660YS-B
Applications:
- 1962-1965 Ford Falcon 260 CID
- 1962-1963 Ford Falcon 221 CID
- 1964-1965 Ford Falcon 289 CID
- 1962-1964 Ford Ranchero 260 CID
- 1965-1965 Ford Ranchero 289 CID
- 1962-1965 Mercury Comet 260 CID
- 1962-1963 Mercury Comet 221 CID
- 1964-1965 Mercury Comet 289 CID
Emissions:
- This product is Legal for use on Pre-Pollution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows
- 1965 and Older US Manufactured California Certified Vehicles
- 1967 and Older US Manufactured Federally Certified Vehicles
- 1967 and Older Foreign Manufactured Vehicles
Instructions:
Fitment Notes:
- Vehicles with Air Injection heads will require grinding of the header flange to fit.
- Will not fit GT40 P heads.
