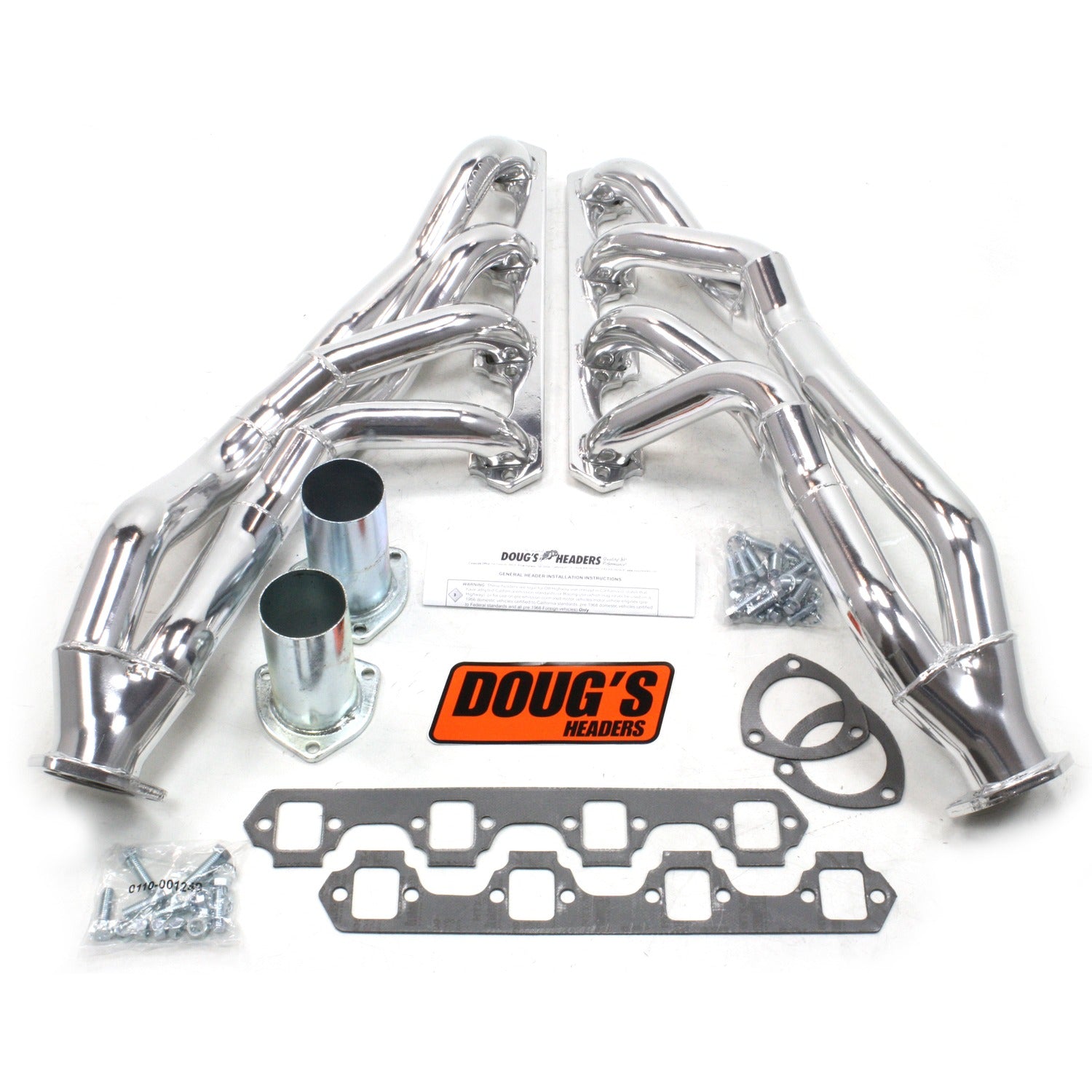

Tri-Y Headers for 65-70 Mustang 260-302 SBF W/O EGR/A.I.R. Automatic D690YA
Tri-Y Headers for 65-70 Mustang 260-302 SBF W/O EGR/A.I.R. Automatic D690YA is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
65-70 Mustang SBF Tri Y Silver Ctd
Doug's is the pioneering force behind the popular TRI-Y design for cars and trucks. The unique, shortend, paired primary tubes increase mid-range torque without sacrificing top end power. TRI-Y's are a great choice for daily drivers and heavy duty trucks looking to increase power from idle up to 4500 RPM while maintaining maximum fuel efficiency.
Features:
- 3/8" thick machined flanges to prevent warping
- CNC mandrel bent tubes ensure accurate fit and better flow
- Heavy 16-guage tubing for longer life
- Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating
Specs:
- Brand: Doug's Headers
- Collector Attachment: 3-Bolt Flange
- Collector Diameter: 2.5 IN
- Collector Port Diameter: 2.5 IN
- Cylinder Head Port Shape: SAP
- Design: Full-length
- EGT Port: No
- Finish: Metallic Ceramic Coated
- Flange Thickness: 0.375 IN
- Gasket Or Seal Included: Yes
- Gaskets Included: Yes
- Grade Type: Performance
- Header Material: Steel
- Header Style: Full-length
- Material: Steel
- Mounting Hardware Included: Yes
- Oxygen Sensor Port: No
- Port Shape: SAP
- Primary Tube Outside Diameter: 1.625 IN
- Primary Tubing Diameter: 1.625 IN
- Prop 65 (C, R or CR): CR
- Prop 65 Yes/No: Yes
- Sheen Level: Semi-Gloss
- Title: Doug's Tri Y Header 65-70 Mustang 260-302 SBF W/O EGR/A.I.R. Automatic Trans 1 5/8-2" Primary 2 1/2" Collector Silver Ceramic Coated D690YA
- Tube Wall Thickness: 16 GU
- Part Number: D690YA
Applications:
- 1964-1968 Ford Mustang 289 CID
- 1964-1965 Ford Mustang 260 CID
- 1968-1970 Ford Mustang 302 CID
- 1967-1968 Mercury Cougar 289 CID
- 1968-1970 Mercury Cougar 302 CID
Emissions:
- This Product is considered а Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufacturer's Application Guide and lnstallation Instructions.
Instructions:
Fitment Notes:
- Does not fit with C6 Transmission
- On Power Steering Cars, Installation requires power steering bracket PN H7609.
- Vehicles with Air Injection heads will require grinding of the header flange to fit.
