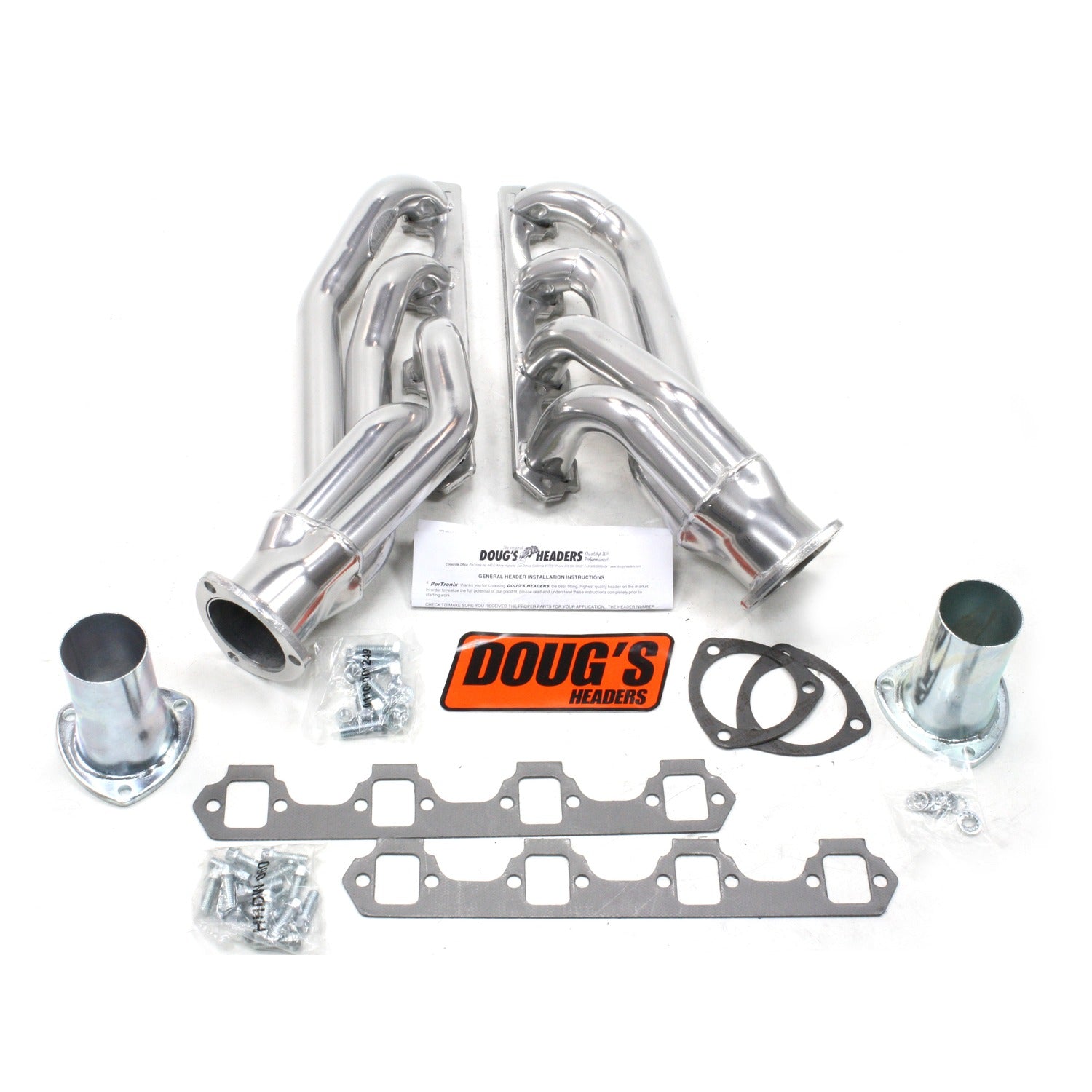

Tri-Y Headers for 65-73 Mustang 260-302 SBF 1-5/8in Primary Ceramic Coated D665
Tri-Y Headers for 65-73 Mustang 260-302 SBF 1-5/8in Primary Ceramic Coated D665 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
65-73 Mustang SBF Mid Length Silver Ctd
Mid-Length Headers, often called Clipsters, are engineered to provide superior performance gains over Manifold Replacements or Block Hugger style headers. These headers enhance your vehicles's horsepower and torque while preserving ground clearance for cars with a lowered stance and trucks where long tube headers may hang to low.
Features:
- 3/8" Thick machined flanges to prevent warping
- CNC mandrel bent tubes for ensuring accurate fit and optimal flow
- Heavy duty 16-gauge tubing for long life
- Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating
Specs:
- Brand: Doug's Headers
- Collector Attachment: 3-Bolt Flange
- Collector Diameter: 3.0 IN
- Collector Port Diameter: 3.0 IN
- Color: Silver
- Cylinder Head Port Shape: SAP
- Design: Tri-Y
- EGT Port: No
- Finish: Metallic Ceramic Coated
- Flange Thickness: 0.375 IN
- Gasket Or Seal Included: Yes
- Gaskets Included: Yes
- Grade Type: Performance
- Header Material: Steel
- Header Style: Tri-Y
- Material: Steel
- Mounting Hardware Included: Yes
- Oxygen Sensor Port: No
- Port Shape: SAP
- Primary Tube Outside Diameter: 1.625 IN
- Primary Tubing Diameter: 1.625 IN
- Prop 65 (C, R or CR): CR
- Prop 65 Yes/No: Yes
- Sheen Level: Semi-Gloss
- Title: Doug's Mid Length Header 65-73 Mustang 260-302 SBF 1 5/8" Primary 3" Collector Silver Ceramic Coated D665
- Tube Wall Thickness: 16 GU
- Part Number: D665
Applications:
- 1966-1967 Ford Fairlane 289 CID
- 1968-1970 Ford Fairlane 302 CID
- 1966-1968 Ford Falcon 289 CID
- 1968-1970 Ford Falcon 302 CID
- 1970-1977 Ford Maverick 302 CID
- 1971-1977 Ford Maverick 289 CID
- 1964-1968 Ford Mustang 289 CID
- 1964-1965 Ford Mustang 260 CID
- 1968-1973 Ford Mustang 302 CID
- 1966-1967 Ford Ranchero 289 CID
- 1968-1974 Ford Ranchero 302 CID
- 1968-1974 Ford Torino 302 CID
- 1966-1968 Mercury Comet 289 CID
- 1968-1969 Mercury Comet 302 CID
- 1967-1968 Mercury Cougar 289 CID
- 1968-1970 Mercury Cougar 302 CID
Emissions:
- This Product is considered а Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufacturer's Application Guide and lnstallation Instructions.
Instructions:
Fitment Notes:
- Will not fit GT40 P heads.
- Mustang Models Must use 66 1/2 or later motor mount frame brackets (approx. 1 in higher than 65/early 66 style)
